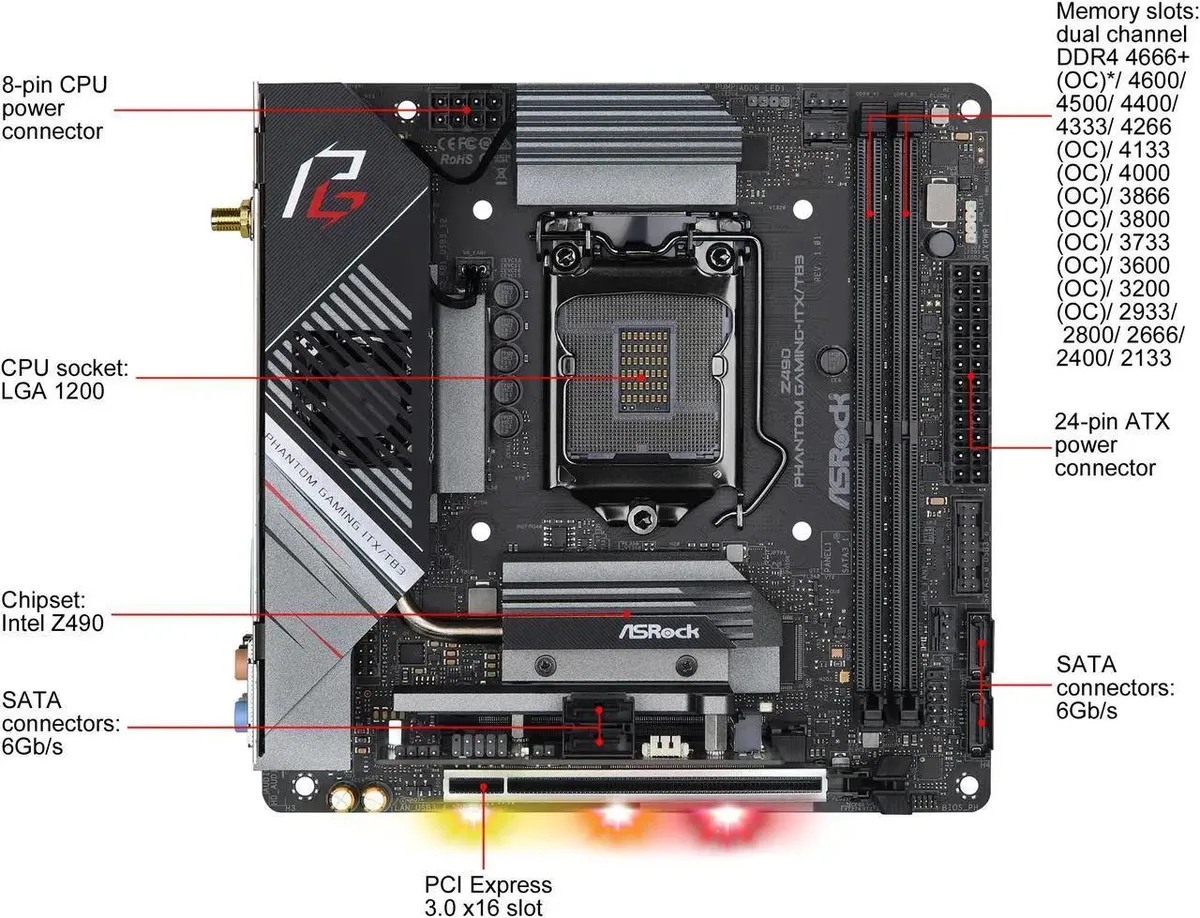

Compact Mini-ITX board with black PCB, silver heatsinks, rear I/O shield and vertical M.2 slot

ASRock

ASRock Z490 Phantom Gaming-ITX/TB3 Intel motherboard

SKU CH-KWYB-5REQ9

Mini-ITX board for 10th Gen Intel Core CPUs with dual DDR4 slots up to 64 GB, one PCIe 3.0 x16 slot, dual Ultra M.2 sockets, four SATA 6.0 Gb/s ports, 7.1-channel audio and Dragon RTL8125BG LAN

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen / future generation Intel Core Processors
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z490
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 4666 MHz OC with 64 GB maximum capacity
  • 1-channel Realtek ALC1220 audio for immersive sound
  • Dragon RTL8125BG LAN controller for high-speed wired networking
  • Two Ultra M.2 sockets plus four SATA 6.0 Gb/s ports with RAID 0/1/5/10 support

Z490 Mini-ITX Board for 10th Gen Intel

The ASRock Z490 Phantom Gaming-ITX/TB3 fits the LGA 1200 socket and the Intel Z490 chipset. It supports 10th Gen Intel Core processors and future generation CPUs on the same platform. The board uses a Mini-ITX layout with two 288-pin DDR4 slots for up to 64 GB of dual-channel memory. Onboard video output works only with a CPU that includes integrated graphics.

Compact Builders and Small-Case Owners

This motherboard suits builders who need a full Z490 feature set in a Mini-ITX footprint. It provides one PCI Express 3.0 x16 slot, four SATA 6.0 Gb/s ports and two Ultra M.2 sockets for storage flexibility. Users requiring more than two memory slots, multiple graphics cards or a larger ATX form factor should look at a different board.

LGA 1200 Socket Defines CPU Compatibility

The LGA 1200 socket is the single specification that decides whether this board fits your processor. Only Intel CPUs designed for this socket will install and operate correctly. Verify your CPU matches LGA 1200 before purchasing.

Highlights

  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • Dual-channel DDR4 memory up to 4666 MHz OC with 64 GB maximum capacity
  • 1-channel Realtek ALC1220 audio for immersive sound
  • Dragon RTL8125BG LAN controller for high-speed wired networking
  • Two Ultra M.2 sockets plus four SATA 6.0 Gb/s ports with RAID 0/1/5/10 support

Specifications

BrandASRock
ModelZ490 Phantom Gaming-ITX/TB3
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen / future generation Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z490
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 4666+(OC)* / 4600 / 4500 / 4400 / 4333 / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
* Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Supports PCIe riser cards to extend x16, x8/x8 or x8/x4/x4 slots.
* Supports NVMe SSD as boot disks.
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Serial ATA (SATA)4 x SATA 6.0Gb/s*
* If M2_1 is occupied by a SATA-type M.2 device, SATA_1 will be disabled.
M.21 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
* Supports Intel Optane Technology.
* Supports NVMe SSD as boot disks.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANIntel 802.11ax WiFi Module
IEEE 802.11a/b/g/n/ax
BluetoothBluetooth 5.1

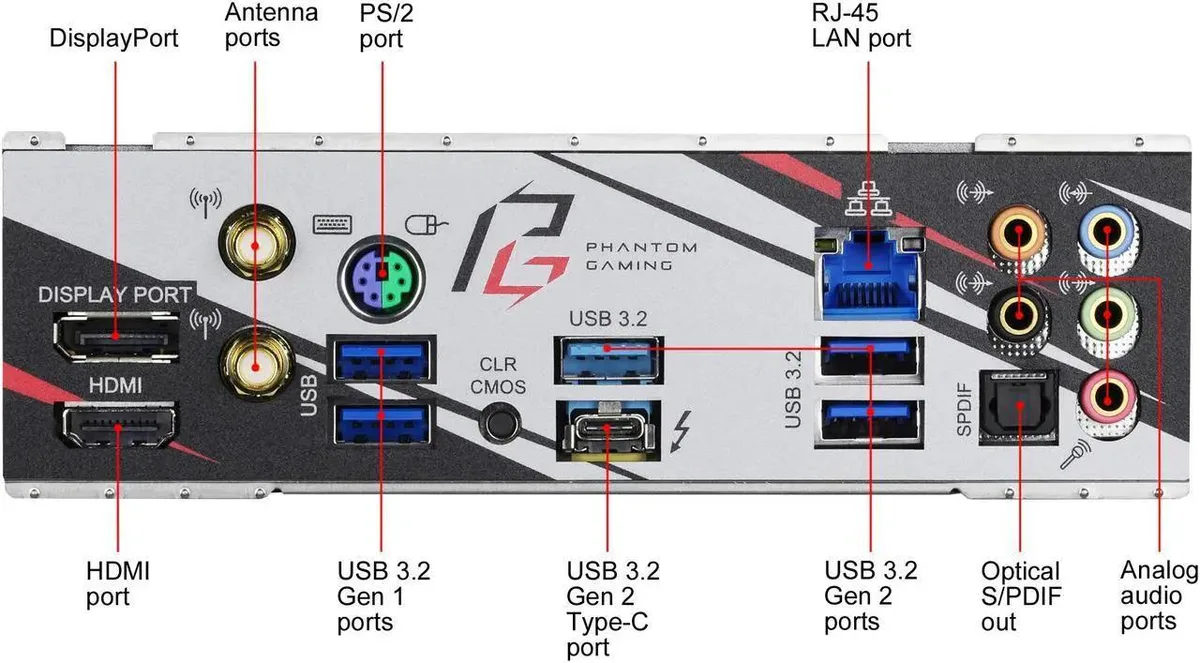

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
3 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
1 x USB 3.2 Gen2 Thunderbolt 3 Type-C Port (40Gb/s for Thunderbolt protocol; 10Gb/s for USB3.2 protocol) (Supports ESD Protection)
* Supports USB PD 2.0 charging up to 5V@3A (15W)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
Onboard USB1 x USB 2.0 Headers (Support 2 USB 2.0 port) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
Other Connectors1 x Chassis Intrusion Header
1 x RGB LED Header
* Supports in total up to 12V/3A, 36W LED Strip.
1 x Addressable LED Header
* Supports in total up to 5V/3A, 15W LED Strip.
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
1 x Chassis Fan Connector (4-pin) (Smart Fan Speed Control)
1 x Front Panel Audio Connector (15µ Gold Audio Connector)
Windows 11Supported
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
FeaturesUnique Feature
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Ports (10Gb/s)
- ASRock Thunderbolt 3 Type C USB 3.2 Gen2 Port (40Gb/s for Thunderbolt protocol; 10Gb/s for USB3.2 protocol)
ASRock Super Alloy
- Premium 90A Power Choke
- 90A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 8 Layer PCB
- 2oz Copper PCB
ASRock Phantom Gaming 2.5G LAN
Intel 802.11ax WiFi
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status
Package ContentsAccessories
- Quick Installation Guide, Support CD
- 2 x SATA Data Cables
- 1 x ASRock WiFi 2.4/5 GHz Antenna
- 2 x Screws for M.2 Sockets

Questions about this item

What Mini-ITX case clearances are needed for the LGA 1200 socket and 15µ gold PCIe slot?

The board uses the LGA 1200 socket with a 15µ gold contact PCIe x16 slot; ensure the case allows standard Mini-ITX mounting holes and enough height for the CPU cooler and a full-length graphics card.

How is the bundled WiFi-802.11ax module installed in the vertical M.2 Key E socket?

Insert the supplied WiFi-802.11ax module into the vertical M.2 Key E socket on the rear I/O and secure it with the screw; the step often missed is attaching the two antenna cables to the module before closing the case.

When should the M.2 2280 or 2260 drive in the Ultra M.2 sockets be replaced or upgraded?

Replace or upgrade the M.2 drive if it reaches its write-endurance limit, shows SMART errors, or no longer provides the capacity or PCIe Gen3 x4 32 Gb/s speed required by the workload.
