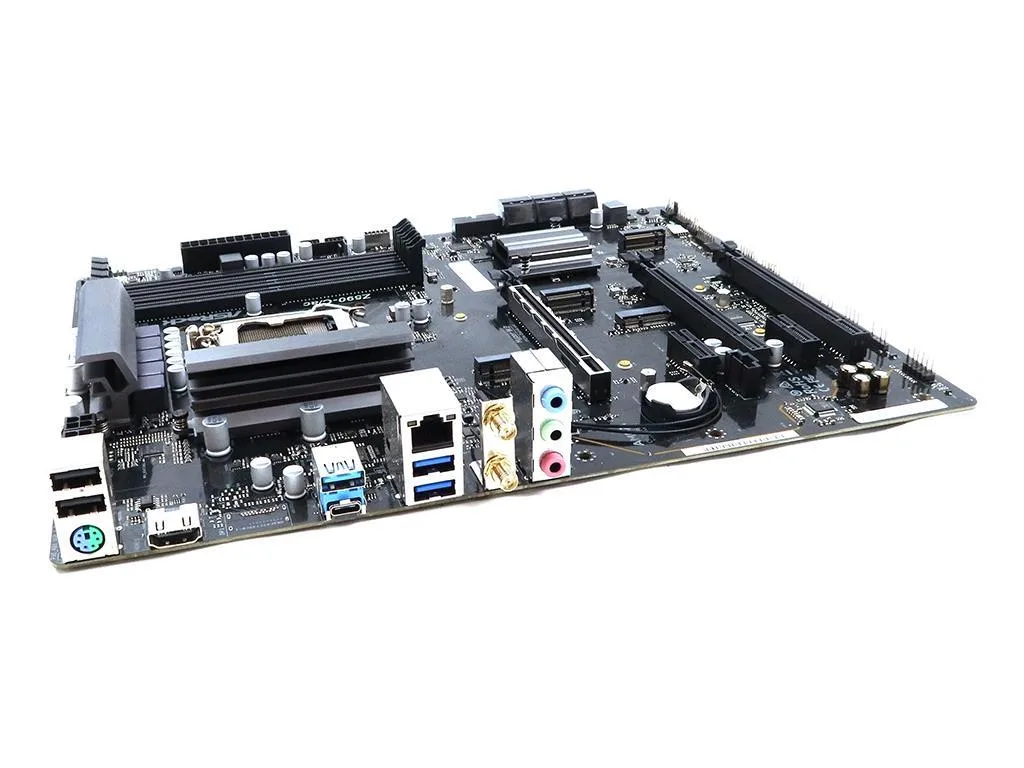

Rectangular ATX motherboard in black and grey with silver heatsinks and blue PCB visible

ASRock

ASRock Z590-C/ac Intel motherboard

SKU CH-XE3Q-T5ASA MPN Z590-C/ac

Intel LGA1200 ATX motherboard with Z590 chipset, four DDR4 slots up to 128GB, 4800MHz OC support, USB-C, HDMI, Gigabit LAN and 7.1 audio

  • Supports 10th and 11th Gen Intel Core processors on LGA1200 socket
  • Up to 128GB DDR4 memory across four slots at 4800MHz overclocked
  • Intel I219V Gigabit LAN delivers 10/100/1000 Mb/s wired connectivity
  • Realtek ALC897 codec provides 7.1-channel HD audio with Nahimic enhancement
  • SATA 6Gb/s interface with RAID 0, 1, 5, 10 for flexible storage arrays

Z590 ATX board for 10th and 11th Gen Intel Core

The ASRock Z590-C/ac is an ATX motherboard built on the Intel Z590 chipset with an LGA 1200 socket. It supports 10th and 11th generation Intel Core processors and accommodates up to 128 GB of DDR4 memory across four slots running at speeds up to 4800 MHz when overclocked. The board includes Intel I219V Gigabit LAN and Realtek ALC897 7.1 channel audio with Nahimic enhancement.

Suits builders who need Thunderbolt AIC header

This board fits enthusiasts who want a Thunderbolt add-in card header and RAID 0, 1, 5, 10 support over six SATA 6 Gb/s ports. It also provides dual RGB and addressable LED headers plus dedicated CPU and water-pump fan connectors with smart speed control. Builders requiring integrated Wi-Fi or Bluetooth, multiple M.2 slots, or a smaller micro-ATX form factor should look at other models.

Four DDR4 slots with 4800 MHz O.C. ceiling

The memory subsystem tops out at 128 GB across four DDR4 slots with a maximum overclocked speed of 4800 MHz. This ceiling determines whether the board matches your planned memory kit and performance target. If your workload demands higher memory frequencies or greater total capacity, a different platform will be necessary.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA1200 socket
  • Up to 128GB DDR4 memory across four slots at 4800MHz overclocked
  • Intel I219V Gigabit LAN delivers 10/100/1000 Mb/s wired connectivity
  • Realtek ALC897 codec provides 7.1-channel HD audio with Nahimic enhancement
  • SATA 6Gb/s interface with RAID 0, 1, 5, 10 for flexible storage arrays

Specifications

No published specifications for this item yet.

Questions about this item

Will this ATX motherboard fit in my standard ATX case and align with the 24-pin and 8-pin power connectors?

The board uses the ATX form factor with a 24-pin ATX power connector, an 8-pin 12 V connector and an additional 4-pin 12 V connector, all in standard positions for ATX cases.

Do I need to install both the 8-pin and the extra 4-pin 12 V power cables, or is the 8-pin enough?

Both 12 V connectors are Hi-Density power connectors; the 8-pin is required and the 4-pin supplies additional current for heavy CPU loads, so connect both for full stability.

The board has a SPI TPM header — what module do I add later for Windows 11 security features?

Fit a compatible SPI TPM 2.0 module onto the dedicated header to enable firmware TPM support required by Windows 11.
