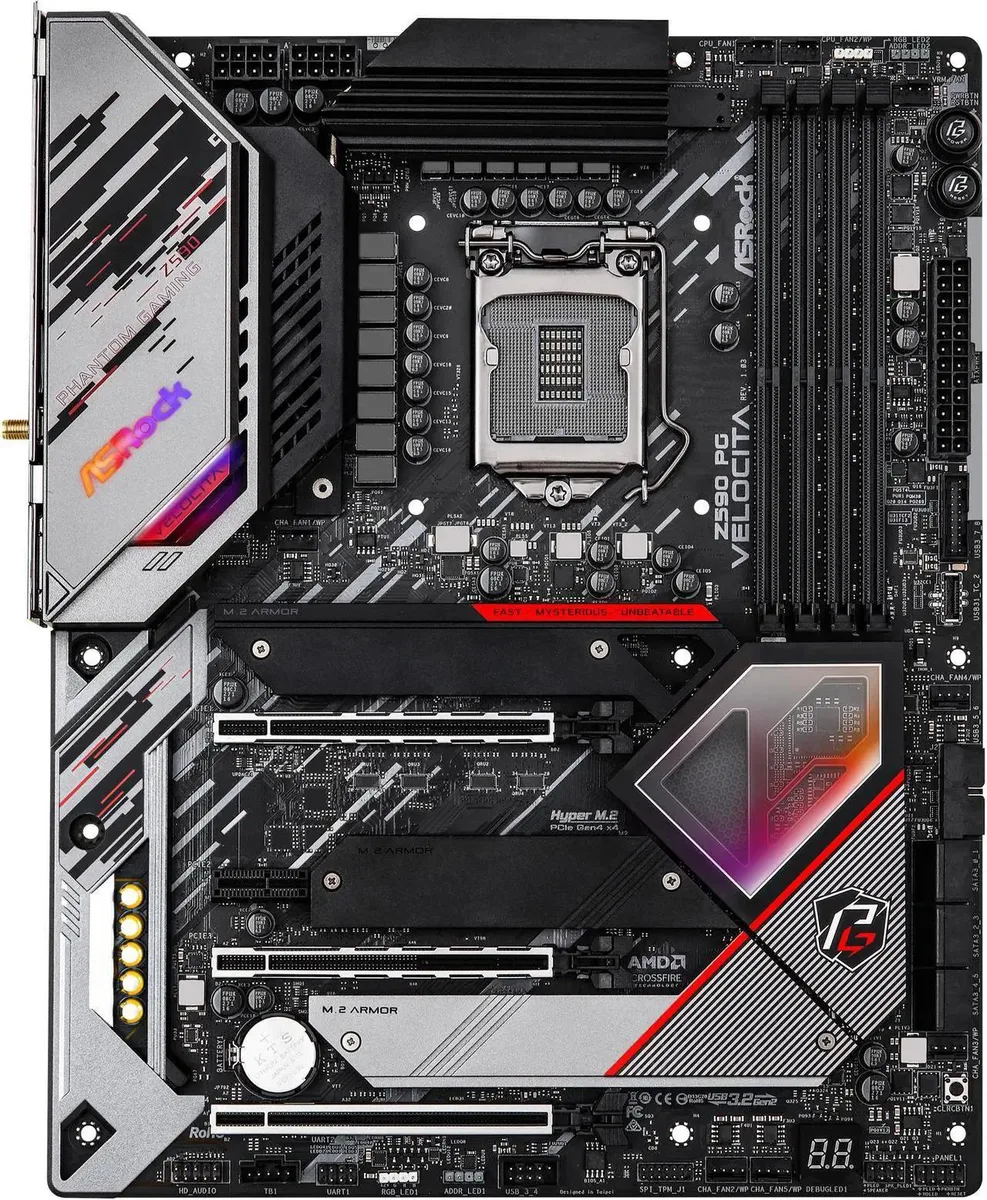

ATX motherboard with black PCB, silver heatsinks and LGA 1200 socket

ASRock

ASRock Z590 PG VELOCITA Intel motherboard

SKU CH-M1N9-ZY2P3

ATX board for 10th and 11th Gen Intel CPUs with DDR4 up to 4800+(OC), dual-channel memory, PCIe 4.0 x16 and six SATA 6.0Gb/s ports

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z590
  • Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Arc
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • 11th Gen CPUs enable DDR4 memory speeds up to 4800+(OC) with four slots
  • 128GB maximum DDR4 capacity across dual-channel configuration
  • PCIe 4.0 x16 slot and Hyper M.2 Gen4x4 for 11th Gen processors
  • Realtek ALC1220 audio and Intel Wi-Fi 802.11ax module included

LGA 1200 Z590 ATX motherboard

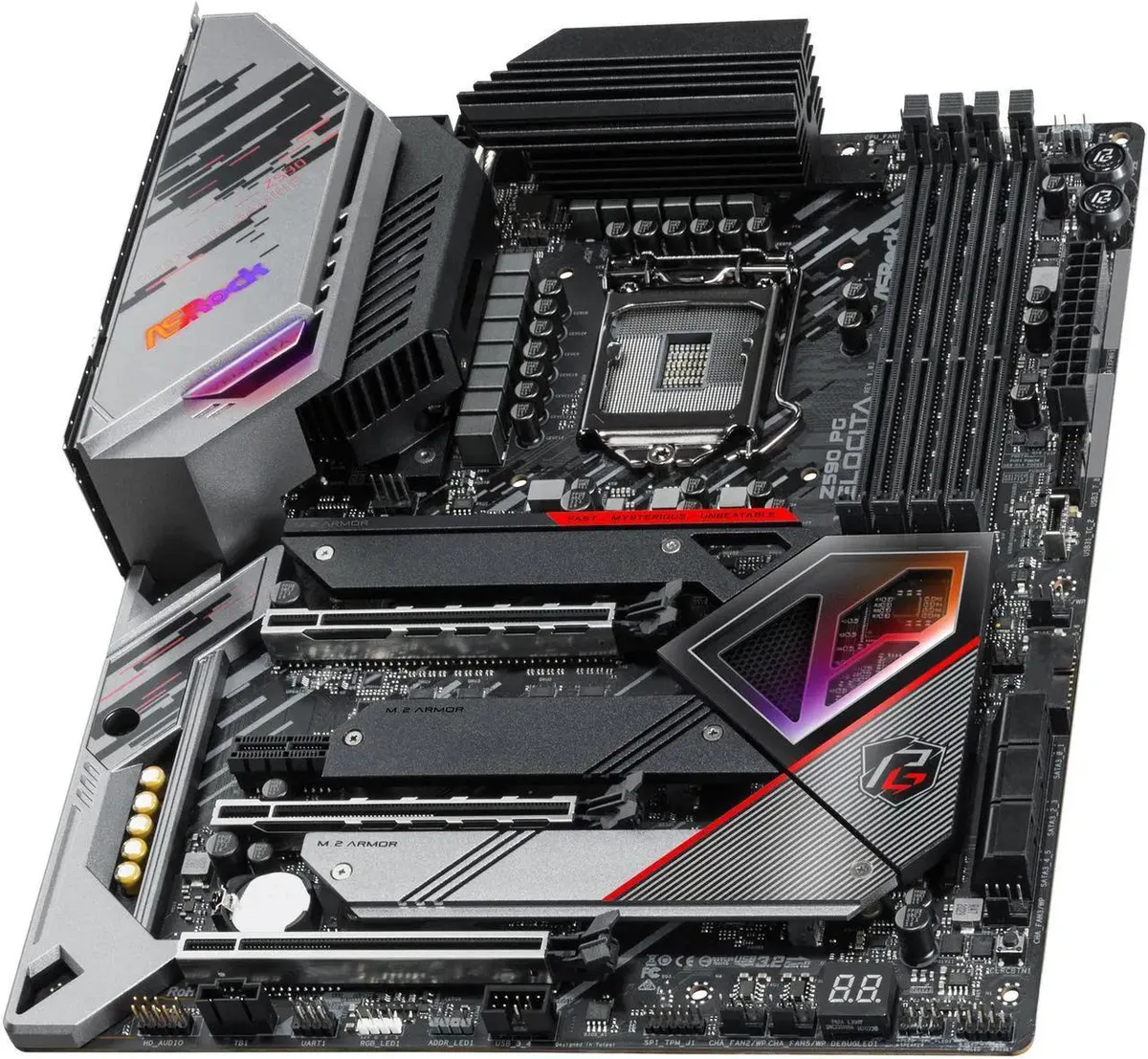

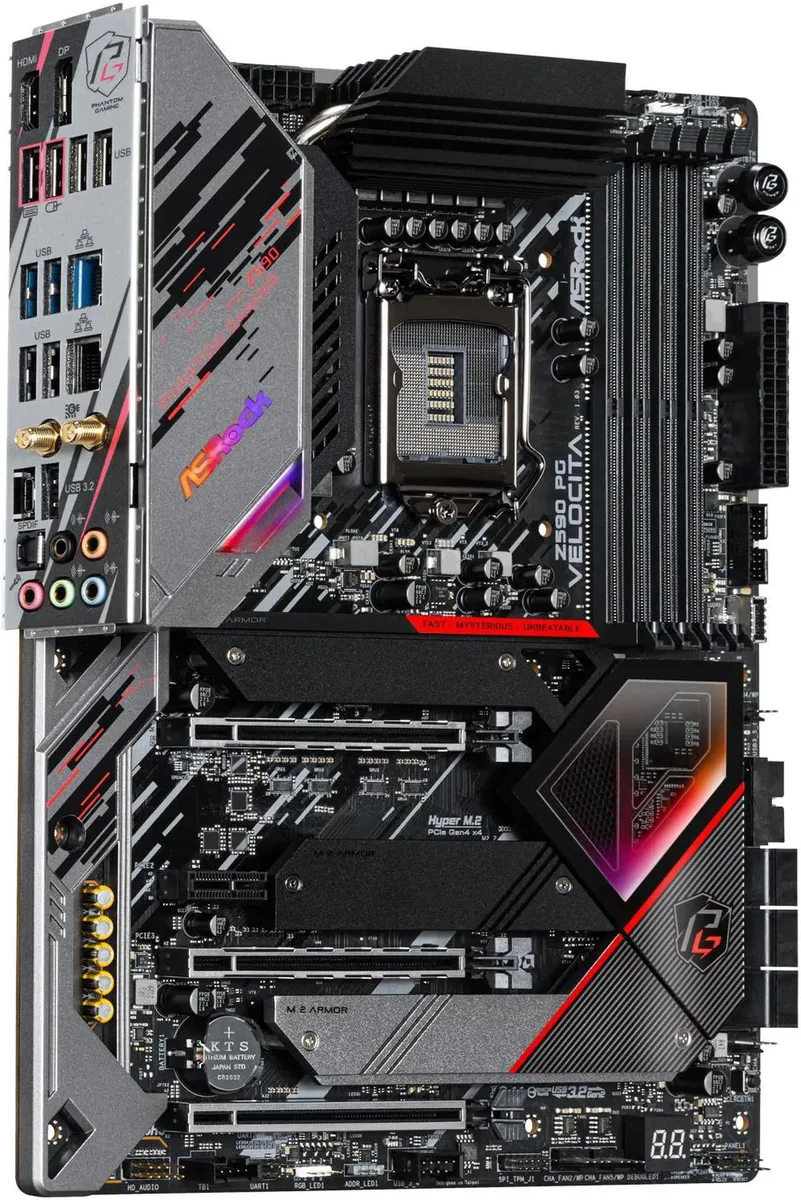

The ASRock Z590 PG VELOCITA is an ATX motherboard built around the Intel Z590 chipset for LGA 1200 processors. It accepts 10th and 11th Gen Intel Core CPUs and provides four DDR4 memory slots supporting up to 128 GB in dual-channel mode. The board includes a bundled WiFi 802.11ax module installed in a vertical M.2 Key E socket.

Builders using 11th Gen CPUs needing Gen4 M.2

This board suits builders who will pair it with an 11th Gen Intel Core processor to unlock PCIe 4.0 on the primary x16 slot and the top M.2 socket. Users staying with a 10th Gen CPU lose Gen4 support on those connectors and see the second x16 slot run at Gen3 x4, so they should consider whether those features matter for their GPU and storage plans.

Gen4 primary M.2 requires 11th Gen CPU

The Hyper M.2 socket (M2_1) delivers PCIe 4.0 x4 speeds only when an 11th Gen Intel Core processor is installed; with a 10th Gen CPU it operates at PCIe 3.0 x4. This single specification decides whether the board meets the storage performance target of the build.

Highlights

  • Supports 10th and 11th Gen Intel Core processors on LGA 1200 socket
  • 11th Gen CPUs enable DDR4 memory speeds up to 4800+(OC) with four slots
  • 128GB maximum DDR4 capacity across dual-channel configuration
  • PCIe 4.0 x16 slot and Hyper M.2 Gen4x4 for 11th Gen processors
  • Realtek ALC1220 audio and Intel Wi-Fi 802.11ax module included

Specifications

BrandASRock
ModelZ590 PG VELOCITA
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z590
Onboard Video Chipset11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.4 with max.
Number of Memory Slots4x288pin (DDR4)
Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
Maximum Memory Supported128GB
** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
Channel SupportedDual Channel
PCI Express 4.0 x1611th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE4))*
10th Gen Intel Core Processors
- 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE4))*
* Supports NVMe SSD as boot disks
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x11 x PCI Express 3.0 x1 Slot
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Serial ATA (SATA)6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*
* If M2_2 is occupied, SATA3_0 and SATA3_1 will be disabled.
* If M2_3 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
** Supports Intel Optane Technology (M2_2 and M2_3 only)
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetKiller E3100G
Second LAN ChipsetIntel I219V
Max LAN Speed2.5Gbps + 1Gbps
Wireless LANKiller AX1675x 802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ax
Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro
* Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available. The update is expected to be in the middle of 2021.
BluetoothSupports Bluetooth 5.2 + High speed class II
Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)*
1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)*
2 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1042A) (Supports ESD Protection)*
4 x USB 3.2 Gen1 Type-A Ports (Intel Z590) (Supports ESD Protection)*
2 x USB 2.0 Ports (Supports ESD Protection)
2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
* Ultra
Onboard USB1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)

Questions about this item

What clearance does the 288-pin DDR4 memory and the three PCIe x16 slots need inside an ATX case?

The board uses standard ATX mounting holes; ensure the case provides enough height for tall DDR4 modules and length for full-size graphics cards in the three x16 slots.

Which standoffs and power connectors must be connected before the first boot, and which step is often missed?

Install all ATX standoffs, connect the 24-pin ATX and 8-pin CPU power cables, then seat the CPU and DDR4 — many builders forget the 8-pin CPU power connector.

When should the bundled Wi-Fi 802.11ax module in the vertical M.2 Key E socket be reseated or replaced?

Reseat the module if wireless drops appear; replace it only if the antenna connectors are damaged or the module fails after driver updates.
