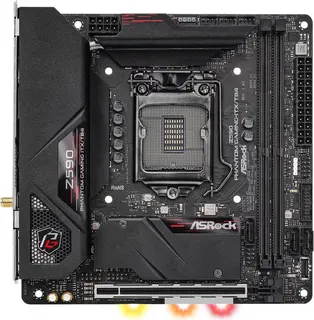

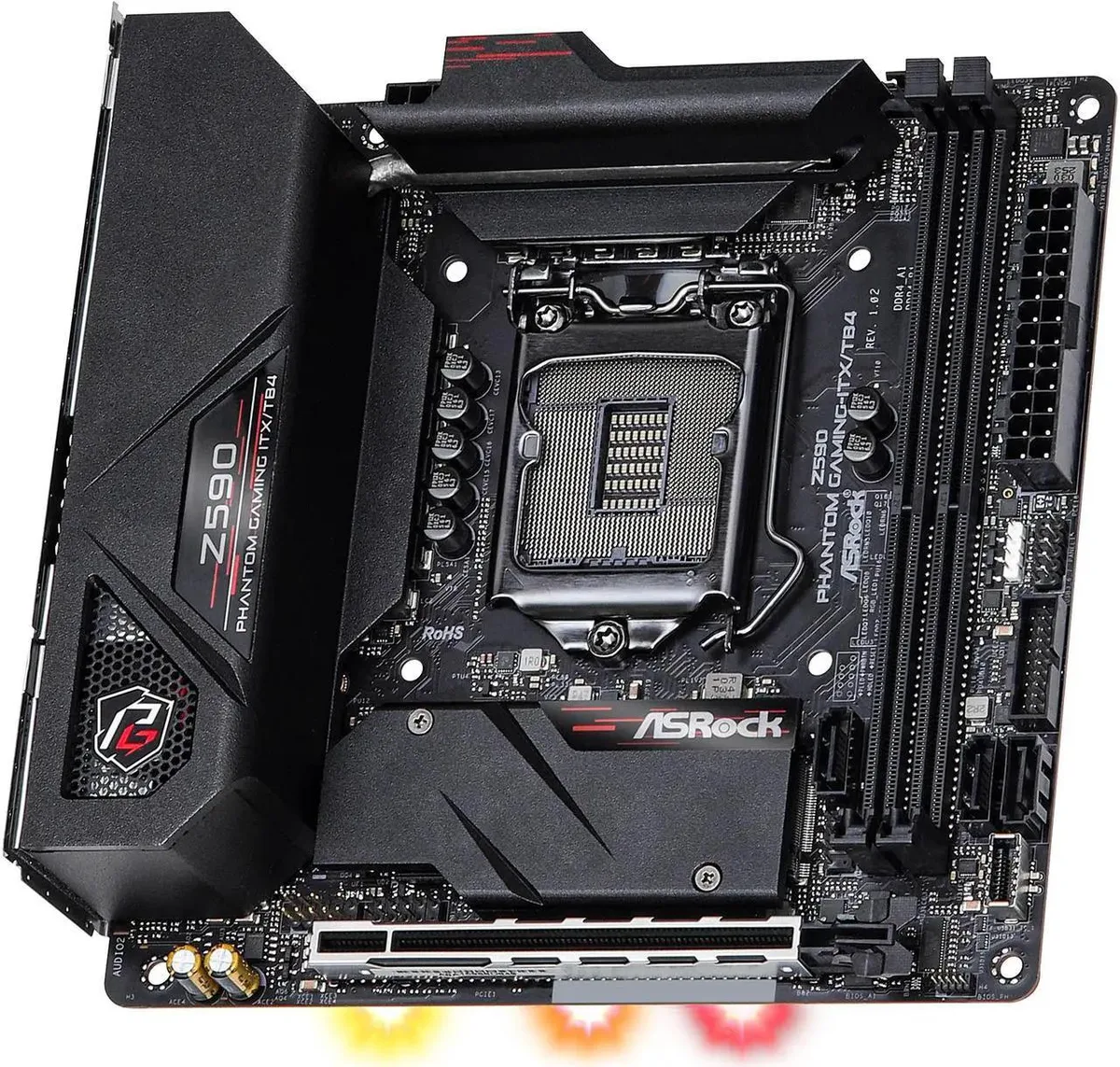

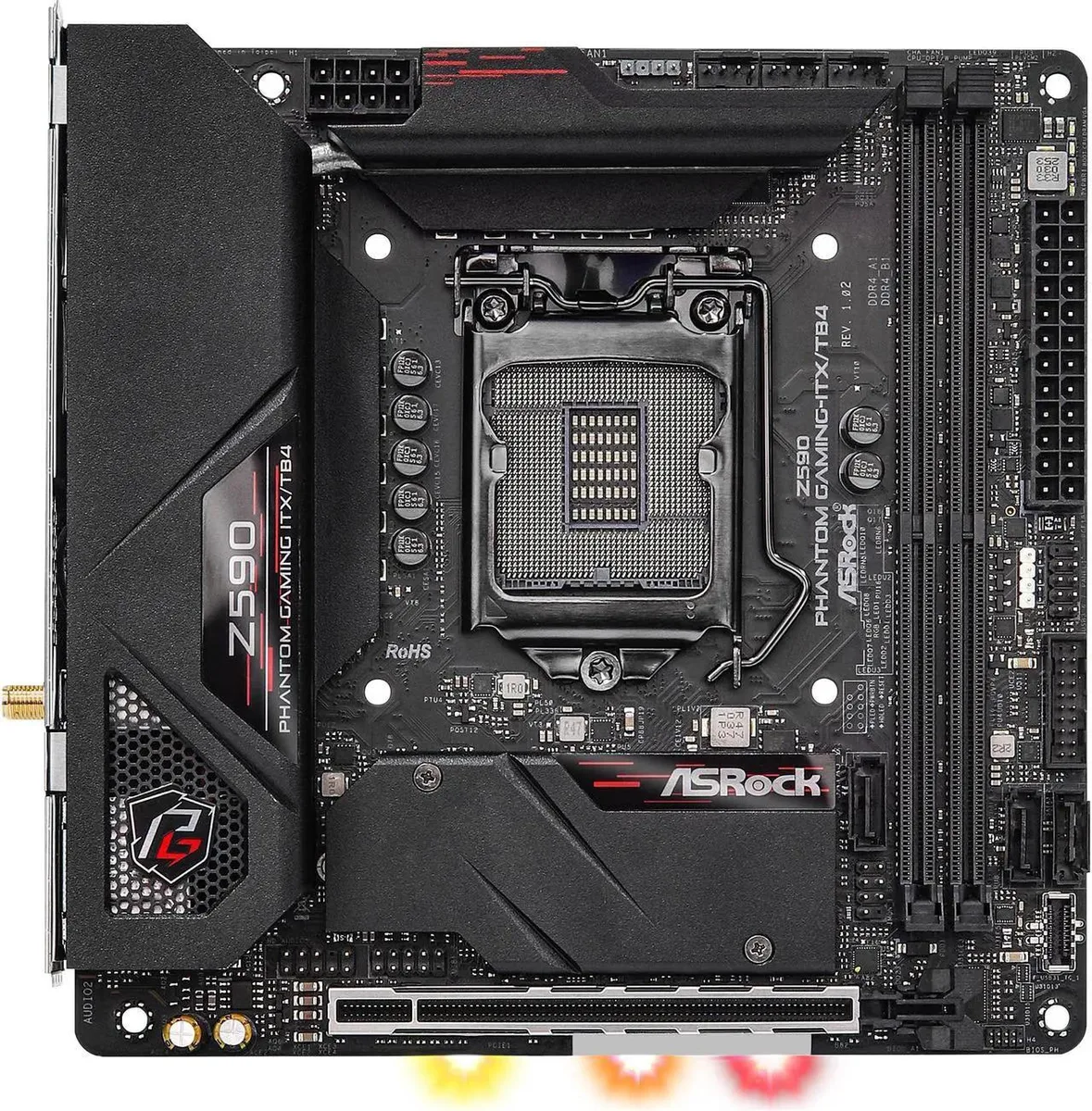

Compact black Mini-ITX board with silver heatsinks and rear I/O shield

ASRock

ASRock Z590 PHANTOM GAMING-ITX/TB4 Intel motherboard

SKU CH-ZAZN-H6THK

Mini-ITX board for 10th and 11th Gen Intel CPUs, DDR4 up to 4266 MT/s, dual M.2 slots, Killer E3100G LAN and bundled Wi-Fi module

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th Gen Intel Core Processors Supports 10th Gen In
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x288pin (DDR4)
  • Supports 11th Gen Intel Core processors with Z590 chipset
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 4266+(OC) with two 288pin slots
  • PCI Express 4.0 x16 slot for high-speed graphics cards
  • Killer E3100G LAN and Realtek ALC1220 7.1 audio

Z590 Mini ITX for 10th and 11th Gen Intel

This ASRock motherboard fits the LGA 1200 socket and the Intel Z590 chipset into a Mini ITX layout. It accepts 10th and 11th generation Intel Core processors with Turbo Boost Technology 3.0. Two 288-pin slots support dual-channel DDR4 up to 64 GB. The board includes a single PCI Express 4.0 x16 slot, three SATA 6Gb/s ports and two M.2 sockets for storage expansion. Killer E3100G LAN and Realtek ALC1220 7.1 channel audio handle networking and sound.

Power delivery and thermal headroom for sustained

The Phantom Gaming power phase design feeds 10th and 11th generation CPUs steadily during long rendering or compile sessions. Heatsinks on the VRM and the primary M.2 socket dissipate heat without active cooling. Gold contacts on the PCIe x16 slot resist oxidation from repeated card swaps. The bundled Wi-Fi 802.11ax module mounts vertically, keeping airflow clear around the CPU cooler. BIOS ships updated for the latest processor microcode.

PCIe 4.0 and storage limits with each CPU generation

With an 11th generation processor the PCIe 4.0 x16 slot and the Hyper M.2 socket run at Gen4x4 speeds up to 64 Gb/s. A 10th generation CPU restricts those interfaces to PCIe 3.0 rates. Memory tops out at 3200 MT/s for Core i9, i7 and i5; Core i3, Pentium and Celeron stop at 2666 MT/s. SATA RAID 0, 1, 5 and 10 are available across the three SATA ports regardless of CPU choice.

Highlights

  • Supports 11th Gen Intel Core processors with Z590 chipset
  • Supports 10th Gen Intel Core processors on LGA 1200 socket
  • DDR4 memory up to 4266+(OC) with two 288pin slots
  • PCI Express 4.0 x16 slot for high-speed graphics cards
  • Killer E3100G LAN and Realtek ALC1220 7.1 audio

Specifications

BrandASRock
ModelZ590 PHANTOM GAMING-ITX/TB4
CPU Socket TypeLGA 1200
CPU TypeSupports 11th Gen Intel Core Processors
Supports 10th Gen Intel Core Processors
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 4266+(OC) (11th Gen Intel Core Processors)*
DDR4 4266+(OC) (10th Gen Intel Core Processors)*
* 11th Gen Intel Core (i9 / i7 / i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9 / i7) support DDR4 up to 2933; Core (i5 / i3), Pentium and Celeron support DDR4 up to 2666.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported64GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
* Supports PCIe riser cards to extend one x16 slot to two x8 slots.
* Supports NVMe SSD as boot disks.
Other Slots1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
15µ Gold Contact in VGA PCIe Slot (PCIE1)
Serial ATA (SATA)3 x SATA 6Gb/s
M.21 x Hyper M.2 Socket (M2_2), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)*
1 x Ultra M.2 Socket (M2_1), supports M Key type 2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports Intel Optane Technology.
* Supports NVMe SSD as boot disks.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC1220
Audio Channels7.1 Channels
LAN ChipsetKiller E3100G
Max LAN Speed2.5Gbps
Wireless LANKiller AX1675x 802.11ax Wi-Fi 6E Module
IEEE802.11a/b/g/n/ax
BluetoothBluetooth 5.2

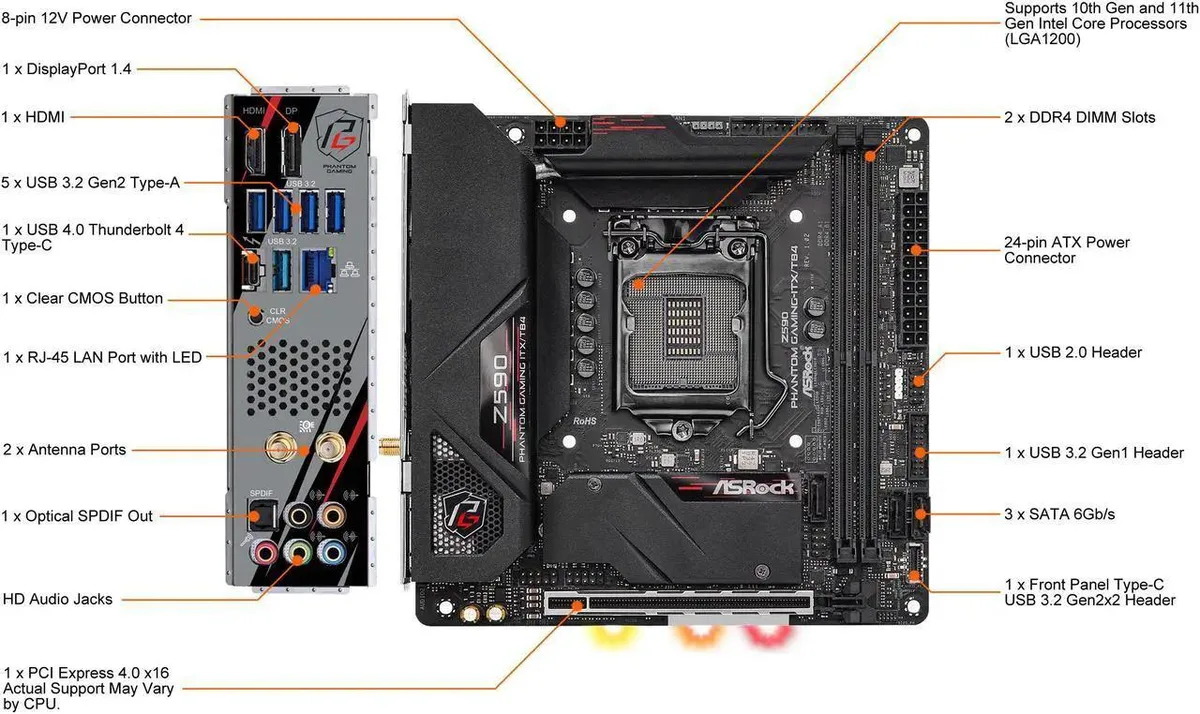

Back I/O Ports2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
5 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
1 x USB 4.0 Thunderbolt 4 Type-C Port (40Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol) (Supports ESD Protection)*
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
1 x Clear CMOS Button
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
* Supports USB PD 2.0 up to 9V@3A (27W) / 5V@3A (15W) charging.
Onboard USB1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection)
Other Connectors1 x Chassis Intrusion and Speaker Header
1 x RGB LED Header
* Support in total up to 12V/3A, 36W LED Strip.
1 x Addressable LED Header
* Support in total up to 5V/3A, 15W LED Strip.
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
* CPU_OPT/W_PUMP can auto detect if 3-pin or 4-pin fan is in use.
1 x Chassis Fan Connector (4-pin)
* The Chassis Fan Connector supports the chassis
Windows 11Supported
Form FactorMini ITX
LED LightingRGB
Dimensions (W x L)6.7" x 6.7"
Power Pin1 x 24-pin ATX Power Connector (Hi-Density Power Connector)
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
FeaturesUnique Feature:
ASRock USB 4.0
- ASRock USB 4.0 ThunderboltTM 4 Type-C Port (40Gb/s for USB 4.0 protocol; 40Gb/s for Thunderbolt protocol)
ASRock USB 3.2 Gen2
- ASRock Front Panel Type-C USB 3.2 Gen2x2 Header (20Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10Gb/s)
ASRock Super Alloy
- Premium 90A Power Choke
- 90A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 10 Layer PCB
Killer 2.5G LAN
Killer 802.11ax Wi-Fi 6E
Killer DoubleShotTM Pro
ASRock Steel Slot
ASRock Full Coverage M.2
Package ContentsAccessories:
- Quick Installation Guide, Support CD
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets

Questions about this item

How much power does the board draw when an 11th Gen CPU runs all day?

The Z590 chipset and 15µ gold contacts in the PCIe 4.0 x16 slot are designed for efficient delivery; actual draw depends on the installed processor and workload.

What memory must I already have to use this motherboard?

You need DDR4 modules — two 288-pin DIMMs up to 64 GB total, running at speeds the CPU supports such as 3200 or 2666.

Will my existing SATA drives and M.2 modules work alongside the new board?

Three SATA 6Gb/s ports accept current drives, and the Ultra M.2 socket takes 2280 SATA modules while the Hyper M.2 socket supports 2280 NVMe with an 11th Gen CPU.
