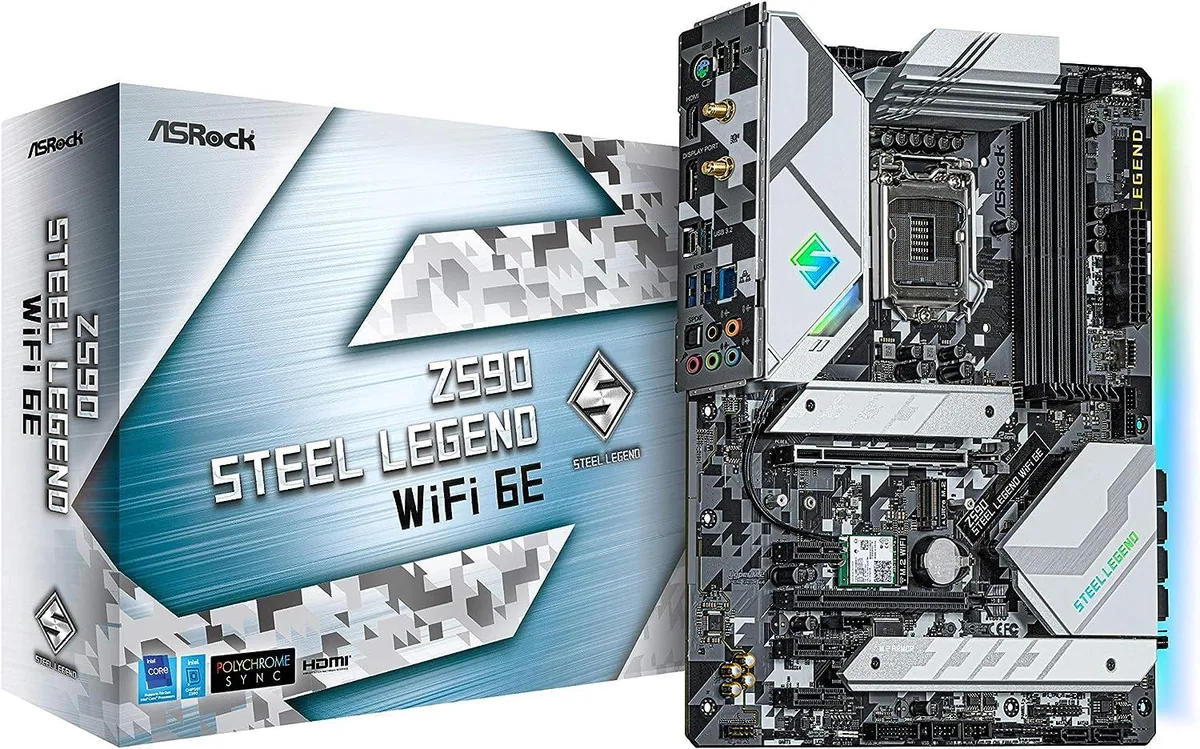

ATX motherboard with grey steel heatsinks and silver accents

ASRock

ASRock Z590 Steel Legend WiFi 6E Intel motherboard

SKU CH-HN6N-Q6TM7

ATX board for 10th and 11th Gen Intel CPUs with DDR4 up to 4800 MHz, PCIe 4.0 M.2, 2.5 Gbps LAN, Wi-Fi 6E and Bluetooth 5.2

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 10th Gen Intel Core Processors Supports 11th Gen In
  • ChipsetIntel Z590
  • Number of Memory Slots4x288pin (DDR4)
  • Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buff
  • Maximum Memory Supported128GB
  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • 14-phase Digi power design feeds unlocked K-series processors
  • DDR4 memory up to 4800 MT/s on 11th Gen and 4666 MT/s on 10th Gen
  • 5 Gbps Dragon LAN plus Intel Wi-Fi 6E and Bluetooth 5.2
  • Hyper M.2 PCIe 4.0 x4 up to 64 Gb/s with full heatsink coverage

Z590 Steel Legend for LGA 1200 builds

This ATX motherboard uses the Intel Z590 chipset and fits LGA 1200 processors from both 10th and 11th Gen Intel Core families. It provides four DDR4 slots supporting up to 128 GB of memory and a 14-phase power design for stable delivery. Integrated 2.5 Gbps LAN, Wi-Fi 6E and Bluetooth 5.2 handle networking without extra cards.

Suits builders using 11th Gen for Gen4 M.2

With an 11th Gen CPU the primary M.2 slot runs at PCIe 4.0 x4 (64 Gb/s) and DDR4 can reach 4800+(OC), while 10th Gen CPUs limit that slot to PCIe 3.0 and DDR4 to 4666+(OC). Three additional PCIe 3.0 x1 slots and six SATA 6 Gb/s ports give plenty of expansion for storage and add-in cards. Users needing more than two full-size PCIe x16 slots should consider a different platform.

Straightforward ATX install

Standard ATX mounting holes and labelled headers make assembly routine, while the on-board POST Status Checker displays two-digit codes for quick troubleshooting. The I/O shield is pre-installed, and the full-coverage M.2 heatsink attaches with captive screws so it cannot be lost. Remember to connect the 8-pin and 4-pin CPU power headers for full 14-phase operation.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs on LGA 1200 socket
  • 14-phase Digi power design feeds unlocked K-series processors
  • DDR4 memory up to 4800 MT/s on 11th Gen and 4666 MT/s on 10th Gen
  • 5 Gbps Dragon LAN plus Intel Wi-Fi 6E and Bluetooth 5.2
  • Hyper M.2 PCIe 4.0 x4 up to 64 Gb/s with full heatsink coverage

Specifications

BrandASRock
ModelZ590 Steel Legend WiFi 6E
CPU Socket TypeLGA 1200
CPU TypeSupports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
ChipsetIntel Z590
Number of Memory Slots4x288pin (DDR4)
Memory Standard11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
* 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
* 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported128GB
PCI Express 4.0 x1611th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE3))*
10th Gen Intel Core Processors: 2 x PCI Express x16 Slots (PCIE1/PCIE3: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE3))*
* Supports NVMe SSD as boot disks
PCI Express 3.0 x161 x PCI Express 3.0 x16
PCI Express x13 x PCI Express 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Only supported with 11th Gen Intel Core Processors)**
1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
** Supports Intel Optane Technology
** Supports NVMe SSD as boot disks
** Supports ASRock U.2 Kit
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetDragon RTL8125BG
Max LAN Speed2.5Gbps
Wireless LANIntel 802.11ax Wi-Fi 6E Module
BluetoothBluetooth 5.2

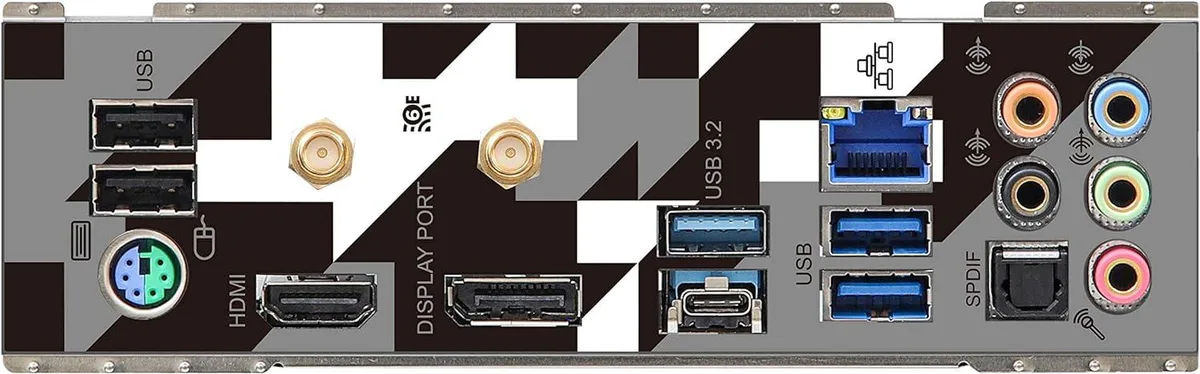

Back I/O Ports2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
* Ultra USB Power is supported on USB3_12 ports.
* ACPI wake-up function is not supported on USB3_12 ports.
2 x USB 2.0 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker
Other Connectors1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers
* Support in total up to 12V/3A, 36W LED Strip
2 x Addressable LED Headers
* Support in total up to 5V/3A, 15W LED Strip
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
* The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis/Water Pump Fan supports the water cooler fan of maxi
Windows 11Supported
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
FeaturesASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
- ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium Power Choke
- 50A Dr.MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- I/O Armor
- Matte Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
2.5G LAN
Intel 802.11ax Wi-Fi 6E
ASRock Steel Slot
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock Ultra USB Power
ASRock POST Status Checker (PSC)

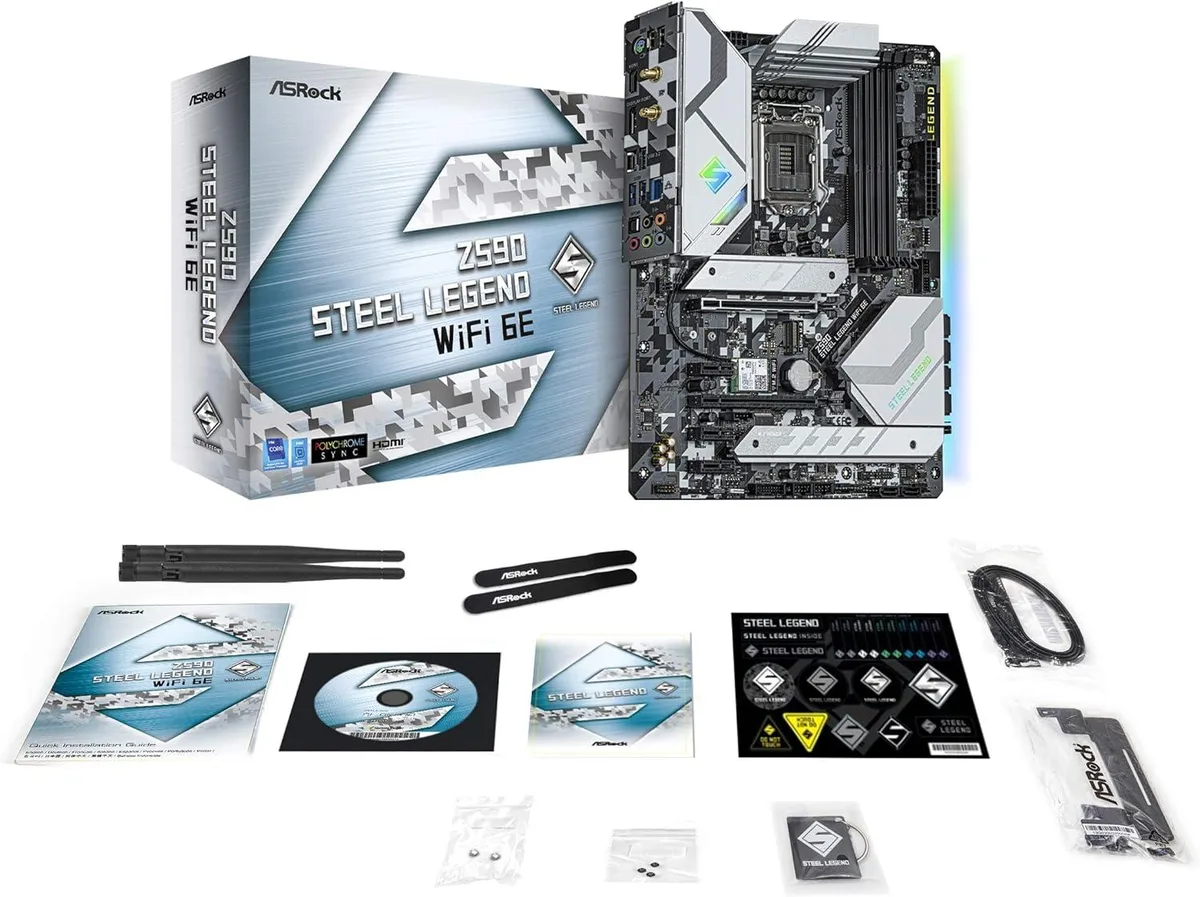

Package ContentsQuick Installation Guide, Support CD
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5/6 GHz Antennas
3 x Screws for M.2 Sockets
2 x Standoffs for M.2 Sockets
1 x Graphics Card Holder

Questions about this item

Will this board run an 11th Gen Intel Core i5 with PCIe 4.0 graphics and an M.2 drive at full speed?

Yes, with an 11th Gen processor the primary PCIe x16 slot and the Hyper M.2 socket both operate at Gen4 speeds, giving you 64 Gb/s to the drive and full bandwidth to the GPU.

What memory speeds can I expect with a 10th Gen Core i7 installed?

A 10th Gen Core i7 officially supports DDR4 up to 2933 MHz; the board can run faster kits up to 4666+(OC) when overclocking is enabled.

Does the rear I/O include a USB Type-C port and 2.5 Gb Ethernet?

The back panel provides one USB 3.2 Gen2 Type-C port at 10 Gb/s and a Dragon RTL8125BG controller for 2.5 Gbps wired networking.
