Green Micro ATX motherboard with silver heatsinks and black PCB

ASRock

ASRock Z590M Phantom Gaming 4 Intel motherboard

SKU CH-N643-WTKBK

Micro ATX board with LGA 1200 socket, Intel Z590 chipset, four DDR4 slots up to 128 GB, PCIe 4.0 x16 and dual M.2 slots, plus 7.1-channel audio

  • CPU Socket TypeLGA 1200
  • Supported CPU TechnologiesTurbo Boost Technology 3.0
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Memory StandardDDR4 4800+(OC) (11th Gen Intel Core Processors support) DDR4
  • Supports 11th Gen Intel Core processors for PCIe 4.0 performance
  • Four DDR4 slots allow up to 128 GB memory capacity
  • Hyper M.2 socket delivers up to 64 Gb/s NVMe speeds
  • Realtek ALC897 codec provides 7.1-channel audio output
  • Micro ATX form factor fits compact builds with full Z590 features

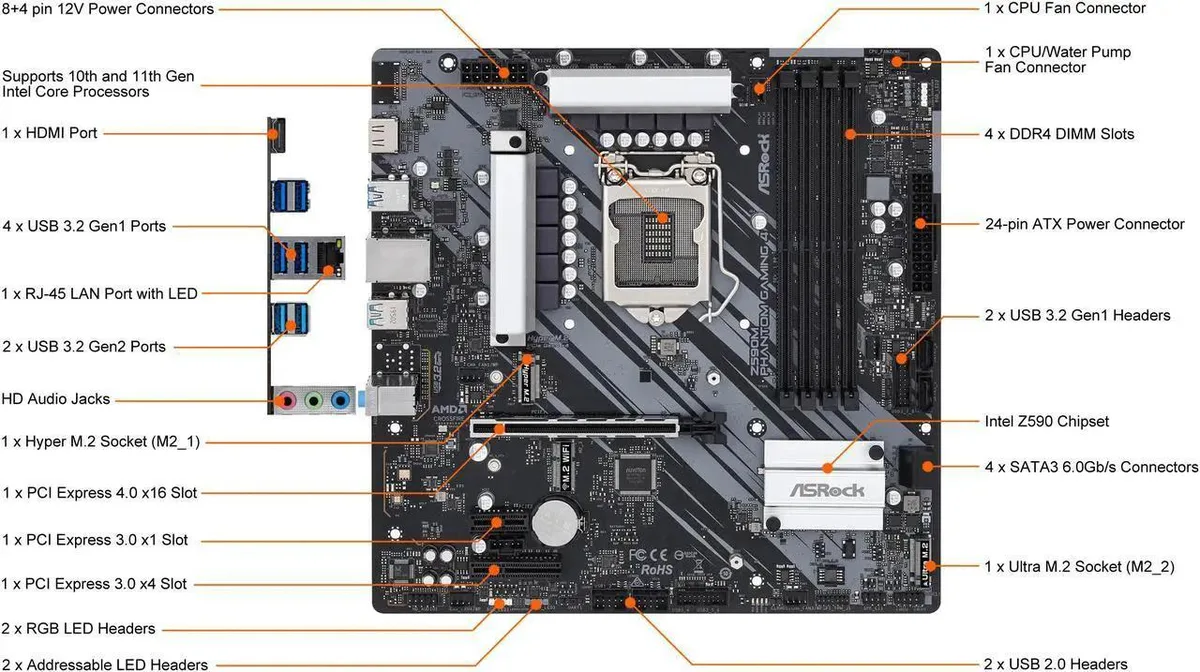

Socket and chipset

The board uses the LGA 1200 socket paired with the Intel Z590 chipset. It accepts both 10th and 11th generation Intel Core processors. Buyers must match their CPU generation to the socket to ensure compatibility.

Memory configuration

Four DDR4 slots support up to 128 GB in dual-channel mode. 11th generation CPUs enable speeds up to 4800+(OC) while 10th generation CPUs reach 4600+(OC). The rated native speed for 11th generation Core i9, i7 and i5 processors is 3200.

Storage and expansion

One Hyper M.2 socket delivers PCIe 4.0 x4 bandwidth for NVMe drives with 11th generation CPUs. A second Ultra M.2 socket and four SATA 6Gb/s ports provide additional storage. PCIe 4.0 x16, PCIe 3.0 x4 and PCIe 3.0 x1 slots handle graphics and add-in cards.

Highlights

  • Supports 11th Gen Intel Core processors for PCIe 4.0 performance
  • Four DDR4 slots allow up to 128 GB memory capacity
  • Hyper M.2 socket delivers up to 64 Gb/s NVMe speeds
  • Realtek ALC897 codec provides 7.1-channel audio output
  • Micro ATX form factor fits compact builds with full Z590 features

Specifications

BrandASRock
ModelZ590M Phantom Gaming 4
CPU Socket TypeLGA 1200
Supported CPU TechnologiesTurbo Boost Technology 3.0
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 4800+(OC) (11th Gen Intel Core Processors support)
DDR4 4600+(OC) (10th Gen Intel Core Processors support)
* 11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively.
* 10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16
* Actual support may vary by CPU.
* Supports NVMe SSD as boot disks.
PCI Express x41 x PCI Express 3.0 x4
PCI Express x11 x PCI Express 3.0 x1
Other Slots1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT)
Serial ATA (SATA)4 x SATA 6Gb/s
* If M2_2 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.
M.21 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (Socket M2_1 works with 11th Gen Intel Core processors only) *
1 x Ultra M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)*
* Supports Intel Optane Technology.
* Supports NVMe SSD as boot disks.
* Supports ASRock U.2 Kit.
Intel Optane ReadyYes
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetIntel I219-V
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI Port
2 x USB 3.2 Gen2 Ports (10Gb/s) (ReDriver) (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Onboard USB2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
Other Connectors1 x SPI TPM Header
1 x Chassis Intrusion and Speaker Header
2 x RGB LED Headers*
2 x Addressable LED Headers**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
* Support in total up to 12V/3A, 36W LED Strip.
** Support in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/
Windows 11Supported
Form FactorMicro ATX
LED LightingRGB
Dimensions (W x L)9.6" x 9.6"
Power Pin1 x 24-pin ATX Power Connector
1 x 8-pin 12V Power Connector (Hi-Density Power Connector)
1 x 4-pin 12V Power Connector (Hi-Density Power Connector)
FeaturesUnique Feature:
ASRock USB 3.2 Gen2
- ASRock USB 3.2 Gen2 Type-A Port (10Gb/s)
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology ASRock Steel Slot ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
BIOS:
- 128 MB AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCI
Package ContentsAccessories:
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets

Questions about this item

What does the DDR4 4800+(OC) rating mean when I install an 11th Gen Intel Core processor?

With an 11th Gen Intel Core i9, i7 or i5 the board runs DDR4 at 3200 natively; the 4800+(OC) figure is an overclocked speed that requires manual tuning and compatible memory modules.

How does the PCI Express 4.0 x16 slot behave with a 10th Gen versus an 11th Gen CPU?

The slot delivers PCIe 4.0 x16 bandwidth only when paired with an 11th Gen Intel Core processor; a 10th Gen CPU limits it to PCIe 3.0 speeds.

What physical space and mounting pattern does the Micro ATX board need inside a case?

It fits any chassis with Micro ATX or larger mounting holes and measures to the standard Micro ATX footprint, using the usual nine screw positions.
