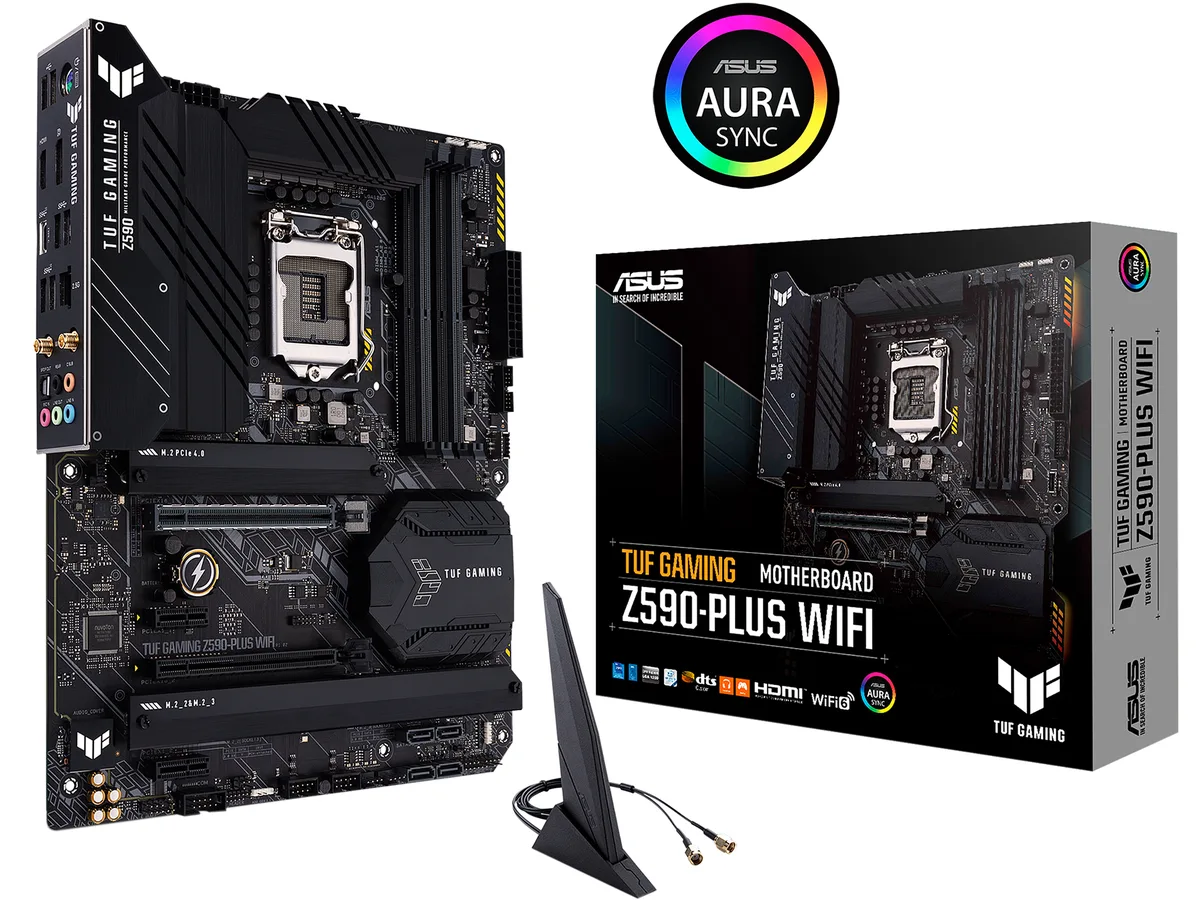

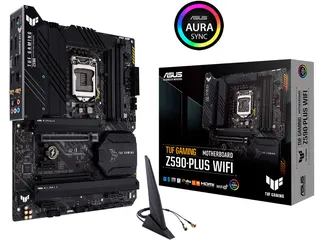

ATX motherboard dark grey heatsinks yellow TUF accents

ASUS

ASUS 195553101202 TUF GAMING Z590-PLUS WIFI Intel motherboard

SKU CH-5NCA-4MGYD MPN 195553101202

ATX motherboard for 10th and 11th Gen Intel Core CPUs with LGA 1200 socket, DDR4 memory up to 128 GB, 2.5 Gb LAN, WiFi 6, triple M.2 slots and Thunderbolt 4 header

  • CPU Socket TypeLGA 1200
  • CPU TypeSupports 11th / 10th Gen Intel Core Processors Supports Inte
  • Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Bo
  • ChipsetIntel Z590
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots4x288pin (DDR4)
  • Supports 10th and 11th Gen Intel Core CPUs via LGA 1200 socket
  • 14 plus 2 DrMOS power stages with ProCool sockets for stable delivery
  • VRM heatsink PCH fanless heatsink M.2 heatsink and hybrid fan headers for cooling
  • Intel WiFi 6 AX201 2.5Gb LAN TUF LANGuard TurboLAN for fast networking
  • Triple M.2 slots front USB 3.2 Gen 1 Type-C header Thunderbolt 4 header

LGA 1200 ATX motherboard

The ASUS TUF GAMING Z590-PLUS WIFI uses the Intel Z590 chipset and an LGA 1200 socket for 10th and 11th Gen Intel Core processors. It provides four 288-pin DDR4 slots supporting up to 128 GB in dual-channel mode. The board includes one PCIe 4.0 x16 slot, one PCIe 3.0 x16 slot at x4, and two PCIe 3.0 x1 slots for expansion.

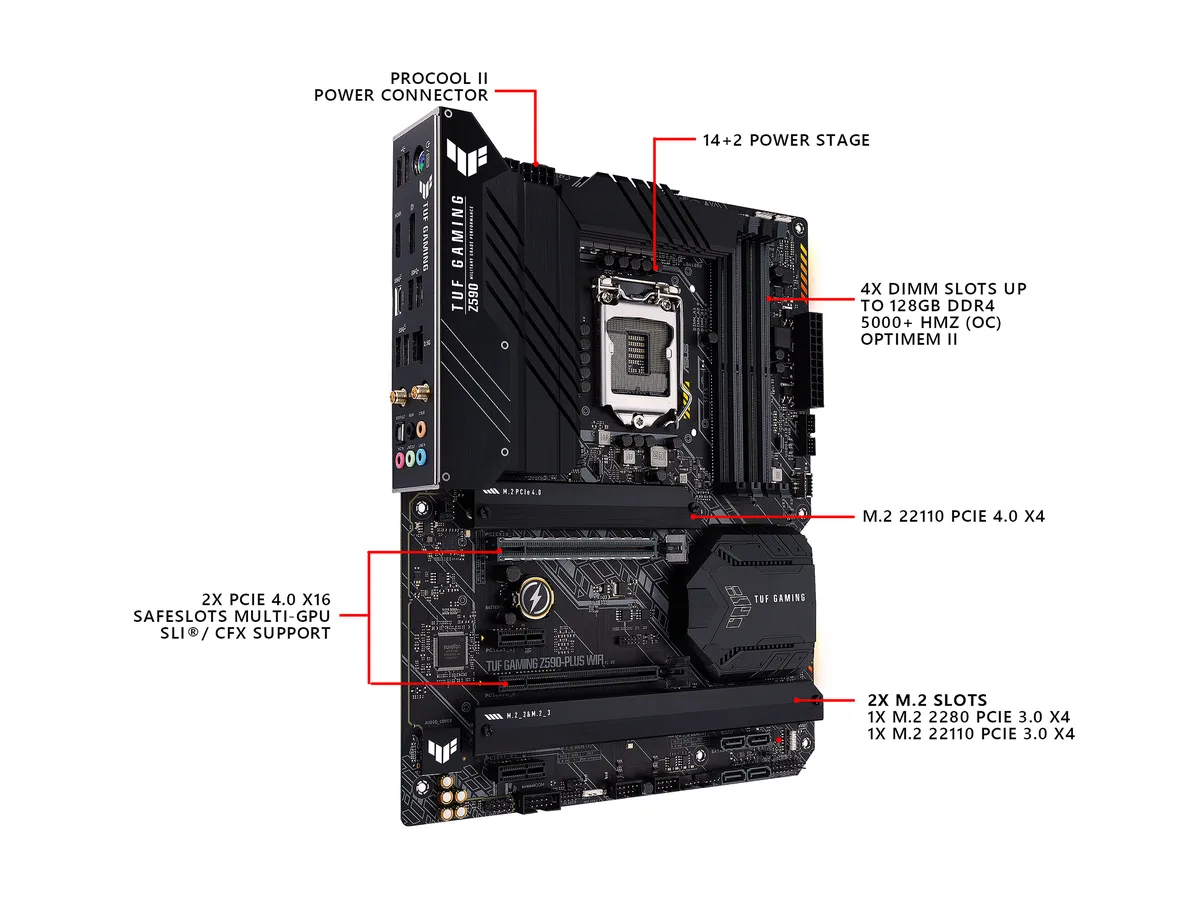

14+2 DrMOS power stages under load

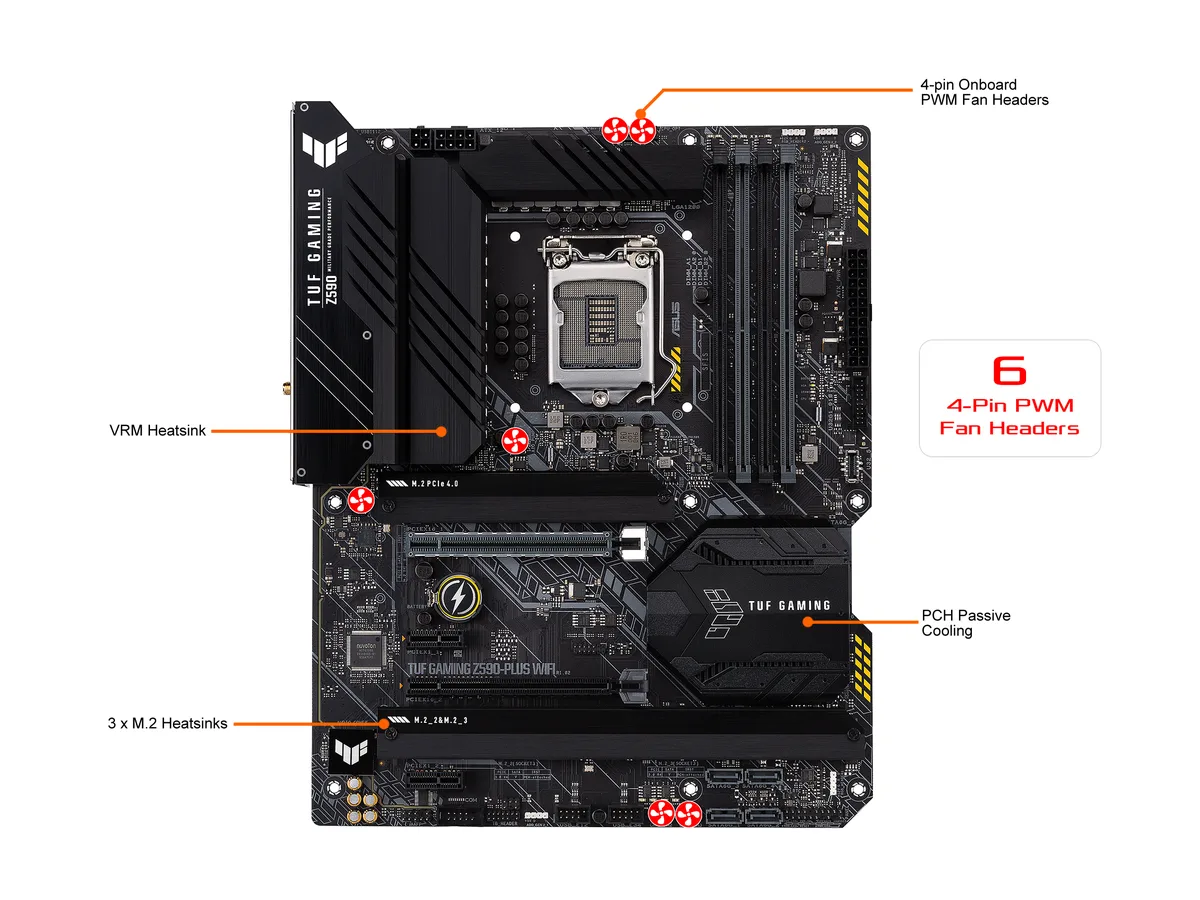

Fourteen plus two DrMOS power stages combine with ProCool sockets and military-grade TUF components to deliver stable current during extended sessions. Digi+ VRM circuitry manages voltage precisely so the board sustains high frequencies without throttling. Large VRM and PCH heatsinks plus an M.2 heatsink dissipate heat passively while hybrid fan headers allow active airflow when needed.

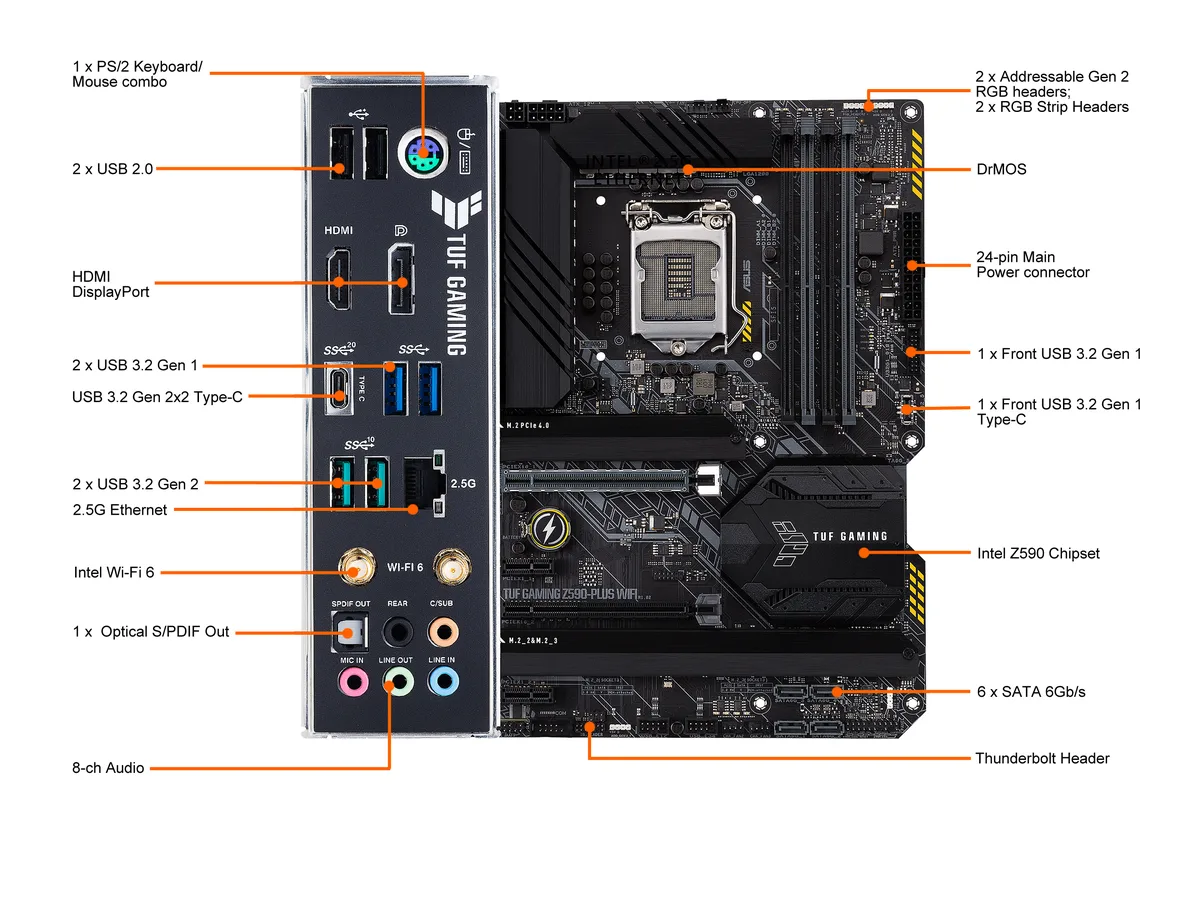

Rear I/O and internal headers for daily use

The rear panel carries an Intel I225-V 2.5 Gb LAN port and Intel WiFi 6 AX201 for wireless connectivity. Audio uses the Realtek ALC S1200A codec for 7.1-channel output. Internally there are six SATA 6 Gb/s ports, three M.2 slots for 2242, 2260, 2280, 22110 drives, a front-panel USB 3.2 Gen 1 Type-C header and a Thunderbolt 4 header. Aura Sync addressable RGB headers let lighting match compatible peripherals.

Highlights

  • Supports 10th and 11th Gen Intel Core CPUs via LGA 1200 socket
  • 14 plus 2 DrMOS power stages with ProCool sockets for stable delivery
  • VRM heatsink PCH fanless heatsink M.2 heatsink and hybrid fan headers for cooling
  • Intel WiFi 6 AX201 2.5Gb LAN TUF LANGuard TurboLAN for fast networking
  • Triple M.2 slots front USB 3.2 Gen 1 Type-C header Thunderbolt 4 header

Specifications

BrandASUS
ModelTUF GAMING Z590-PLUS WIFI
CPU Socket TypeLGA 1200
CPU TypeSupports 11th / 10th Gen Intel Core Processors
Supports Intel Pentium Gold / Celeron Processors
* Refer to www.asus.com for CPU support list.
Supported CPU TechnologiesSupports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z590
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots4x288pin (DDR4)
Memory StandardDDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported128GB
Channel SupportedDual Channel
PCI Express 4.0 x161 x PCI Express 4.0 x16*
* Actual support may vary by CPU.
PCI Express 3.0 x161 x PCI Express 3.0 x16*
* Supports x4 mode.
PCI Express x12 x PCIe 3.0 x1
Serial ATA (SATA)6 x SATA 6Gb/s
M.2Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280/22110
- Only Intel 11th processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**
* M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled.
** M.2_3 shares bandwidth with SATA6G_56. When M.2_3 is occupied, SATA6G_56 will be disabled.
Intel Optane ReadyTo enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.
Audio ChipsetRealtek ALC S1200A
Audio Channels7.1 Channels
LAN ChipsetIntel I225-V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6
802.11 a/b/g/n/ac/ax
BluetoothBluetooth 5.0

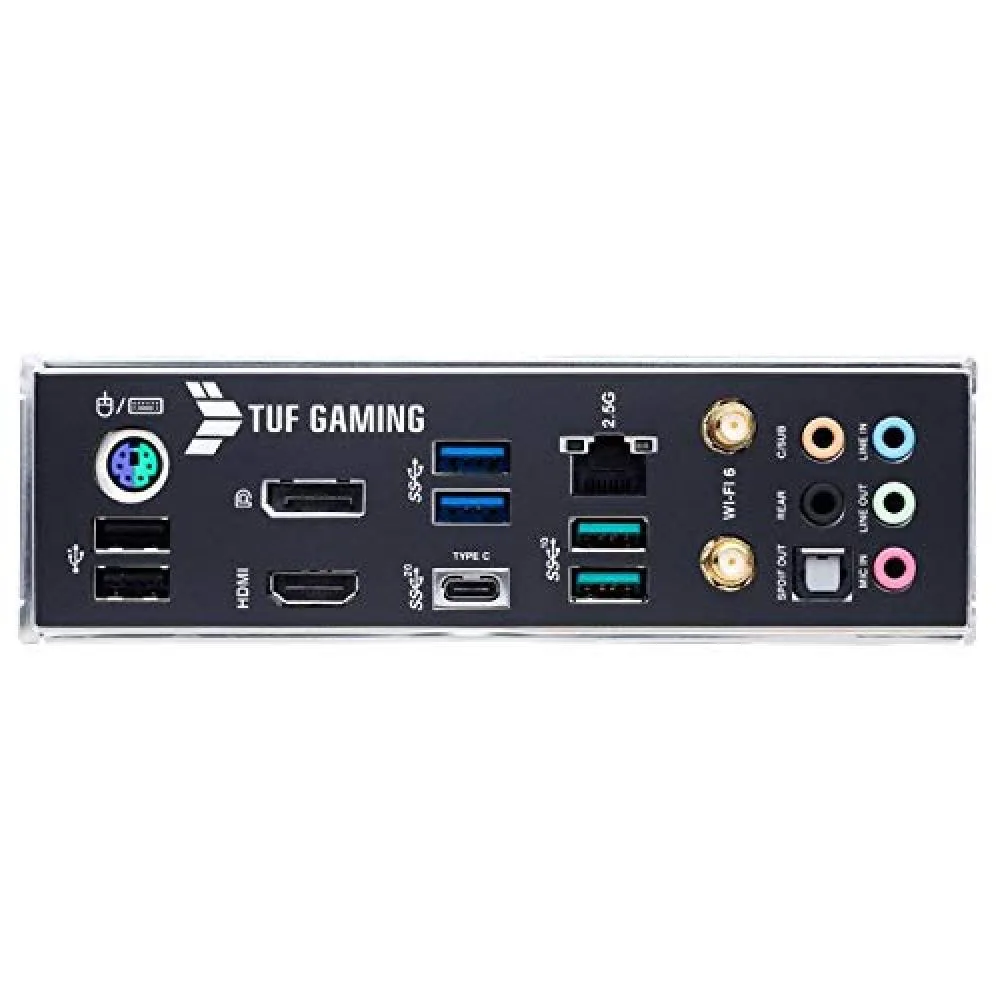

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x ASUS Wi-Fi Module
1 x Intel I225-V 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x PS/2 Keyboard/Mouse combo port
Onboard USB1 x USB 3.2 Gen 1 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
2 x AURA Addressable Gen 2 headers
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3-pin System Panel header with Chassis intrude function
1 x Thunderbolt header
Windows 11Supported
Form FactorATX
LED LightingRGB
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
FeaturesSpecial Features:
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- TUF LANGuard
- Overvoltage Protection
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features:
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Two-Way AI Noise Cancelation
AI Suite 3
Package ContentsAccessories:
Cables:
2 x SATA 6Gb/s cables
Miscellaneous:
1 x ASUS Wi-Fi moving antennas
2 x M.2 Rubber Packages
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Installation Media:
1 x Support DVD
Documentation:
1 x TUF Certification card
1 x User manual
Shipping weight1.86 kg
Package size343 × 272 × 69 mm

Questions about this item

How much heat does the 14+2 DrMOS VRM design and PCH fanless heatsink produce during all-day loads?

The 14+2 DrMOS power stages and military-grade TUF components are paired with a VRM heatsink, PCH fanless heatsink, M.2 heatsink and Fan Xpert 4 utility to manage thermals under sustained operation.

Which components must I already own to install this LGA 1200 board?

You need an 11th or 10th Gen Intel Core, Pentium Gold or Celeron processor, DDR4 modules up to 128 GB, a PSU with 24-pin ATX and 8-pin EPS connectors, and a chassis that fits ATX dimensions.

Will my existing SATA SSDs and PCIe 3.0 add-in cards work with the Z590 chipset and PCIe slots?

Six SATA 6 Gb/s ports support current SATA drives, one PCIe 3.0 x16 slot runs at x4 mode and two PCIe 3.0 x1 slots accept legacy expansion cards.
