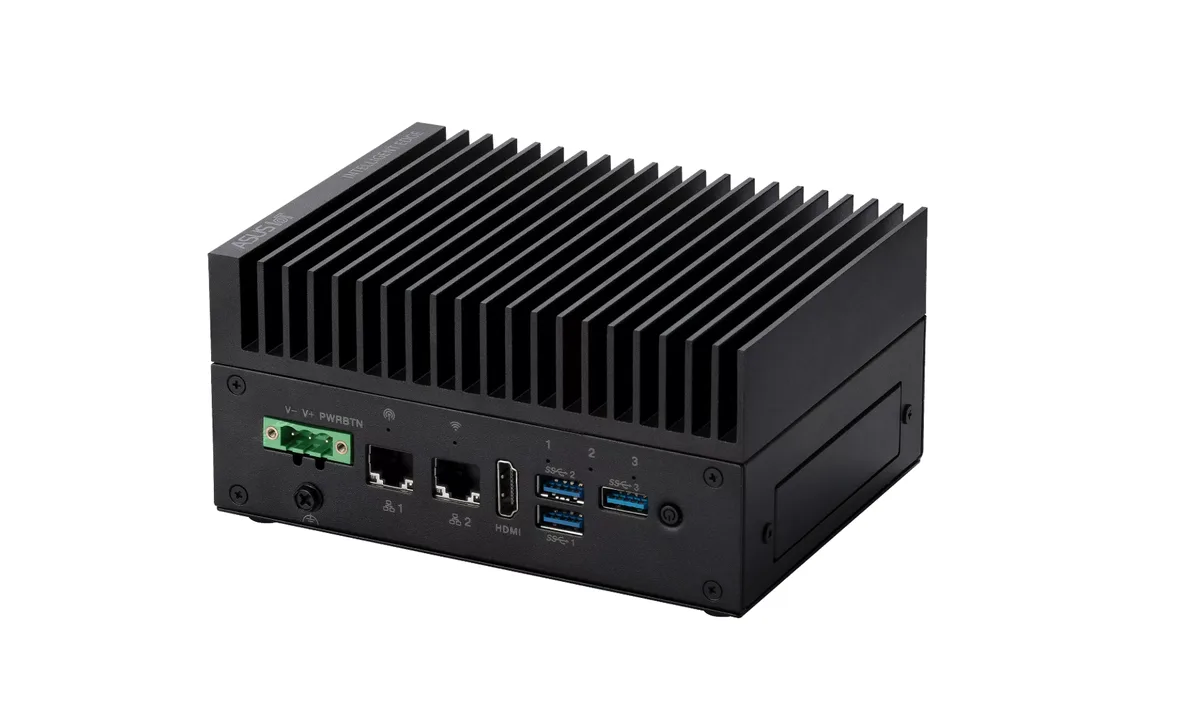

Compact fanless AI edge system with metal casing and multiple I/O ports

ASUS

ASUS 90AE0191-M002H0 PE1100N Orin NX 16GB LPDDR5 AI edge system

SKU CH-5YHZ-D6MSQ MPN 90AE0191-M002H0

Compact fanless edge AI system with NVIDIA Jetson Orin NX, 16 GB LPDDR5, 100 TOPS, dual Gigabit LAN, HDMI 2.0b, M.2 slots for SSD, Wi-Fi and 5G, 12-24 VDC, -20 to 50 °C

  • Form FactorCompact
  • CPU TypeARM
  • Installed CPU8 x Arm Cortex-A78AE v8.2
  • CPU FeaturesAI Performance 100 TOPS
  • Installed Memory Size16 GB 128-bit LPDDR5
  • Installed HDDNo Storage Installed
  • 100 TOPS AI performance from 8-core Arm Cortex-A78AE processor
  • 16 GB 128-bit LPDDR5 memory for high-bandwidth inference
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
  • Fanless compact design operating from -20 to 50 °C
  • Flexible expansion via M.2 M, E and B keys for storage, Wi-Fi and 5G

Compact ARM AI system

The ASUS PE1100N bundles an 8-core Arm Cortex-A78AE v8.2 processor with a 1024-core NVIDIA Ampere GPU and 32 Tensor Cores, delivering 100 TOPS of AI performance. It targets developers and integrators deploying inference workloads at the edge in industrial, robotics or smart-city scenarios. The fanless chassis operates from -20 to 50 °C on a 12 to 24 VDC supply.

Installation and common issues

The unit mounts in a compact footprint and accepts a 3-pin terminal block with a remote power-button pin. Storage, Wi-Fi/BT and 4G/5G are added through three M.2 slots: M key 2242/2260/2280 for PCIe SSD, E key 2230 for wireless, B key 3042/3052 for cellular. Builders often forget to populate the M.2 M key slot, leaving the system without an OS drive.

Capacity and headroom

Sixteen gigabytes of 128-bit LPDDR5 feeds the GPU and CPU for concurrent model execution and video decode at 3840 x 2160 @60 Hz via HDMI 2.0b. Dual Gigabit LAN, three USB 3.2 Gen1 ports, two isolated RS-232/422/485 ports, one CAN bus and eight digital I/O lines handle sensor fusion tasks. Memory and storage ceilings are reached when multiple large models or high-resolution streams run simultaneously.

Highlights

  • 100 TOPS AI performance from 8-core Arm Cortex-A78AE processor
  • 16 GB 128-bit LPDDR5 memory for high-bandwidth inference
  • 1024-core NVIDIA Ampere GPU with 32 Tensor Cores
  • Fanless compact design operating from -20 to 50 °C
  • Flexible expansion via M.2 M, E and B keys for storage, Wi-Fi and 5G

Specifications

BrandASUS
ModelPE1100N / Orin NX 16G/US
Part Number90AE0191-M002H0
Form FactorCompact
CPU TypeARM
Installed CPU8 x Arm Cortex-A78AE v8.2
CPU FeaturesAI Performance 100 TOPS
Installed Memory Size16 GB 128-bit LPDDR5
Installed HDDNo Storage Installed
M.2M.2 M key: 1 x 2242/2260/2280, for M.2 SSD (PCIe, OS disk, size option)
M.2 E key: 1 x 2230, for Wi-Fi/BT (PCIe, USB 2.0, I2C and PCM)
M.2 B key: 1 x 3042/3052, for 4G/5G (PCIe, USB 2.0/3.0)
GPU/VPU1024-core NVIDIA Ampere GPU with 32 Tensor Cores
Max. LAN SpeedDual 1 Gigabit
Front USB3 x USB 3.2 Gen1, Type-A
COM2 x RS-232/422/485, DB9
1 x CAN bus, DB9
HDMI1 x HDMI 2.0b, 3840 x 2160 @60Hz
RJ452
Other Ports4 x DI, 4 x DO (2x5 Terminal Block, w/ isolation)
Max. Power12 to 24 VDC, 3-pin terminal block (1-pin for remote power button)
TemperatureOperating Temp. -20 ~ up to 50°C
Storage Temp. -40 ~ 85°C
Humidity10 ~ 95% (non-condensing)
DimensionsBoard: 3.5", 146 x 105 mm
System: 152 x 114 x 72 mm
Weight1.4kg
Shipping weight1.97 kg
Package size254 × 229 × 114 mm

Questions about this item

How can I verify the 100 TOPS AI performance is active after setup?

The system reports 100 TOPS from the 8 Cortex-A78AE cores and 1024-core NVIDIA Ampere GPU with 32 Tensor Cores; run the Jetson stats utility or NVIDIA tegrastats to confirm GPU and tensor utilisation under load.

What ships in the box and which storage or wireless modules must be purchased separately?

The unit includes the fanless PE1100N with 16 GB 128-bit LPDDR5 soldered on board; no eMMC or SSD is installed, so you must add an M.2 M-key 2242/2260/2280 PCIe SSD, and optionally an M.2 E-key 2230 Wi-Fi/BT module and an M.2 B-key 3042/3052 4G/5G module.

Which M.2 SSD form factor should I choose for the OS drive?

The M-key slot accepts 2242, 2260 or 2280 lengths; pick a PCIe M.2 SSD in any of those three sizes that fits your capacity and budget.
