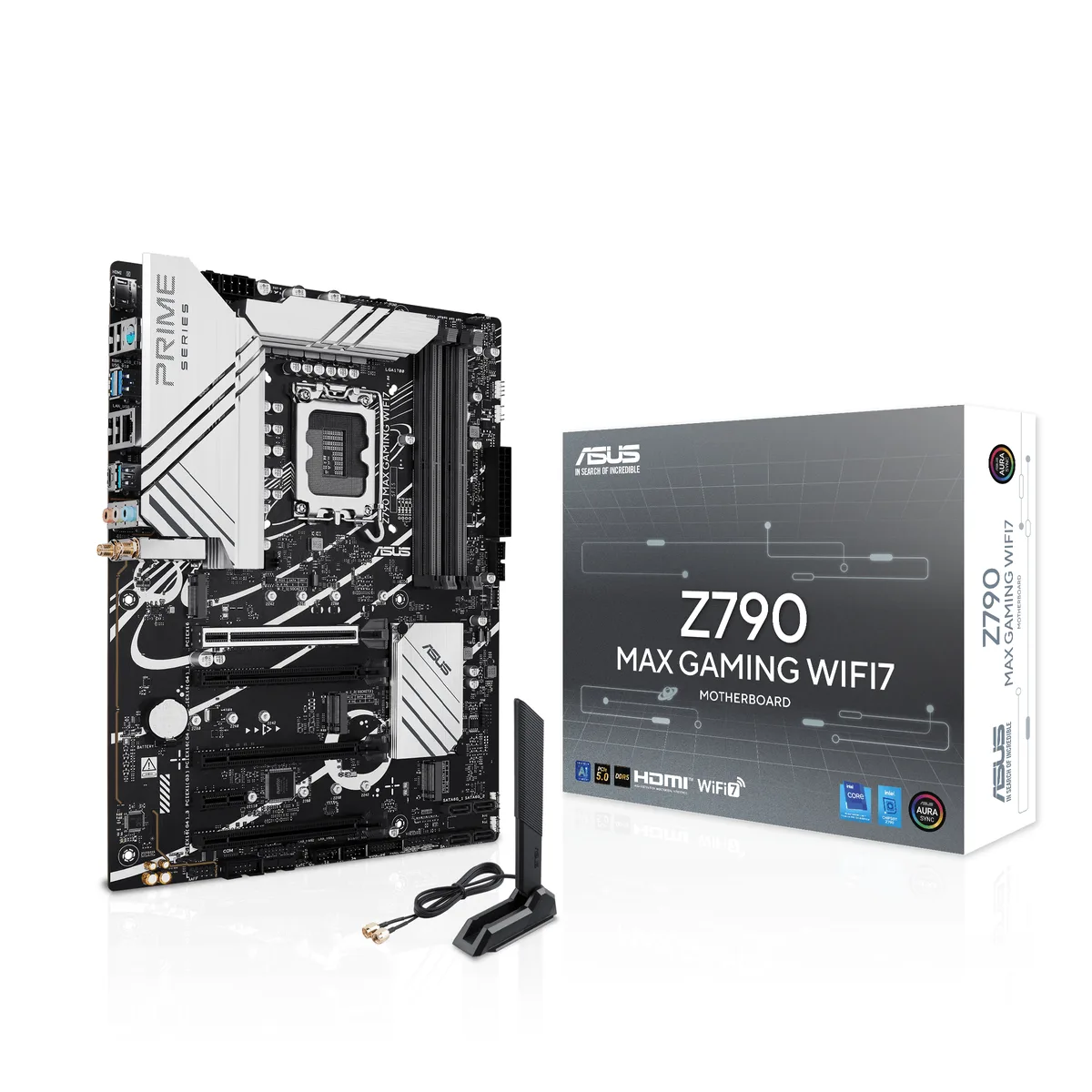

Black ATX motherboard with large silver VRM heatsinks and rear I/O shield

ASUS

ASUS 90MB1MS0-MVAAY0 Z790 MAX GAMING WIFI7 Intel motherboard

SKU CH-SQTM-SCP69 MPN 90MB1MS0-MVAAY0

ATX Intel Z790 board with LGA 1700 socket, DDR5 support, three M.2 slots, 14+1 DrMOS power, Wi-Fi 7 and USB 20Gbps Type-C

  • CPU Socket TypeLGA 1700
  • ChipsetIntel Z790
  • Channel SupportedDual Channel
  • Buffer SupportedUn-buffered
  • Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC
  • Audio Channels7.1 Channels
  • Supports Intel Core 14th, 13th and 12th Gen CPUs via LGA 1700 socket
  • 14+1 DrMOS power stages with 6-layer PCB deliver stable power for overclocking
  • DDR5 memory with ASUS Enhanced Memory Profile II and OptiMem II for higher speeds
  • Wi-Fi 7, PCIe 5.0 and USB 20Gbps Type-C provide next-generation connectivity
  • Large VRM and PCH heatsinks plus AI Cooling II keep thermals under control

Ready for Intel Core 12th, 13th and 14th Gen

This ATX motherboard uses the Intel Z790 chipset and LGA 1700 socket. It supports un-buffered DDR5 memory in dual-channel mode. The board targets gamers and builders who need modern connectivity and a strong power phase design.

14+1 DrMOS power stages for stable delivery

The voltage regulator module uses fourteen DrMOS power stages plus one additional phase. Large VRM heatsinks, a PCH heatsink and hybrid fan headers managed by Fan Xpert 4 with AI Cooling II keep temperatures under control during heavy loads.

Three PCIe 4.0 M.2 slots and Thunderbolt header

Rear I/O includes one USB 20Gbps Type-C, one USB 10Gbps Type-A, two USB 5Gbps Type-A and four USB 2.0 Type-A ports. Onboard Wi-Fi 7, Bluetooth, Realtek 1Gb LAN and 7.1-channel audio complete the platform.

Highlights

  • Supports Intel Core 14th, 13th and 12th Gen CPUs via LGA 1700 socket
  • 14+1 DrMOS power stages with 6-layer PCB deliver stable power for overclocking
  • DDR5 memory with ASUS Enhanced Memory Profile II and OptiMem II for higher speeds
  • Wi-Fi 7, PCIe 5.0 and USB 20Gbps Type-C provide next-generation connectivity
  • Large VRM and PCH heatsinks plus AI Cooling II keep thermals under control

Specifications

BrandASUS
CPU Socket TypeLGA 1700
ChipsetIntel Z790
Channel SupportedDual Channel
Buffer SupportedUn-buffered
Audio ChipsetRealtek 7.1 Surround Sound High Definition Audio CODEC
Audio Channels7.1 Channels
BluetoothYes
Back I/O Ports1 x USB 20Gbps Type-C 1 x USB 10Gbps Type-A 2 x USB 5Gbps Type-A 4 x USB 2.0 Type-A
Form FactorATX
Shipping weight1.63 kg
Package size343 × 273 × 70 mm

Questions about this item

What does the 14+1 DrMOS power design mean when the board is running a high-end CPU?

The 14+1 DrMOS stages and 6-layer PCB deliver stable current to the LGA 1700 socket so 13th and 14th Gen processors can sustain boost clocks under load.

How fast is the rear USB 20Gbps Type-C port in real use?

It runs at USB 20Gbps speed, capped by the controller and cable quality; connected devices negotiate the highest rate both ends support.

What clearance do the large VRM heatsinks need for a CPU cooler?

The board uses an ATX layout with large VRM heatsinks; choose a cooler rated for standard ATX keep-out zones to avoid interference.
