Green micro ATX motherboard with black FM2+ socket, two blue DDR3 slots, single PCIe x16 slot, four grey SATA ports

ASUS

ASUS A68HM-K AMD FM2+ A68H Micro ATX Motherboard

SKU CH-1ADV-DDAQE

Micro ATX board for FM2+ APUs with dual-channel DDR3 up to 2400, one PCIe 3.0 x16 slot, four SATA 6Gb/s ports and Realtek gigabit LAN

  • CPU Socket TypeFM2+
  • CPU TypeA-Series / Athlon
  • ChipsetAMD A68H FCH (Bolton D2H)
  • Number of Memory Slots2x240pin
  • Memory StandardDDR3 2400(O.C.)/ 2133/ 1866/ 1600/ 1333
  • Maximum Memory Supported32GB
  • Supports up to 32GB DDR3 memory for responsive multitasking
  • Dual-channel architecture boosts bandwidth for smoother application performance
  • PCIe 3.0 x16 slot enables modern graphics card compatibility
  • Realtek ALC887 8-channel audio delivers clear surround sound
  • Two USB 3.1 Gen 1 ports provide 5Gbps data transfer

Socket FM2+ foundation

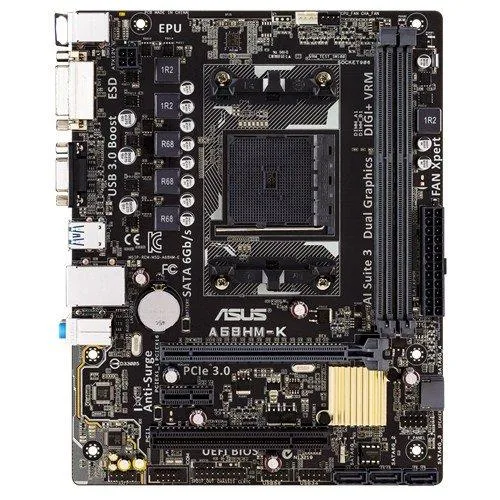

The ASUS A68HM-K uses the AMD A68H chipset on a Micro ATX board for FM2+ Athlon and A-Series processors up to four cores. Two DDR3 DIMM slots support dual-channel memory up to 32 GB at speeds from 1333 to 2400 MHz overclocked. A single PCIe 3.0 x16 slot, one PCIe 2.0 x1 slot and one legacy PCI slot handle expansion.

Thermals and power basics

The board draws power through standard ATX and 4-pin CPU connectors with no extra power phases listed. Passive heatsinks cover the chipset and voltage regulators; no fan headers beyond the CPU and chassis connectors are detailed. Typical idle power stays low for office workloads while the integrated Radeon graphics share up to 2048 MB of system memory under load.

Build and daily connectivity

Realtek ALC887-VD provides eight-channel audio through three rear jacks. Networking uses a Realtek 8111GR controller for 1 Gbps wired LAN. Rear I/O includes D-Sub, DVI, two PS/2 ports, two USB 2.0 ports, two USB 3.1 Gen 1 ports and the audio jacks. Four SATA 6 Gb/s ports support RAID 0, 1, 10 and JBOD for storage flexibility.

Highlights

  • Supports up to 32GB DDR3 memory for responsive multitasking
  • Dual-channel architecture boosts bandwidth for smoother application performance
  • PCIe 3.0 x16 slot enables modern graphics card compatibility
  • Realtek ALC887 8-channel audio delivers clear surround sound
  • Two USB 3.1 Gen 1 ports provide 5Gbps data transfer

Specifications

BrandASUS
ModelA68HM-K
CPU Socket TypeFM2+
CPU TypeA-Series / Athlon
ChipsetAMD A68H FCH (Bolton D2H)
Number of Memory Slots2x240pin
Memory StandardDDR3 2400(O.C.)/ 2133/ 1866/ 1600/ 1333
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0/2.0 x16 *2*2: Only FM2+ Processors can support PCIe3.0.
PCI Express x11 x PCIe 2.0 x1
PCI Slots1 x PCI Slot
Serial ATA (SATA)4 x SATA 6Gb/s port(s), gray
SATA RAID0/1/10/JBOD
Onboard Video ChipsetIntegrated AMD Radeon R/HD8000/HD7000 Series Graphics in the A-Series APU Multi-VGA output support: DVI/RGB ports - Supports DVI with max. resolution 2560 x 1600 @ 60 Hz- Supports RGB with max. resolution 1920 x 1600 @ 60 HzMaximum shared memory of 2048MBAMD Dual Graphics technology support
Audio ChipsetRealtek ALC887-VD
Audio Channels8 Channels
LAN ChipsetRealtek 8111GR
Max LAN Speed1Gbps
Back I/O Ports1 x D-Sub / 1 x DVI / 2 x PS/2 / 2 x USB 2.0/1.1 / 2 x USB 3.1 Gen 1 / 3 x Audio Jacks
PS/21 x PS/2 keyboard (purple)1 x PS/2 mouse (green)
Video Ports1 x DVI1 x D-Sub
RJ451 x RJ45
USB 3.02 x USB 3.0
USB 1.1/2.02 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x TPM connector(s)1 x COM port(s) connector(s)1 x CPU Fan connector(s)1 x Chassis Fan connector(s)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x System panel(s)
Form FactorMicro ATX
Dimensions (W x L)8.90" x 7.09"
Power Pin24 Pin
FeaturesFM2+ Socketed motherboard with proven quality, high-clarity audio and the new UEFI BIOS on the A68H Chipset- Proven quality - 5X Protection. 1000+ compatible devices. 7000+ validation hours- Audio Features - Audio that roars on the battlefield- New UEFI BIOS - The Smoothest and Slickest Mouse-controlled Graphical BIOS- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than traditional USB 3.0Special FeaturesASUS EPU:- EPUASUS Exclusive Features:- AI Suite 3- Ai Charger- Anti-Surge- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface- USB 3.0 Boost- Disk Unlocke
Package ContentsAccessories:User's manualI/O Shield2 x SATA 6Gb/s cable(s)1 x Supporting DVD

Questions about this item

How do I install the CPU into the FM2+ socket without bending pins?

Lift the socket lever, align the gold triangle on the processor with the socket corner, place the chip gently without force, then lower and lock the lever; the step people miss is forgetting to remove the protective plastic cover from the socket before insertion.

What maintenance will the Realtek ALC887 audio and Realtek 8111GR LAN require over time?

No scheduled maintenance is needed for the audio or LAN controllers; keep the rear I/O ports dust-free and update drivers from the ASUS support page when a new Windows build is installed.

Which limit appears first when running the DDR3 2400 O.C. memory continuously at full load?

The memory controller on the A-Series APU typically hits its thermal ceiling before the board's 32 GB capacity or the dual-channel bandwidth is saturated, so sustained speeds may drop to 2133 or 1866 MHz under heavy load.
