Black micro-ATX tower with mesh front panel, steel and plastic construction, no side window

ASUS

ASUS AP201 Prime Mesh Micro-ATX PC case

SKU CH-0N4R-8MBX2 MPN AP201 ASUS PRIME CASE MESH

Mesh-front Micro-ATX tower with USB 3.2 Gen 2 Type-C, three combo drive bays and top-mounted 360 mm radiator support

  • TypeMicro ATX Tower
  • ColorBlack
  • Case MaterialSteel / Plastic
  • With Power SupplyNo
  • Motherboard CompatibilityMicro ATX / Mini ITX
  • Side Panelwithout Side Window

Options AP201 (Mesh, Black)

  • Front USB 3.2 Gen 2 Type-C for fast device connection
  • Top-mounted 360 mm radiator support enables high-capacity liquid cooling

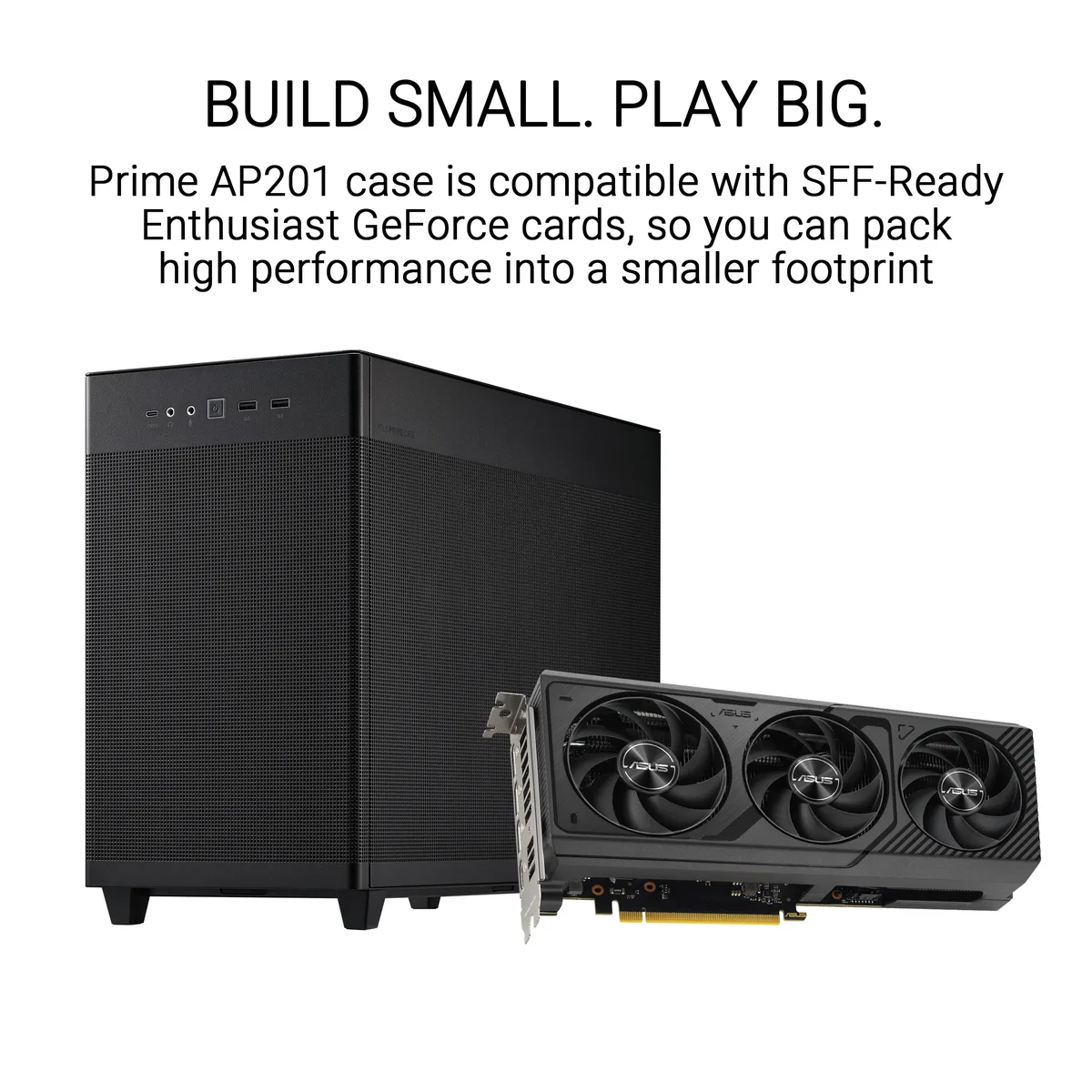

  • Four expansion slots give room for full-length graphics cards
  • Three 3.5/2.5 combo bays plus one dedicated 2.5 bay provide flexible storage
  • Included rear 120 mm fan delivers immediate airflow out of the box

Micro-ATX Mesh Chassis

The ASUS AP201 is a Micro-ATX tower built from steel and plastic with a mesh front panel for airflow. It accepts Micro-ATX and Mini-ITX motherboards and includes one 120mm rear fan. Four expansion slots provide room for a graphics card and other add-in boards.

Suits compact air or liquid builds not windowed rigs

Builders who want a small footprint case with 360mm top radiator support and a front USB 3.2 Gen 2 Type-C port will find it a good match. Those who prefer a tempered-glass side panel or need more than four expansion slots should consider other models.

Top mount handles 360mm radiator

The chassis allows a 360mm radiator in the roof alongside three 120mm or two 140mm fans. This single specification decides whether your planned liquid-cooling loop will fit inside the AP201.

Highlights

  • Front USB 3.2 Gen 2 Type-C for fast device connection
  • Top-mounted 360 mm radiator support enables high-capacity liquid cooling
  • Four expansion slots give room for full-length graphics cards
  • Three 3.5/2.5 combo bays plus one dedicated 2.5 bay provide flexible storage
  • Included rear 120 mm fan delivers immediate airflow out of the box

Specifications

BrandASUS
SeriesPrime
ModelAP201 ASUS PRIME CASE MESH
Part NumberCC-9011268-WW
TypeMicro ATX Tower
ColorBlack
Case MaterialSteel / Plastic
With Power SupplyNo
Motherboard CompatibilityMicro ATX / Mini ITX
Side Panelwithout Side Window
Dust FiltersBottom
Internal 3.5" Drive Bays3 x 2.5"/3.5" Combo Bay
Internal 2.5" Drive Bays1 x 2.5" Bay
Expansion Slots4
Front Ports2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C, Audio
Fan OptionsTop: 3 x 120mm / 2 x 140mm fan
Rear: 1 x 120mm fan (1 x 120mm fan included)
Bottom: 2 x 120mm fan
Radiator OptionsTop: 360mm / 280mm / 240mm / 140mm / 120mm
Rear: 120mm
40mm Fans1
60mm Fans5
80mm Fans1
90mm Fans1
140mm Fans4
180mm Fans4
200mm Fans1
220mm Fans1
Max GPU Length338 mm
Max CPU Cooler Height170 mm
Max PSU Length180 mm
Dimensions18.1" x 8.1" x 13.8"
Weight12.79 lbs.

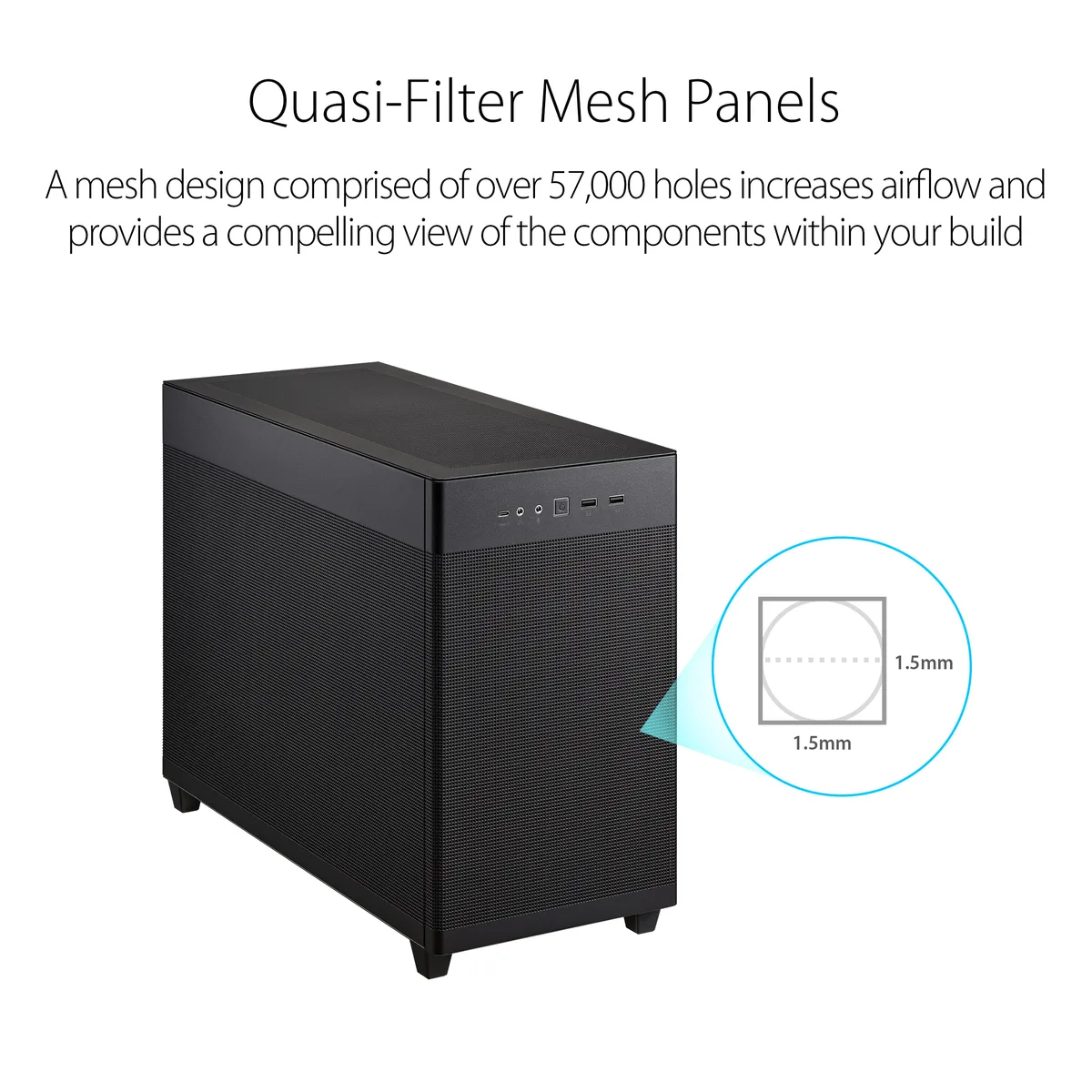

FeaturesQuasi-Filter Mesh Panels: A mesh design comprised of over 57,000 precision-machined 1.5mm holes increases airflow and provides a compelling view of the components within your build.
Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.

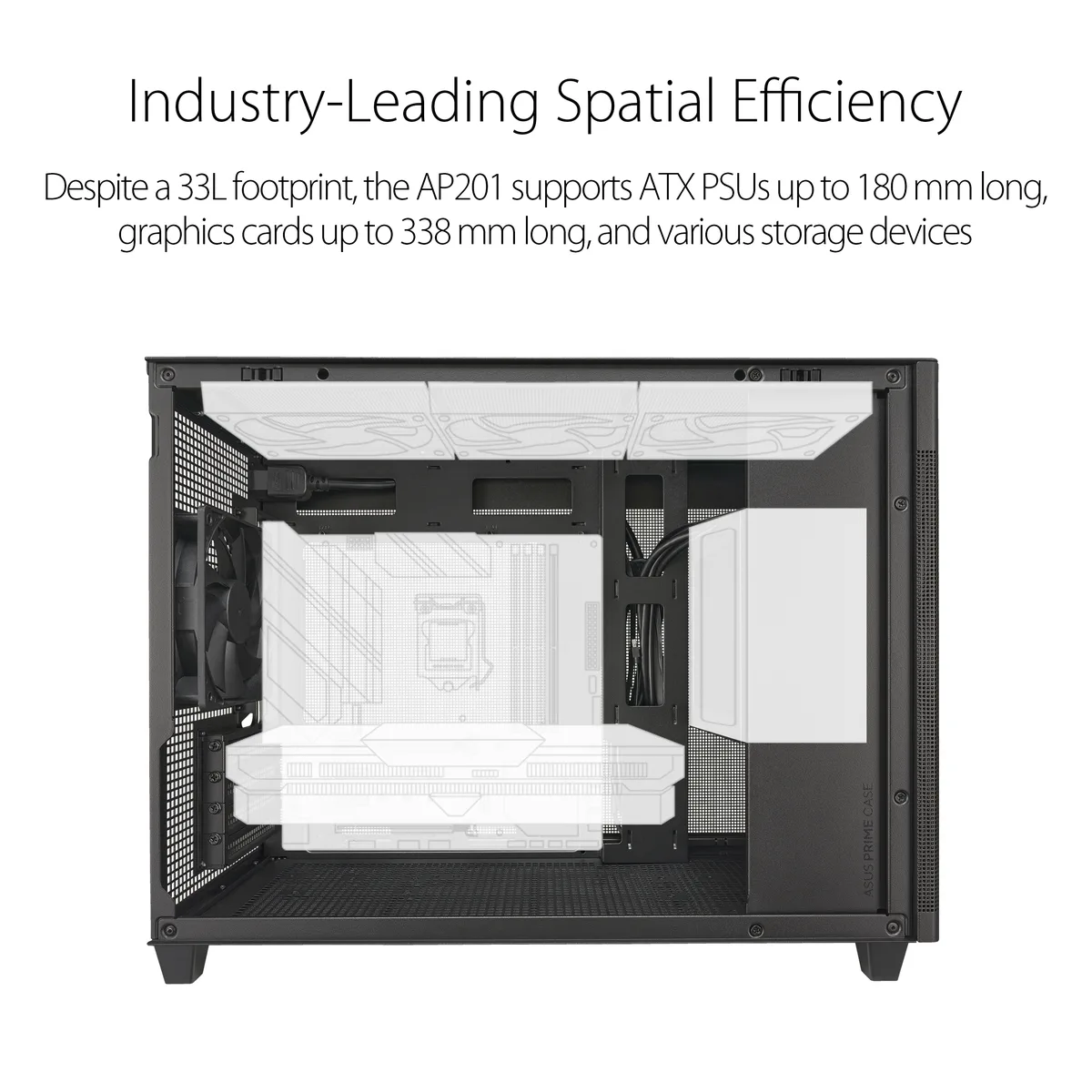

Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

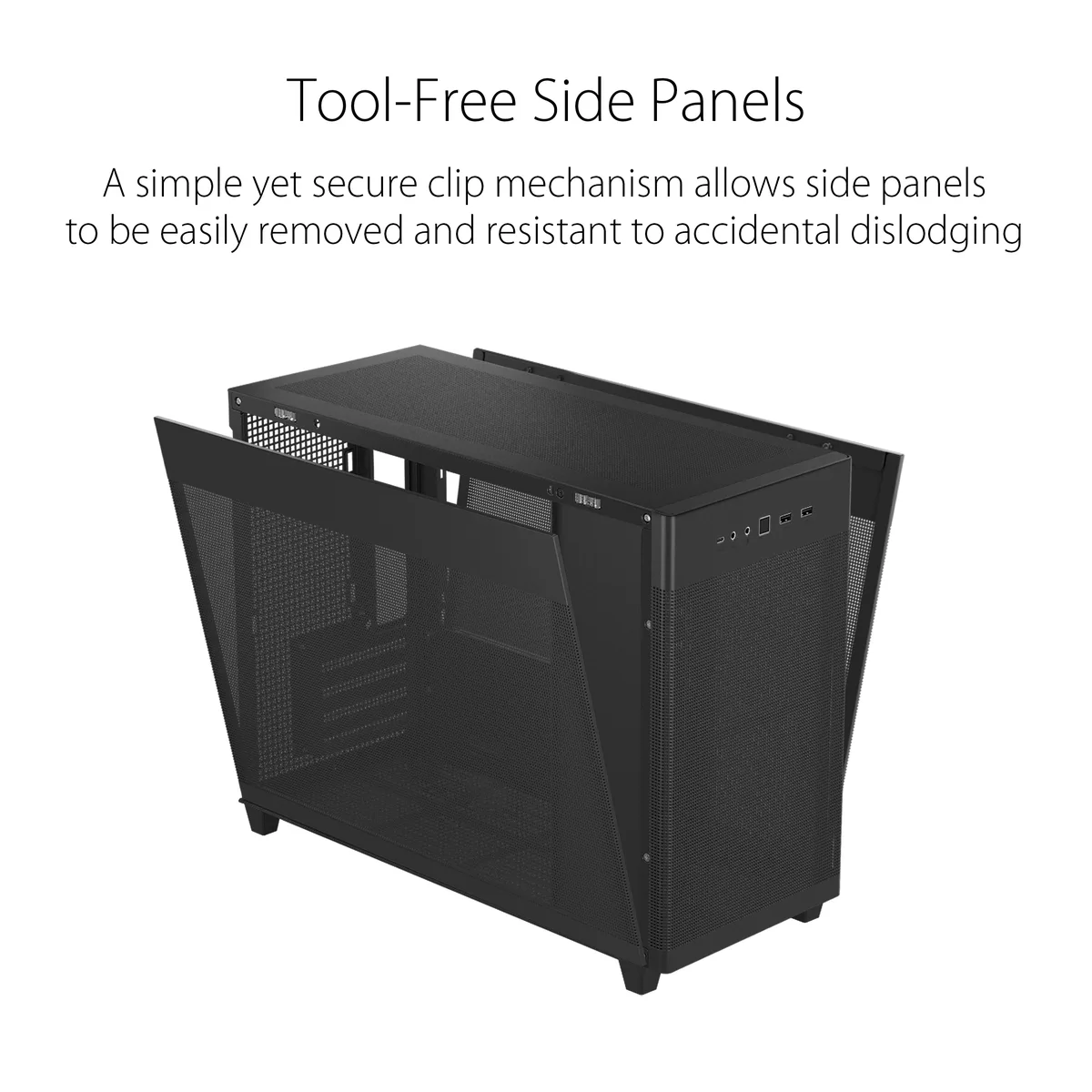

Tool-Free Side Panels: A simple yet secure c
Package ContentMesh/Black
Shipping weight8.53 kg
Package size533 × 432 × 279 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes in the box with the ASUS AP201 and what must I buy separately?

The case includes one 120 mm rear fan. You must supply the motherboard, CPU, memory, storage, power supply, graphics card and any additional fans or radiators you wish to install.

Which motherboard form factors fit the AP201 and how do I choose?

The chassis accepts Micro-ATX and Mini-ITX boards. Choose Micro-ATX for four expansion slots; choose Mini-ITX if you need a smaller board and can live with fewer slots.

What does the 360 mm top radiator support mean for my cooling loop?

You can mount a 360 mm all-in-one or custom-loop radiator in the roof, giving high-capacity liquid cooling for overclocked CPUs in a Micro-ATX build.
