Black ATX 3.1 power supply with a 120 mm fan and modular cable sockets

ASUS

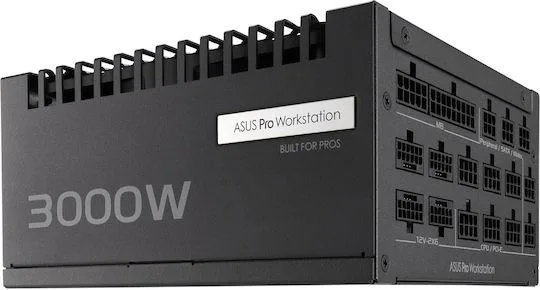

ASUS ASUS-PRO-WS-3000P 3000 W power supply

SKU CH-P4V7-JE9ZW MPN ASUS-PRO-WS-3000P

3000 W fully modular ATX 3.1 unit with 80 PLUS Platinum efficiency, four native 12V-2x6 connectors and twelve SATA outputs for multi-GPU workstations

  • ColorBlack
  • TypeATX 3.1
  • Maximum Power3000 W
  • Fans1 x 120 mm
  • PFCActive
  • Main Connector20+4Pin
  • Supports up to four RTX 5090 GPUs with stable 12 V delivery
  • 80 PLUS Platinum certification reduces waste heat and lowers running costs
  • ATX 3.1 compliant with native 12V-2x6 connectors for modern graphics cards
  • Fully modular cables simplify routing and improve case airflow
  • Dual-ball-bearing fan and extruded aluminium heatsinks extend component life

Built for multi-GPU workstations

This ASUS Pro WS 3000P unit delivers 3000 W from a single +12 V rail and meets the ATX 3.1 and PCIe 5.1 specifications. Four native 12V-2x6 connectors and four 6+2-pin PCIe cables support up to four RTX 5090 cards in one chassis. Full modular cabling keeps routing clean for high-density builds.

Platinum efficiency and dual-ball cooling

80 PLUS Platinum certification reduces waste heat across typical loads. A 120 mm fan with dual-ball bearings targets lower noise and longer life than sleeve alternatives. Extruded aluminium heatsinks cover critical components to further drop temperatures. Active PFC and a 200-240 V input range complete the power platform.

Cables and hardware included

The bundle provides one 610 mm ATX cable, two 1000 mm EPS cables, four 750 mm PCIe Gen 5.1 16-pin cables, four 750 mm PCIe 1-to-1 cables, four SATA 1-to-3 cables and one peripheral 1-to-3 cable. Six cable ties, chassis screws, a power cord and a user manual ship in the box for immediate assembly.

Highlights

  • Supports up to four RTX 5090 GPUs with stable 12 V delivery
  • 80 PLUS Platinum certification reduces waste heat and lowers running costs
  • ATX 3.1 compliant with native 12V-2x6 connectors for modern graphics cards
  • Fully modular cables simplify routing and improve case airflow
  • Dual-ball-bearing fan and extruded aluminium heatsinks extend component life

Specifications

BrandASUS
ModelASUS-PRO-WS-3000P
Part Number90YE00Z0-B0AA00
ColorBlack
TypeATX 3.1
Maximum Power3000 W
Fans1 x 120 mm
PFCActive
Main Connector20+4Pin
+12V RailsSingle
PCI-Express Connector4 x 16-Pin, 4 x 6+2-Pin
SATA Power Connector12
Max PSU Length175 mm
ModularFull Modular
Energy-Efficient80 PLUS PLATINUM Certified
ProtectionOPP/OVP/UVP/SCP/OCP/OTP
Input Voltage200 - 240 V
Output+3.3V@25A, +5V@25A, +12V@250A, [email protected] , +5Vsb@3A

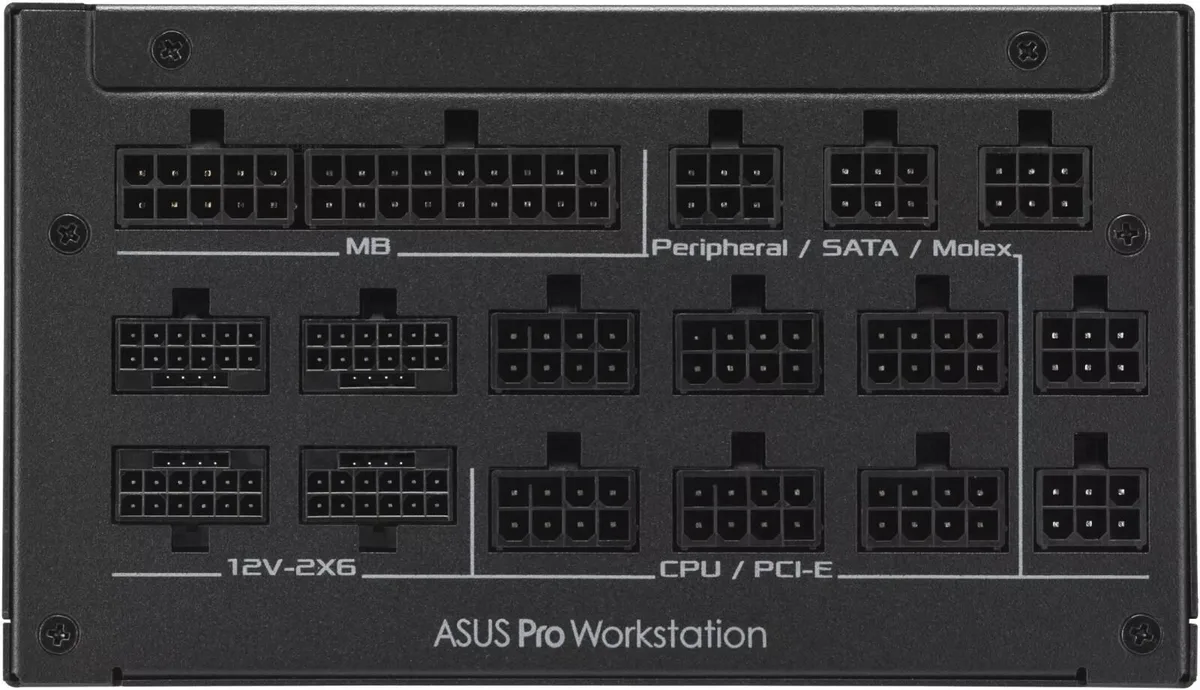

Connectors1 x 24 pin (20+4) ATX / 12 x SATA / 2 x 8 pin (4+4) EPS (CPU) / 3 x 4 pin Peripheral / 4 x 16 pin PCIe / 4 x 8 pin (6+2) PCIe
Cable SpecMotherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
PCI-E 1-to-1 Cable x 4 (750mm)
SATA 1-to-3 Cable x 4 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Dimensions175 x 150 x 86 mm
Weight2.16 kg (single PSU)
Package ContentPower Cord x 1
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1

Questions about this item

How do I install the ASUS Pro WS 3000P and which step do people often miss?

Mount the 175 mm unit with the supplied chassis screws, connect the 24-pin ATX cable (610 mm) and both 8-pin EPS cables (1000 mm), then plug each GPU into its own 12V-2x6 or 6+2-pin PCIe cable — the step most missed is using all four 16-pin cables separately instead of daisy-chaining.

What maintenance or replacement will the ASUS Pro WS 3000P need later?

The 120 mm dual-ball-bearing fan is rated to last roughly twice as long as sleeve-bearing designs; if it ever becomes noisy or fails, replace the fan assembly — no other user-serviceable parts are inside.

What limit appears first when the ASUS Pro WS 3000P runs at full load for extended periods?

The single +12 V rail tops out at 250 A (3000 W total), so sustained draw beyond that triggers OPP/OCP shutdown — thermal protection (OTP) will also trip if case airflow cannot exhaust the heat from the 86 mm-tall heatsink stack.
