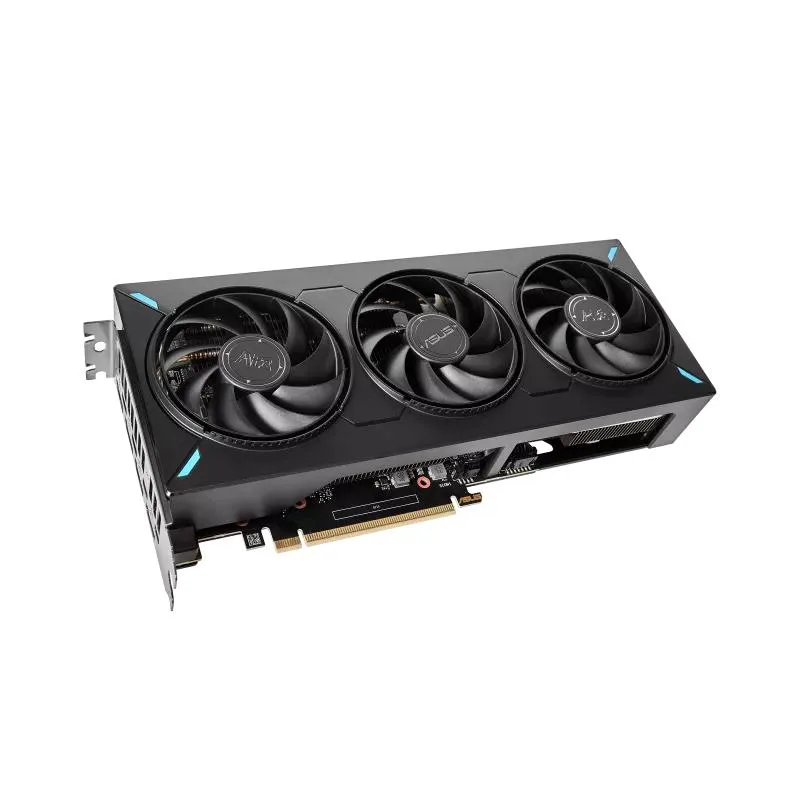

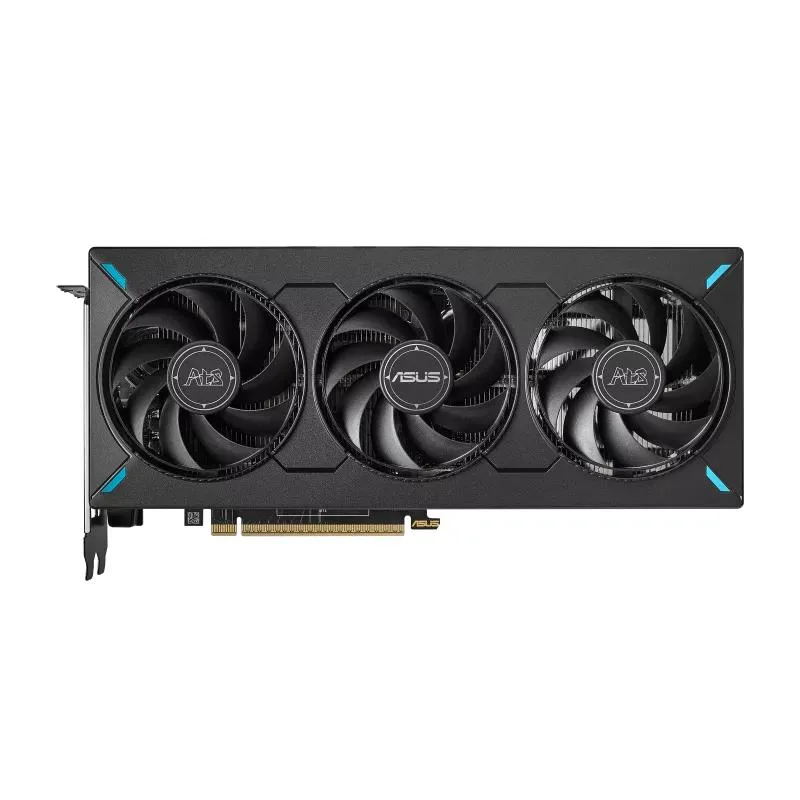

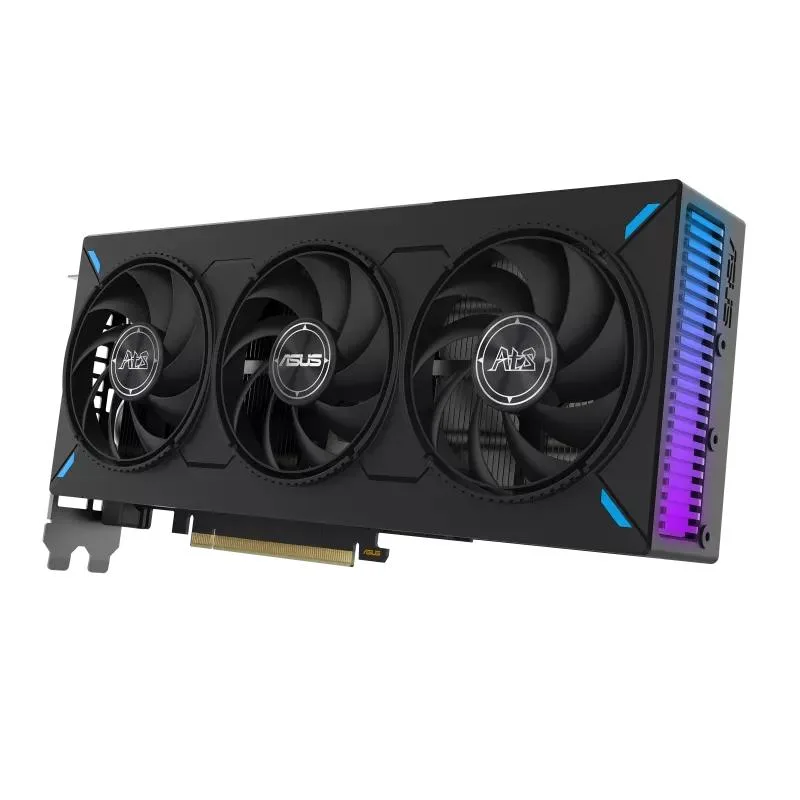

Black dual-slot graphics card with three axial fans and silver accents

ASUS

ASUS ATS GeForce RTX 5060 Ti 8GB GDDR7 graphics card

SKU CH-6TRJ-CVZPJ

GeForce RTX 5060 Ti graphics card with 8GB GDDR7 memory on a 128-bit bus, 4608 CUDA cores, PCIe 5.0 x8 interface, HDMI 2.1b and three DisplayPort 2.1b outputs, boost clock up to 2647 MHz and DLSS

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608
  • 8GB GDDR7 at 28 Gbps delivers high bandwidth on a 128-bit bus
  • PCI Express 5.0 x8 interface provides fast data throughput to the system
  • 4608 CUDA cores on Blackwell architecture handle demanding graphics workloads
  • DLSS 4.0 upscaling boosts frame rates with AI-generated frames
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive up to four 7680×4320 displays

ATS RTX 5060 Ti 8GB GDDR7 overview

The ASUS ATS GeForce RTX 5060 Ti delivers 8GB of 128-Bit GDDR7 memory running at 28 Gbps on the Blackwell architecture. It targets 1440p gamers and content creators who want DLSS 4.0 upscaling and 4608 CUDA cores in a compact dual-slot design. The card operates at a 2617 MHz default boost clock with an OC mode of 2647 MHz for extra headroom.

PCI Express 5.0 x8 build integration

The board uses a PCI Express 5.0 x8 interface, so it fits any modern motherboard with a full-length slot while leaving bandwidth for high-speed storage. One HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four 7680 x 4320 displays without adapters. The 128-bit bus keeps PCB complexity low, freeing case space for airflow or additional expansion cards.

Thermals noise and power in normal use

Blackwell efficiency and the ATS cooler keep temperatures controlled during typical gaming sessions at 2617 MHz boost. Fan curves stay quiet at idle and rise gradually under load without sudden spikes. The 8GB GDDR7 frame buffer and 128-bit interface limit total board power, reducing strain on the system PSU compared to wider-bus models.

Highlights

  • 8GB GDDR7 at 28 Gbps delivers high bandwidth on a 128-bit bus
  • PCI Express 5.0 x8 interface provides fast data throughput to the system
  • 4608 CUDA cores on Blackwell architecture handle demanding graphics workloads
  • DLSS 4.0 upscaling boosts frame rates with AI-generated frames
  • HDMI 2.1b plus three DisplayPort 2.1b outputs drive up to four 7680×4320 displays

Specifications

BrandASUS
SeriesATS
ModelATS-RTX5060TI-O8G
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerTriple Fans
Recommended PSU Wattage550W
Power Connector8-Pin
Features• AI Performance: 758 AI TOPS
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• 2.5-slot design allows for greater build compatibility while maintaining cooling performance
• Dual-ball fan bearings last up to twice as long as standard sleeve bearings
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
• Auto-Extreme man
Form FactorATX
Max GPU Length304 mm
Card Dimensions (L x H)304 x 120 x 50 mm
11.96 x 4.72 x 1.97 inch
Slot Width2.5 Slots

Questions about this item

Will the PCI Express 5.0 x8 interface limit the RTX 5060 Ti under sustained heavy loads?

The card uses a PCI Express 5.0 x8 link; bandwidth scales with the host platform, so the practical limit depends on your motherboard and CPU configuration.

How loud and hot does the ATS cooler get when the GPU runs at 2647 MHz boost all day?

ASUS does not publish acoustic or thermal figures for the ATS design, so exact noise and temperature levels under continuous load are not available.

My motherboard only has PCI Express 4.0 slots; will the card still work at full speed?

The card is backward compatible with PCI Express 4.0 and 3.0 slots, though it will operate at the slot's maximum supported speed.
