Green Micro ATX motherboard with silver AM4 socket, black DDR4 slots, silver PCIe x16 slot, black SATA ports, silver I/O shield

ASUS

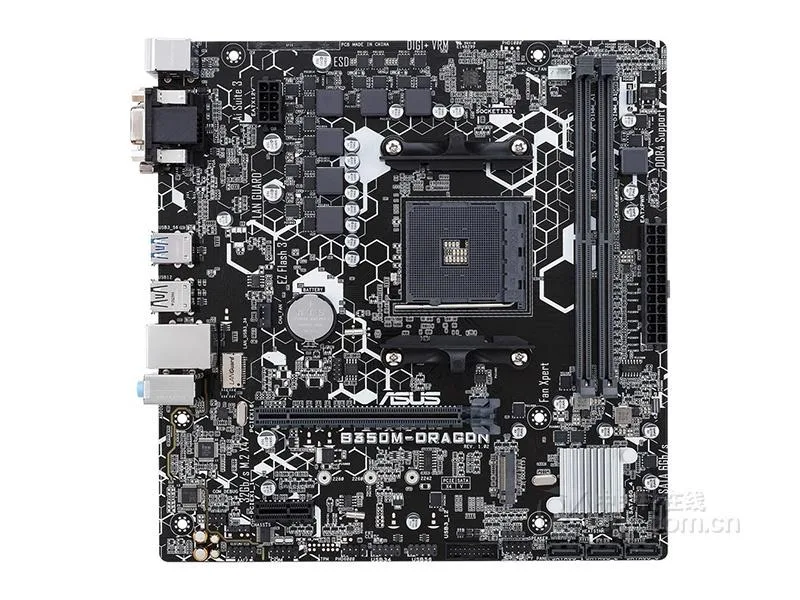

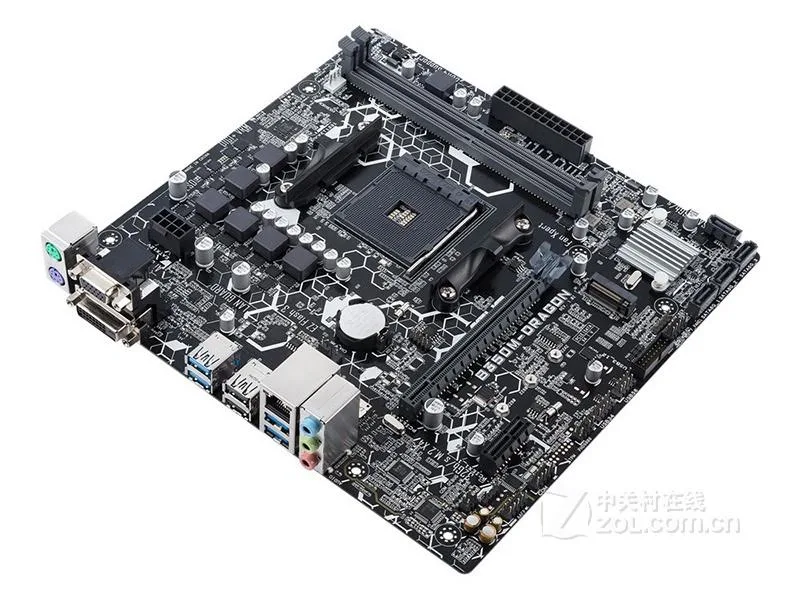

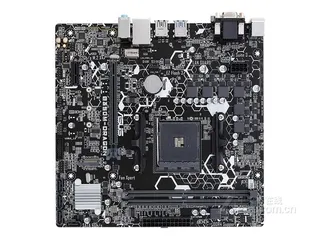

ASUS B350M-DRAGON AMD motherboard AM4 DDR4 32GB Micro ATX

SKU CH-MGQ0-YN8TY

Micro-ATX AM4 board with B350 chipset, dual-channel DDR4 up to 32 GB, two M.2 and four SATA III ports, Realtek audio and LAN

  • CPU Socket TypeAM4
  • CPU TypeThis main board is equipped with a set of Central Processor
  • ChipsetAMD B350
  • Memory StandardSupports dual-channel DDR4 3200 (overclocking)/2933 (overclo
  • Maximum Memory Supported32GB
  • PCI SlotsConsidering the possibility of expanding system performance
  • AM4 socket fits Ryzen and 7th-gen A-series CPUs
  • B350 chipset enables DDR4 up to 3200 MHz overclocked
  • Dual-channel memory supports 32 GB maximum capacity
  • Micro-ATX board measures 22.6 by 22.1 cm for compact builds
  • Realtek ALC887 audio and RTL8111H LAN built in

Socket AM4 DDR4 motherboard

The ASUS B350M-DRAGON is a Micro ATX board built around the AMD B350 chipset for Socket AM4 processors. It targets builders who want a compact foundation for Ryzen or 7th generation A-series and Athlon CPUs without paying for full-size ATX features. The board measures 22.6 by 22.1 centimetres and fits standard Micro ATX chassis.

32GB dual-channel memory limit

Four DDR4 slots support up to 32GB total in dual-channel mode with rated speeds of 3200, 2933, 2666, 2400 and 2133MHz, all listed as overclocking steps above the base JEDEC speeds. Populating all four slots at the highest frequencies may require manual tuning and can hit stability walls sooner than two-slot configurations. The 32GB ceiling suits mainstream gaming and productivity but rules out heavy virtualisation or large content-creation datasets.

Expansion layout and I/O basics

A single PCI Express 3.0 x16 slot and one PCI Express 2.0 x1 slot provide room for a graphics card and one add-in board such as a capture card or extra USB controller. Storage connects through four SATA III ports and two M.2 interfaces that share bandwidth with the chipset. Networking uses a Realtek RTL8111H Gigabit LAN controller and audio runs on a Realtek ALC887 codec. The retail package includes the board, an I/O shield and one SATA cable.

Highlights

  • AM4 socket fits Ryzen and 7th-gen A-series CPUs
  • B350 chipset enables DDR4 up to 3200 MHz overclocked
  • Dual-channel memory supports 32 GB maximum capacity
  • Micro-ATX board measures 22.6 by 22.1 cm for compact builds
  • Realtek ALC887 audio and RTL8111H LAN built in

Specifications

BrandASUS
SeriesASUS B350M-DRAGON
ModelASUS B350M-DRAGON
CPU Socket TypeAM4
CPU TypeThis main board is equipped with a set of Central Processor slots and is designed for AMD Ryzen/7th generation A-series/Athlon with AM4 slots
The processor is designed.
ChipsetAMD B350
Memory StandardSupports dual-channel DDR4 3200 (overclocking)/2933 (overclocking)/2666/2400/2133MHz memory
Maximum Memory Supported32GB
PCI SlotsConsidering the possibility of expanding system performance in the future, this main board provides PCI Express 3.0/2 x16, PCI Express 2.0 x1 expansion slots that support function expansion cards that meet its specifications.
SATA RAID2XM.2 interface, 4xSATA III interface
Audio ChipsetRealtek ALC887
LAN ChipsetRealtek RTL8111H

Questions about this item

Will my existing Ryzen processor fit the AM4 socket on this B350 board?

Yes, the board uses the AM4 socket which is designed for Ryzen and 7th generation A-series or Athlon processors with AM4 slots.

How can I verify the Realtek ALC887 audio and RTL8111H LAN are working after I build the system?

Check Device Manager in Windows or run lspci on Linux; both chips should appear without error codes and audio playback plus a wired network link should function immediately.

What accessories come in the box and what must I source myself?

The package includes the motherboard, one SATA cable and the chassis I/O back panel; you will need to buy DDR4 memory, a CPU cooler, storage drives and a power supply separately.
