Green Micro ATX motherboard with black LGA 1151 socket and four DDR4 slots

ASUS

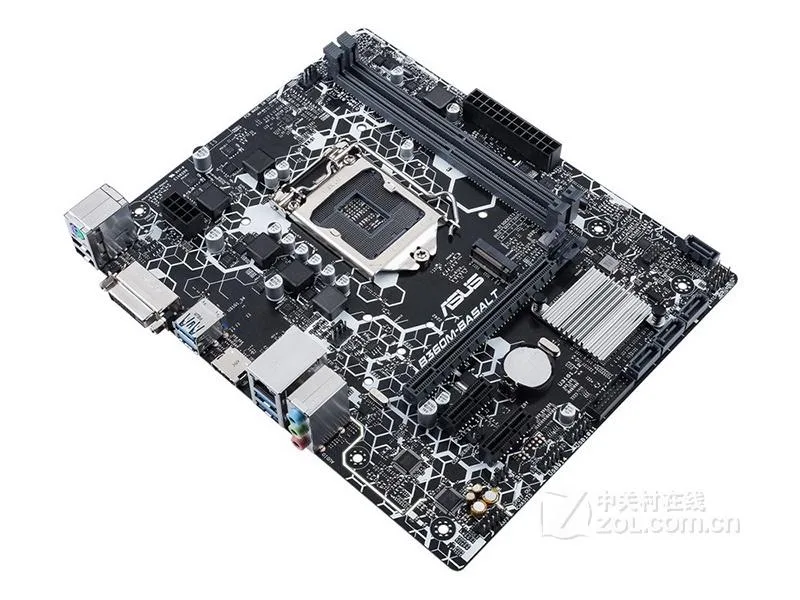

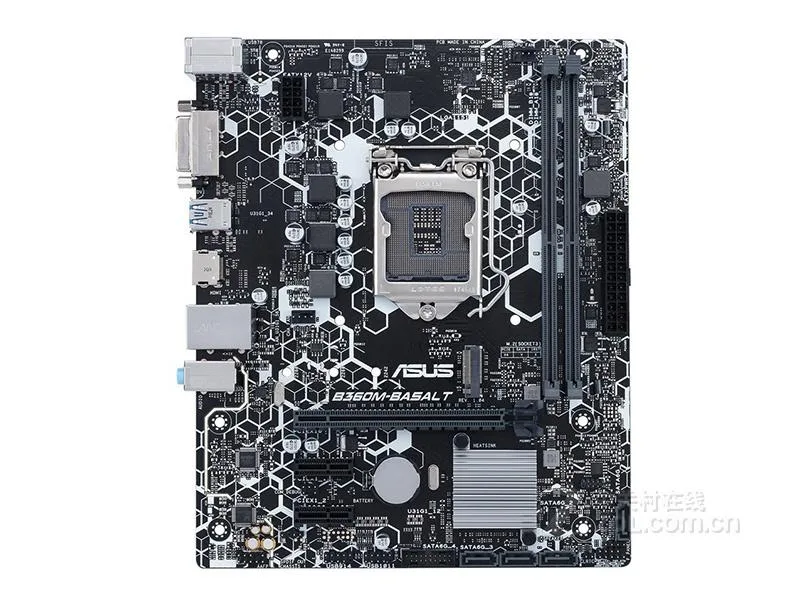

ASUS B360M-BASALT LGA 1151 DDR4 32GB Micro ATX Intel Motherboard

SKU CH-5KYT-YYT3C

Micro ATX board with LGA 1151 socket supports 8th-gen Intel CPUs, dual-channel DDR4 up to 32 GB, four SATA III ports, one M.2 slot, Realtek ALC887 audio and gigabit LAN

  • CPU Socket TypeLGA 1151
  • CPU TypeThe main board is equipped with a set of Central Processor s
  • ChipsetIntel B360
  • Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
  • Maximum Memory Supported32GB
  • PCI Slots3.0/2 x1 expansion slot to support function expansion cards
  • Supports 8th-gen Intel Core i7, i5, i3, Pentium and Celeron CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 32GB at 2666, 2400 or 2133MHz
  • Micro-ATX form factor measuring 22.6 by 18.5cm for compact builds
  • Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN built in
  • One M.2 slot plus four SATA III ports for storage expansion

LGA 1151 Micro ATX board for 8th-gen Intel Core

This ASUS B360M-BASALT motherboard fits LGA 1151 processors from the 8th generation Intel Core i7, i5, i3, Pentium and Celeron lines. The Micro ATX form factor measures 22.6 by 18.5 cm and uses the Intel B360 chipset. It is built for budget office or home builds that do not need overclocking features.

Straightforward install with limited extras

The board ships without original packaging and includes only the motherboard, a metal battery and one SATA cable. Mounting follows standard Micro ATX hole patterns. The I/O shield is supplied. Missing accessories such as extra SATA cables or M.2 screws must be sourced separately. Refurbished units show visible wear and are graded 70 to 80 percent new.

32 GB DDR4 ceiling and basic expansion

Dual-channel DDR4 runs at 2666, 2400 or 2133 MHz up to a 32 GB maximum. One M.2 slot and four SATA III ports handle storage. A single PCI Express 3.0 x16 slot and two PCI Express x1 slots provide limited add-in card room. Realtek ALC887 audio and 8111H Gigabit LAN cover standard connectivity needs.

Highlights

  • Supports 8th-gen Intel Core i7, i5, i3, Pentium and Celeron CPUs via LGA 1151 socket
  • Dual-channel DDR4 memory up to 32GB at 2666, 2400 or 2133MHz
  • Micro-ATX form factor measuring 22.6 by 18.5cm for compact builds
  • Realtek ALC887 8-channel audio and Realtek 8111H Gigabit LAN built in
  • One M.2 slot plus four SATA III ports for storage expansion

Specifications

BrandASUS
SeriesASUS B360M-BASALT
ModelASUS B360M-BASALT
CPU Socket TypeLGA 1151
CPU TypeThe main board is equipped with a set of Central Processor slots, supporting the 8th generation Intel Core i7 Core with LGA1151 specification slots
i5 Core i3/Pentium/Celeron processor.
ChipsetIntel B360
Memory StandardSupports dual-channel DDR4 2666/2400/2133MHz memory
Maximum Memory Supported32GB
PCI Slots3.0/2 x1 expansion slot to support function expansion cards that meet its specifications
Considering the possibility of expanding system performance in the future, this main board provides PCIExpress 3.0/2 x16 and PCI Express
SATA RAID1XM.2 interface, 4xSATA III interface
Audio ChipsetIntegrated Realtek ALC887 8-channel sound chip
LAN ChipsetRealtek 8111H Gigabit Network Controller

Questions about this item

How can I confirm the Realtek ALC887 8-channel audio is working after installing the ASUS B360M-BASALT motherboard?

Boot the system, open the Realtek Audio Console in Windows, and verify all eight channels appear and play test tones through each connected speaker or headphone jack.

What ships with the ASUS B360M-BASALT board and what must I source separately?

The box contains the motherboard, one SATA cable, the chassis I/O back panel and the metal CMOS battery. CPU, DDR4 memory, storage drives, cooler and power supply are not included.

Which DDR4 speed should I choose for the B360M-BASALT — 2133, 2400 or 2666 MHz — to reach the 32 GB limit?

Any of the three supported speeds will work; pick 2666 MHz modules for the highest rated frequency, then populate both slots with 16 GB sticks to hit the 32 GB maximum.
