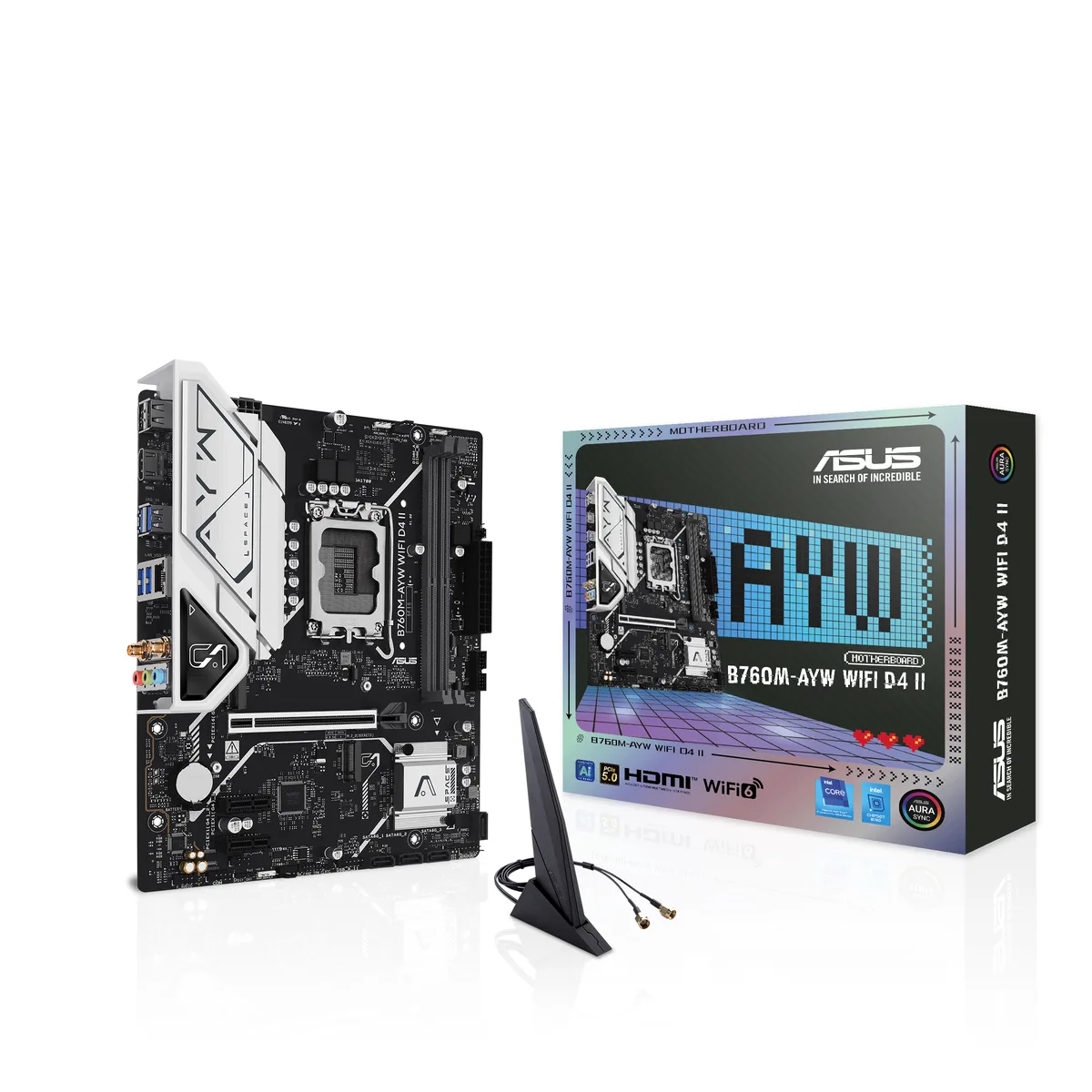

White microATX motherboard with silver heatsinks and black PCB

ASUS

ASUS B760M-AYW WIFI D4 II Intel motherboard

SKU CH-J88B-NET75 MPN B760M-AYW WIFI D4 II

Micro-ATX board for LGA 1700 CPUs with DDR4 memory, PCIe 5.0 x16, two M.2 slots, 2.5Gb Ethernet and Wi-Fi 6

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel B760
  • Number of Memory Slots2x288pin (DDR4)
  • Memory StandardDDR4 2133 / DDR4 2400 / DDR4 2666 / DDR4 2667 / DDR4 2933 /
  • Maximum Memory Supported64GB
  • Supports Intel Core 12th, 13th and 14th Gen CPUs via LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-bandwidth graphics cards
  • Dual M.2 slots each support PCIe 4.0 x4 storage
  • Realtek 2.5Gb Ethernet plus Wi-Fi 6 for fast networking
  • Four rear USB 5Gbps ports and front header for quick peripheral access

Socket LGA 1700 microATX board

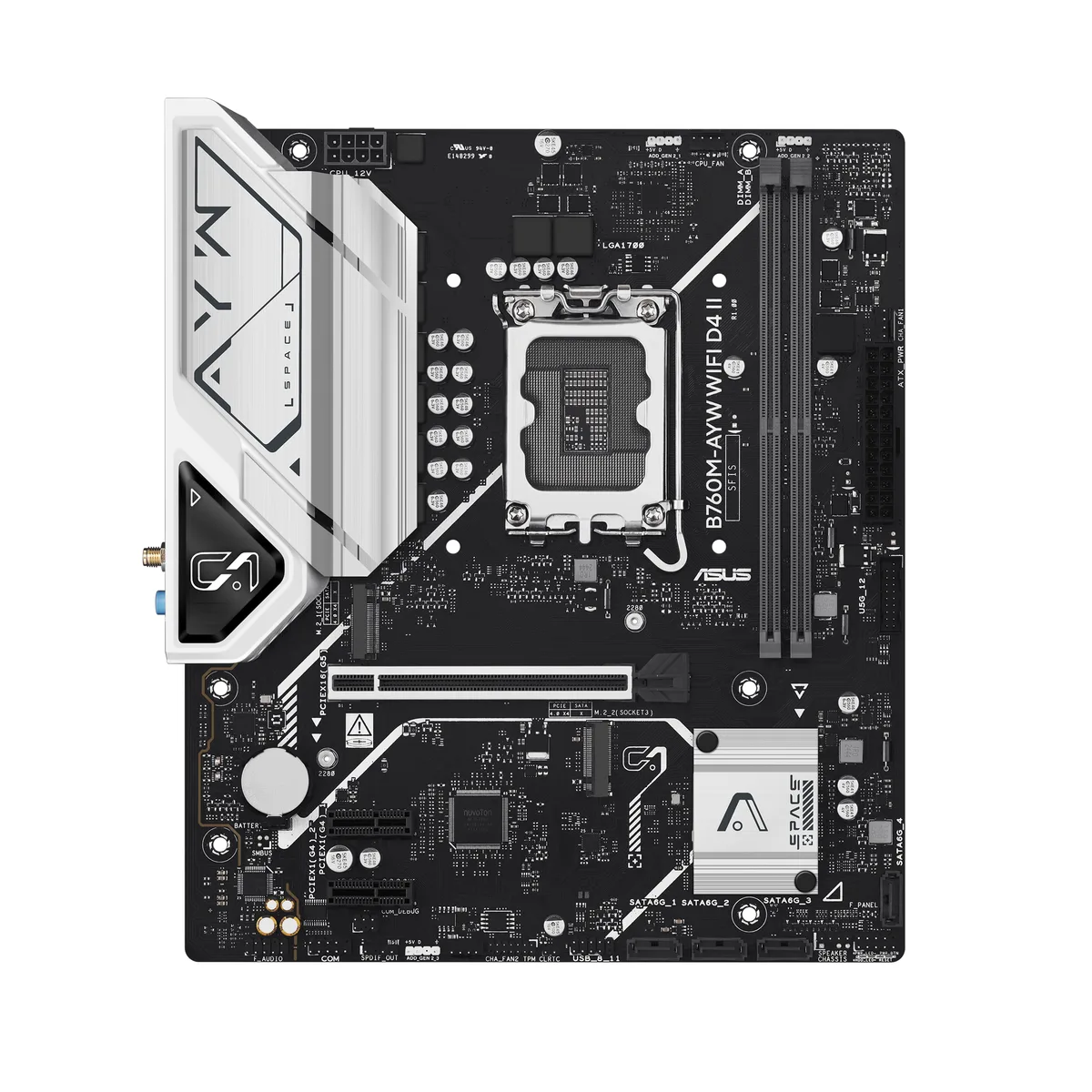

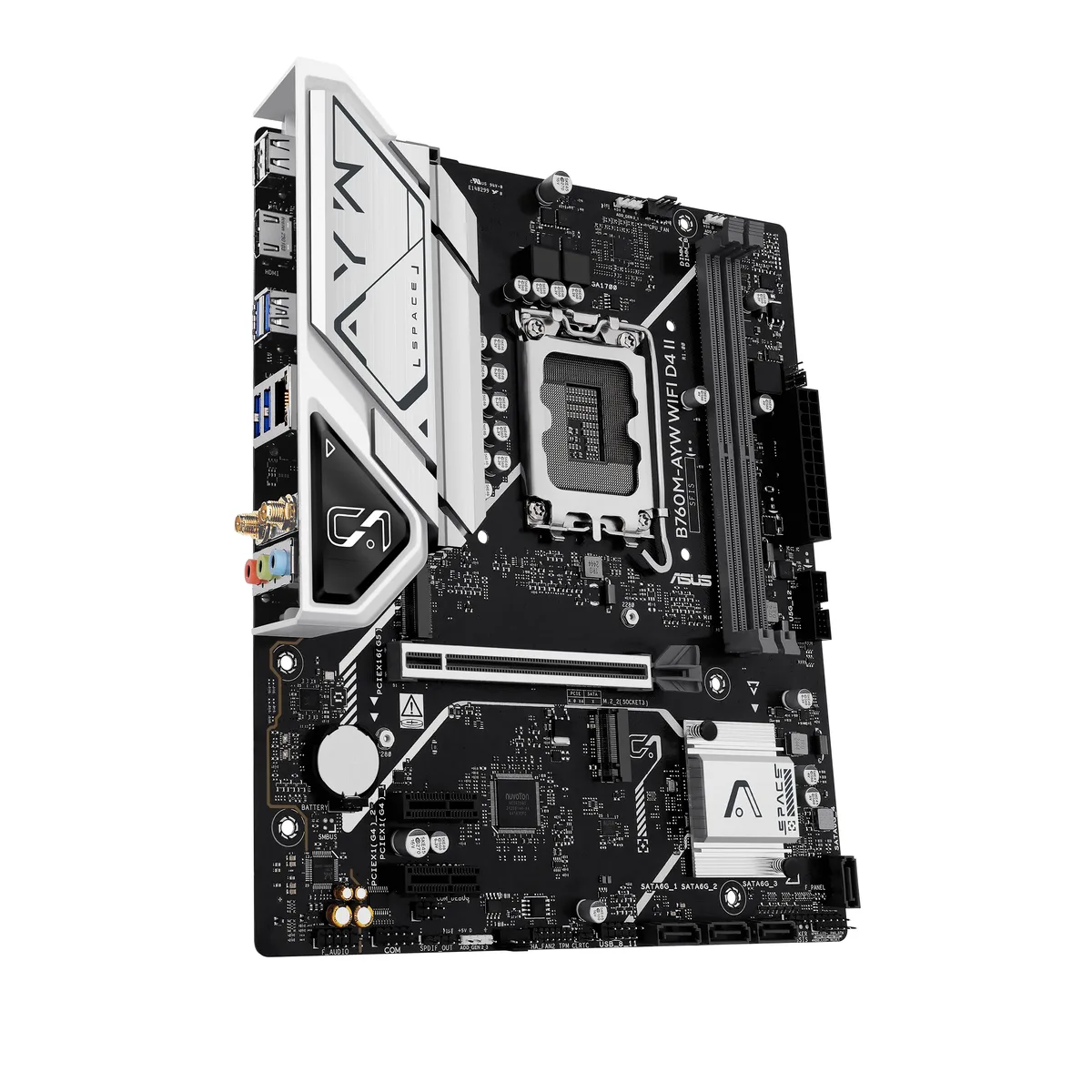

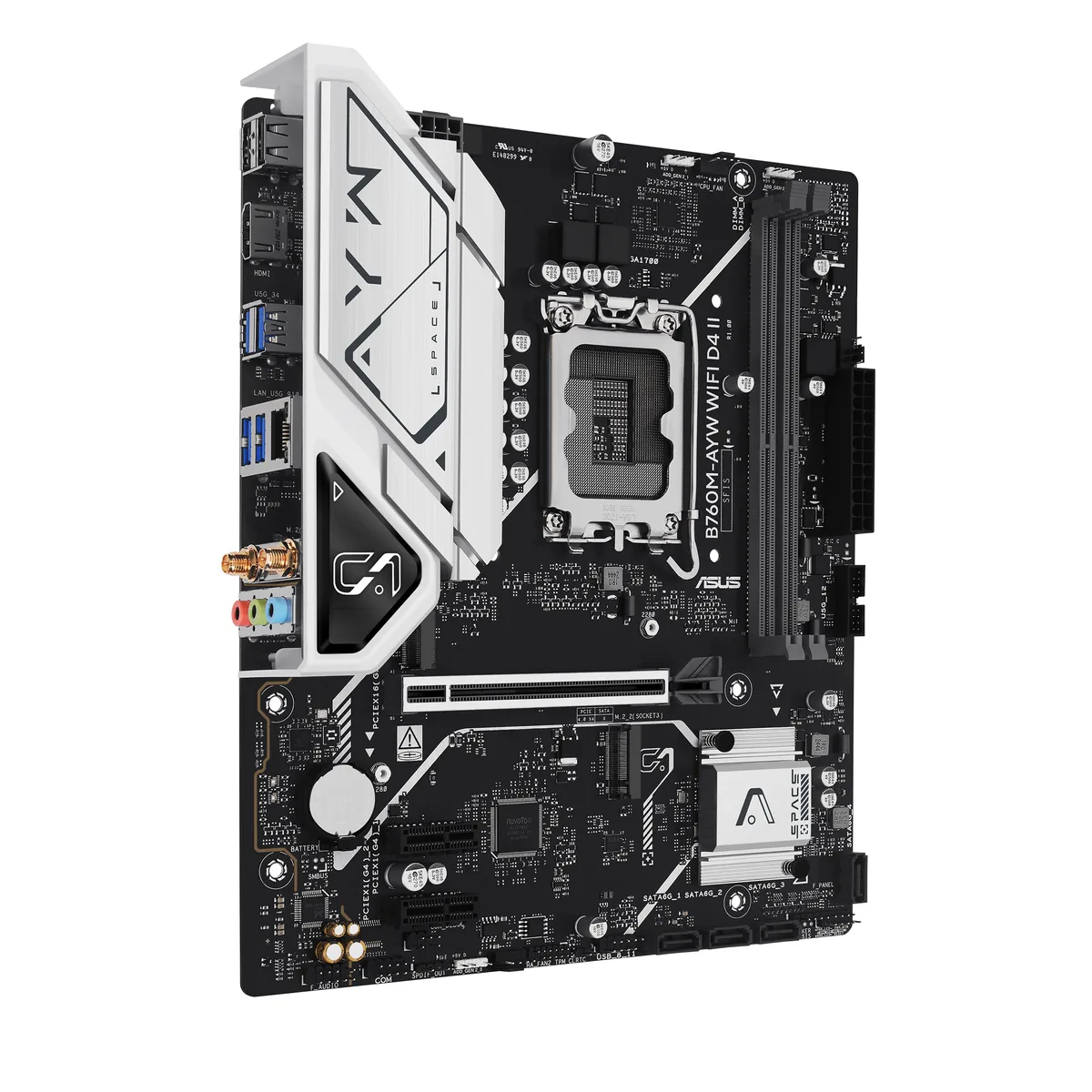

The ASUS B760M-AYW WIFI D4 II is a microATX motherboard built on the Intel B760 chipset for LGA 1700 processors. It accepts Intel Core 12th, 13th and 14th generation CPUs as well as Pentium Gold and Celeron models. Two DDR4 slots support up to 64 GB of memory with Intel XMP 3.0 profiles. The board includes Wi-Fi 6, Realtek 2.5Gb Ethernet and a PCIe 5.0 x16 slot for modern graphics cards.

Two-slot DDR4 platform

This board suits builders who want a compact DDR4 system with current-generation Intel processors and do not need more than two memory slots. It provides two M.2 2280 slots running at PCIe 4.0 x4, four SATA 6 Gbps ports and rear USB 5 Gbps Type-A ports. Users who require four DDR4 slots, more than one full-length PCIe slot or additional rear display outputs should look at larger ATX models.

Single PCIe 5.0 x16 slot

The single PCI Express 5.0 x16 slot is the specification that determines whether this board fits a build. It delivers the full bandwidth for a modern GPU while the chipset supplies two PCIe 4.0 x1 slots for add-in cards. If a second full-length slot or a different slot layout is needed, this model will not meet that requirement.

Highlights

  • Supports Intel Core 12th, 13th and 14th Gen CPUs via LGA 1700 socket
  • PCIe 5.0 x16 slot enables high-bandwidth graphics cards
  • Dual M.2 slots each support PCIe 4.0 x4 storage
  • Realtek 2.5Gb Ethernet plus Wi-Fi 6 for fast networking
  • Four rear USB 5Gbps ports and front header for quick peripheral access

Specifications

BrandASUS
ModelB760M-AYW WIFI D4 II
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
ChipsetIntel B760
Number of Memory Slots2x288pin (DDR4)
Memory StandardDDR4 2133 / DDR4 2400 / DDR4 2666 / DDR4 2667 / DDR4 2933 / DDR4 3200 / DDR4 3333 / DDR4 3400 / DDR4 3466 / DDR4 3600 / DDR4 3733 / DDR4 4000 / DDR4 4266 / DDR4 4400 / DDR4 4600 / DDR4 4800 / DDR4 5000 / DDR4 5066 / DDR4 5333
Maximum Memory Supported64GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express x12 x PCIe 4.0 x1 slots
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA RAID0/1/5/10
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back I/O Ports4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMITM port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Onboard USB1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
BIOS Feature128 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancellation
ASUS DriverHub
-ASUS CPU-Z
AI Suite 3
- DIGI+ VRM
- PC Cleaner
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Windows 11Supported
Form FactorMicro ATX
Dimensions (W x L)9.6" x 8.3"
Power Pin1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
Aura Sync
- Addressable RGB Gen 2 headers

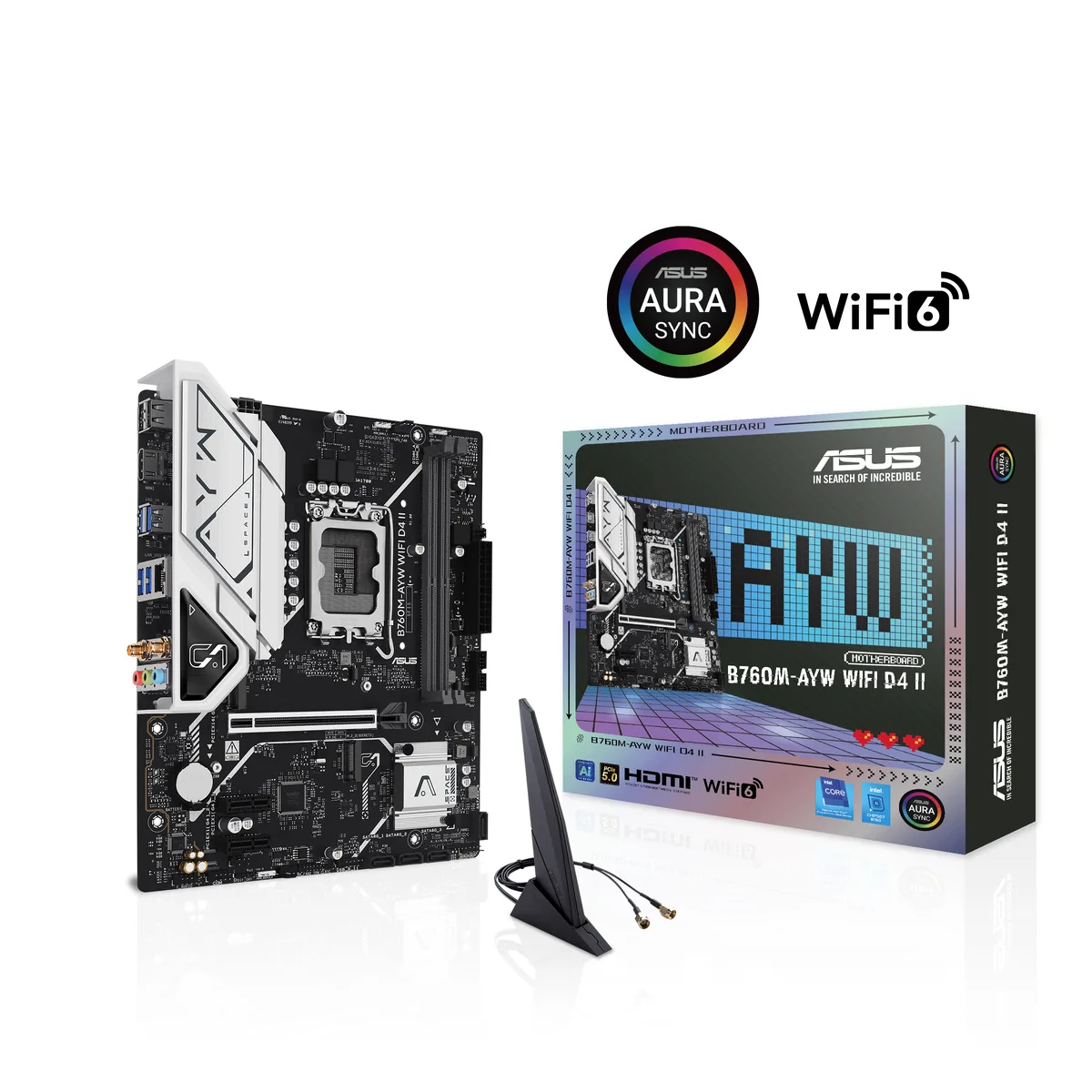

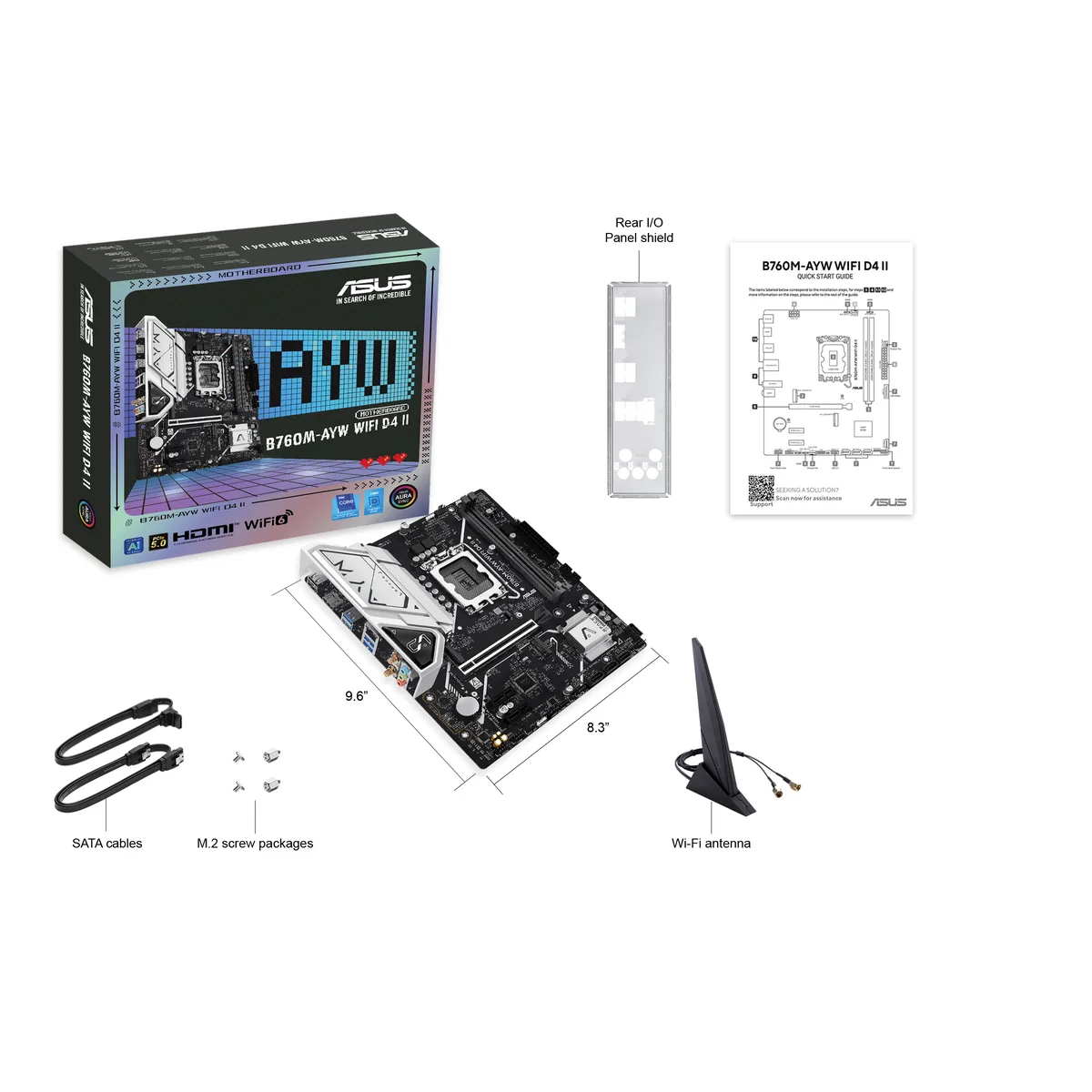

Package ContentsCables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
1 x M.2 Rubber Package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Shipping weight1.18 kg
Package size277 × 267 × 66 mm

Questions about this item

What size case and CPU cooler clearance does the microATX B760M-AYW WIFI D4 II need?

The board follows the microATX form factor and fits any case that accepts microATX; CPU cooler clearance depends on the case and the LGA 1700 socket keep-out zone.

How is the M.2_1 SSD installed and what step is often missed?

Insert the 2280 drive into the M.2_1 slot at an angle, press it flat and secure it with the motherboard screw; the missed step is removing the pre-fitted M.2 heatsink sticker before mounting the drive.

Which components on the B760M-AYW WIFI D4 II may need replacement over time?

The BIOS settings are kept by a socketed coin cell on the board; the 128 Mb UEFI flash can be re-flashed if corrupted, and the three addressable RGB Gen 2 headers can be re-pinned if a pin bends.
