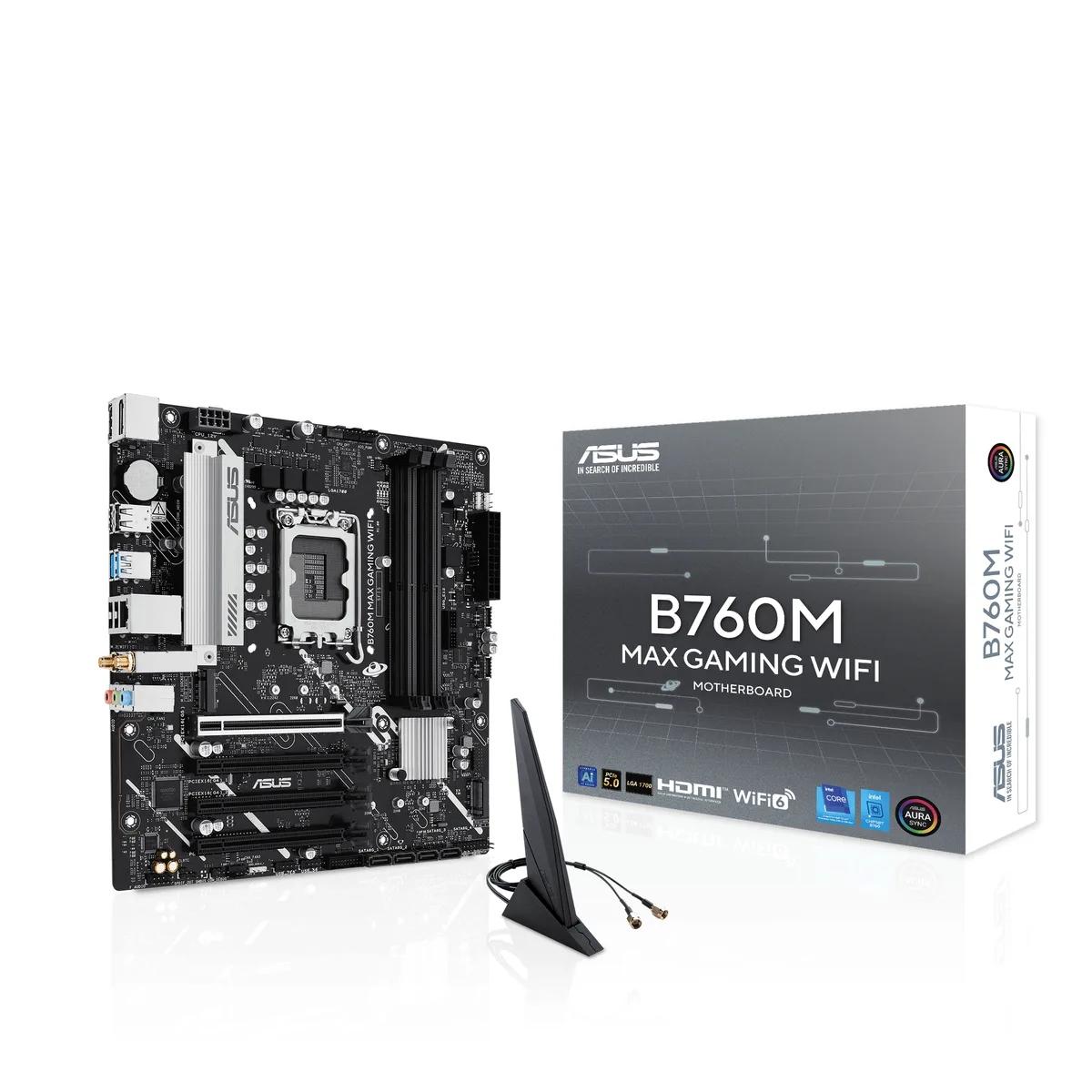

Black mATX motherboard with silver heatsinks and four DDR5 slots

ASUS

ASUS B760M MAX GAMING WIFI-GSI 90MB1MF0-MVABY1 Intel motherboard

SKU CH-9A8G-PM477 MPN 90MB1MF0-MVABY1

LGA 1700 mATX board supports Intel Core 12, 13 and 14 Gen CPUs, DDR5 up to 7200, PCIe 5.0 x16, three M.2 slots, Wi-Fi 6 and Bluetooth 5.3

  • CPU Socket TypeLGA 1700
  • CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th G
  • ChipsetIntel B760
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 /
  • Maximum Memory Supported256GB
  • Supports Intel Core 12th 13th 14th Gen processors with LGA 1700 socket
  • PCIe 5.0 x16 slot enables high bandwidth graphics cards
  • Four DDR5 slots up to 7200 MT/s with XMP 3.0
  • Three M.2 slots plus four SATA 6Gb/s ports for storage expansion
  • Wi-Fi 6 and Bluetooth 5.3 plus rear USB 10Gbps Type-A and front USB 5Gbps Type-C

B760M MAX GAMING WIFI-GSI mATX motherboard

This board fits Intel Core 12, 13 and 14 generation processors on the LGA 1700 socket. The B760 chipset and mATX form factor suit builders who want a compact system with modern connectivity. It is sold in open-box condition and carries the part number 90MB1MF0-MVABY1.

DDR5 memory up to 256 GB across four slots

Four 288-pin slots support dual-channel DDR5 from 4800 to 7200 MT/s with Intel XMP 3.0 profiles. The CPU-linked M.2_1 slot and two chipset M.2 slots each accept 2242, 2260 and 2280 drives running at PCIe 4.0 x4. Four SATA 6 Gb/s ports add further storage headroom before the platform runs out of lanes.

VRM and PCH heatsinks with Fan Xpert 2+

Heatsinks on the voltage regulators and chipset work with hybrid fan headers managed by Fan Xpert 2+ to keep thermals in check during typical gaming loads. Onboard Wi-Fi 6 and Bluetooth 5.3 handle wireless duties while the 1 Gbps LAN port covers wired traffic. Realtek 7.1 audio with shielding and 24-bit/192 kHz playback rounds out the I/O.

Highlights

  • Supports Intel Core 12th 13th 14th Gen processors with LGA 1700 socket
  • PCIe 5.0 x16 slot enables high bandwidth graphics cards
  • Four DDR5 slots up to 7200 MT/s with XMP 3.0
  • Three M.2 slots plus four SATA 6Gb/s ports for storage expansion
  • Wi-Fi 6 and Bluetooth 5.3 plus rear USB 10Gbps Type-A and front USB 5Gbps Type-C

Specifications

BrandASUS
ModelB760M MAX GAMING WIFI-GSI
Part Number90MB1MF0-MVABY1
CPU Socket TypeLGA 1700
CPU TypeCeleron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Intel Core 14th Gen (LGA 1700) / Pentium Gold
ChipsetIntel B760
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x 4 mode)
2 x PCIe 4.0 x16 slots (support x1 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
SATA RAIDIntel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Audio ChannelsRealtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Max LAN Speed1Gbps
Wireless LANWi-Fi 802.11 ax
BluetoothBluetooth 5.3
Back I/O Ports1 x Antenna Bracket / 1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 2 x USB 3.2 Gen 2 Type-A / 3 x Audio Jacks / 4 x USB 2.0/1.1
Onboard USB2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 5Gbps connectors (supports USB Type-C)
2 x USB 2.0 header support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Miscellaneous
3 x Aura Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
BIOS Feature128 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- FanXpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- Digi+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Form FactorMicro ATX
Dimensions (W x L)9.6" x 9.6"
Power PinPower related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
FeaturesASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
AURA Sync
- Addressable Gen 2 headers
Shipping weight0.68 kg
Package size254 × 241 × 38 mm

Questions about this item

Can I keep my existing LGA 1700 cooler when moving to this B760M MAX GAMING WIFI-GSI board?

Yes, the socket is LGA 1700, so any cooler rated for that mounting pattern will fit without an adapter.

How do I confirm the PCIe 5.0 x16 slot is running at full speed after I install a graphics card?

In the UEFI or GPU-Z check that the link width reads x16 and the generation reads 5.0; the primary slot is wired for PCIe 5.0 x16 from the CPU.

Which cables or modules are not included and must be purchased separately for a first build?

The board ships with SATA cables, an I/O shield, M.2 screws and a Wi-Fi 6 antenna; you still need DDR5 memory, a CPU, storage drives and a power supply.
