Green Micro ATX motherboard with silver CPU socket and black DDR3 slots

ASUS

ASUS B85M-E R2.0 Intel B85 LGA 1150 DDR3 32GB Micro ATX Motherboard

SKU CH-RGDK-XDZ37

Micro ATX motherboard with LGA 1150 socket, Intel B85 chipset and DDR3 support up to 32 GB

  • CPU Socket TypeLGA 1150
  • ChipsetIntel B85
  • Maximum Memory Supported32GB
  • Supports up to 32GB DDR3 memory for multitasking headroom
  • LGA 1150 socket fits compatible Intel processors
  • Intel B85 chipset provides essential platform features
  • Micro ATX form factor suits compact chassis builds
  • Includes SATA cable and I/O shield for quick setup

Socket LGA 1150 Micro ATX Board

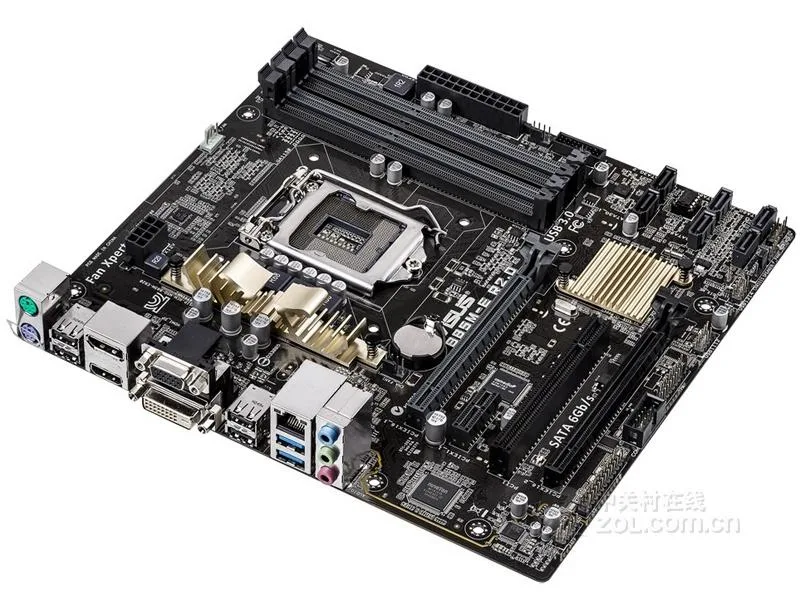

The ASUS B85M-E R2.0 is a Micro ATX motherboard built around the Intel B85 chipset and the LGA 1150 socket. It supports DDR3 memory up to 32 GB and fits compact chassis. This board suits builders assembling a cost-conscious desktop for everyday office tasks or legacy software.

Replaces Older LGA 1150 Boards

The R2.0 revision updates the B85 platform while keeping the same socket and memory standard. The upgrade makes sense when an existing board has failed or when a system needs the revised layout and component selection. It does not add newer memory types or a different socket.

Fits Micro ATX Builds

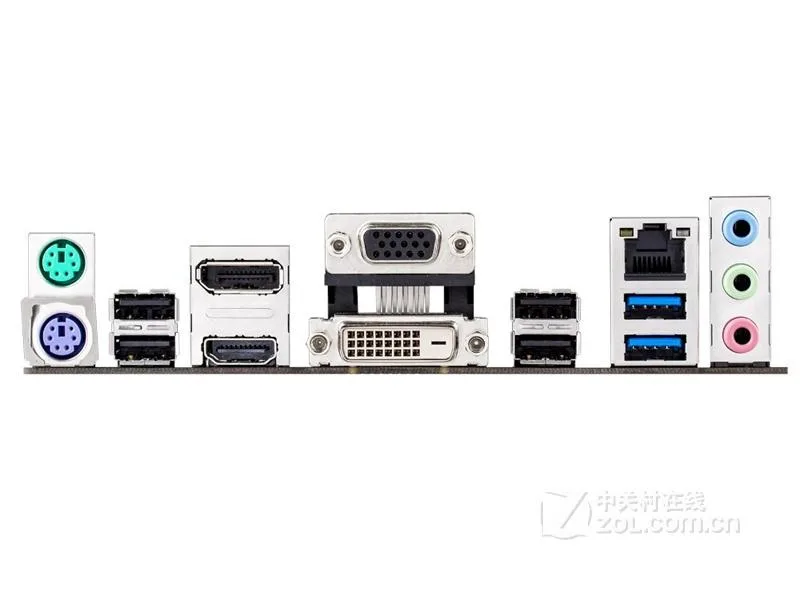

The board requires an LGA 1150 processor, DDR3 modules, SATA storage drives and a Micro ATX compatible case with matching I/O shield. It frees up expansion slots in smaller enclosures and includes one SATA cable and the rear I/O panel in the package.

Highlights

  • Supports up to 32GB DDR3 memory for multitasking headroom
  • LGA 1150 socket fits compatible Intel processors
  • Intel B85 chipset provides essential platform features
  • Micro ATX form factor suits compact chassis builds
  • Includes SATA cable and I/O shield for quick setup

Specifications

BrandASUS
ModelASUS B85M-E R2.0
CPU Socket TypeLGA 1150
ChipsetIntel B85
Maximum Memory Supported32GB

Questions about this item

What physical space and mounting pattern does the Micro ATX board need inside a case?

The board follows the Micro ATX form factor, so it fits any chassis with matching Micro ATX or larger ATX standoff holes and an I/O cut-out that aligns with the supplied back panel.

How is the board installed and which step is often missed?

Mount the board on the standoffs using all screw holes, attach the supplied I/O shield before securing the board, then connect the 24-pin ATX and 4-pin CPU power cables; the step most often missed is fitting the I/O shield first.

What maintenance will the board need later?

The metal battery on the board will eventually need replacement; when the system loses time or BIOS settings, swap the coin cell for a fresh one of the same type.
