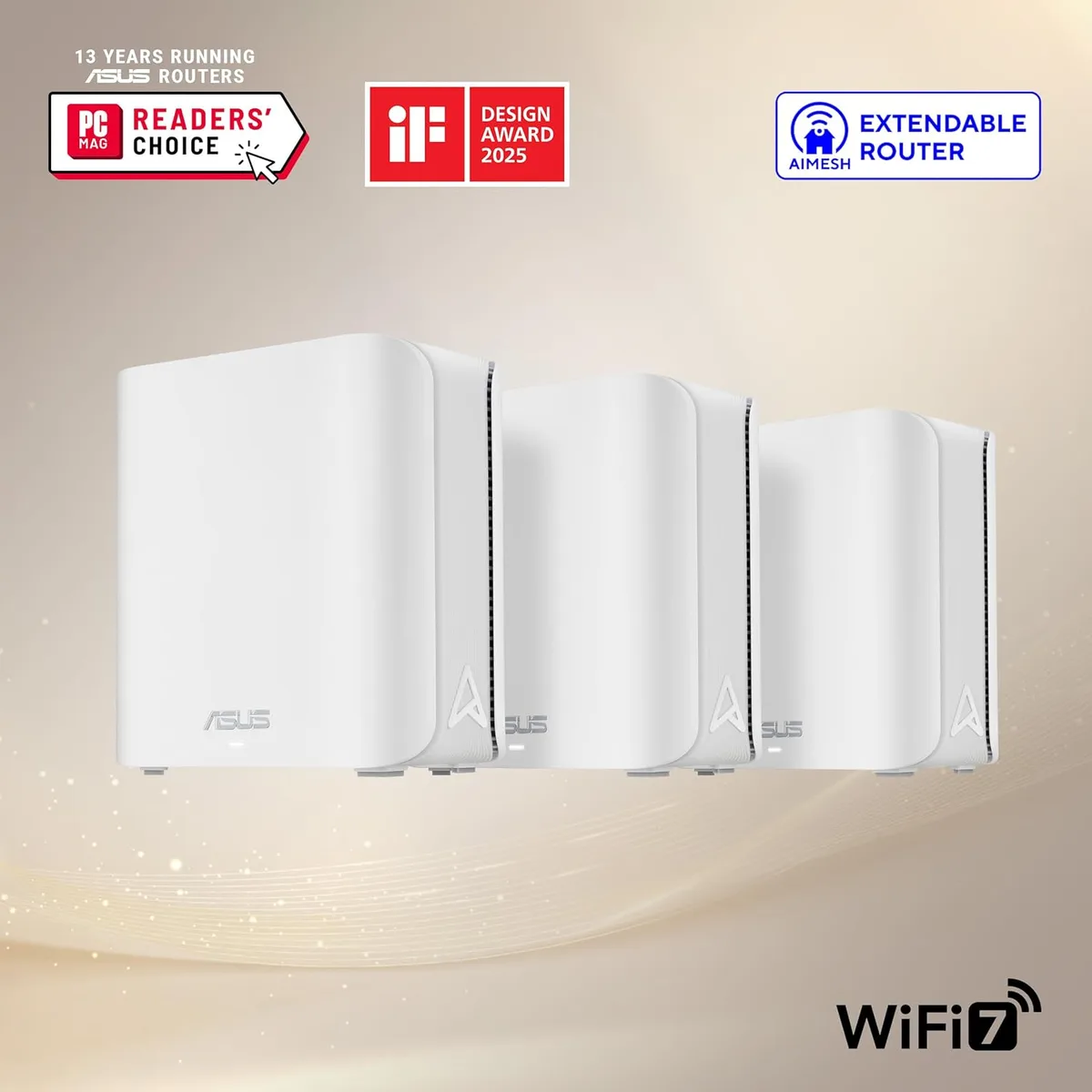

Three white square mesh Wi-Fi 7 nodes with internal antennas

ASUS

ASUS BD5(W-3-PK) BE5000 mesh Wi-Fi system 3-pack 6800 sq ft

SKU CH-EE1T-WQZBP MPN BD5(W-3-PK) BE5000

A Wi-Fi 7 mesh system covering 6800 sq ft with dual 2.5G ports and AiProtection Pro security

  • ColorWhite
  • TypeMesh WiFi System
  • Router & Satellite Counts3-Pack
  • Covered Area6,800 sq. ft.
  • WAN Ports2 x 2.5G (WAN/LAN auto detecting)
  • Wi-Fi StandardsWi-Fi 7

Option 3-Pack

  • Wi-Fi 7 dual-band reaches 5000 Mbps for fast streaming
  • 6800 sq ft coverage from three nodes removes dead zones
  • Dual 2.5G ports auto-detect WAN or LAN for flexible wiring
  • AiProtection Pro plus VPN gives 24/7 network security
  • Four internal antennas with beamforming boost signal strength

Mesh Wi-Fi 7 System for Large Homes

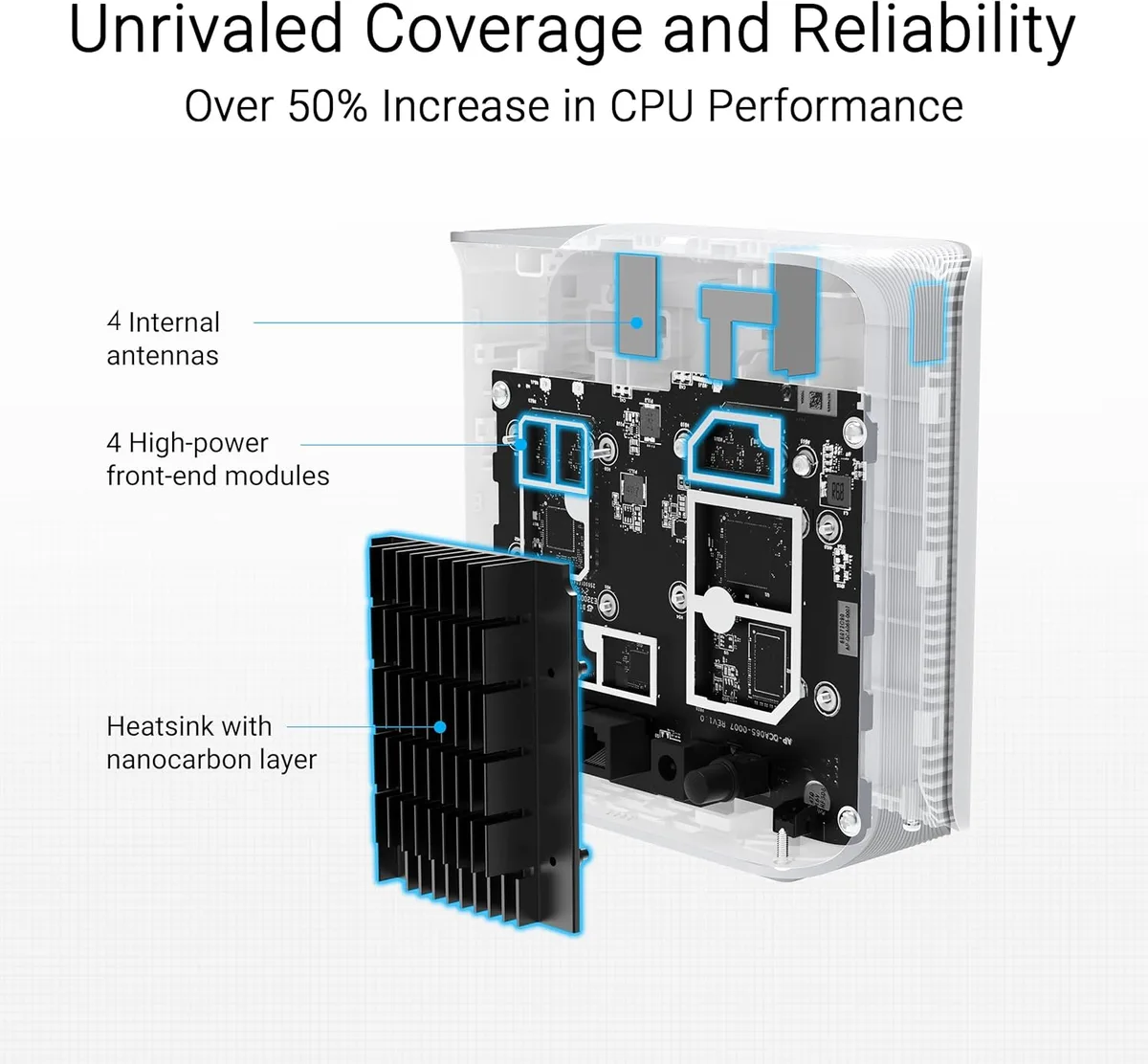

The ASUS ZenWiFi BD5 three-pack delivers dual-band Wi-Fi 7 coverage across 6,800 sq. ft. with combined wireless rates up to 5,000 Mbps. Each node includes dual 2.5G Ethernet ports that auto-detect WAN or LAN roles, a quad-core 1.5 GHz processor and four internal antennas with high-power front-end modules. AiProtection Pro and advanced VPN features provide commercial-grade security for every connected device.

Ideal for Multi-Device Households

Families streaming 8K video, gaming on multiple consoles and running extensive smart-home ecosystems will benefit from the high throughput, MLO support and seamless AiMesh roaming. Buyers who only need coverage for a small apartment or a single floor will find the three-node layout excessive. Homes that require a dedicated 6 GHz band for legacy client segregation or tri-band backhaul should look at tri-band mesh systems instead.

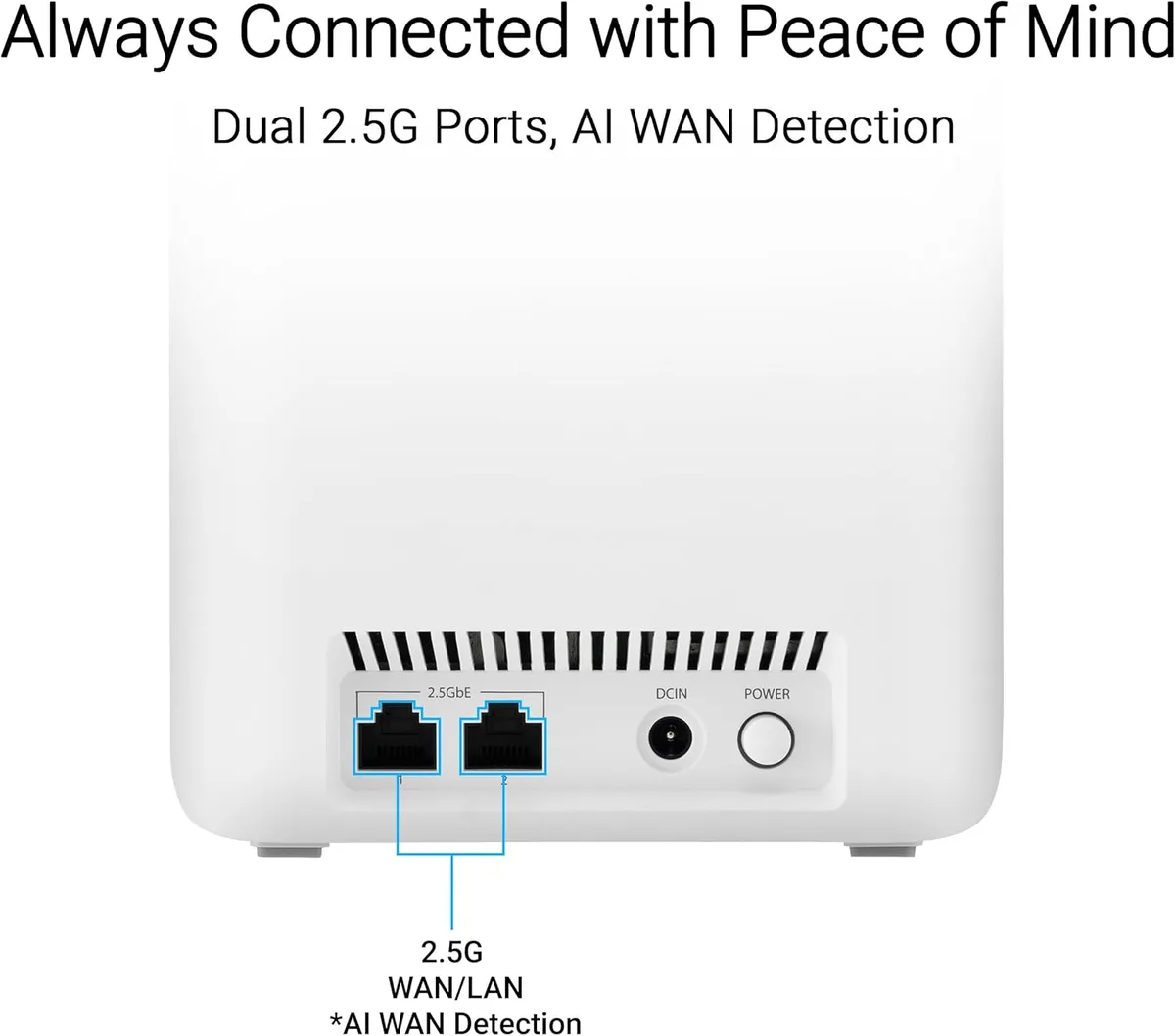

Dual 2.5G Ports Enable Wired Backhaul

Each unit provides two 2.5G Ethernet ports with auto-detection, allowing true wired backhaul between nodes without sacrificing a LAN port. This specification decides whether the system can sustain peak Wi-Fi 7 speeds across the full 6,800 sq. ft. footprint in homes with existing Ethernet wiring.

Highlights

  • Wi-Fi 7 dual-band reaches 5000 Mbps for fast streaming
  • 6800 sq ft coverage from three nodes removes dead zones
  • Dual 2.5G ports auto-detect WAN or LAN for flexible wiring
  • AiProtection Pro plus VPN gives 24/7 network security
  • Four internal antennas with beamforming boost signal strength

Specifications

BrandASUS
ModelBD5(W-3-PK)
ColorWhite
TypeMesh WiFi System
Router & Satellite Counts3-Pack
Covered Area6,800 sq. ft.
WAN Ports2 x 2.5G (WAN/LAN auto detecting)
Wi-Fi StandardsWi-Fi 7
Wireless Data RatesBE5000 ultimate BE performance : 688+4323 Mbps
Frequency Band2.4 GHz / 5 GHz
SecurityAiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
Security Scan
Firewall
Antenna4 x Internal antennas
Parental Controls"Allow you to block access to unwanted websites and apps."
Web & Apps Filters
Time Scheduling
Reward
Parental Control - Safe Browsing
Customized Internet Schedule
LED1 x Power
ButtonWPS button, Reset button, Power switch
Power SupplyAC Input : 110V~240V(50~60Hz)
DC Output : 12V with max 1.5A current
SpecificationBoosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/240 MHz bandwidth (The availability of 240 MHz depends on the country)
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
AiMesh
- Primary AiMesh Router
- AiMesh Node
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
Wireless
- MU-MIMO
- UTF-8 SSID
- WiFi MAC Address Filter
- Wireless Scheduler
- Airtime Fairness
- RADIUS Client
- U
Dimension140 x 70 x 140 mm each
Package ContentZenWiFi BD5
RJ45 cable
Power adapter
Warranty card
Quick start guide
Shipping weight2.18 kg
Package size325 × 173 × 149 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the mesh is delivering the rated 688+4323 Mbps performance after setup?

Use the ASUS Router app or web interface to view real-time link speeds and run a speed test from a device connected to the 5 GHz band; the dashboard shows per-node throughput and MLO status so you can verify dual-band Wi-Fi 7 operation across the 6800 sq ft coverage area

What comes in the 3-pack box and what must I purchase separately?

The package includes three ZenWiFi BD5 nodes, one RJ45 cable, three power adapters, a warranty card and a quick start guide; additional Ethernet cables for wired backhaul or extra wall-plate mounts are not included

Why choose the BE5000 3-pack over a single unit or 2-pack?

The 3-pack is rated for 6800 sq ft and provides three nodes each with dual 2.5G auto-detect ports and four internal antennas, enabling full AiMesh coverage and wired backhaul options throughout a large home, whereas fewer units reduce both area and Ethernet port availability
