ASUS

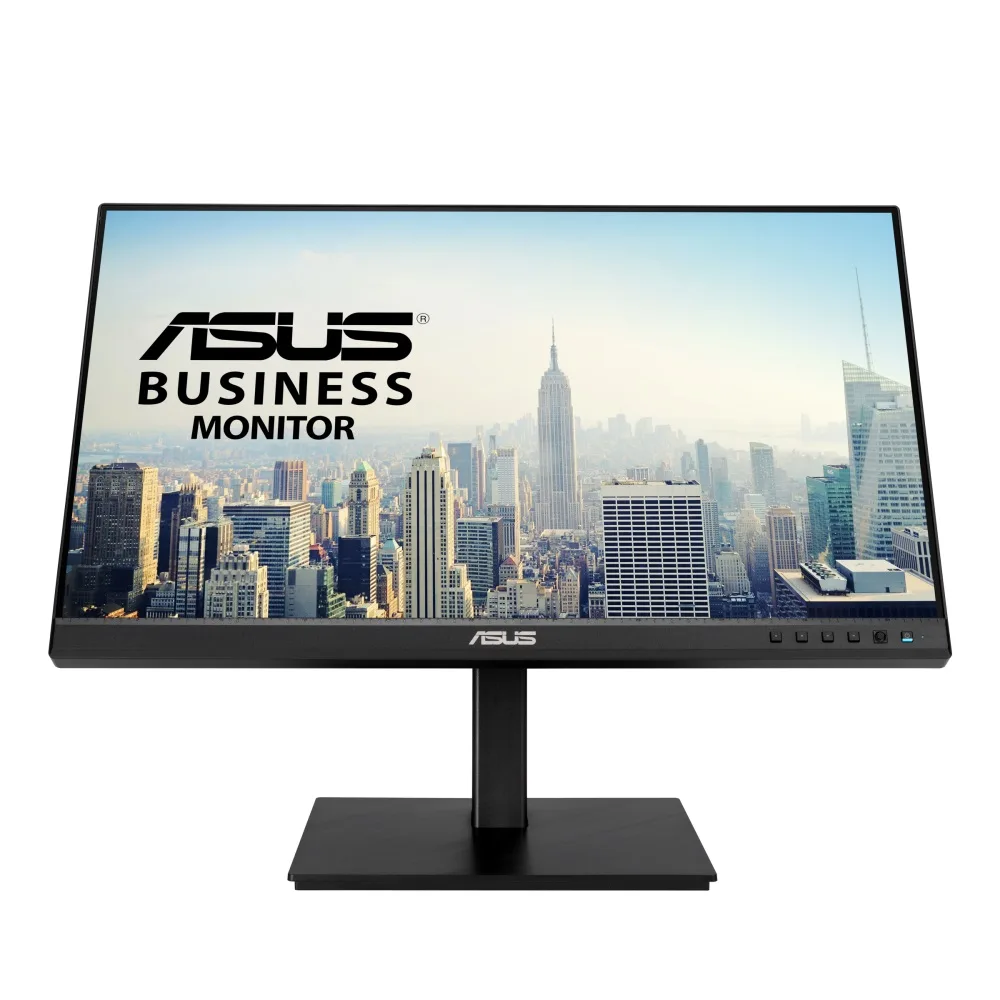

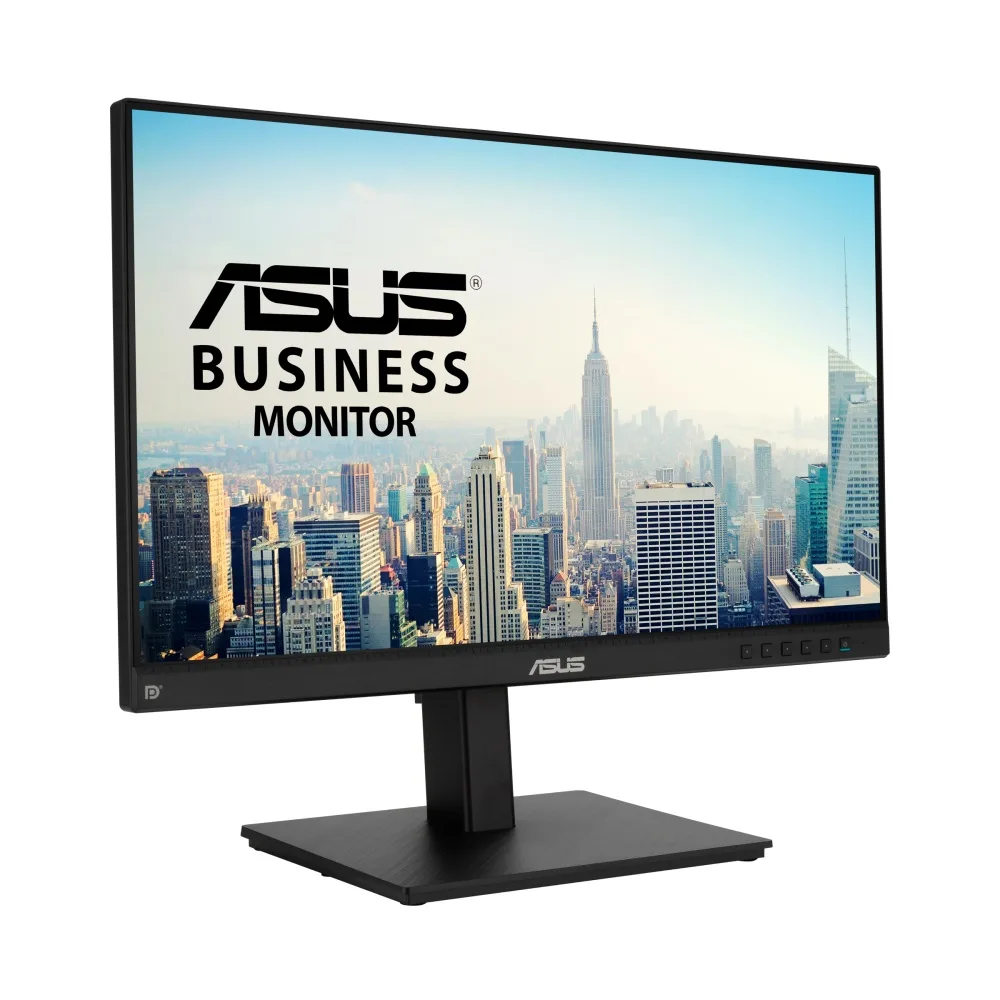

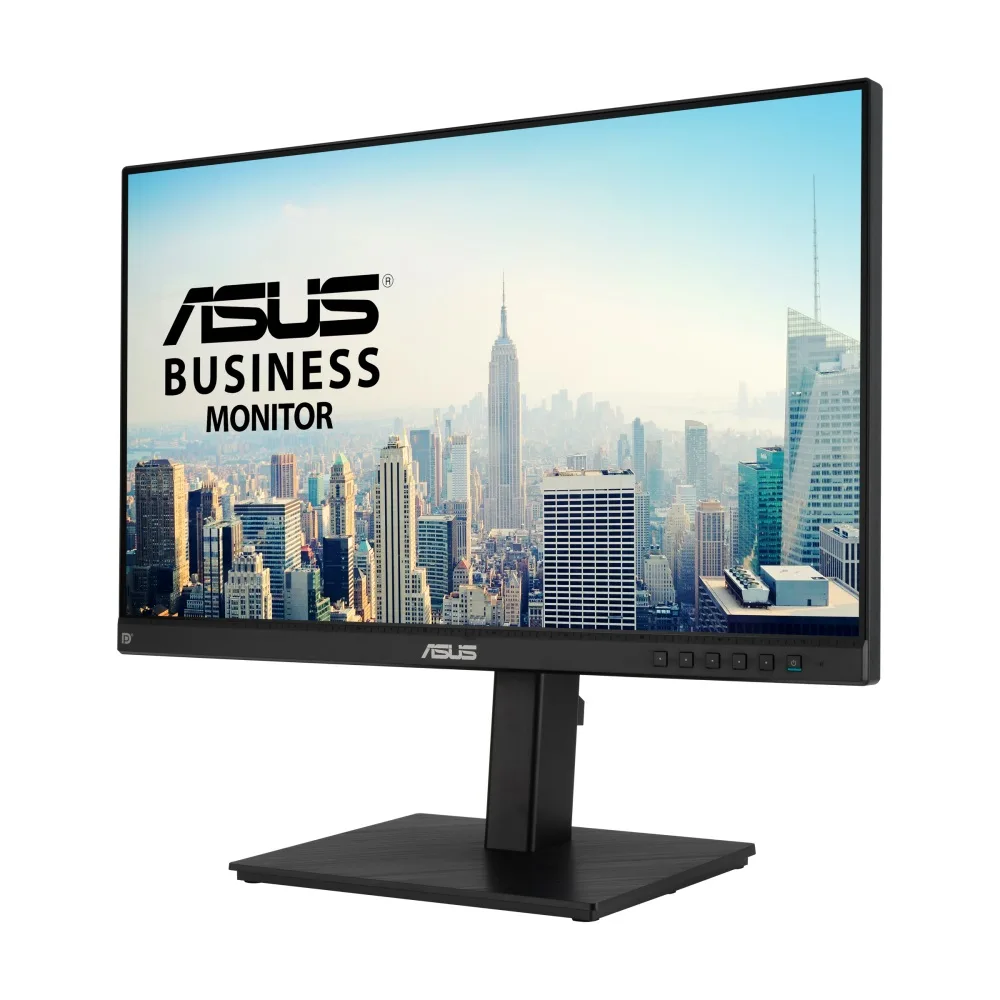

ASUS BE24ECSBT 90LM05M1-B093B0 23.8" 1080p 75Hz IPS 10-point touch USB-C 80W PD monitor
A 23.8" Full HD IPS touch monitor with 10-point input, 75 Hz refresh, USB-C 80 W power delivery and full ergonomic adjustment
- Screen Size23.8"
- Glare ScreenNon-glare
- Resolution1920 x 1080
- Refresh Rate75Hz
- Viewing Angle178° (H) / 178° (V)
- Monitor Pixel Density0.2745mm
- 10-point multi-touch gives direct, responsive control
- USB-C with 80W power delivery charges a laptop over one cable
- Full HD IPS panel at 75Hz delivers clear motion and wide 178° viewing
- Ergonomic stand tilts 35°, swivels 180°, pivots 90° and raises 130mm
- Built-in USB 3.2 hub and DisplayPort daisy-chain expand connectivity
23.8" 10-point touch USB-C monitor
The ASUS BE24ECSBT is a 23.8 inch Full HD IPS display with 10-point multi-touch input. It targets professionals who need direct screen interaction for presentations, kiosk use or collaborative work. A non-glare coating and 178° viewing angles keep the image readable in shared environments.
USB-C 80W PD and DisplayPort daisy-chain limits
The single USB-C port carries DP Alt Mode video, data and up to 80W power delivery for a connected laptop. DisplayPort output enables daisy-chaining a second monitor from the same source. HDMI and three USB 3.2 Gen 1 Type-A downstream ports complete the I/O. The panel runs at 75Hz with a 5ms response time and 300 cd/m² brightness.
Check laptop PD negotiation and desk clearance

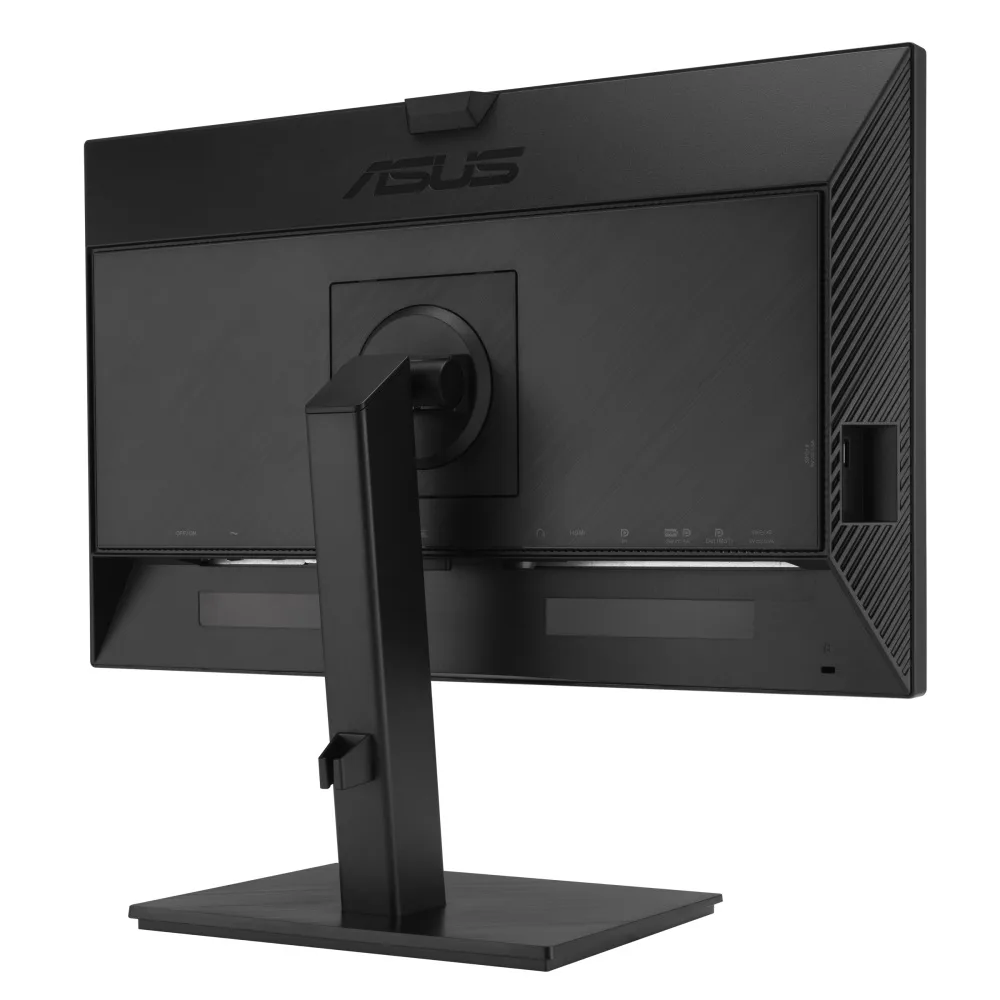

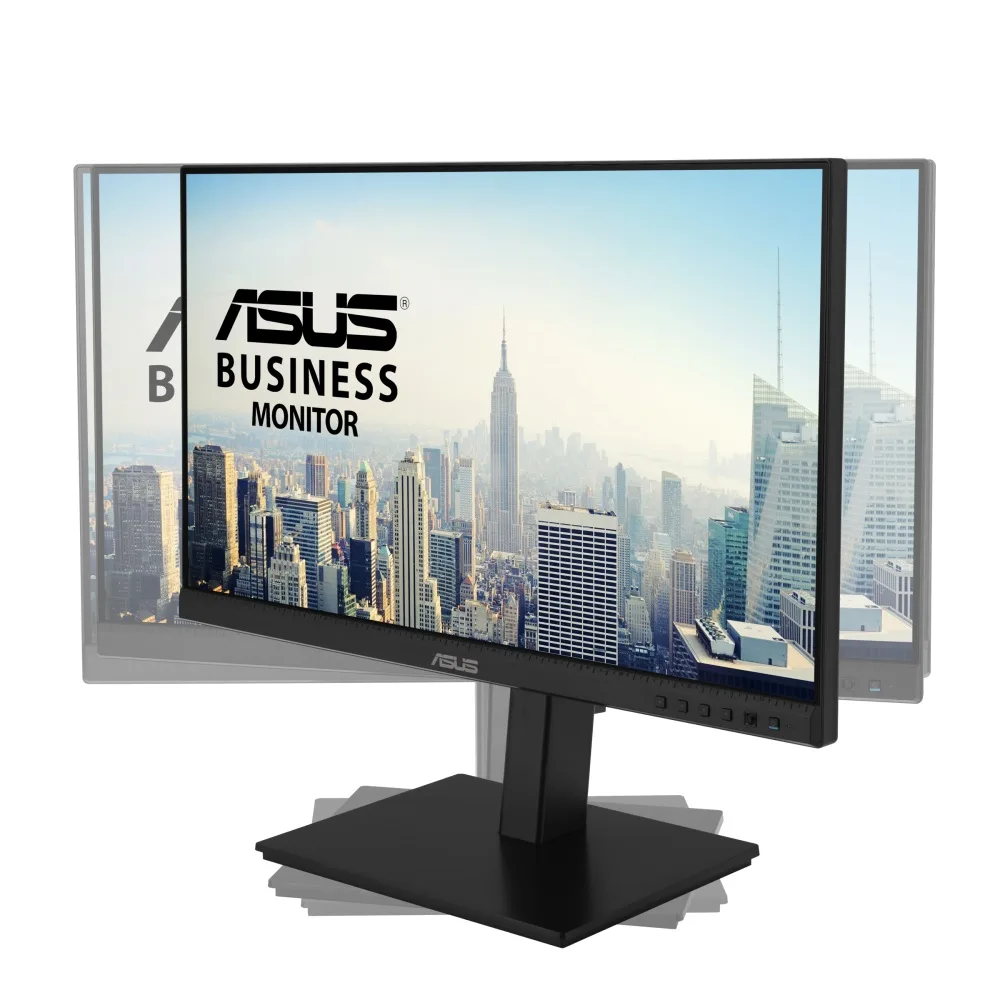

Verify that your laptop accepts 80W charging over USB-C and negotiates the correct power profile before relying on single-cable docking. The stand raises 130mm, tilts +35° to -5°, swivels ±180° and pivots ±90°; ensure the 21.25 inch width and 8.31 inch depth with stand fit your workspace. VESA 100 x 100mm mounting is supported if you prefer an arm.
Highlights
- 10-point multi-touch gives direct, responsive control
- USB-C with 80W power delivery charges a laptop over one cable
- Full HD IPS panel at 75Hz delivers clear motion and wide 178° viewing
- Ergonomic stand tilts 35°, swivels 180°, pivots 90° and raises 130mm
- Built-in USB 3.2 hub and DisplayPort daisy-chain expand connectivity
Specifications
| Brand | ASUS |
|---|---|
| Model | BE24ECSBT |
| Part Number | 90LM05M1-B093B0 |
| Screen Size | 23.8" |
| Glare Screen | Non-glare |
| Resolution | 1920 x 1080 |
| Refresh Rate | 75Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Monitor Pixel Density | 0.2745mm |
| Display Colors | 16.7 Million |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Response Time | 5 ms |
| Panel | IPS |
| Curved Surface Screen | Flat Panel |
| Connectors | USB-C (DP Alt mode with PD 80W), HDMI, DisplayPort in, DisplayPort output(for daisy-chain), USB3.2 Gen1 Type A x3 ports (downstream), Earphone jack |
| Power Supply | 100 - 240 VAC, 50/60Hz |
| Stand Adjustments | Mechanical Design Chassis Colors Black Tilt(angle) +35° ~ -5° Swivel(angle) +180° ~ -180° Pivot(angle/direction) +90° ~ -90° Height Adjustment 0~130mm Ambient Light Sensor Yes |
| VESA Compatibility - Mountable | 100 x 100mm |
| Dimensions | Dimension Phys. Dimension with Stand (W x H x D) 21.25 x (12.97~ 18.09) x 8.31 in Phys. Dimension without Stand (W x H x D) 21.25 x 12.99 x 2.08 in Box Dimension (W x H x D) 29.37 x 17.32 x 6.69 in |
| Weight | Weight Net Weight with Stand 13.45 lbs. Net Weight without Stand 9.04 lbs. Gross Weight 18.3 lbs. |
| Package Contents | Power cord(1.8m), HDMI cable(1.8m), USB-C cable(1.5m), USB-C to A cable, DisplayPort Cable, Warranty card, Quick Start Guide, MiniPC Kit |
| Shipping weight | 8.53 kg |
| Package size | 743 × 433 × 168 mm |
Questions about this item
Is the 23.8 inch 1080p 75Hz model the only version offered?
Yes, the BE24ECSBT is sold in this single 23.8 inch 1920 x 1080 75Hz configuration.
What does the 75Hz refresh rate mean for daily work?
It refreshes the image 75 times per second, giving smoother scrolling and video playback than standard 60Hz panels.
How much power can the USB-C port actually deliver to a laptop?
The USB-C port supports DisplayPort Alt Mode and provides up to 80W power delivery for charging a connected laptop.
