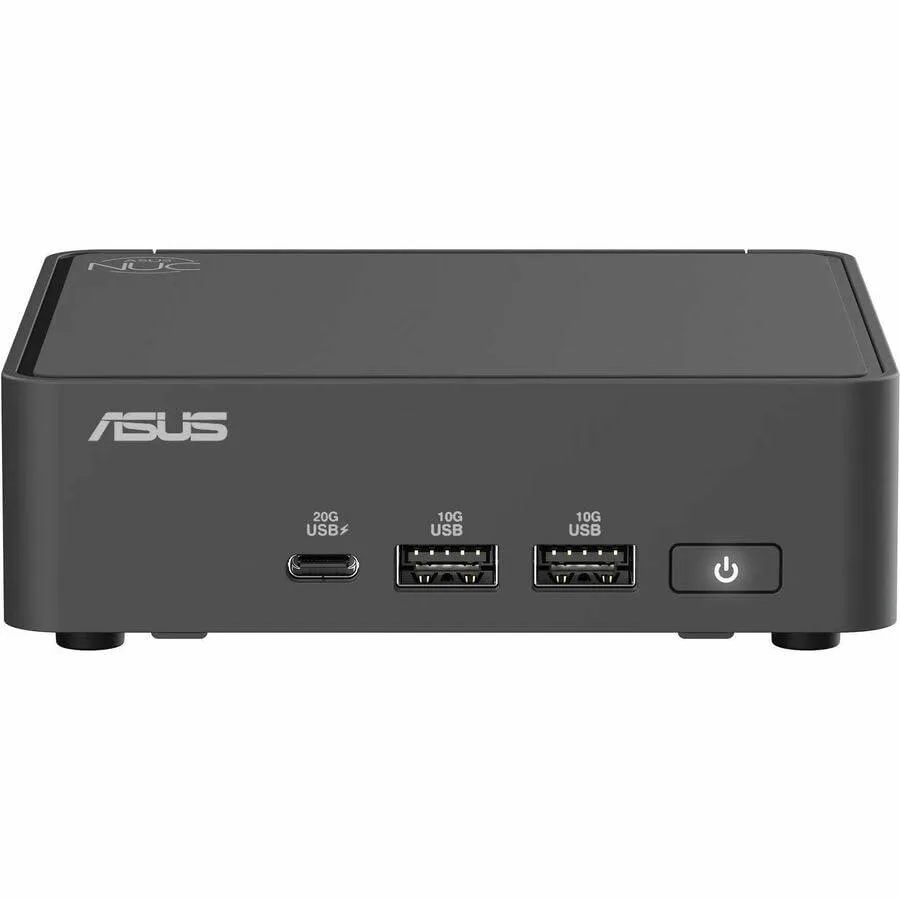

Black tall mini PC barebone with toolless chassis, VESA mount, front USB-C and Type-A ports

ASUS

ASUS BNUC15CRHC50000U barebone mini PC Core 5 210H DDR5 96GB dual M.2 WiFi7 Bluetooth 5.4

SKU CH-27M7-3DF4W MPN BNUC15CRHC50000U

Barebone mini PC supporting an 8-core Intel Core 5 210H, up to 96 GB DDR5, dual M.2 NVMe slots, Wi-Fi 7, Bluetooth 5.4 and 2.5 Gbps LAN

  • ColorBlack
  • CPU TypeIntel Core 5 210H
  • CPU Cores8-Core (4P+4E)
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5-6400/5600MHz *CSO-DIMM only for DDR5-6400MHz
  • Intel Core 5 210H 8-core processor drives AI workloads
  • Dual-channel DDR5-6400 supports up to 96 GB RAM
  • Two M.2 slots accept NVMe storage up to 8 TB
  • Wi-Fi 7 and Bluetooth 5.4 deliver 2.4× faster wireless speeds
  • Tool-less 2.0 chassis and VESA mount enable quick upgrades

ASUS NUC 15 Pro Tall Barebone Kit

The ASUS NUC 15 Pro BNUC15CRHC50000U is a compact barebone mini PC built around the Intel Core 5 210H processor with eight cores. It targets system integrators and enthusiasts who want to choose their own DDR5 memory and NVMe storage. The tool-less 2.0 chassis allows quick internal access for assembly and upgrades. VESA mounting hardware is included for discrete placement behind a display.

96 GB DDR5-6400 dual-channel capacity

Two 262-pin SO-DIMM slots support up to 96 GB of DDR5 memory at 6400 MHz or 5600 MHz. Storage expansion uses one M.2 2280 slot accepting 128 GB to 8 TB drives and one M.2 2242 slot accepting 128 GB to 2 TB drives. Both slots are PCIe Gen4 x4 NVMe with Gen5-ready design. The platform suits multitasking workloads and local data sets, while very large databases or sustained write-heavy tasks may exceed the thermal envelope of the tall chassis.

Upgrade from older NUC or SFF barebones

This kit replaces earlier barebone units that max out at lower DDR5 speeds, single M.2 slots, or 1 GbE networking. The jump is worth it when you need Wi-Fi 7, Bluetooth 5.4, 2.5 GbE, Thunderbolt 4 and USB 3.2 Gen2x2 Type-C at 20 Gbps in a fan-cooled form factor. Buyers who require discrete graphics, more than two storage devices, or passive silent operation should look elsewhere.

Highlights

  • Intel Core 5 210H 8-core processor drives AI workloads
  • Dual-channel DDR5-6400 supports up to 96 GB RAM
  • Two M.2 slots accept NVMe storage up to 8 TB
  • Wi-Fi 7 and Bluetooth 5.4 deliver 2.4× faster wireless speeds
  • Tool-less 2.0 chassis and VESA mount enable quick upgrades

Specifications

BrandASUS
SeriesNUC 15 Pro
ModelBNUC15CRHC50000U
Part Number90AR00Q2-M002W0
ColorBlack
CPU TypeIntel Core 5 210H
CPU Cores8-Core (4P+4E)
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5-6400/5600MHz
*CSO-DIMM only for DDR5-6400MHz
Max Memory Supported96GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD* Slot (supports 128GB ~ 8TB)
1 x M.2 2242 PCIe x4 NVMe SSD Slot (supports 128GB ~ 2TB)
*PCIe Gen5 design ready
Integrated GraphicsIntel Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen2x2 Type-C (20Gbps)
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)

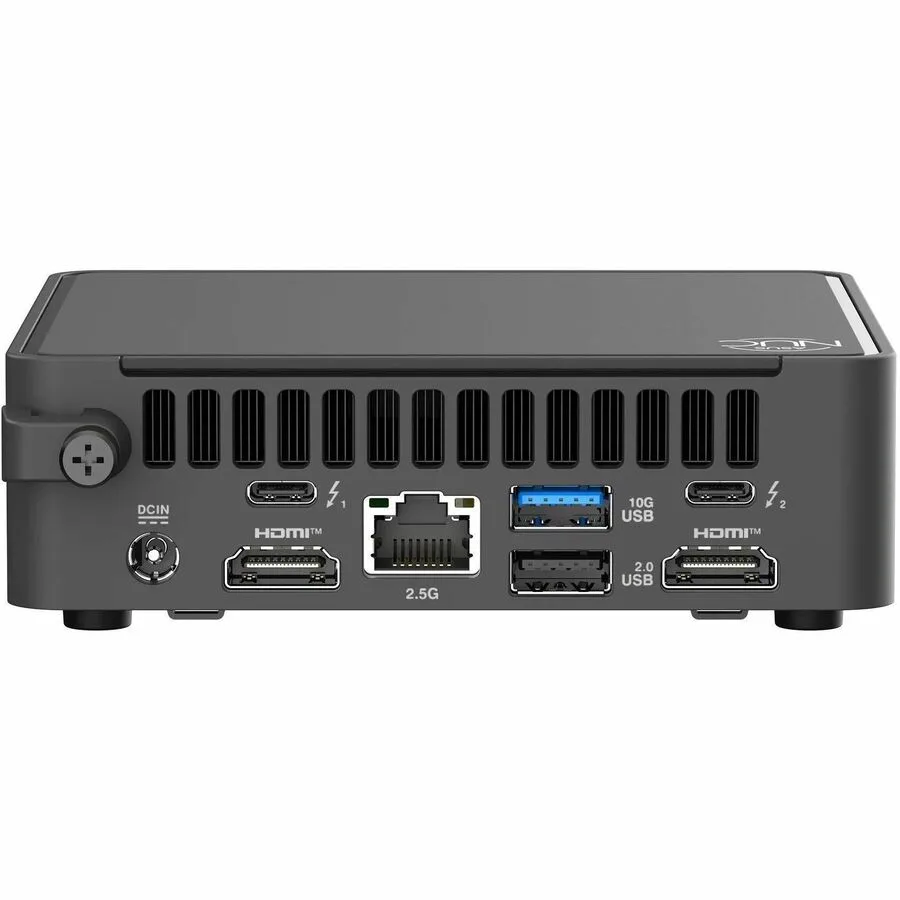

Rear USB2 x Thunderbolt 4 (DP2.1 & USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
RJ451
Power Supply120W AC Adapter
Dimensions2.13" x 4.61" x 4.41"
Weight0.8 lb.
Shipping weight1.36 kg
Package size198 × 168 × 119 mm

Questions about this item

Will the Intel Core 5 210H work with my existing DDR5-5600 SO-DIMMs in the two 262-pin slots?

Yes, the board supports DDR5-5600 and DDR5-6400 in its two 262-pin SO-DIMM slots, up to 96 GB total.

How can I verify the Wi-Fi 7 and Bluetooth 5.4 radios are active after I install an OS?

In Device Manager or lspci, look for an 802.11be wireless adapter and a Bluetooth 5.4 controller; both should appear without extra drivers on Windows 11 or Ubuntu 24.04 LTS.

Does the barebone include any RAM, an M.2 SSD, or a VESA bracket, or must I buy them separately?

No memory or storage is installed; you must add DDR5 SO-DIMMs and up to two NVMe drives (one 2280, one 2242). A VESA mount is included.
