Compact dual-fan graphics card in dark gunmetal finish with silver accents and exposed heatsink visible through vents

ASUS

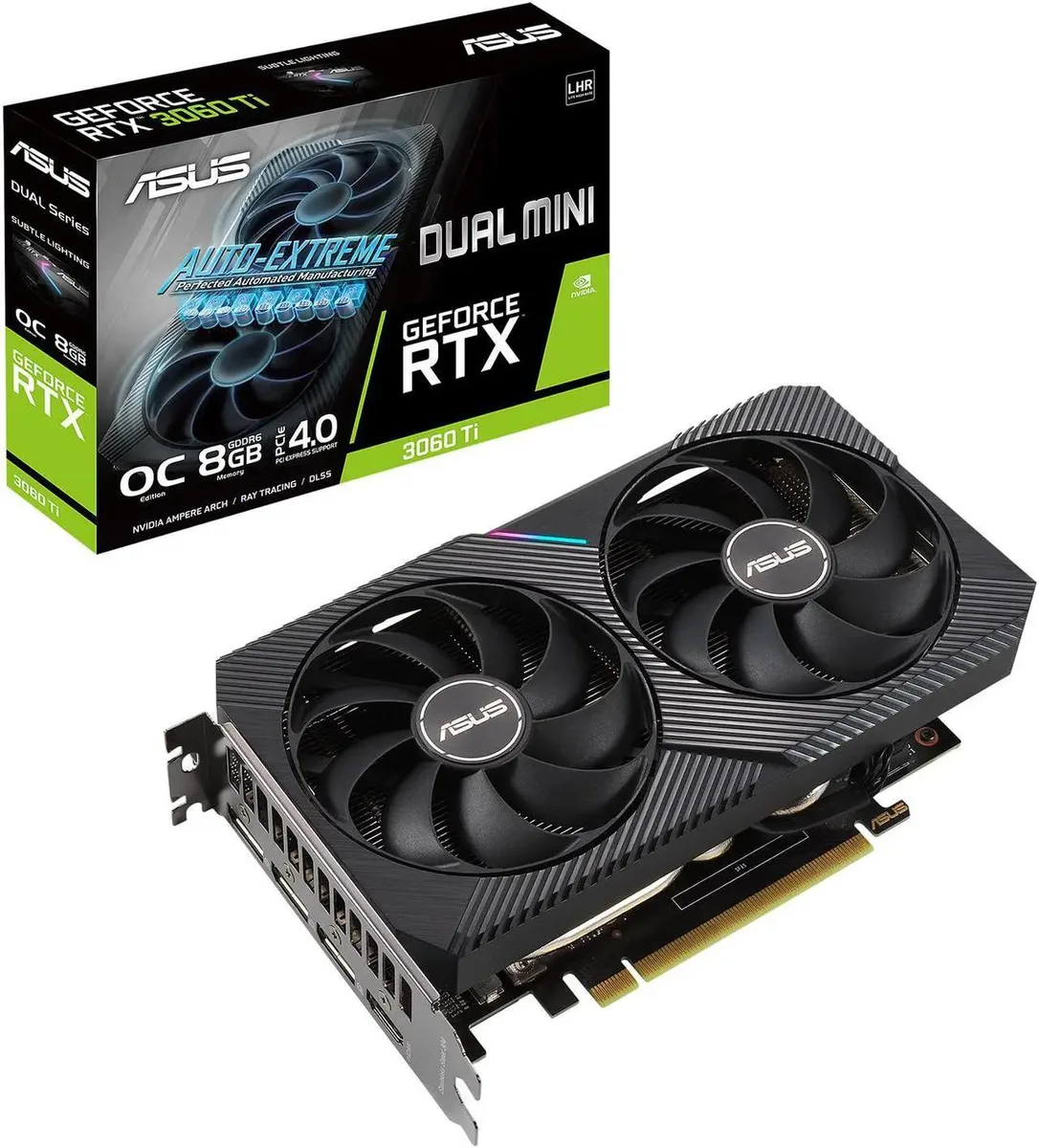

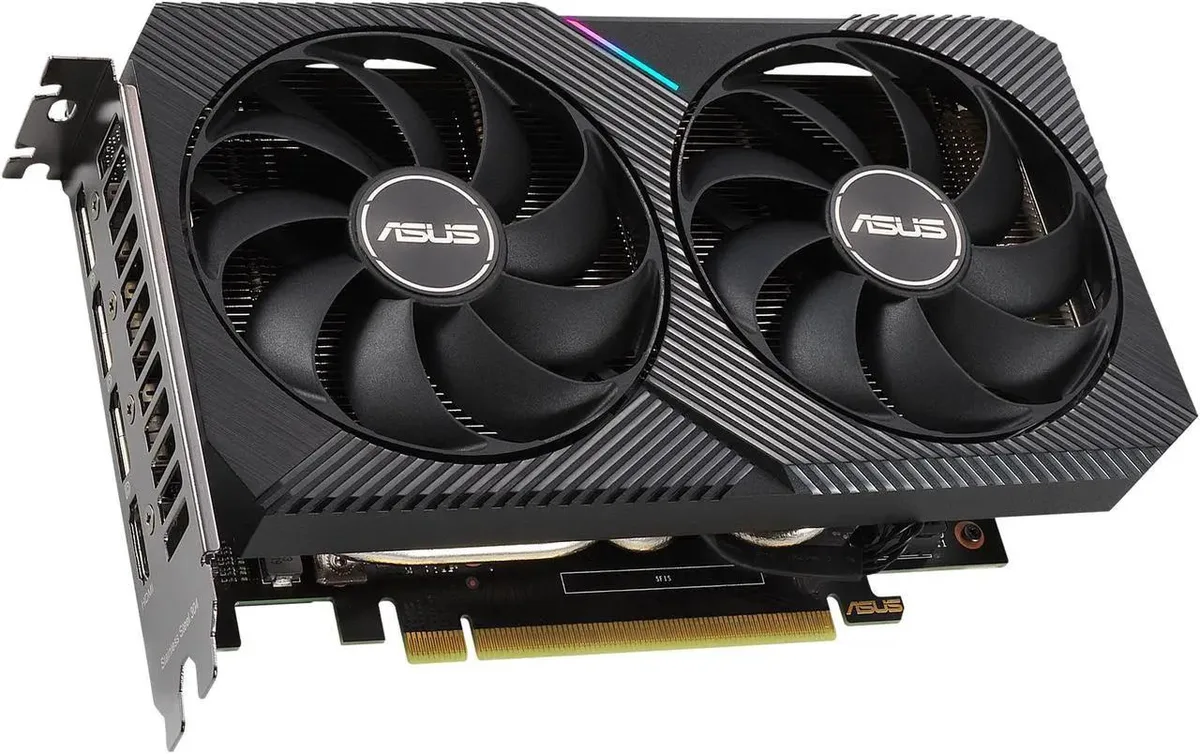

ASUS Dual GeForce RTX 3060 Ti Mini OC V2 8GB graphics card

SKU CH-R4VZ-RK1ZD

Compact dual-fan card with 8 GB GDDR6, 4864 CUDA cores and boost clocks up to 1710 MHz for 1440p gaming

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 30 Series
  • GPUGeForce RTX 3060 Ti
  • ArchitectureAmpere
  • Boost ClockOC Mode - 1710 MHz Gaming Mode - 1680 MHz
  • OC boost clock reaches 1710 MHz for responsive frame rates
  • 4864 CUDA cores accelerate ray-traced workloads
  • 8 GB GDDR6 on a 256-bit bus feeds high-resolution textures
  • PCI Express 4.0 interface doubles host bandwidth headroom
  • HDMI 2.1 plus three DisplayPort 1.4a outputs drive four displays

Compact 8 GB RTX 3060 Ti

The ASUS Dual GeForce RTX 3060 Ti V2 MINI OC fits an Ampere GPU with 4864 CUDA cores and 8 GB of 256-bit GDDR6 memory into a short dual-slot card. It connects through a PCI Express 4.0 x16 slot and drives up to four displays via one HDMI 2.1 and three DisplayPort 1.4a outputs. The factory OC mode lifts the boost clock to 1710 MHz while gaming mode runs at 1680 MHz. DirectX 12 Ultimate and OpenGL 4.6 support cover modern APIs.

Suited for small-form-factor 1440p builds

Builders assembling compact 1440p gaming rigs or multi-monitor workstations will appreciate the reduced length and dual-fan cooler that fits many mini-ITX cases. The 8 GB frame buffer handles current titles at high settings but may limit texture-heavy workloads or 4K gaming. Users chasing maximum ray-tracing frame rates or 4K60 performance should consider cards with more memory and higher core counts.

Steady clocks under extended load

The dual axial-tech fans and aluminium heatsink keep the GPU near its 1710 MHz OC boost during long sessions, with the 14 Gbps memory staying stable on the 256-bit bus. Thermal headroom in tight cases depends on chassis airflow, so front-to-rear ventilation helps sustain clocks without throttling. Power draw stays within the 8-pin connector budget, avoiding sudden voltage droops that can cut performance mid-session.

Highlights

  • OC boost clock reaches 1710 MHz for responsive frame rates
  • 4864 CUDA cores accelerate ray-traced workloads
  • 8 GB GDDR6 on a 256-bit bus feeds high-resolution textures
  • PCI Express 4.0 interface doubles host bandwidth headroom
  • HDMI 2.1 plus three DisplayPort 1.4a outputs drive four displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX3060TI-O8G-MINI-V2
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 30 Series
GPUGeForce RTX 3060 Ti
ArchitectureAmpere
Boost ClockOC Mode - 1710 MHz
Gaming Mode - 1680 MHz
CUDA Cores4864
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage750W
Power Connector1 x 8-pin
HDCP Ready2.3
FeaturesNVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
This GeForce RTX 3060 Ti graphics ca
Max GPU Length200 mm
Card Dimensions (L x H)7.87" x 4.84"
Slot Width2 Slots
Package ContentsAccessories
1 x Collection card
1 x Speedsetup manual

Questions about this item

What motherboard slot is needed for the PCI Express 4.0 interface?

A PCIe 4.0 x16 slot is required; the card will also run in a 3.0 x16 slot at 3.0 speeds.

Will the 14 Gbps GDDR6 memory and 256-Bit bus work with my older PCIe 3.0 system?

Yes, the card is backward compatible; bandwidth drops to PCIe 3.0 limits but the 4864 CUDA cores and 8 GB memory remain fully usable.

How can I confirm the boost clock is reaching 1710 MHz in OC mode?

Run a GPU monitoring tool such as GPU-Z or ASUS GPU Tweak while under load; the sensor should report 1710 MHz when OC mode is selected.
