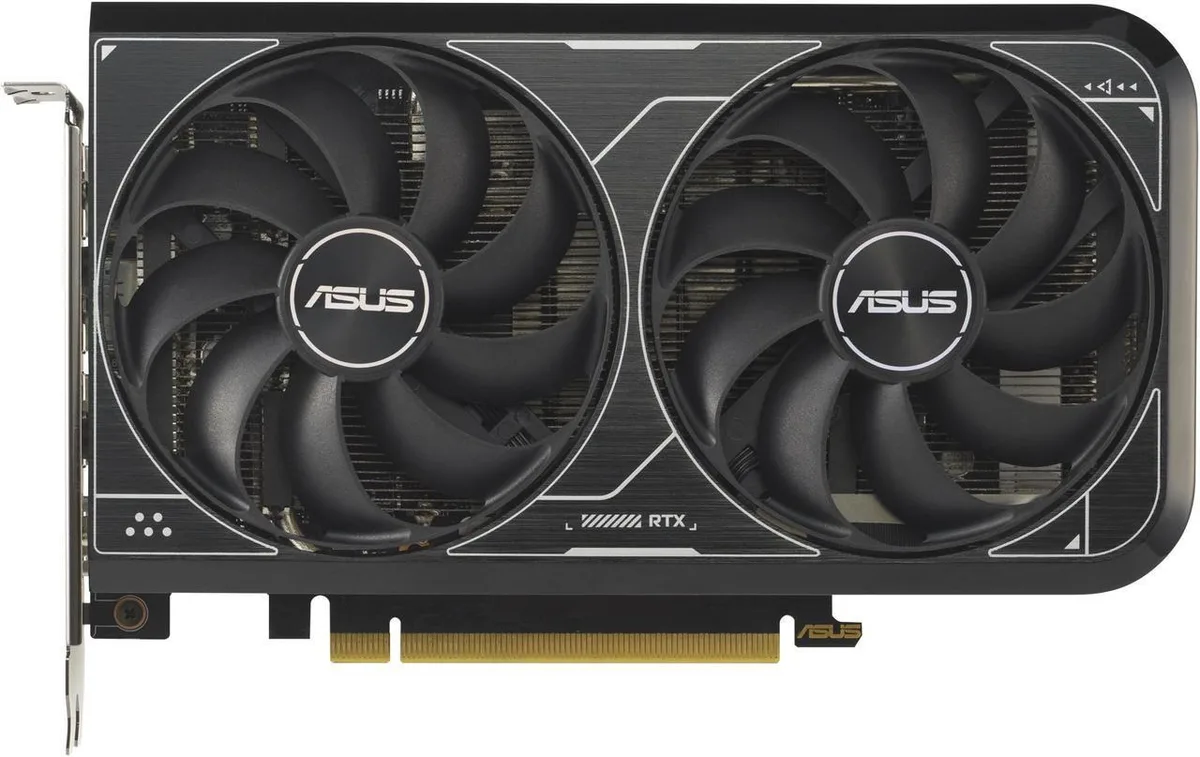

ASUS Dual GeForce RTX 4060 graphics card with two axial fans in a two-slot metal shroud

ASUS

ASUS Dual GeForce RTX 4060 8GB GDDR6 graphics card

SKU CH-X29W-KW76A

NVIDIA GeForce RTX 4060 GPU with 3072 CUDA cores, 8 GB GDDR6 memory on a 128-bit bus, and a 2535 MHz boost clock

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPUGeForce RTX 4060
  • Boost Clock2535 MHz (Boost Clock) / Default Mode: 2505 MHz (Boost Clock
  • CUDA Cores3072
  • Memory Size8GB
  • DLSS 3 on Ada Lovelace architecture multiplies frame rates
  • 3072 CUDA cores and 8 GB GDDR6 on a 128-bit bus drive 1440p gaming
  • Boost clock reaches 2535 MHz in OC mode for extra headroom
  • Axial-tech dual fans with 0 dB stop keep thermals low in silence
  • Two-slot 115 W design fits compact builds with a single 8-pin connector

Built for 1080p gaming and creative work

The ASUS Dual GeForce RTX 4060 8GB GDDR6 graphics card targets gamers and creators who want smooth 1080p performance with modern features. It uses the NVIDIA Ada Lovelace architecture with 3072 CUDA cores and 8GB of GDDR6 memory on a 128-bit bus. The card connects via PCI Express 4.0 and drives up to four displays through one HDMI 2.1a and three DisplayPort 1.4a outputs at a maximum resolution of 7680 x 4320.

Thermals noise and 115W power draw

A 115W thermal design power keeps heat manageable in compact builds while a 550W power supply recommendation provides headroom. The dual-fan cooler uses Axial-tech blades and a barrier ring to increase downward air pressure across the two-slot heatsink. 0dB technology stops the fans completely during light loads for silent operation and dual ball bearings extend fan lifespan compared to sleeve designs. An 8-pin power connector supplies the board.

DLSS 3 and ray tracing acceleration

Fourth-generation Tensor cores enable DLSS 3 frame generation that can multiply performance up to four times over brute-force rendering. Third-generation RT cores deliver up to two times the ray tracing throughput for realistic lighting in supported titles. The GPU boost clock reaches 2535 MHz in OC mode and 2505 MHz in default mode to sustain higher frequencies under load. OpenGL 4.6 and VR readiness complete the feature set for modern applications.

Highlights

  • DLSS 3 on Ada Lovelace architecture multiplies frame rates
  • 3072 CUDA cores and 8 GB GDDR6 on a 128-bit bus drive 1440p gaming
  • Boost clock reaches 2535 MHz in OC mode for extra headroom
  • Axial-tech dual fans with 0 dB stop keep thermals low in silence
  • Two-slot 115 W design fits compact builds with a single 8-pin connector

Specifications

BrandASUS
ModelDUAL-RTX4060-8G
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPUGeForce RTX 4060
Boost Clock2535 MHz (Boost Clock) / Default Mode: 2505 MHz (Boost Clock)
CUDA Cores3072
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1a
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power115W
Recommended PSU Wattage550W
Power Connector8-Pin
Form FactorATX
Max GPU Length202 mm
Card Dimensions (L x H)202 x 120 x 40.1 mm
7.95 x 4.72 x 1.58 inches
Slot Width2 Slots

Questions about this item

How do I install this 2-slot card with its 8-Pin power connector?

Insert the card into a PCI Express 4.0 slot, secure the rear bracket screw, then connect the 8-Pin power connector from a 550W PSU; the step most builders miss is fully seating the card before tightening the bracket.

What maintenance will the Axial-tech fans with dual ball bearings need later?

The dual ball bearings last up to twice as long as sleeve designs; clean dust from the longer blades and barrier ring periodically to maintain downward air pressure and 0dB silence at light loads.

Where does the 128-Bit memory interface show its limit under sustained 115W loads?

The 128-Bit bus and 8GB GDDR6 frame buffer saturate first during prolonged 1440p ray tracing or heavy DLSS 3 workloads, capping throughput before the 2535 MHz boost clock or 115W thermal limit becomes the bottleneck.
