ASUS
ASUS Dual GeForce RTX 4060 Ti V2 8GB graphics card
PCIe 4.0 x8 graphics card with 8 GB GDDR6 at 18 Gbps, 4352 CUDA cores, DLSS 3, HDMI 2.1a, triple DisplayPort 1.4a, dual-slot Axial-tech cooler and 0 dB fan stop
- InterfacePCI Express 4.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4060 Ti
- CUDA Cores4352
- Effective Memory Clock18000 MHz (18 Gbps)
- DLSS 3 boosts frame rates using 4th Gen Tensor Cores
- 3rd Gen RT Cores accelerate ray tracing workloads
- 8 GB GDDR6 memory at 18 Gbps over 128-bit bus
- 2-slot Axial-tech cooler with 0 dB silent mode
- PCIe 4.0 x8 interface fits compact builds

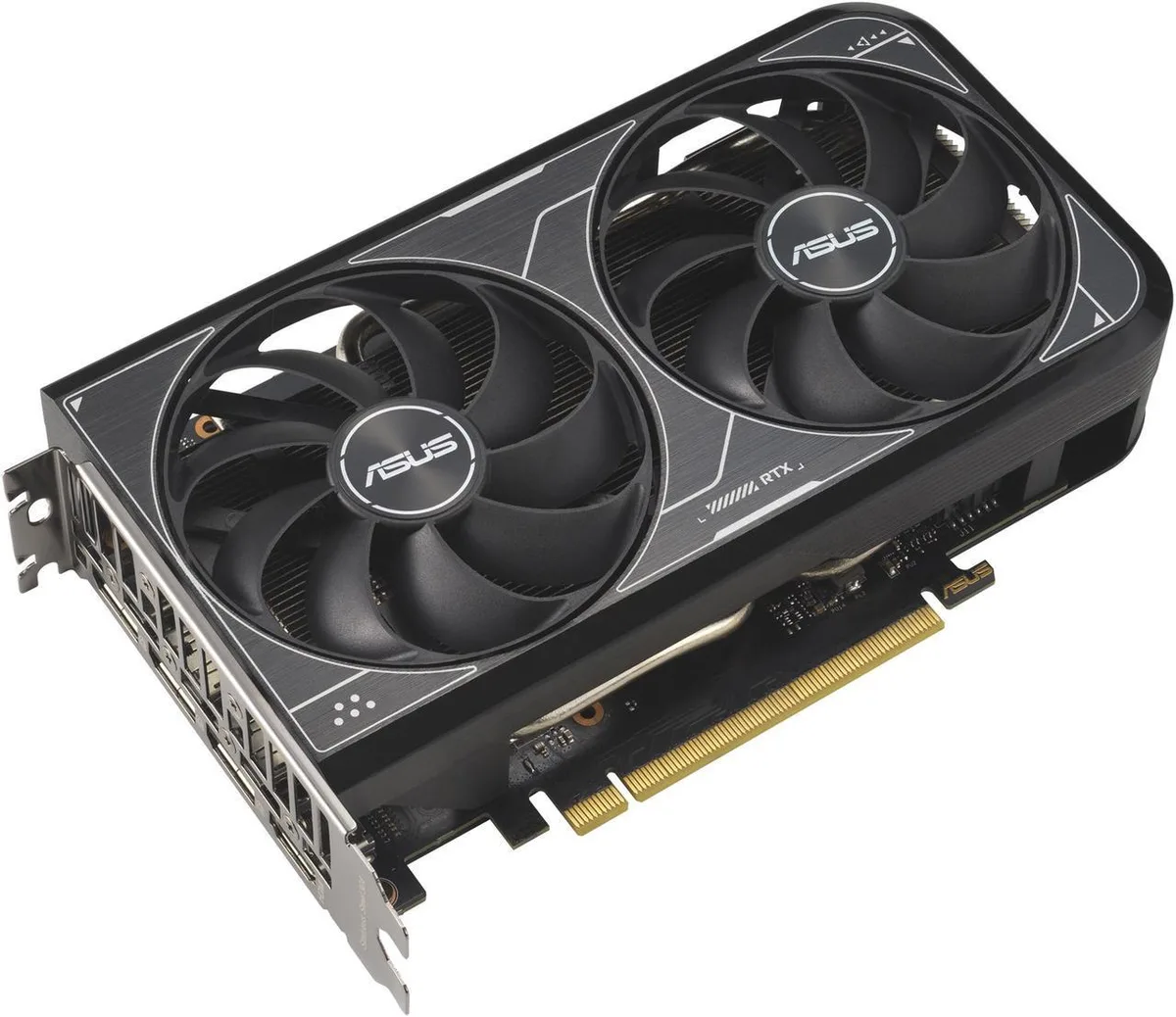

Dual RTX 4060 Ti 8GB graphics card
This card targets 1080p and 1440p gamers who want Ada Lovelace features in a compact 2-slot form factor. The PCIe 4.0 x8 interface fits mainstream platforms while the 160W TDP keeps power demands modest. Dual axial-tech fans with 0dB stop mode deliver quiet operation during light loads.
DLSS 3 frame generation and ray tracing acceleration
Fourth-generation Tensor Cores enable DLSS 3 upscaling and frame generation for higher frame rates in supported titles. Third-generation RT Cores speed up hardware ray tracing for realistic lighting. One HDMI 2.1a and three DisplayPort 1.4a outputs drive up to four displays at 7680 x 4320 resolution.
8GB GDDR6 on a 128-bit bus
The 8GB frame buffer at 18 Gbps handles modern 1080p ultra and many 1440p high settings comfortably. At 4K or with heavy texture mods the 128-bit interface and 8GB capacity become limiting factors. Boost clocks reach 2595 MHz in OC mode and 2565 MHz in default mode.
Highlights
- DLSS 3 boosts frame rates using 4th Gen Tensor Cores
- 3rd Gen RT Cores accelerate ray tracing workloads
- 8 GB GDDR6 memory at 18 Gbps over 128-bit bus
- 2-slot Axial-tech cooler with 0 dB silent mode
- PCIe 4.0 x8 interface fits compact builds
Specifications
| Brand | ASUS |
|---|---|
| Series | Dual |
| Model | DUAL-RTX4060TI-8G-V2 |
| Interface | PCI Express 4.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4060 Ti |
| CUDA Cores | 4352 |
| Effective Memory Clock | 18000 MHz (18 Gbps) |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 160W |
| Recommended PSU Wattage | 650W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 227 mm |
| Slot Width | 2.5 Slots |
Questions about this item
Will the dual ball fan bearings on this DUAL-RTX4060TI-8G-V2 need replacement sooner than sleeve types?
The dual ball fan bearings are designed to last up to twice as long as sleeve bearing designs, so they typically do not need replacement during the card's normal service life.
What limit appears first when the 160W TDP card runs at the 2595 MHz OC boost clock for hours?
The 160W thermal design power is the primary limit; the Axial-tech fans and 2-slot cooler must dissipate that heat continuously to maintain the boost clock.
How loud and hot does the 2-slot cooler get when the fans stop at idle under 0dB technology?
0dB technology halts the fans completely during light loads, so noise drops to near zero and temperatures stay low until the GPU load rises enough to spin the fans again.
