ASUS

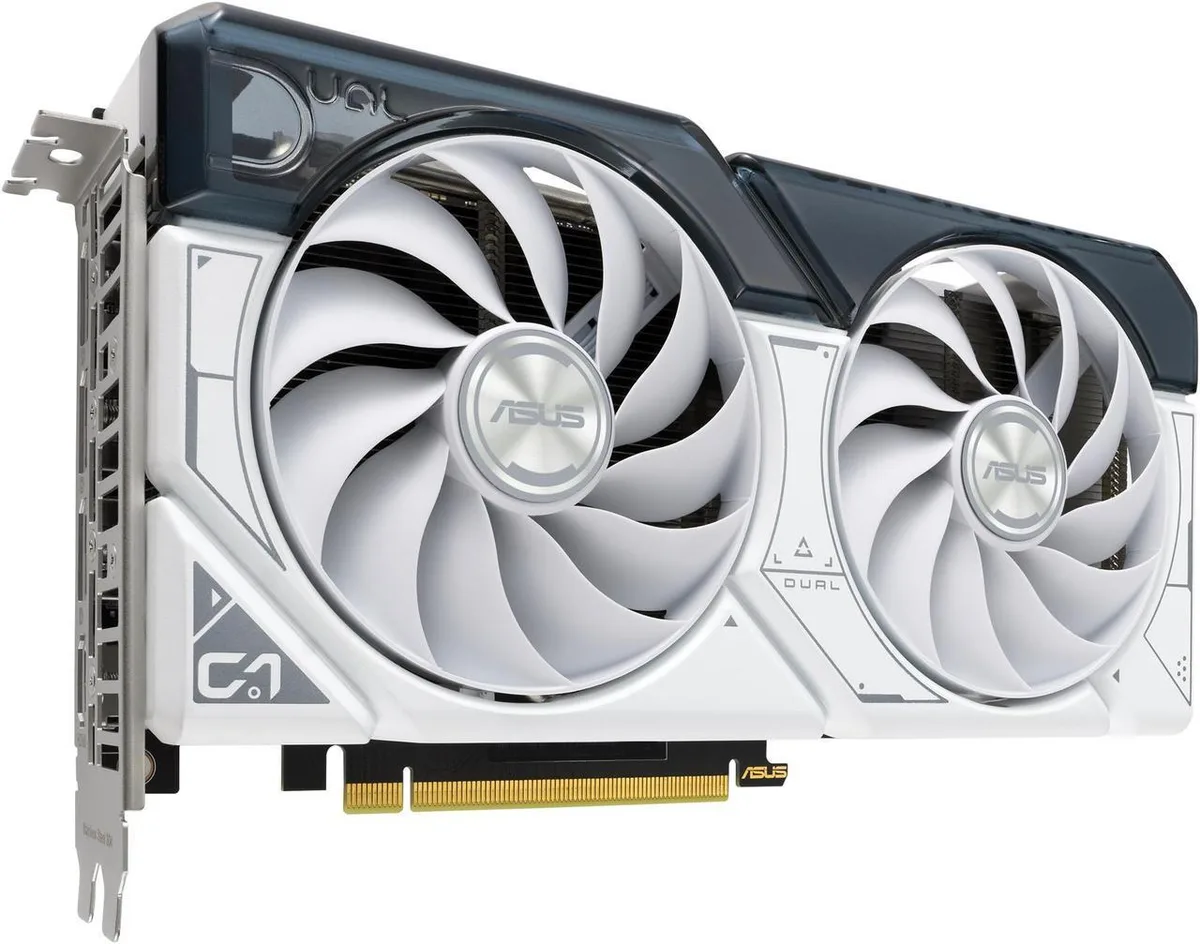

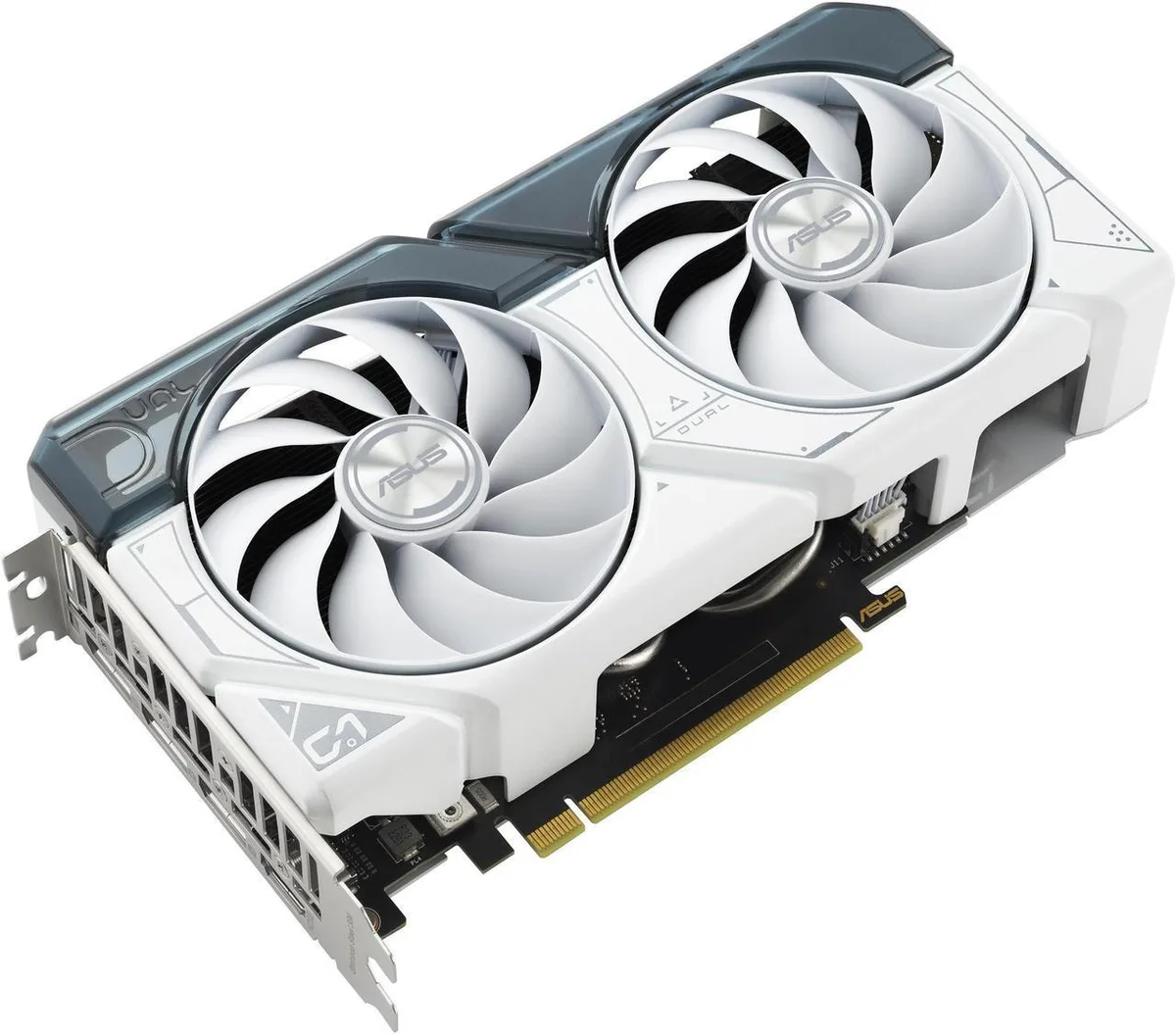

ASUS Dual GeForce RTX 4060 White Edition 8GB graphics card
White dual-fan GeForce RTX 4060 with 8GB GDDR6, PCIe 4.0, DLSS 3, HDMI 2.1a, triple DisplayPort 1.4a, 2.5-slot cooler and 0dB silent mode
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4060
- CUDA Cores3072
- Effective Memory Clock17000 MHz
- Ada Lovelace architecture delivers up to 2X performance and power efficiency
- Fourth-gen Tensor Cores enable up to 4X DLSS 3 performance versus brute-force rendering
- Axial-tech fans with dual ball bearings push more air and last twice as long as sleeve designs
- 5-slot footprint fits compact chassis while keeping thermals in check
- Dual BIOS switch toggles Quiet and Performance profiles without software
White Edition 8GB Card
The ASUS Dual GeForce RTX 4060 White Edition is an 8GB graphics card built on the NVIDIA Ada Lovelace architecture. It targets gamers and creators who want a clean aesthetic for compact or white-themed builds. The PCI Express 4.0 interface connects to modern platforms. A 2.5-slot form factor keeps the card compatible with smaller chassis.
8GB GDDR6 Frame Buffer
The card carries 8GB of GDDR6 memory across a 128-bit bus clocked at 17000 MHz effective. This capacity handles 1080p and 1440p gaming with high texture settings in most current titles. DLSS 3 frame generation extends headroom at 1440p. The 128-bit width and 8GB limit become constraints at 4K or with heavy texture mods.
115W Thermal Profile
A 115W TDP means modest heat output under load. Axial-tech fans with dual ball bearings spin up only when needed. 0dB technology stops the fans completely during light tasks for silent operation. A Dual BIOS switch toggles between Quiet and Performance profiles without software. The 2.5-slot cooler dissipates heat efficiently in tight spaces.
Highlights
- Ada Lovelace architecture delivers up to 2X performance and power efficiency
- Fourth-gen Tensor Cores enable up to 4X DLSS 3 performance versus brute-force rendering
- Axial-tech fans with dual ball bearings push more air and last twice as long as sleeve designs
- 5-slot footprint fits compact chassis while keeping thermals in check
- Dual BIOS switch toggles Quiet and Performance profiles without software
Specifications
| Brand | ASUS |
|---|---|
| Series | Dual |
| Model | DUAL-RTX4060-8G-WHITE |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4060 |
| CUDA Cores | 3072 |
| Effective Memory Clock | 17000 MHz |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 115W |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 227 mm |
| Slot Width | 2.5 Slots |
Questions about this item
Will the 2.5-slot Dual RTX 4060 fit alongside my existing PCIe 4.0 devices without blocking slots?
The 2.5-slot design keeps the card narrow enough for most small chassis and leaves adjacent PCIe 4.0 slots accessible for other expansion cards.
How can I verify the boost clock is reaching 2535 MHz in OC mode after installation?
Run GPU-Z or the ASUS GPU Tweak III utility; the sensor tab will show the real-time boost clock hitting 2535 MHz under load when the BIOS switch is set to OC mode.
Does the box include the Dual BIOS switch and all three DisplayPort 1.4a cables, or must I buy cables separately?
The card ships with the Dual BIOS switch built onto the PCB; DisplayPort and HDMI cables are not included and must be purchased separately if your monitors lack them.
