ASUS

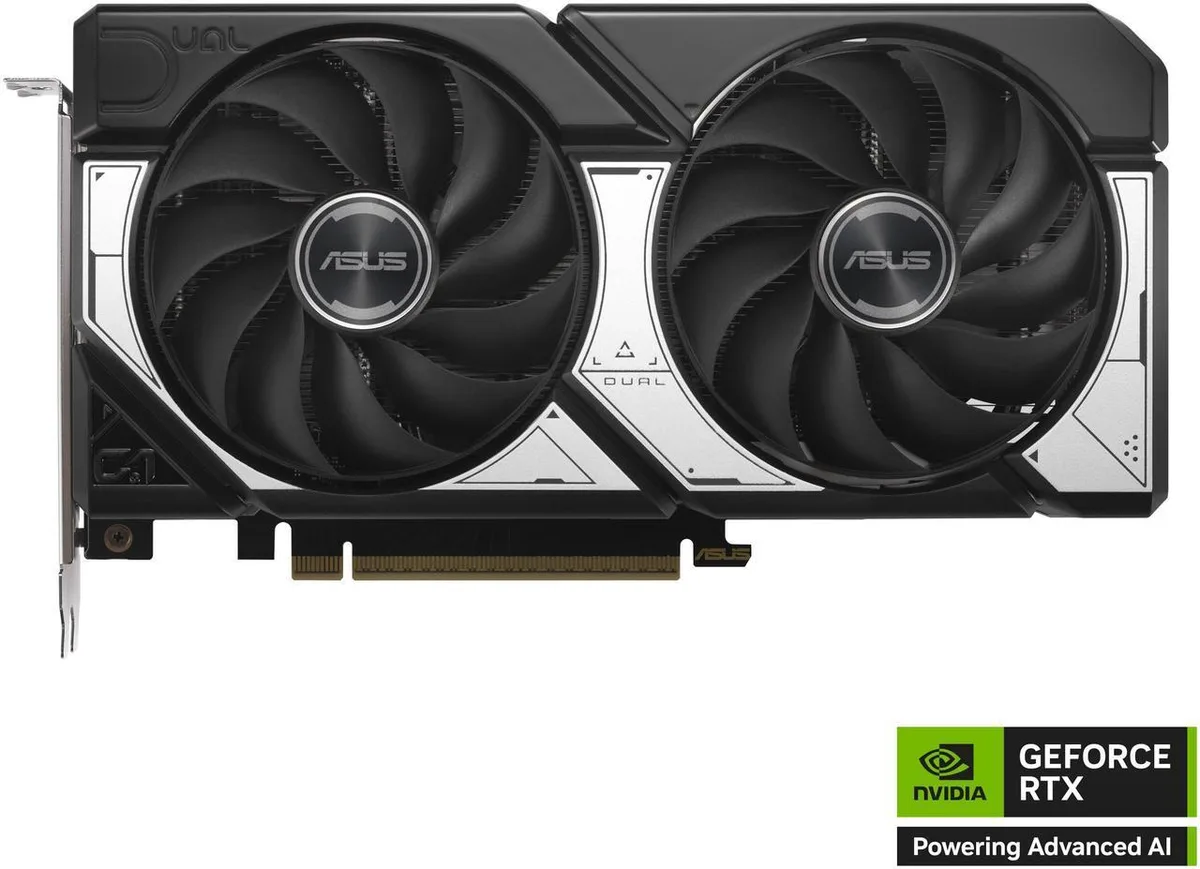

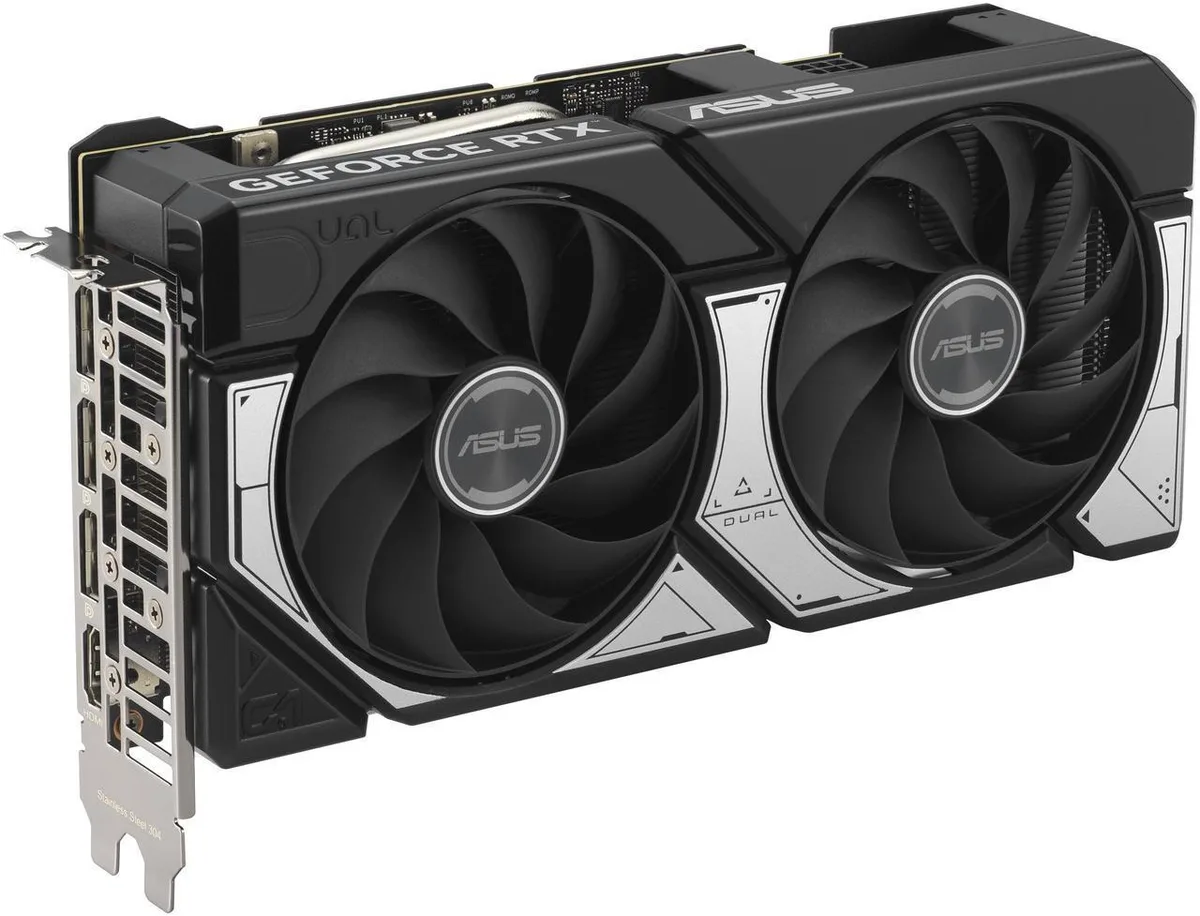

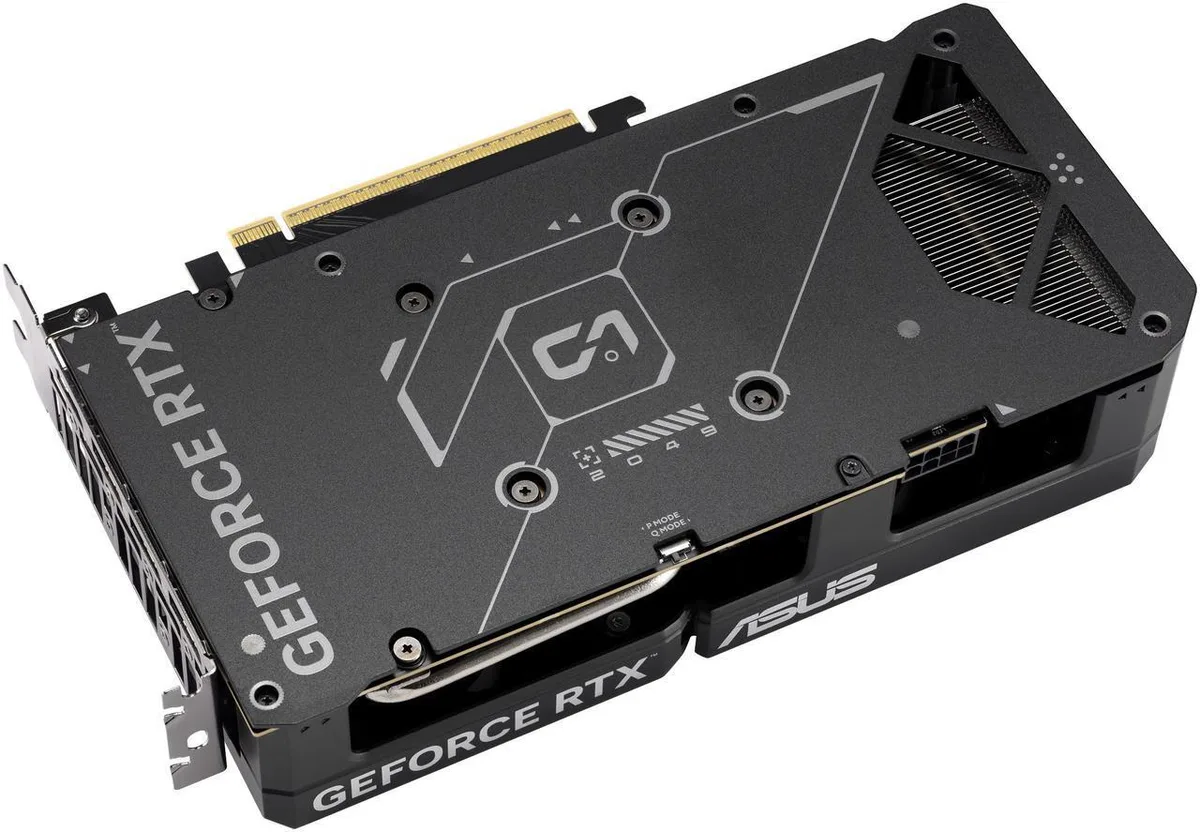

ASUS Dual GeForce RTX 5060 Ti 16GB 128-Bit GDDR7 graphics card DUAL-RTX5060TI-16G
16GB GDDR7 graphics card with 4608 CUDA cores, PCIe 5.0 x8, DLSS 4.0, HDMI 2.1b and three DisplayPort 2.1b outputs
- InterfacePCI Express 5.0 x8
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 50 Series
- GPUGeForce RTX 5060 Ti
- ArchitectureBlackwell
- CUDA Cores4608
- 16 GB GDDR7 memory delivers high bandwidth for 4K textures
- 4608 CUDA cores accelerate rendering and AI workloads
- PCI Express 5.0 x8 interface provides fast data throughput
- DLSS 4.0 upscaling boosts frame rates with AI
- HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four 8K displays
Dual GeForce RTX 5060 Ti 16GB
The ASUS Dual GeForce RTX 5060 Ti 16GB is a graphics card built on the Blackwell architecture for gamers and creators. It delivers 4608 CUDA cores and 16GB of GDDR7 memory across a 128-bit interface. The card connects via a PCI Express 5.0 x8 slot and supports DirectX 12 Ultimate. It is suited for high-resolution gaming and content creation workloads.
HDMI 2.1b and DisplayPort 2.1b outputs
The rear bracket provides one HDMI 2.1b port and three DisplayPort 2.1b ports for multi-monitor setups. These connections enable up to four displays at a maximum resolution of 7680 x 4320. The modern display interfaces support high refresh rates and HDR metadata pass-through. No additional adapters are required for current generation monitors.
16GB GDDR7 frame buffer
The 16GB GDDR7 memory running at 28 Gbps effective clock determines the card's capacity for texture-heavy scenes and large creative assets. This frame buffer size is the primary factor when targeting 1440p or 4K gaming with high settings. It also benefits GPU-accelerated rendering and video editing workflows that demand ample video memory.
Highlights
- 16 GB GDDR7 memory delivers high bandwidth for 4K textures
- 4608 CUDA cores accelerate rendering and AI workloads
- PCI Express 5.0 x8 interface provides fast data throughput
- DLSS 4.0 upscaling boosts frame rates with AI
- HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four 8K displays
Specifications
| Brand | ASUS |
|---|---|
| Series | Dual |
| Model | DUAL-RTX5060TI-16G |
| Interface | PCI Express 5.0 x8 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 50 Series |
| GPU | GeForce RTX 5060 Ti |
| Architecture | Blackwell |
| CUDA Cores | 4608 |
| Effective Memory Clock | 28 Gbps |
| Memory Size | 16GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR7 |
| DirectX | DirectX 12 Ultimate |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1b |
| DisplayPort | 3 x DisplayPort 2.1b |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| CrossFireX Support | No |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Features | • AI Performance: 767 AI TOPS • OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode) • Powered by the NVIDIA Blackwell architecture and DLSS 4 • SFF-Ready Enthusiast GeForce Card • Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure • A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis • 0dB technology lets you enjoy light gaming in relative silence • Dual BIOS lets you toggle between Quiet and Performance BIOS profiles • Dual ball fan bearings la |
| Form Factor | ATX |
| Max GPU Length | 229 mm |
| Card Dimensions (L x H) | 229 x 120 x 50 mm 9.02 x 4.72 x 1.97 inch |
| Slot Width | 2.5 Slots |
Questions about this item
How often will the 128-bit GDDR7 memory interface need attention or replacement?
The 128-bit GDDR7 memory is soldered to the board and has no user-serviceable parts, so no scheduled maintenance or replacement is required under normal use.
What limit appears first when the 4608 CUDA cores run at full load for long periods?
The 128-bit memory bus and 28 Gbps GDDR7 bandwidth become the bottleneck before the 4608 CUDA cores reach their compute ceiling during sustained workloads.
How loud and hot does the card get when the 16GB GDDR7 and 4608 CUDA cores run all day?
The dual-fan cooler keeps temperatures in check during extended loads, while fan speeds stay low enough for quiet operation in typical cases.
