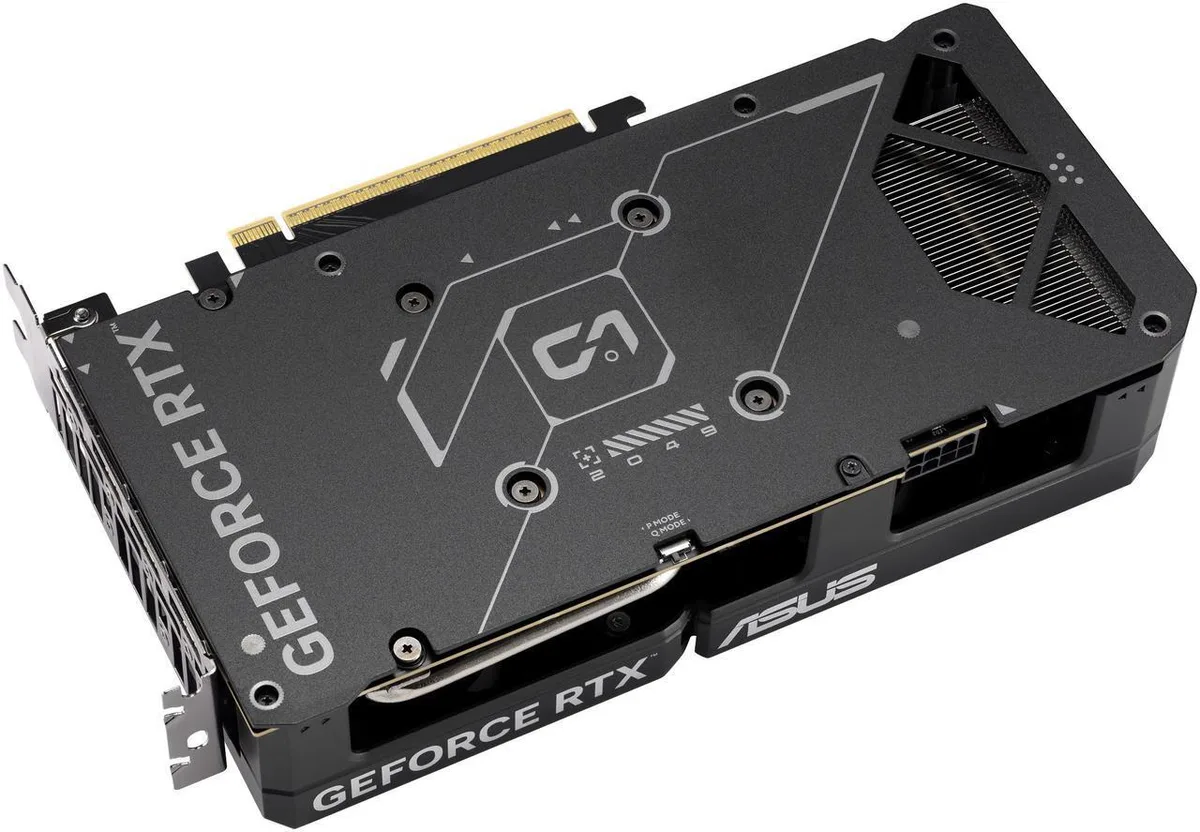

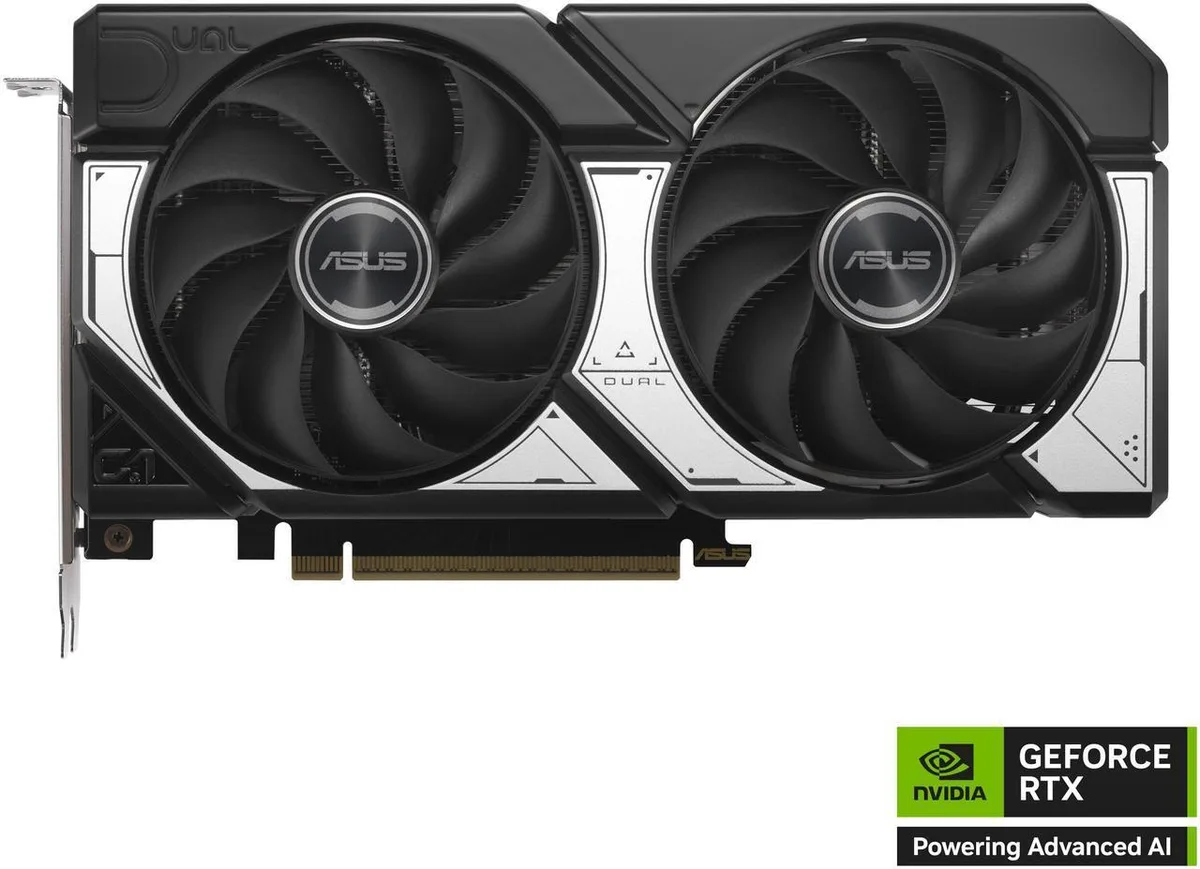

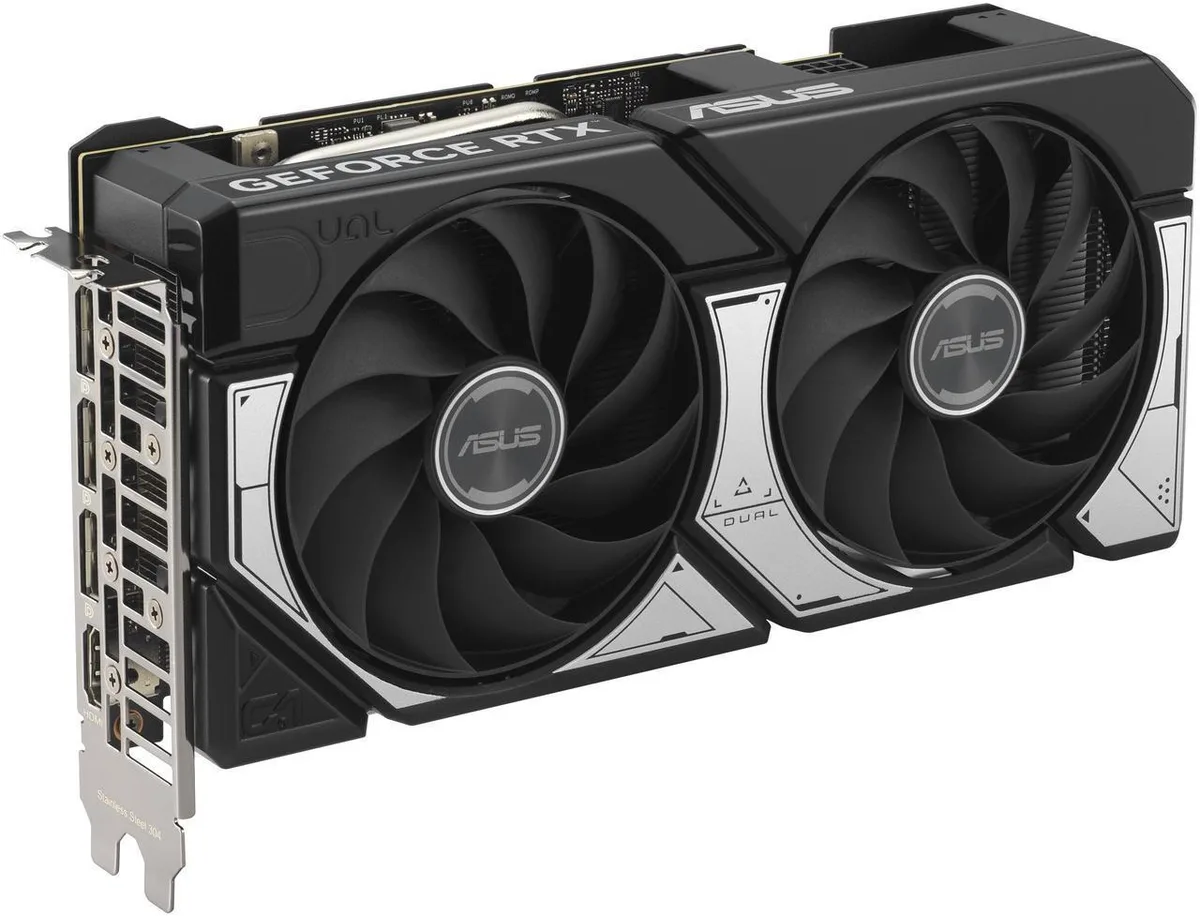

Black dual-fan graphics card with silver accents and backplate

ASUS

ASUS Dual GeForce RTX 5060 Ti 16GB graphics card

SKU CH-W4AN-X6BW3

16 GB GDDR7 on a 128-bit bus with 4608 CUDA cores, PCIe 5.0 x8, DLSS 4.0 and four display outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608
  • 16 GB GDDR7 memory drives high-resolution gaming at 28 Gbps
  • 4608 CUDA cores accelerate ray-traced workloads on Blackwell architecture
  • PCI Express 5.0 x8 interface delivers high-bandwidth data transfer
  • DLSS 4.0 upscaling boosts frame rates with AI rendering
  • One HDMI 2.1b and three DisplayPort 2.1b outputs support four displays

16GB GDDR7 RTX 5060 Ti

The ASUS Dual GeForce RTX 5060 Ti 16GB is a graphics card built on the Blackwell architecture. It delivers 4608 CUDA cores and 16GB of GDDR7 memory on a 128-bit bus. The card targets 1440p gaming and content creation workloads. It supports DLSS 4.0 for AI-accelerated frame generation.

PCIe 5.0 x8 and display outputs

Your motherboard needs a free PCI Express 5.0 x8 or x16 slot. The power supply must provide the required connectors for this GPU. Check that your chassis has enough length and slot clearance for a dual-slot design. The card offers one HDMI 2.1b and three DisplayPort 2.1b connectors for up to four displays.

Dual-fan thermal design

The ASUS Dual cooler uses two axial-tech fans and a heatsink to manage the GPU temperature. The 0dB fan-stop mode halts the fans during light loads for silent operation. Power draw scales with the 5060 Ti chipset under typical gaming loads. The 128-bit GDDR7 memory runs at 28 Gbps effective clock speed.

Highlights

  • 16 GB GDDR7 memory drives high-resolution gaming at 28 Gbps
  • 4608 CUDA cores accelerate ray-traced workloads on Blackwell architecture
  • PCI Express 5.0 x8 interface delivers high-bandwidth data transfer
  • DLSS 4.0 upscaling boosts frame rates with AI rendering
  • One HDMI 2.1b and three DisplayPort 2.1b outputs support four displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX5060TI-O16G
Part Number90YV0MH0-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Features• AI Performance: 767 AI TOPS
• OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS lets you toggle between Quiet and Performance BIOS profiles
• Dual ball fan bearings la
Form FactorATX
Max GPU Length229 mm
Card Dimensions (L x H)229 x 120 x 50 mm
9.02 x 4.72 x 1.97 inch
Slot Width2.5 Slots

Questions about this item

Does the DUAL-RTX5060TI-O16G include any cables or adapters in the box, or do I need to buy a PCIe power cable separately?

The card ships in its protective packaging without extra cables or adapters; a compatible PCIe power cable from your power supply is required for installation.

How do I choose between the 16 GB GDDR7 version and other capacities if they exist?

This model is offered only with 16 GB of GDDR7 memory on a 128-bit bus running at 28 Gbps, so there is no alternative capacity to select.

What does the 28 Gbps memory speed mean for actual gaming performance?

The 28 Gbps GDDR7 memory feeds the 4608 CUDA cores high bandwidth for 1440p gaming and DLSS 4.0 frame generation, while the 128-bit interface keeps latency low.
