ASUS Dual GeForce RTX 5060 Ti 8GB DUAL-RTX5060TI-O8G graphics card

8GB GDDR7 on a 128-bit bus

The ASUS Dual GeForce RTX 5060 Ti carries 8GB of GDDR7 memory across a 128-bit interface running at 28 Gbps. It targets 1440p gaming and entry-level creative work where the 4608 CUDA cores and Blackwell architecture can be used without a flagship budget. The PCI Express 5.0 x8 link keeps host transfers fast on current platforms.

Sustained clocks at 2602 MHz default and 2632 MHz OC

Under continuous load the card runs at a 2602 MHz boost clock in default mode and 2632 MHz in OC mode. The dual-fan cooler moves heat through a 2.5-slot ATX form factor that fits a 229 mm length, so thermals stay stable during long sessions without the frequency collapsing to a much lower base. A 550 W power supply and a single 8-pin connector feed the board.

Two-slot-plus width and modern display outputs

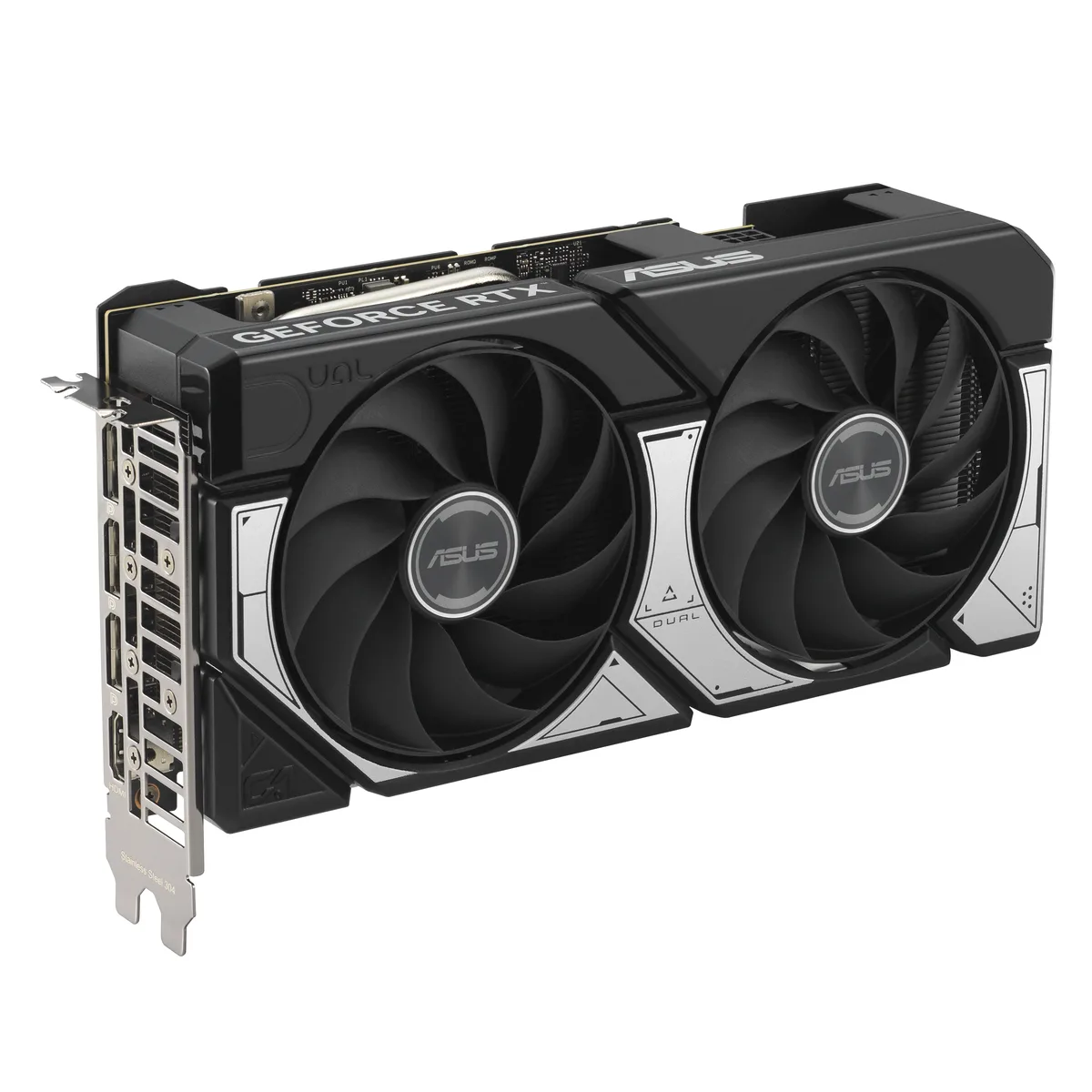

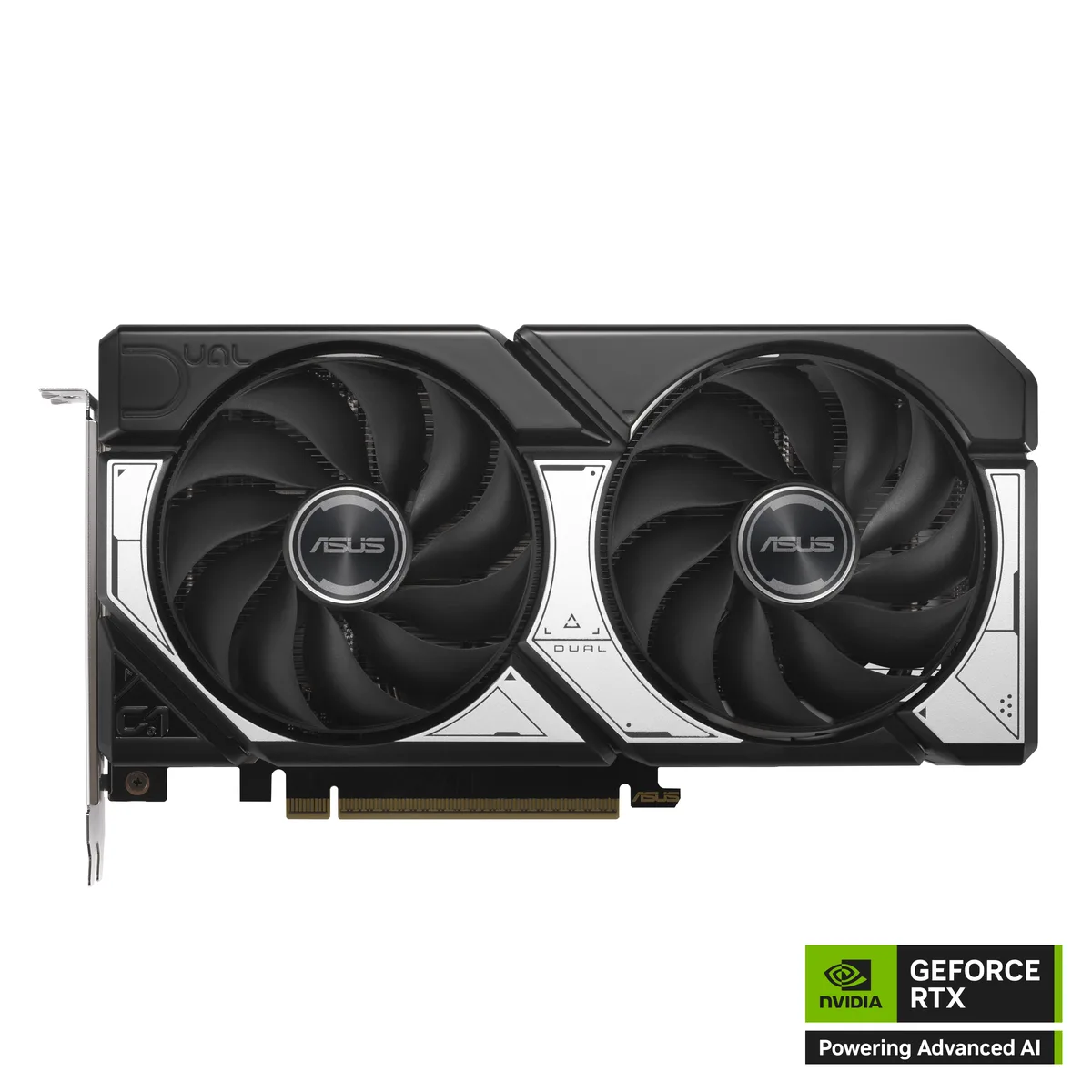

The 229 x 120 x 50 mm black shroud occupies 2.5 slots, leaving room in most mid-tower cases while keeping the PCB rigid. One HDMI 2.1b and three DisplayPort 2.1b connectors drive up to four monitors at 7680 x 4320 resolution. HDCP support and VR readiness mean protected content and headsets work without extra adapters.
