ASUS
ASUS DUAL-RTX2070-O8G GeForce RTX 2070 graphics card
Delivers 8 GB GDDR6 on a 256-bit bus with 2304 CUDA cores and boost clocks up to 1740 MHz for 1440p gaming
- InterfacePCI Express 3.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 20 Series
- GPUGeForce RTX 2070
- Core Clock1410 MHz
- Boost ClockOC Mode: 1740 MHz Gaming Mode (Default): 1710 MHz
- 8 GB GDDR6 memory drives high-resolution textures
- 2304 CUDA cores accelerate rendering and compute tasks
- OC boost clock of 1740 MHz lifts frame rates
- Four display outputs support multi-monitor setups

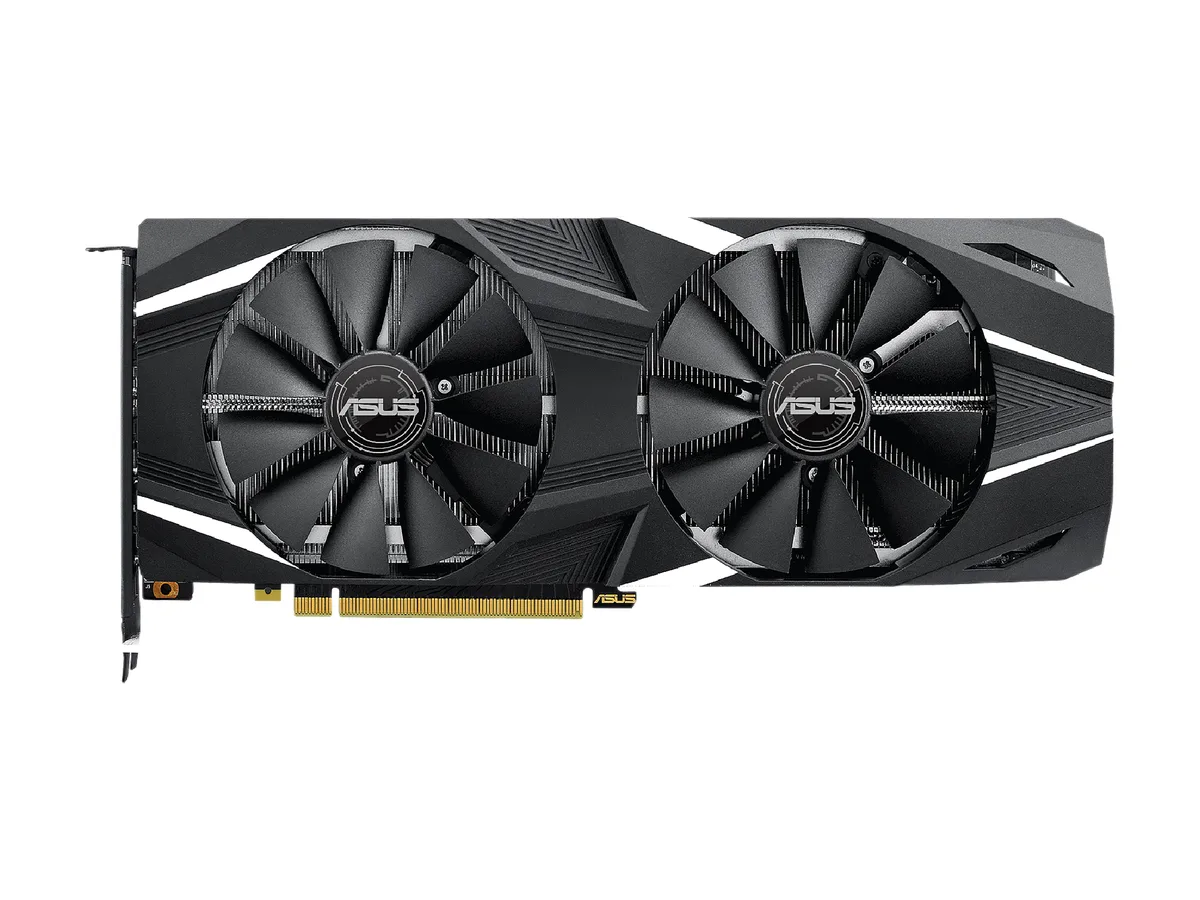

- Dual-fan cooler keeps the card running cool

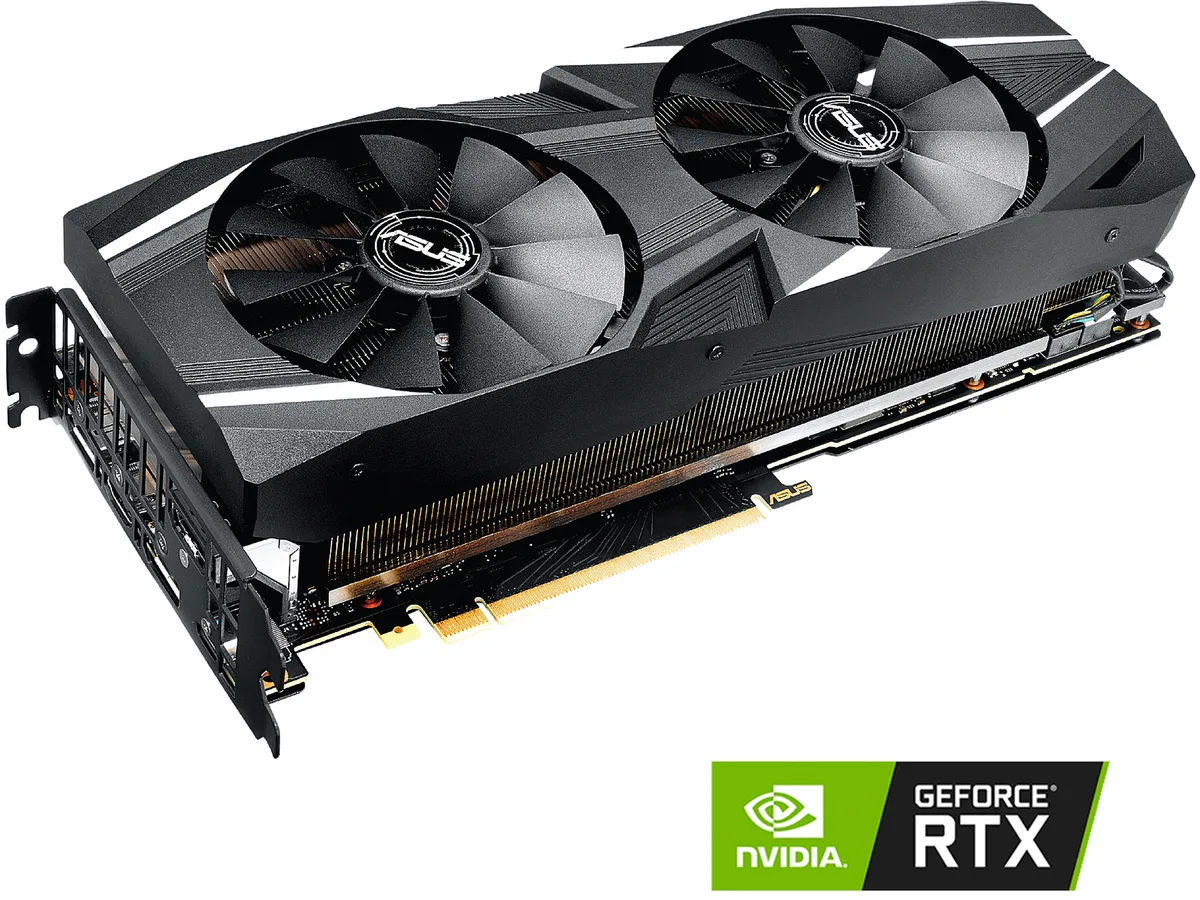

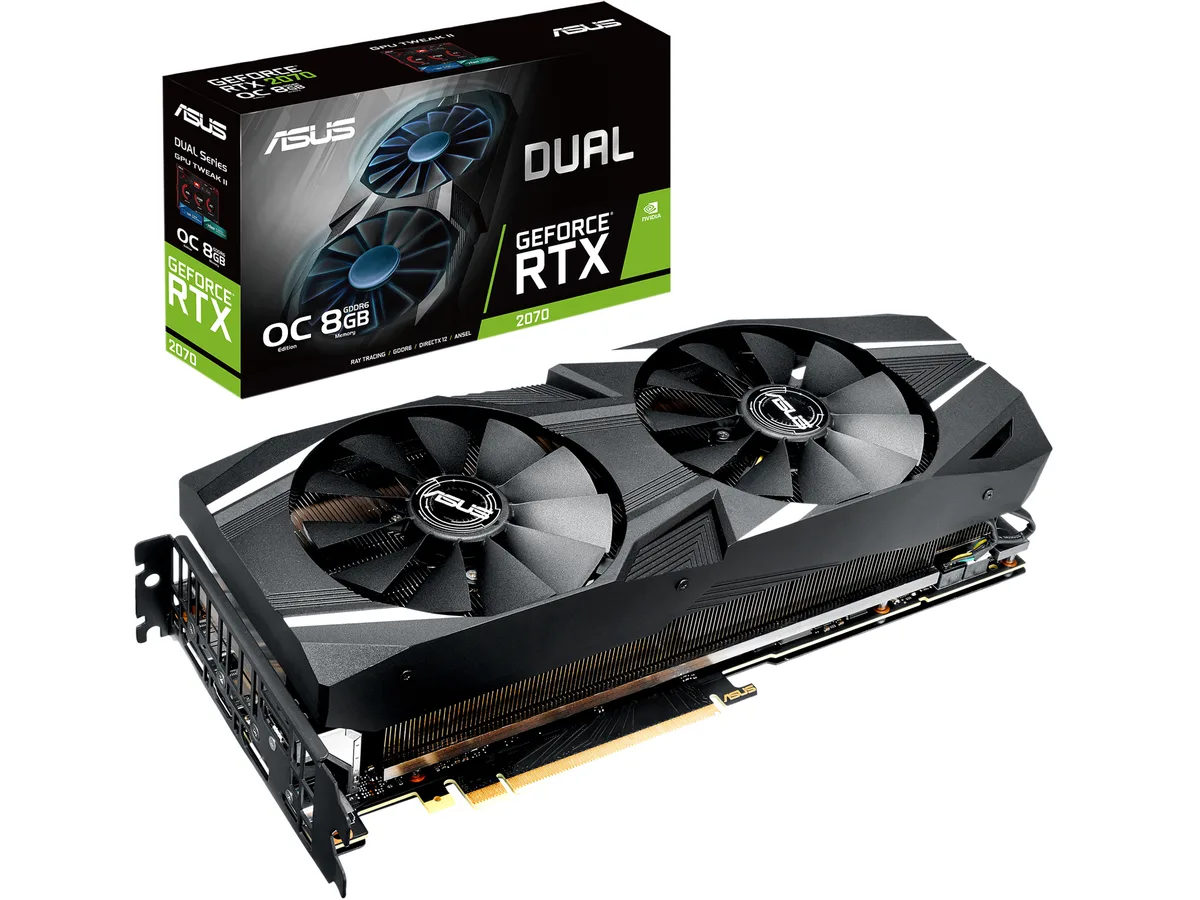

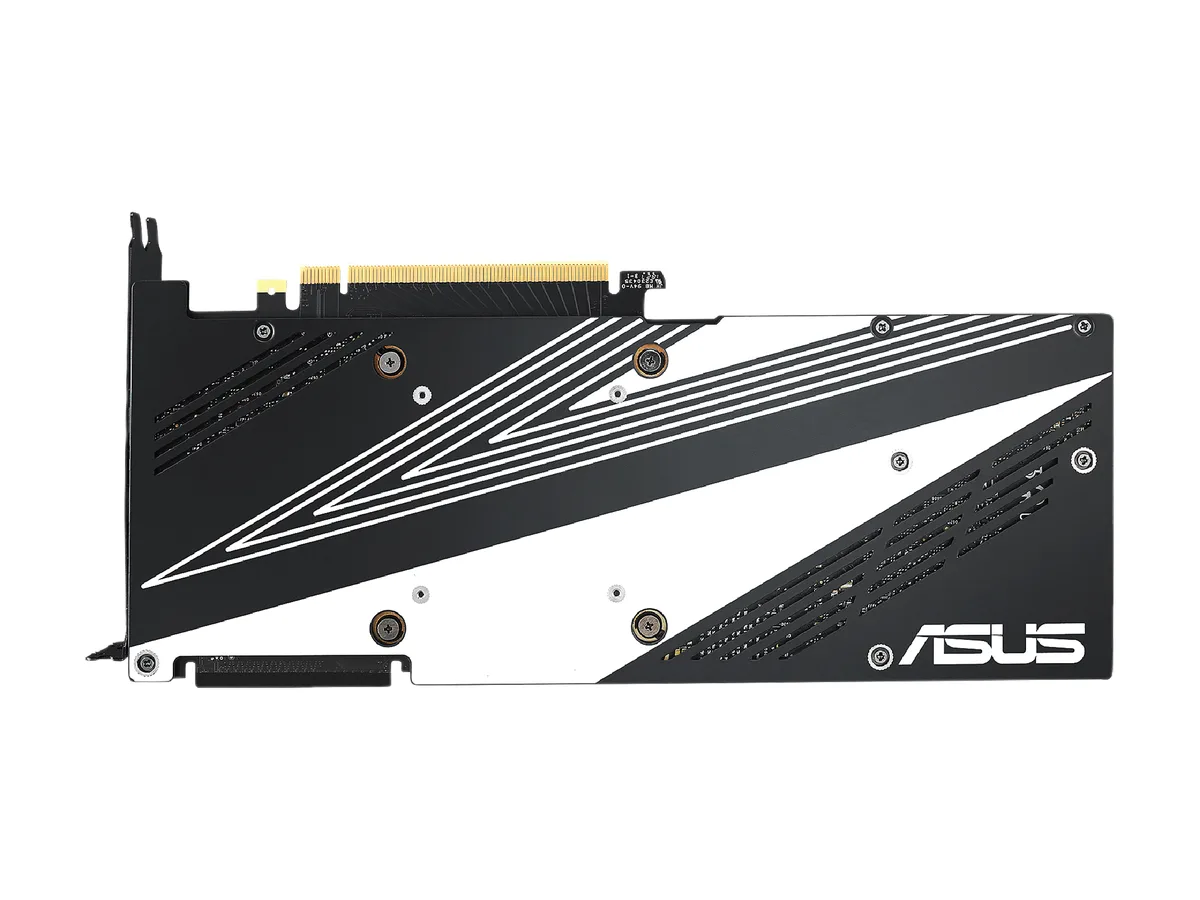

ASUS Dual GeForce RTX 2070 8GB
This ASUS Dual series graphics card targets PC builders who need an 8GB GDDR6 frame buffer for 1440p gaming or content creation. It plugs into a PCI Express 3.0 slot and occupies three expansion slots inside the chassis. The board carries 2304 CUDA cores driven by the NVIDIA Turing architecture.
Sustained load behaviour

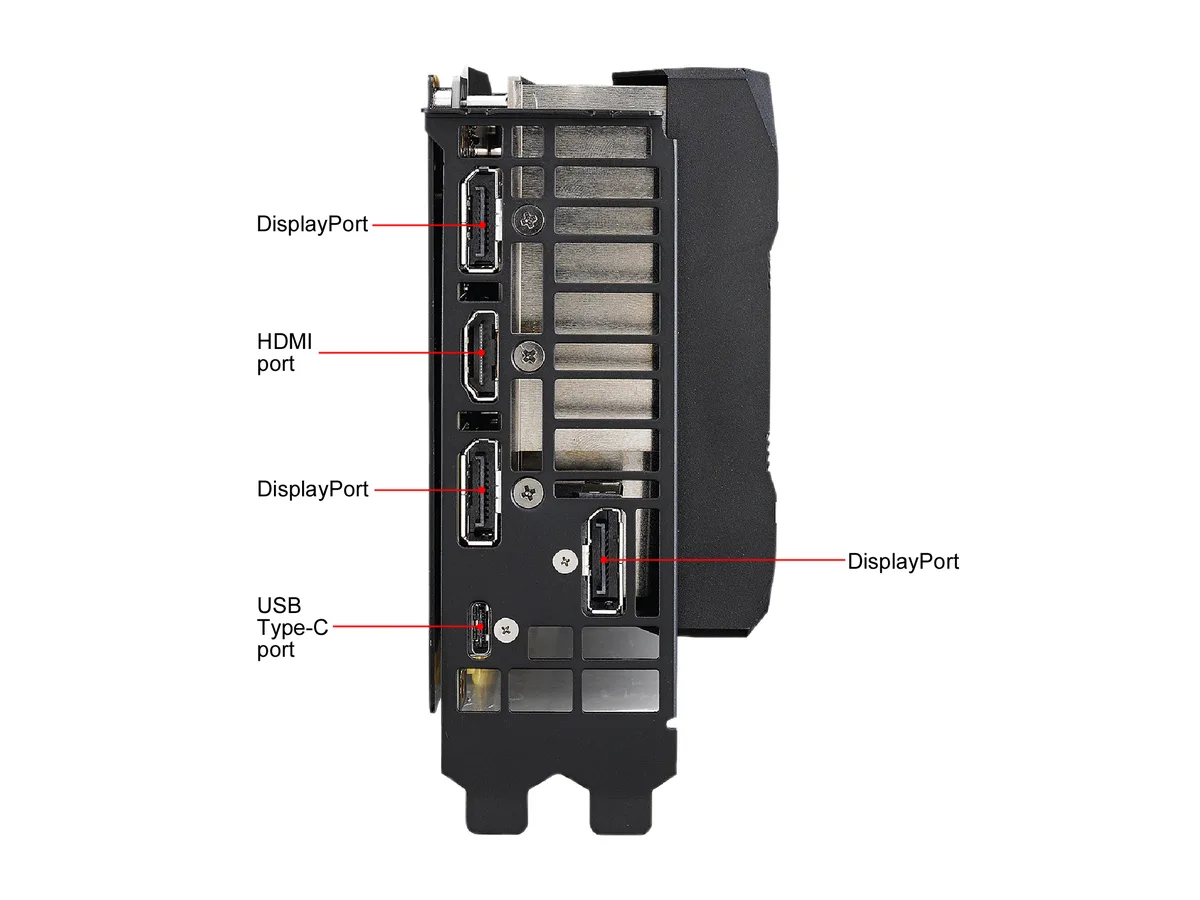

Under continuous load the GPU runs at the Gaming Mode boost clock of 1710 MHz while the memory operates at 14000 MHz effective across the 256-bit bus. The triple-slot fan cooler is designed to maintain these frequencies over extended sessions rather than only during brief bursts. Outputs include one HDMI 2.0b, three DisplayPort 1.4 connectors and a USB Type-C port for up to four displays.
8GB 256-bit GDDR6 memory subsystem
The 8GB GDDR6 memory on a 256-bit interface is the specification that determines whether this card fits a given workload. It provides the bandwidth and capacity needed for modern textures and compute buffers at common resolutions. Buyers should match this memory configuration to their application requirements before purchase.
Highlights
- 8 GB GDDR6 memory drives high-resolution textures
- 2304 CUDA cores accelerate rendering and compute tasks
- OC boost clock of 1740 MHz lifts frame rates
- Four display outputs support multi-monitor setups
- Dual-fan cooler keeps the card running cool
Specifications
| Brand | ASUS |
|---|---|
| Series | Dual |
| Model | DUAL-RTX2070-O8G |
| Interface | PCI Express 3.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 20 Series |
| GPU | GeForce RTX 2070 |
| Core Clock | 1410 MHz |
| Boost Clock | OC Mode: 1740 MHz Gaming Mode (Default): 1710 MHz |
| CUDA Cores | 2304 |
| Effective Memory Clock | 14000 MHz |
| Memory Size | 8GB |
| Memory Interface | 256-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.5 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 3 x DisplayPort 1.4 |
| Other Ports | 1 x USB Type-C |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Thermal Design Power | 185W |
| System Requirements | Recommended PSU: 550W |
| Recommended PSU Wattage | 550W |
| Power Connector | 1 x 6-Pin, 1 x 8-Pin |
| HDCP Ready | 2.2 |
| Features | NVIDIA TURING: ASUS GeForce RTX graphics cards are powered by the Turing TM GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games. DirectX 12: Power new visual effects and rendering techniques for more lifelike gaming. NVIDIA Shadowplay Record and share high-quality gameplay videos, screenshots, and livestreams with your friends. Unique Wing-blade Fans deliver high air pressure, reduced noise levels, IP5X certified dust resistance, and 0dB mode for sile |
| Max GPU Length | 268 mm |
| Card Dimensions (L x H) | 10.53" x 4.47" |
| Slot Width | 2.7-slot |
| Shipping weight | 1.76 kg |
| Package size | 406 × 236 × 91 mm |
Questions about this item
How loud and hot does the DUAL-RTX2070-O8G get when it runs all day at its 1740 MHz boost clock?
The card uses a dual-fan cooler in a triple-slot form factor measuring 10.5 inches long, 4.5 inches wide and 2.3 inches high to move heat away from the 2304 CUDA cores and 8 GB GDDR6 memory.
What power connectors and PSU cables do I need to supply the RTX 2070 GPU on this board?
The GPU draws power through the PCI Express 3.0 slot and the card's onboard power connectors; check the bracket for the exact plug count before installation.
Will the 1 x HDMI 2.0b and 3 x DisplayPort 1.4 outputs drive my older 1080p monitors alongside a new 4K panel?
Yes, the four digital outputs support multi-monitor setups up to four displays, so legacy 1080p screens and modern 4K panels can run together.
