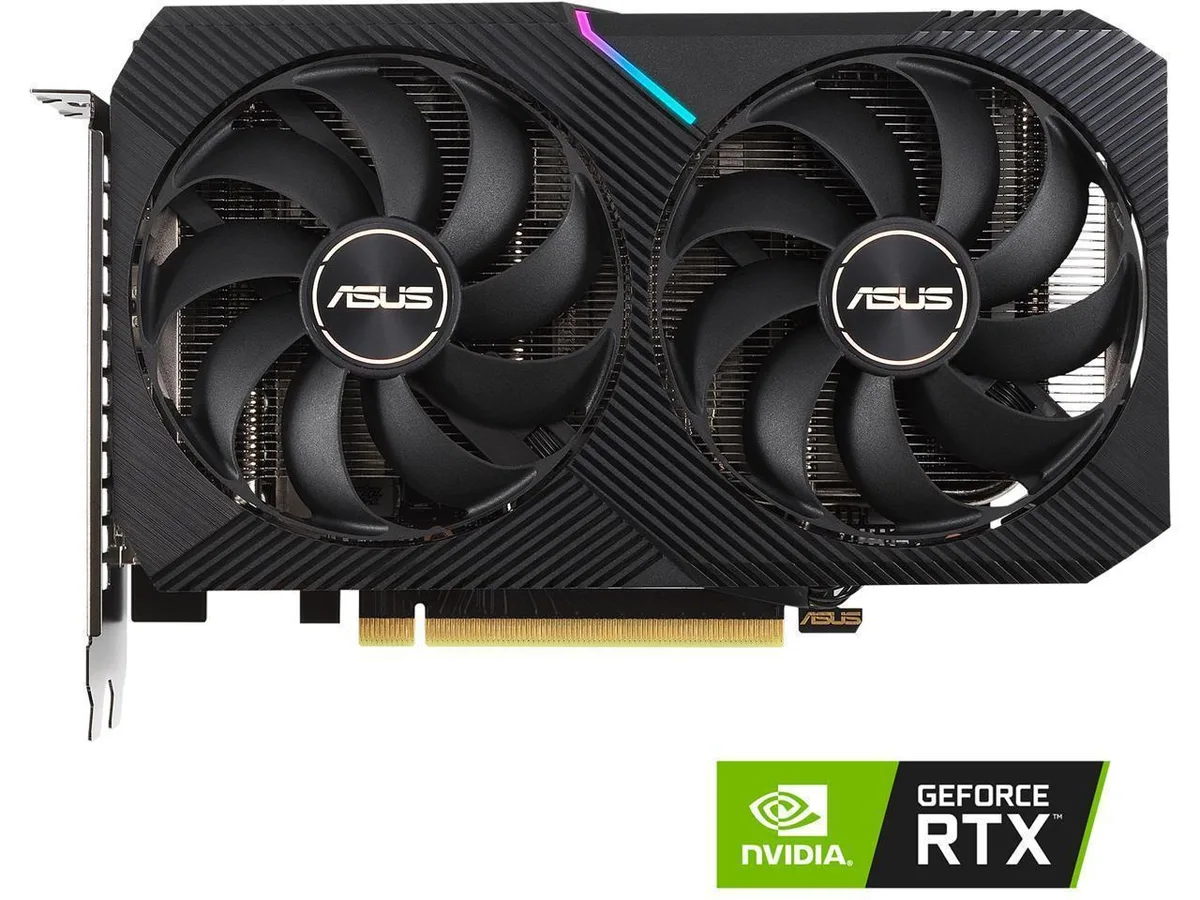

Compact dual-fan graphics card in dark grey with silver accents, short PCB visible through backplate, single HDMI and three

ASUS

ASUS DUAL-RTX3060TI-O8G-MINI-V2 GeForce RTX 3060 Ti graphics card

SKU CH-RGZV-2TJXW MPN DUAL-RTX3060TI-O8G-MINI-V2

Compact dual-fan card with 8 GB GDDR6 memory, 4864 CUDA cores and OC boost to 1710 MHz over PCIe 4.0

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 30 Series
  • GPUGeForce RTX 3060 Ti
  • ArchitectureAmpere
  • Boost ClockOC Mode - 1710 MHz Gaming Mode - 1680 MHz
  • OC boost reaches 1710 MHz for higher frame rates
  • 4864 CUDA cores accelerate ray-tracing and compute workloads
  • 8 GB GDDR6 on a 256-bit bus delivers 14 Gbps bandwidth
  • PCI Express 4.0 interface doubles host bandwidth over 3.0
  • HDMI 2.1 plus three DisplayPort 1.4a drive four 8K displays

Compact RTX 3060 Ti for small builds

The ASUS Dual GeForce RTX 3060 Ti V2 MINI OC Edition fits mini-ITX cases while delivering 4864 CUDA cores and 8 GB of GDDR6 memory on a 256-bit bus. It targets gamers and creators who need Ampere performance in a shorter PCB. The card runs at 1680 MHz in Gaming Mode and 1710 MHz in OC Mode.

PCI Express 4.0 interface requirement

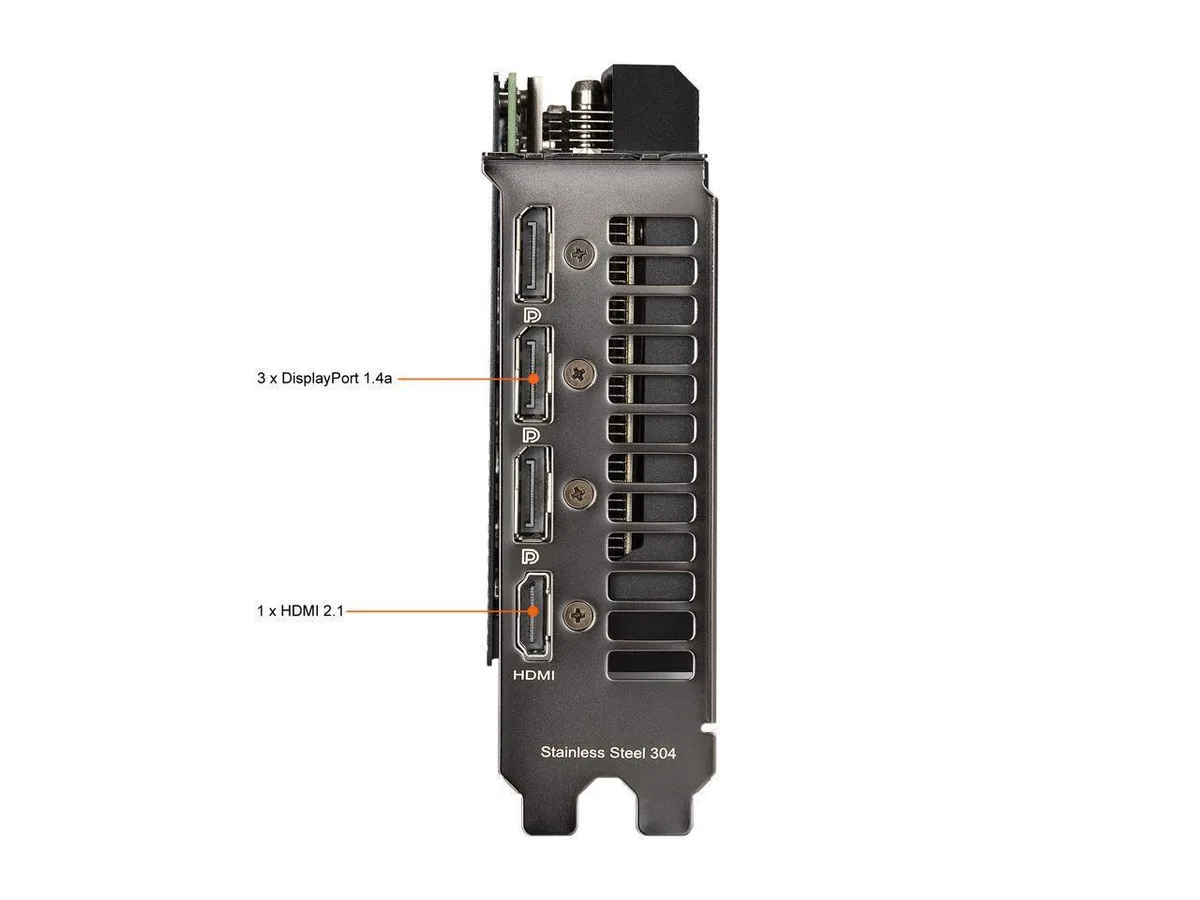

The card uses a PCI Express 4.0 x16 slot, so the motherboard and CPU must support that interface to avoid bandwidth limits. Memory runs at 14 Gbps effective, feeding the 256-bit bus for 1440p gaming and GPU-accelerated workloads. Display outputs are one HDMI 2.1 and three DisplayPort 1.4a connectors for up to four monitors.

Two-slot cooler fits most compact cases

The dual-fan, two-slot design installs like any full-height GPU; just verify case length clearance before ordering. Connect the single 8-pin power cable, seat the card firmly, and install the latest NVIDIA driver. Common issues are forgetting the power connector or using an older motherboard BIOS that does not initialise PCIe 4.0 correctly.

Highlights

  • OC boost reaches 1710 MHz for higher frame rates
  • 4864 CUDA cores accelerate ray-tracing and compute workloads
  • 8 GB GDDR6 on a 256-bit bus delivers 14 Gbps bandwidth
  • PCI Express 4.0 interface doubles host bandwidth over 3.0
  • HDMI 2.1 plus three DisplayPort 1.4a drive four 8K displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX3060TI-O8G-MINI-V2
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 30 Series
GPUGeForce RTX 3060 Ti
ArchitectureAmpere
Boost ClockOC Mode - 1710 MHz
Gaming Mode - 1680 MHz
CUDA Cores4864
Effective Memory Clock14 Gbps
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
Recommended PSU Wattage750W
Power Connector1 x 8-pin
HDCP Ready2.3
FeaturesNVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
This GeForce RTX 3060 Ti graphics ca
Max GPU Length200 mm
Card Dimensions (L x H)7.87" x 4.84"
Slot Width2 Slots
Package ContentsAccessories
1 x Collection card
1 x Speedsetup manual

Questions about this item

What does the 1710 MHz boost clock mean for actual frame rates?

The 1710 MHz OC mode boost clock is the peak GPU frequency under load; real-world frame rates depend on the game engine, resolution and CPU pairing.

What bandwidth ceiling does the PCI Express 4.0 x16 link impose?

A PCI Express 4.0 x16 slot provides up to 32 GB/s each direction, so the card will not be limited by the bus in current titles.

How much clearance does the MINI dual-slot design need inside the case?

The dual-slot MINI form factor fits standard ATX cases with at least two adjacent expansion slots and typical length clearance.
