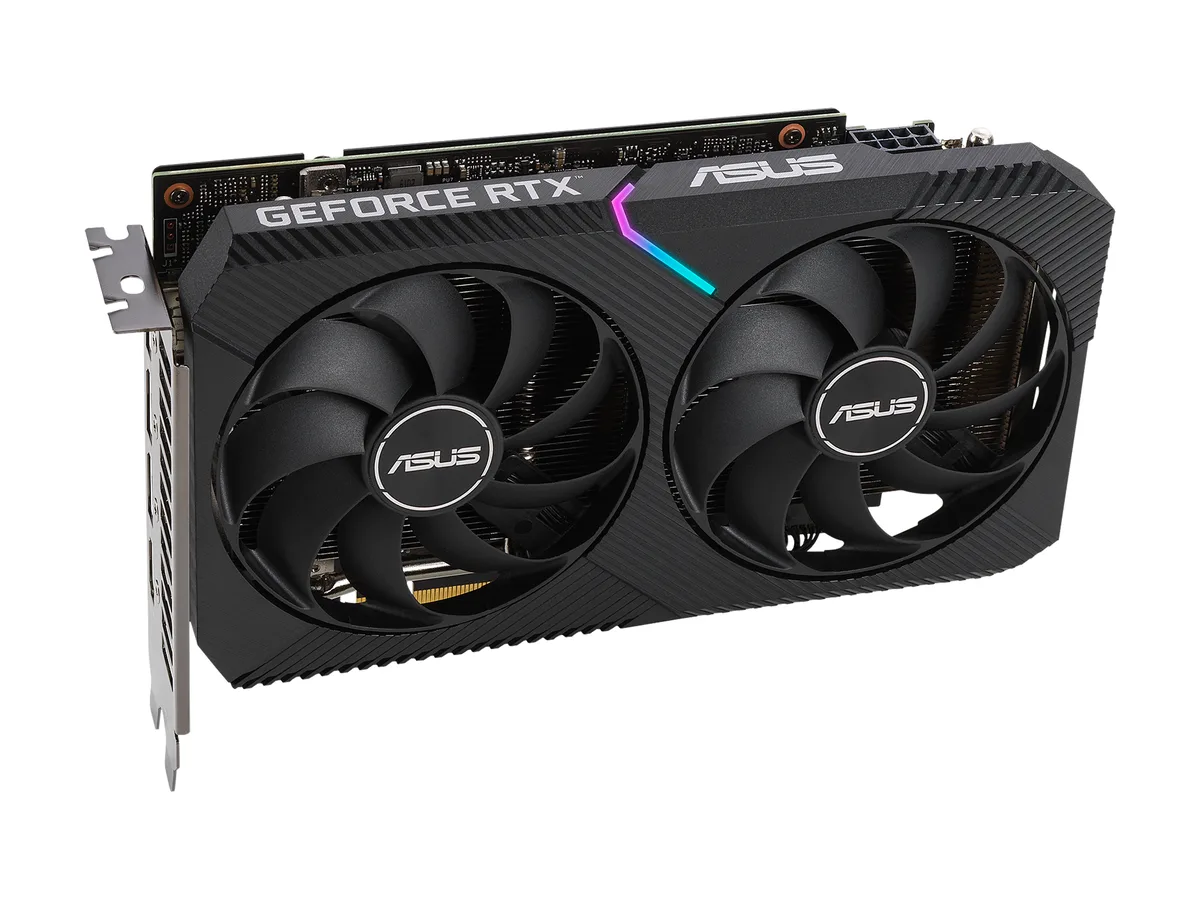

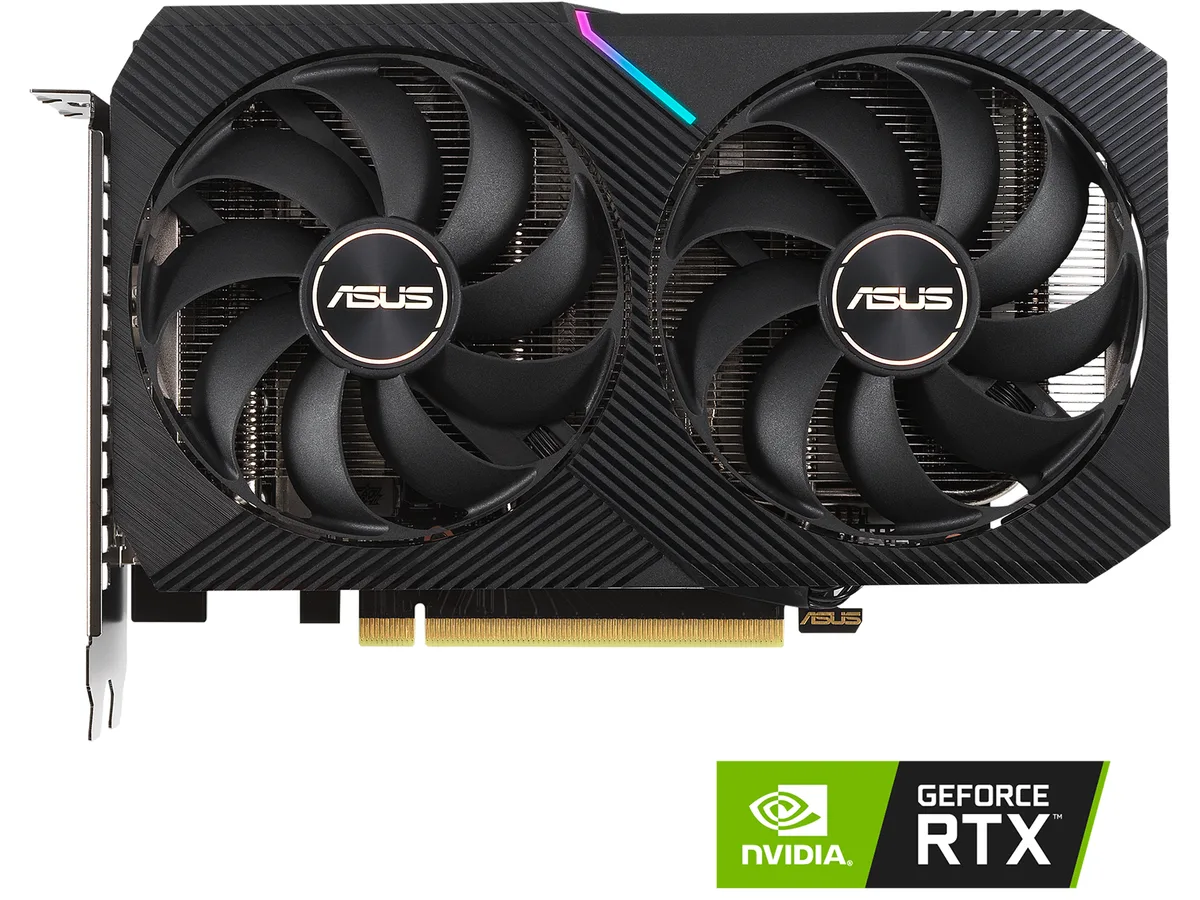

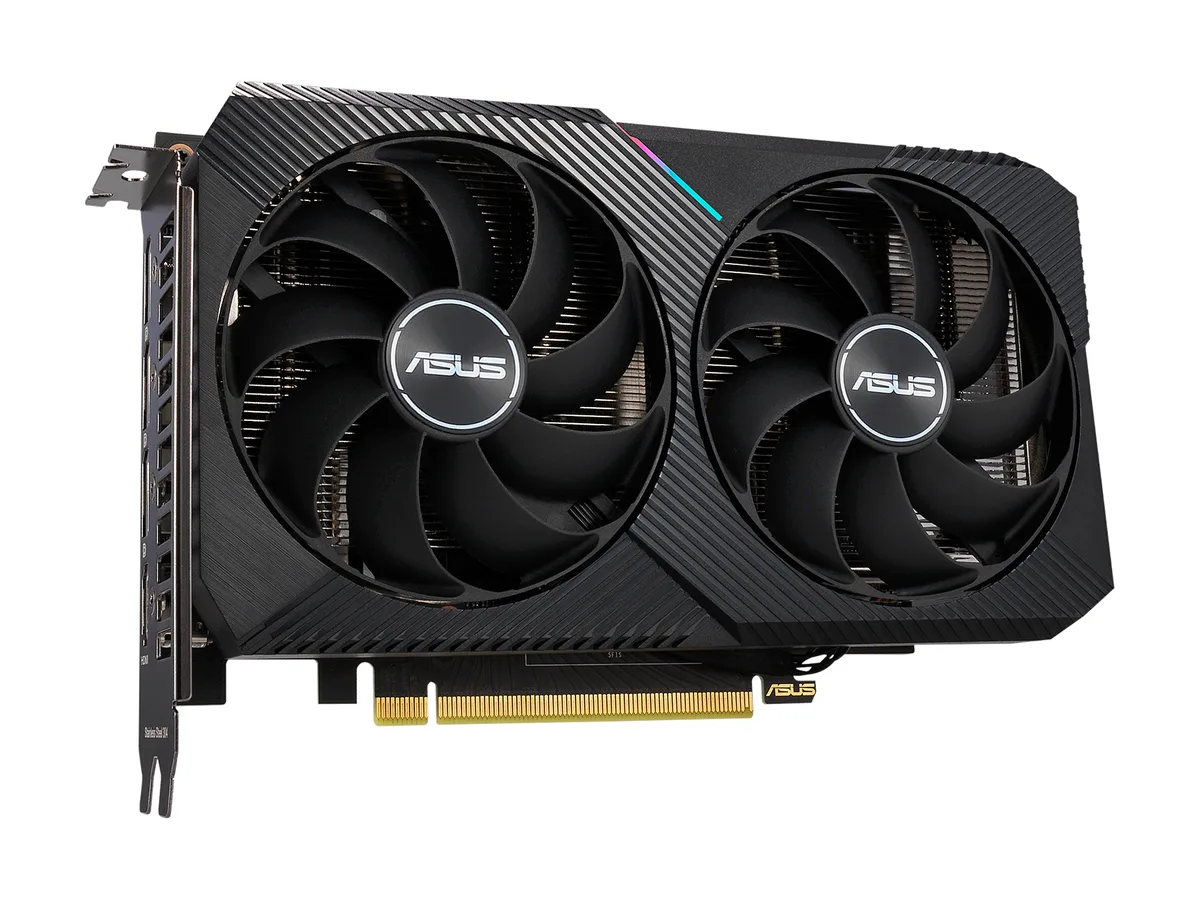

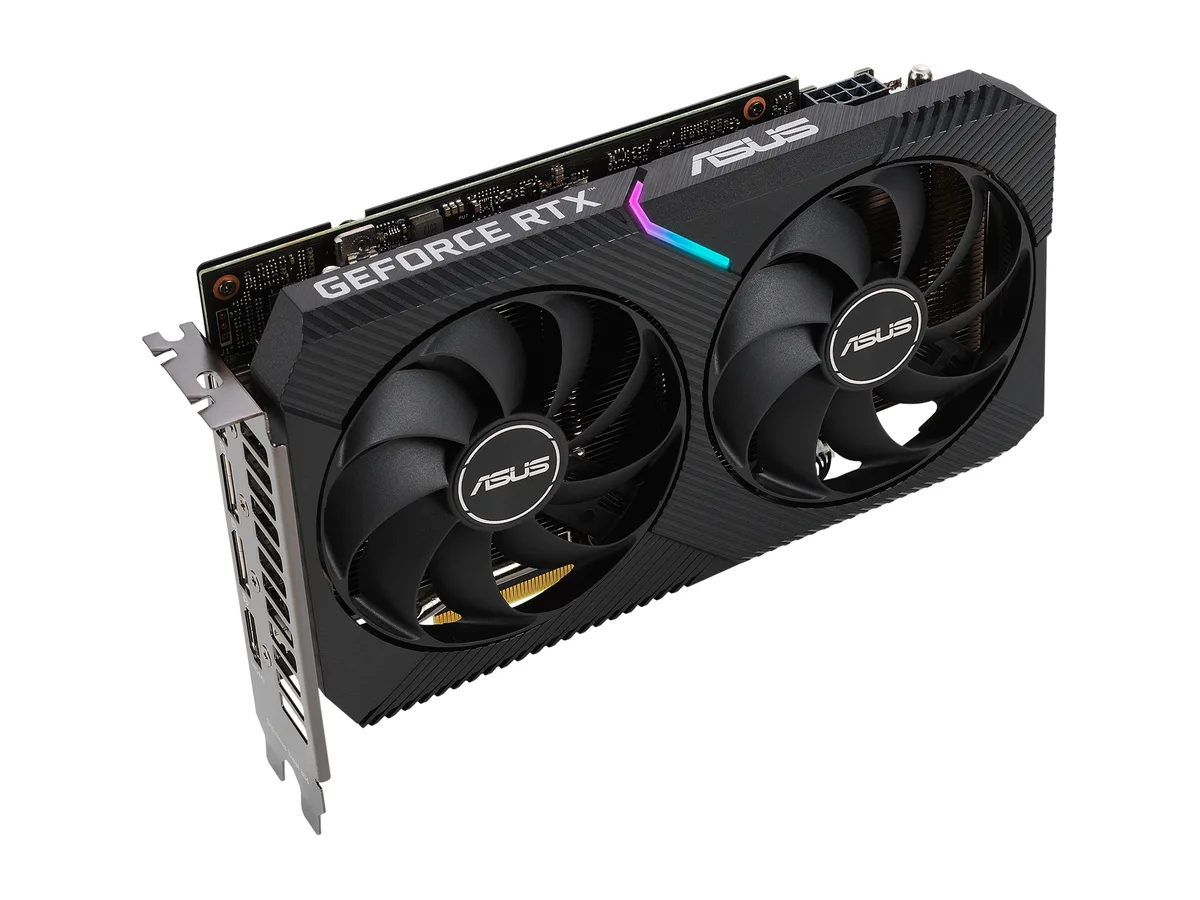

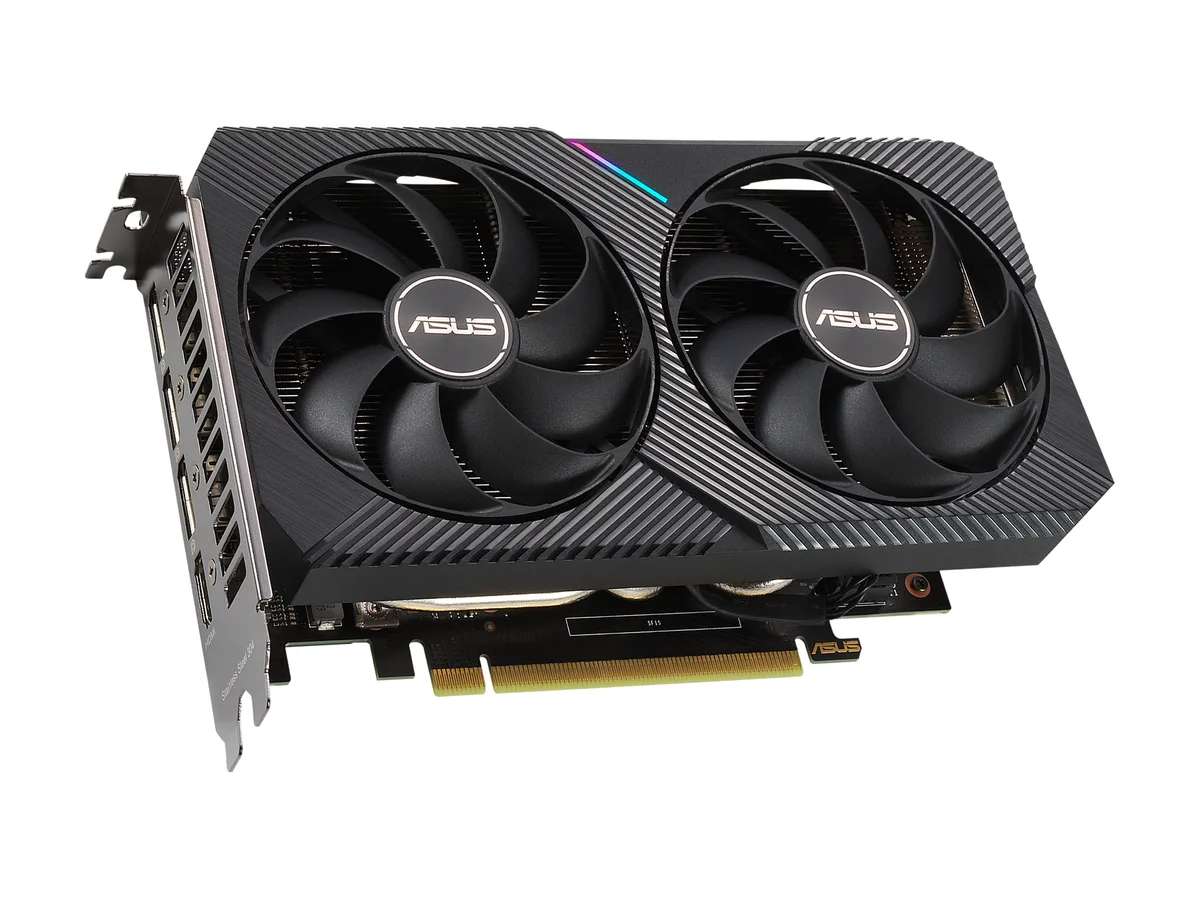

Compact black graphics card with dual axial fans and short PCB

ASUS

ASUS DUAL-RTX3060TI-O8G-MINI-V2 graphics card

SKU CH-SBAQ-0BJ31 MPN DUAL-RTX3060TI-O8G-MINI-V2

Compact GeForce RTX 3060 Ti with 8 GB GDDR6, 4864 CUDA cores, 1710 MHz OC boost, PCIe 4.0, HDMI 2.1 and triple DisplayPort 1.4a

  • InterfacePCI Express 4.0
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 30 Series
  • GPUGeForce RTX 3060 Ti
  • ArchitectureAmpere
  • Boost ClockOC Mode - 1710 MHz Gaming Mode - 1680 MHz
  • 8 GB GDDR6 memory at 14 Gbps for high-resolution textures
  • Boost clock up to 1710 MHz in OC mode for responsive gaming
  • 4864 CUDA cores deliver strong parallel compute performance
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • HDMI 2.1 and three DisplayPort 1.4a outputs drive four displays

Compact 8GB RTX 3060 Ti for small-form-factor builds

The ASUS Dual GeForce RTX 3060 Ti V2 MINI OC Edition fits a full Ampere GPU into a dual-slot, dual-fan design that suits compact cases. It delivers 4864 CUDA cores and 8GB of GDDR6 memory on a 256-bit bus for 1440p gaming and creative workloads. The card connects through a PCI Express 4.0 x16 slot and supports up to four displays via one HDMI 2.1 and three DisplayPort 1.4a outputs. Boost clocks reach 1710 MHz in OC mode and 1680 MHz in Gaming mode.

Verify PSU, slot length and power connector before

Your power supply should meet the 750 W recommendation and provide a single 8-pin PCIe power connector for the card. Confirm the motherboard has a full-length PCI Express 4.0 slot and that the case can accommodate a dual-slot card without clearance issues. The display outputs require HDMI 2.1 or DisplayPort 1.4a cables to reach the maximum 7680 x 4320 resolution. No SLI bridge is supported, so multi-GPU configurations are not an option.

Dual-fan cooler manages sustained loads within a

Under continuous load the two fans ramp to balance thermals and acoustics while the Ampere architecture maintains 2X FP32 throughput over the previous design. Second-generation RT cores keep ray-tracing throughput steady during extended sessions, and the 256-bit memory interface sustains 14 Gbps bandwidth for texture-heavy scenes. The 8-pin connector feeds the 1710 MHz OC boost without exceeding the board power limit, so clocks remain stable across long renders or gaming marathons.

Highlights

  • 8 GB GDDR6 memory at 14 Gbps for high-resolution textures
  • Boost clock up to 1710 MHz in OC mode for responsive gaming
  • 4864 CUDA cores deliver strong parallel compute performance
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • HDMI 2.1 and three DisplayPort 1.4a outputs drive four displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX3060TI-O8G-MINI-V2
InterfacePCI Express 4.0
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 30 Series
GPUGeForce RTX 3060 Ti
ArchitectureAmpere
Boost ClockOC Mode - 1710 MHz
Gaming Mode - 1680 MHz
CUDA Cores4864
Effective Memory Clock14 Gbps
Memory Size8GB
Memory Interface256-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1
DisplayPort3 x DisplayPort 1.4a
ColorBlack
Max Resolution7680 x 4320
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage750W
Power Connector1 x 8-pin
HDCP Ready2.3
FeaturesNVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPUs, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. These cores deliver a massive boost in game performance and all-new AI capabilities.
This GeForce RTX 3060 Ti graphics ca
Max GPU Length200 mm

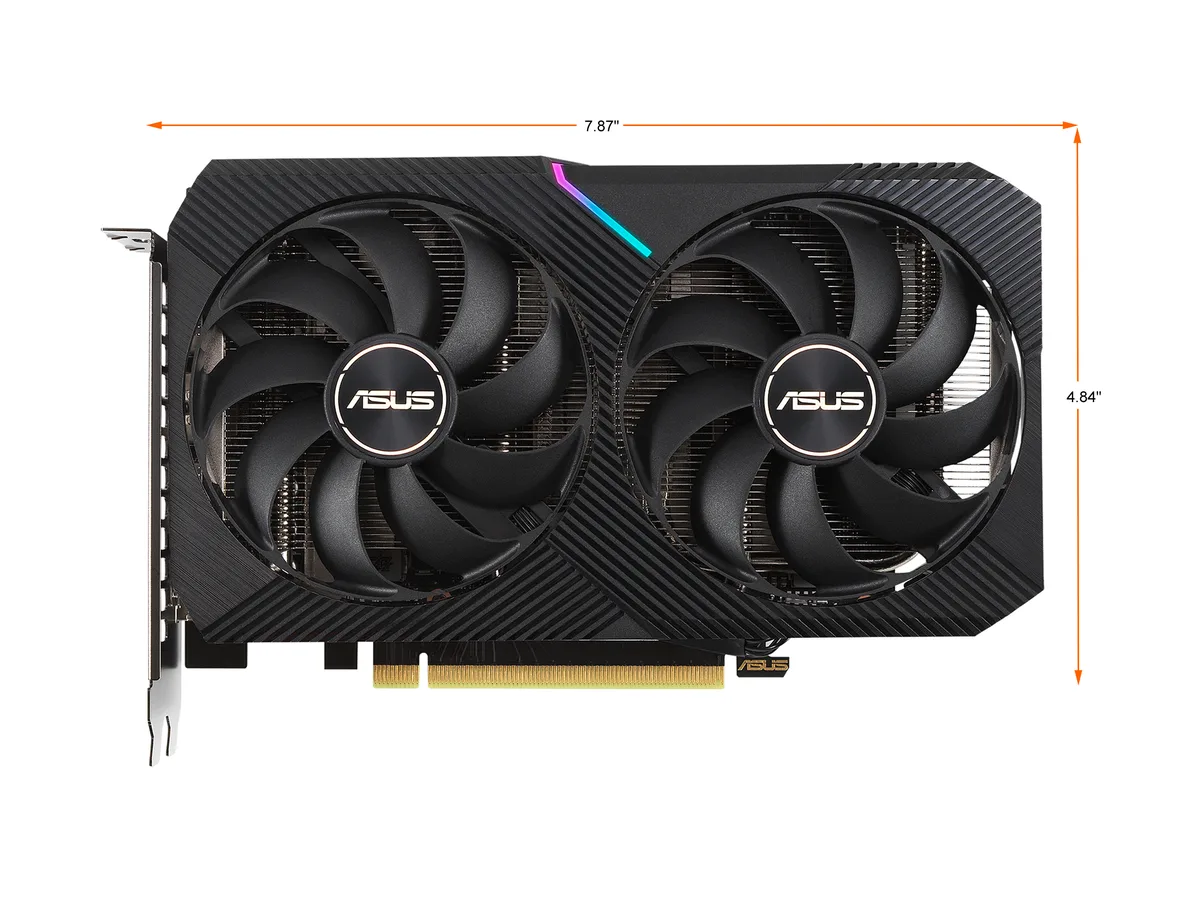

Card Dimensions (L x H)7.87" x 4.84"
Slot Width2 Slots
Shipping weight1.59 kg
Package size305 × 203 × 102 mm

Questions about this item

What comes in the box and do I need to buy a power cable separately?

The card includes the GPU with its dual-fan cooler and a 1 x 8-pin power connector. Your PSU must supply that 8-pin cable; no adapter is bundled.

Should I choose the OC mode or Gaming mode clock for my build?

OC mode runs at 1710 MHz boost, Gaming mode at 1680 MHz. Both use the same 4864 CUDA cores and 8GB GDDR6; select OC mode if your cooling and 750 W PSU can handle the extra headroom.

What does the 14 Gbps memory speed mean once the card is installed?

The 14 Gbps effective clock on the 256-bit GDDR6 interface delivers high bandwidth for 1440p gaming and 7680 x 4320 output over the 1 x HDMI 2.1 and 3 x DisplayPort 1.4a ports.
