ASUS
ASUS DUAL-RTX4060-O8G-EVO-WHITE graphics card
Refurbished GeForce RTX 4060 with 8 GB GDDR6, 3072 CUDA cores, OC boost to 2535 MHz and dual axial-tech fans for quiet 115 W operation
- InterfacePCI Express 4.0
- Chipset ManufacturerNVIDIA
- GPU SeriesNVIDIA GeForce RTX 40 Series
- GPUGeForce RTX 4060
- ArchitectureAda Lovelace
- Core Clock2505 MHz
- OC boost clock 2535 MHz for higher frame rates
- Axial-tech fans with dual ball bearings last twice as long as sleeve designs
- 0 dB mode keeps light gaming completely silent
- Protective backplate shields components during transport and install
- PCIe 4.0 x8 interface and 8 GB GDDR6 at 17000 MHz deliver fast data throughput
PCI Express 4.0 graphics card

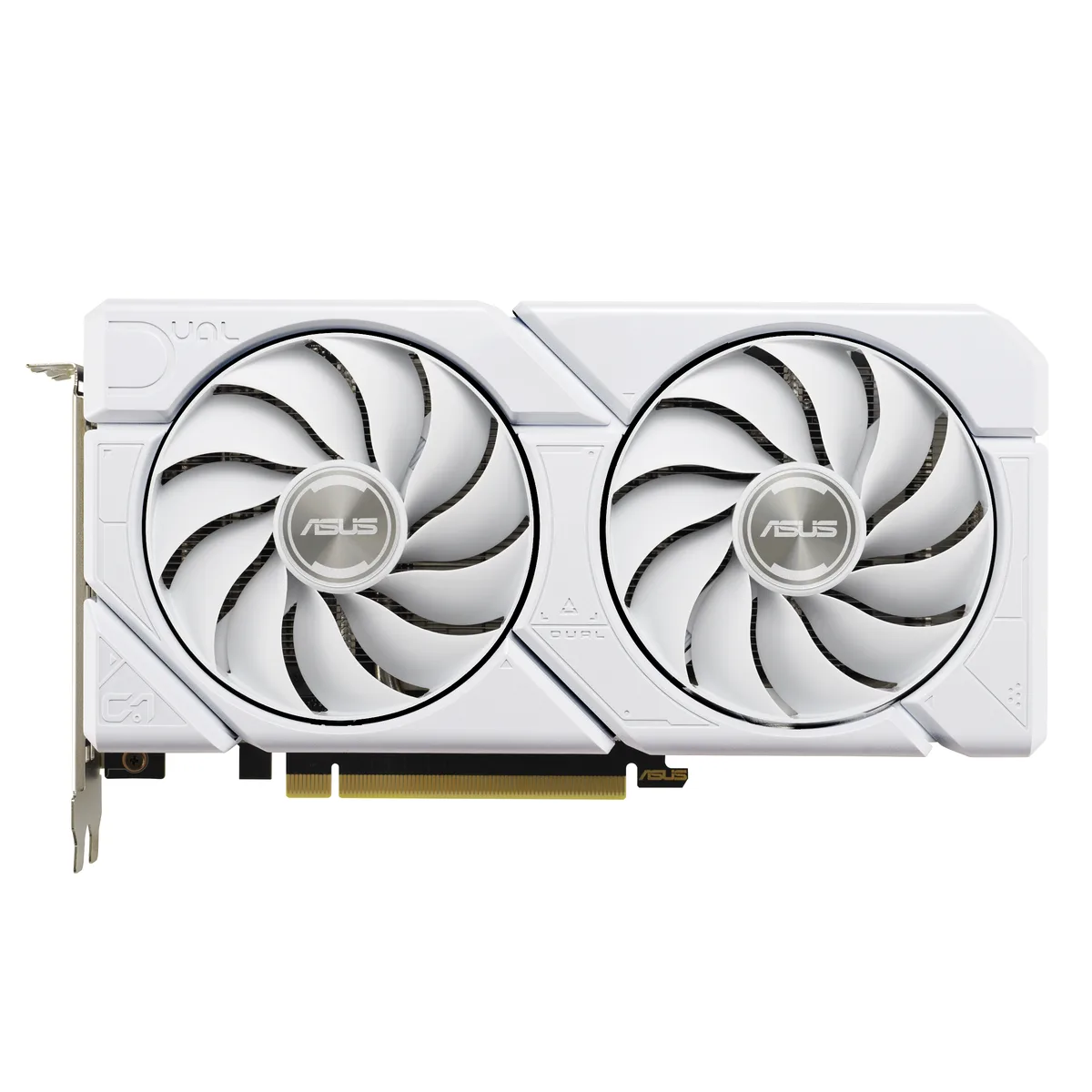

The ASUS Dual GeForce RTX 4060 OC Edition delivers 8GB of GDDR6 memory on a 128-bit interface. It is built for 1080p gaming and content creation with a 2535 MHz boost clock in OC mode. The white colour scheme suits bright themed builds.
Check power and space before ordering
Your power supply should provide at least 550W and an 8-pin PCIe connector. The board occupies 2.5 slots and measures 227 mm in length. Verify that your motherboard has a PCI Express 4.0 slot and that your case clears the card length and slot width.

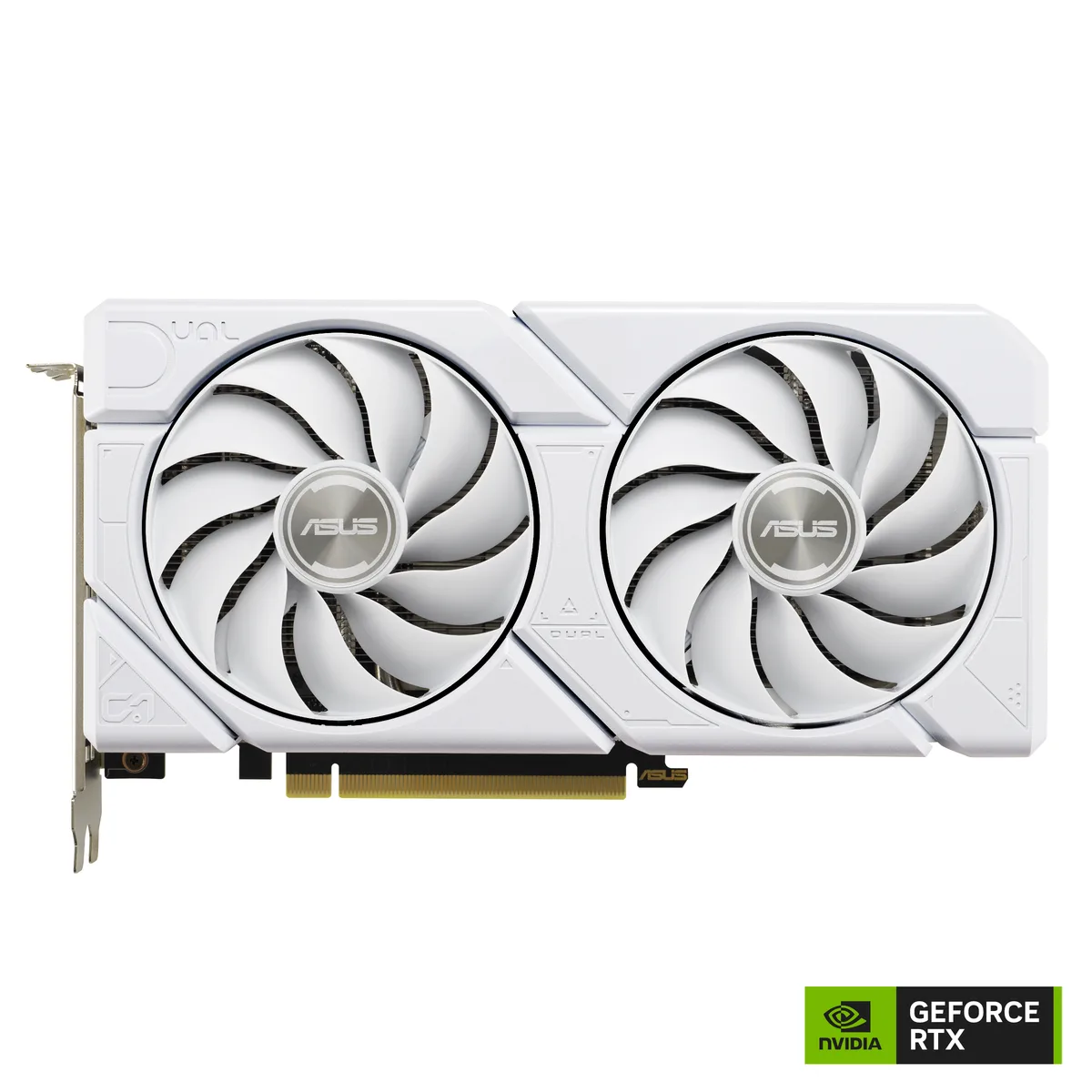

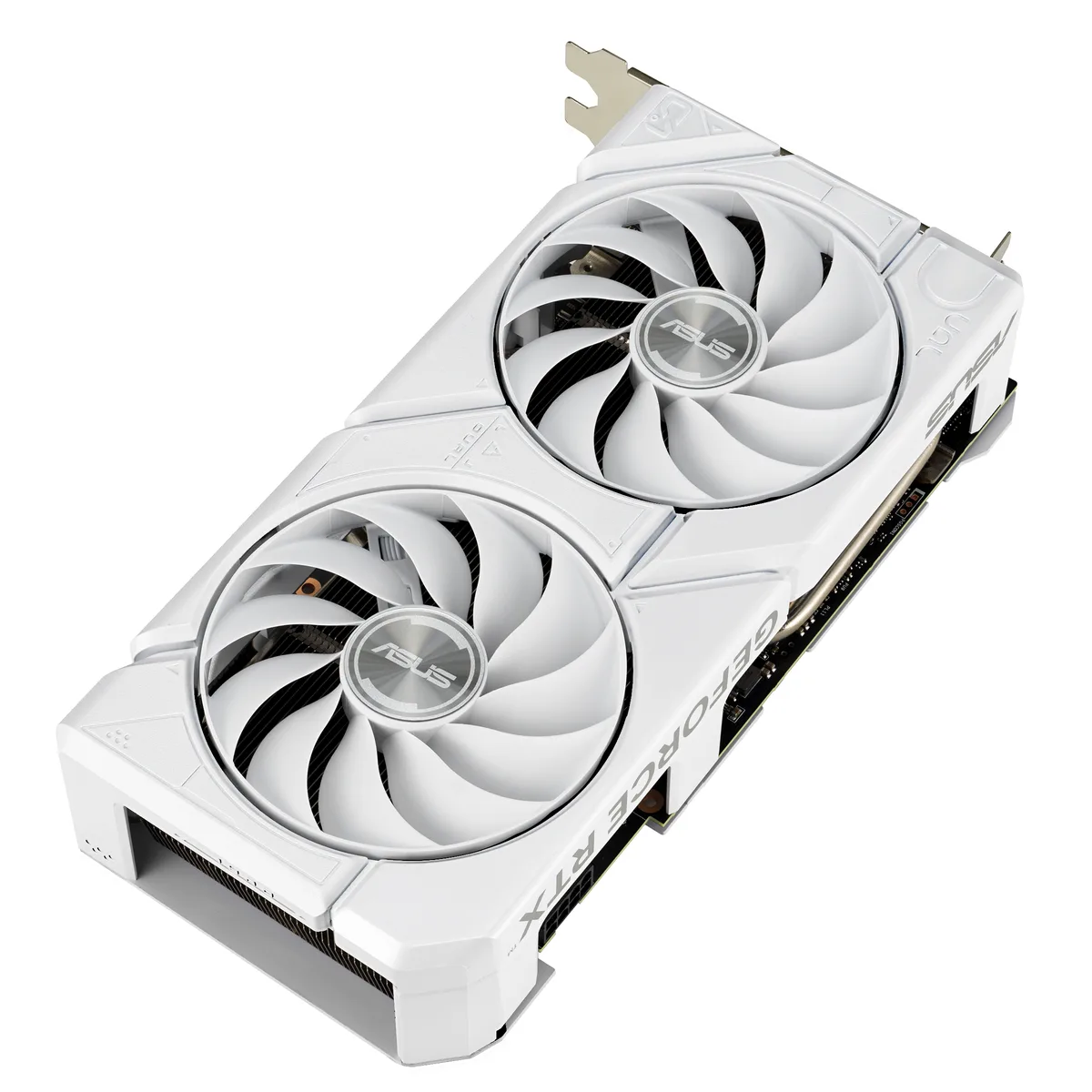

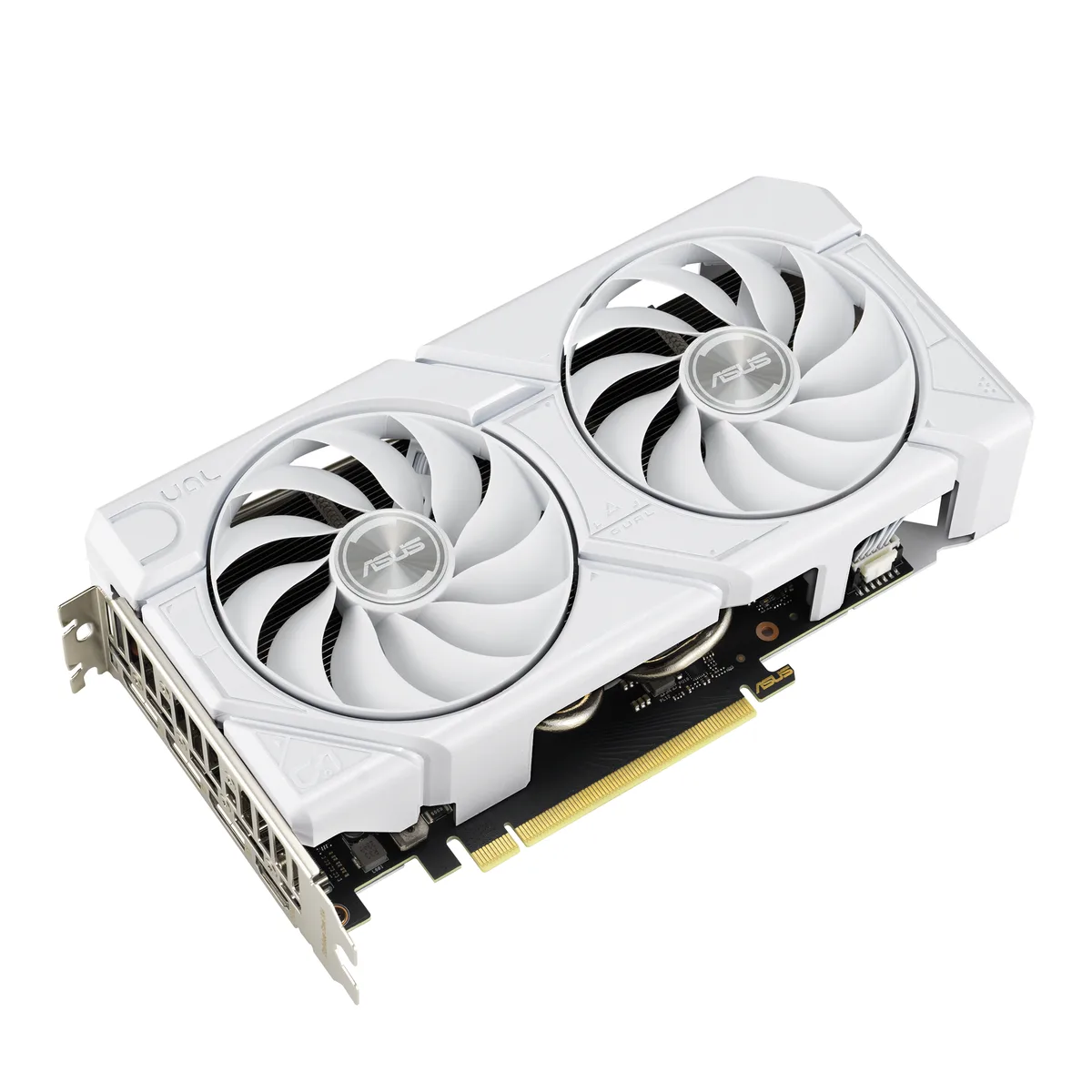

Dual axial-tech fans with 0dB technology

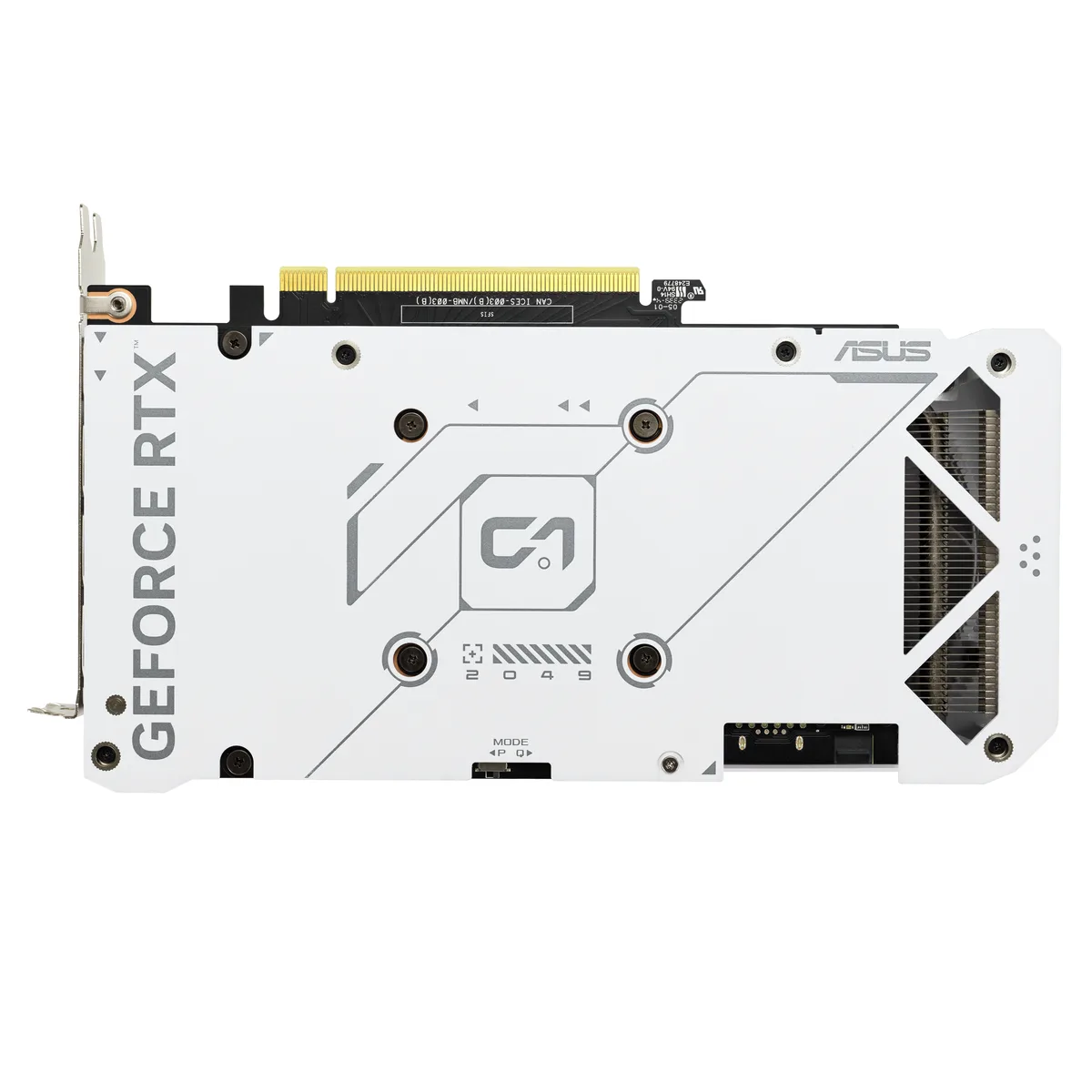

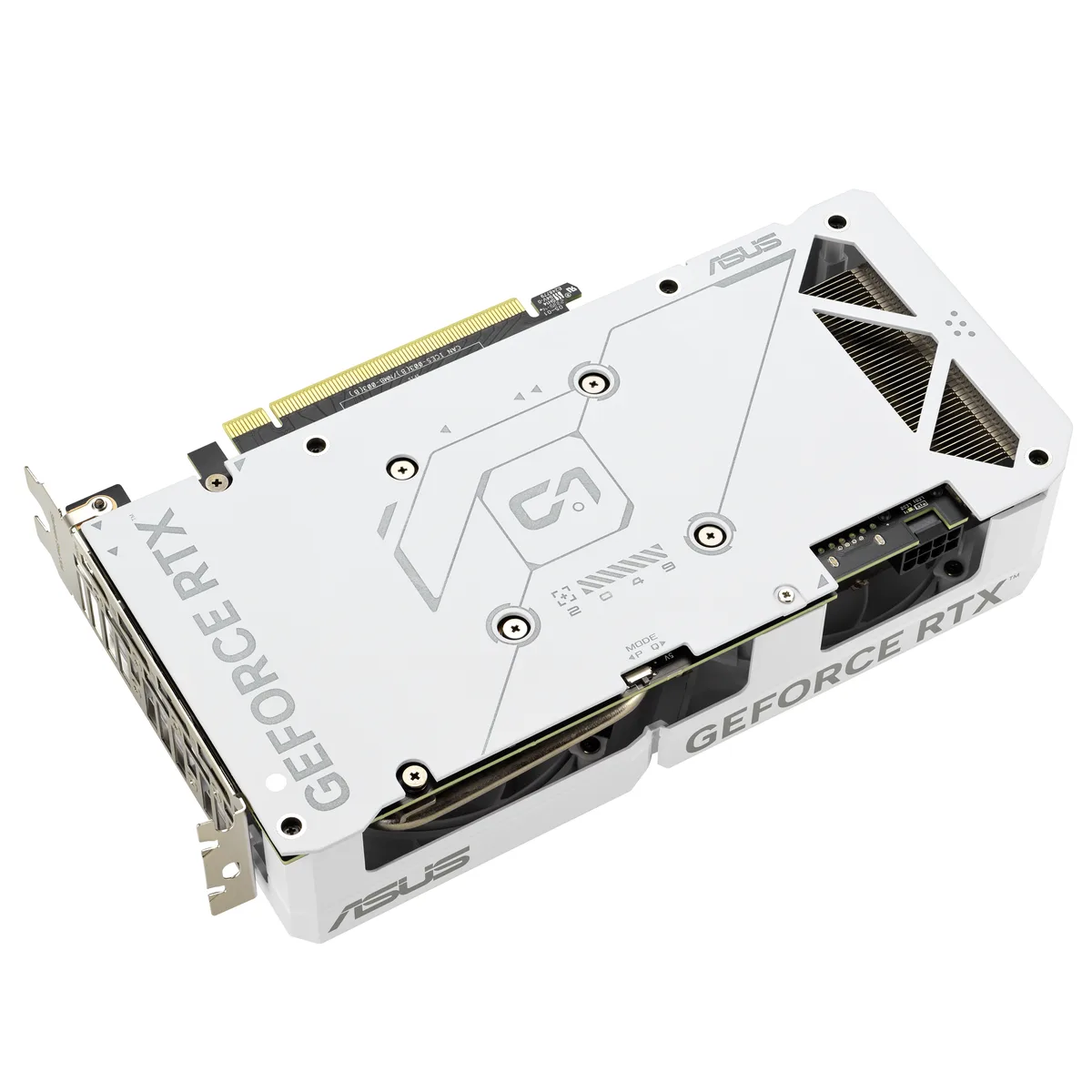

The cooler stops the fans at low load for silent operation. Dual ball bearings extend fan lifespan. A protective backplate stiffens the PCB. One HDMI 2.1a and three DisplayPort 1.4a outputs drive up to four displays at 7680 x 4320 resolution.
Highlights
- OC boost clock 2535 MHz for higher frame rates
- Axial-tech fans with dual ball bearings last twice as long as sleeve designs
- 0 dB mode keeps light gaming completely silent
- Protective backplate shields components during transport and install
- PCIe 4.0 x8 interface and 8 GB GDDR6 at 17000 MHz deliver fast data throughput
Specifications
| Brand | ASUS |
|---|---|
| Series | Dual |
| Model | DUAL-RTX4060-O8G-EVO-WHITE |
| Part Number | 90YV0JCB-M0AA00 |
| Interface | PCI Express 4.0 |
| Chipset Manufacturer | NVIDIA |
| GPU Series | NVIDIA GeForce RTX 40 Series |
| GPU | GeForce RTX 4060 |
| Architecture | Ada Lovelace |
| Core Clock | 2505 MHz |
| Boost Clock | 2535 MHz |
| CUDA Cores | 3072 |
| Effective Memory Clock | 17000 MHz |
| Memory Size | 8GB |
| Memory Interface | 128-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 4 |
| HDMI | 1 x HDMI 2.1a |
| DisplayPort | 3 x DisplayPort 1.4a |
| Color | White |
| Max Resolution | 7680 x 4320 |
| Cooler | Double Fans |
| Thermal Design Power | 115W |
| Recommended PSU Wattage | 550W |
| Power Connector | 8-Pin |
| HDCP Ready | Yes |
| Form Factor | ATX |
| Max GPU Length | 227 mm |
| Slot Width | 2.5 Slots |
| Shipping weight | 1.13 kg |
| Package size | 381 × 229 × 76 mm |
Questions about this item
Does the DUAL-RTX4060-O8G-EVO-WHITE include a power cable or do I need to supply my own 8-Pin connector?
The card ships with the protective backplate installed and uses a single 8-Pin power connector; a compatible cable from your power supply is required.
Should I pick the OC Mode at 2535 MHz or the Default Mode at 2505 MHz for the boost clock?
OC Mode raises the boost clock to 2535 MHz for higher frame rates, while Default Mode runs at 2505 MHz with slightly lower power draw; both use the same 115 W TDP.
How does the 128-Bit memory interface and 17000 MHz effective clock affect 1440p gaming?
The 128-Bit bus paired with 8 GB GDDR6 at 17000 MHz delivers enough bandwidth for high-refresh 1080p and entry-level 1440p gaming in modern titles.
