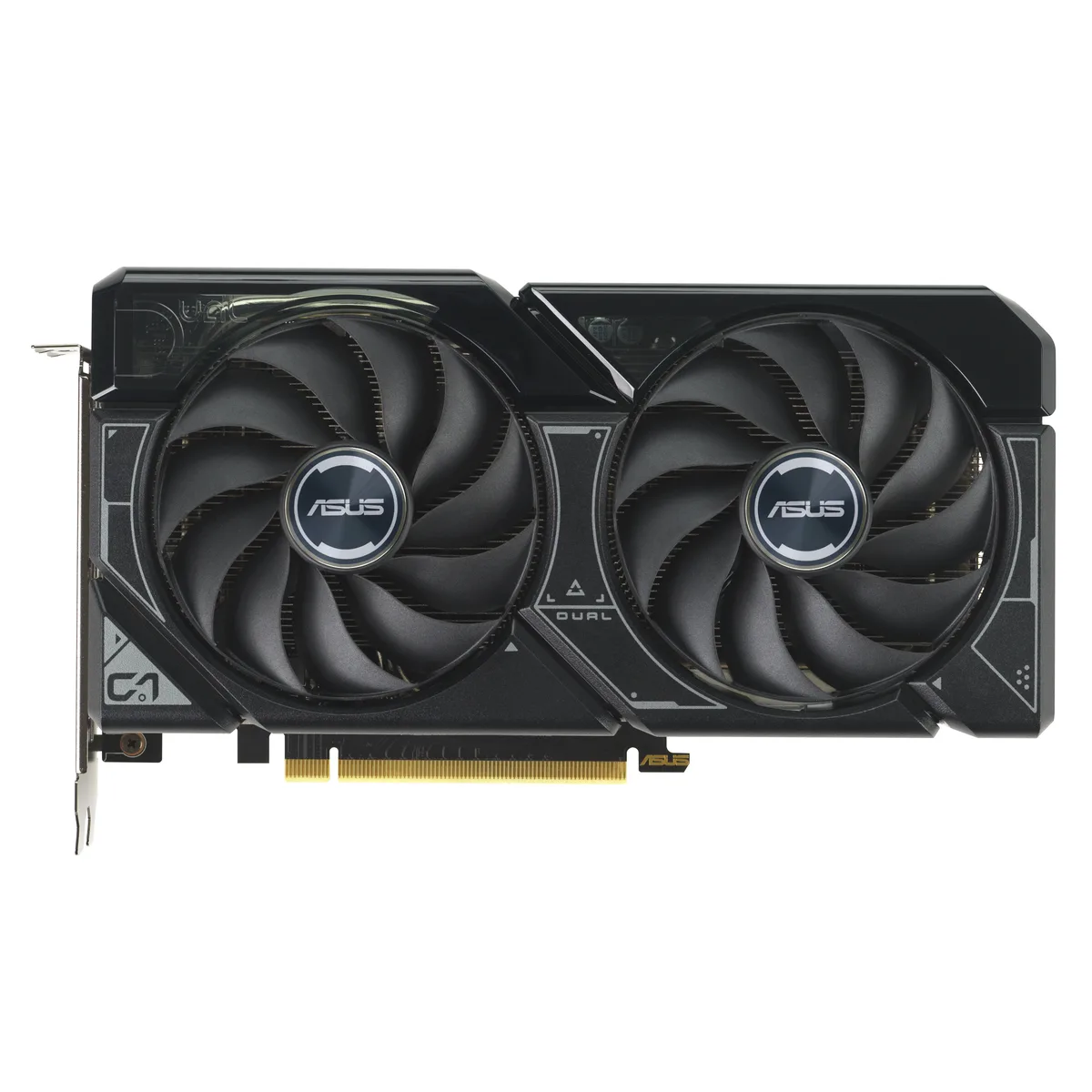

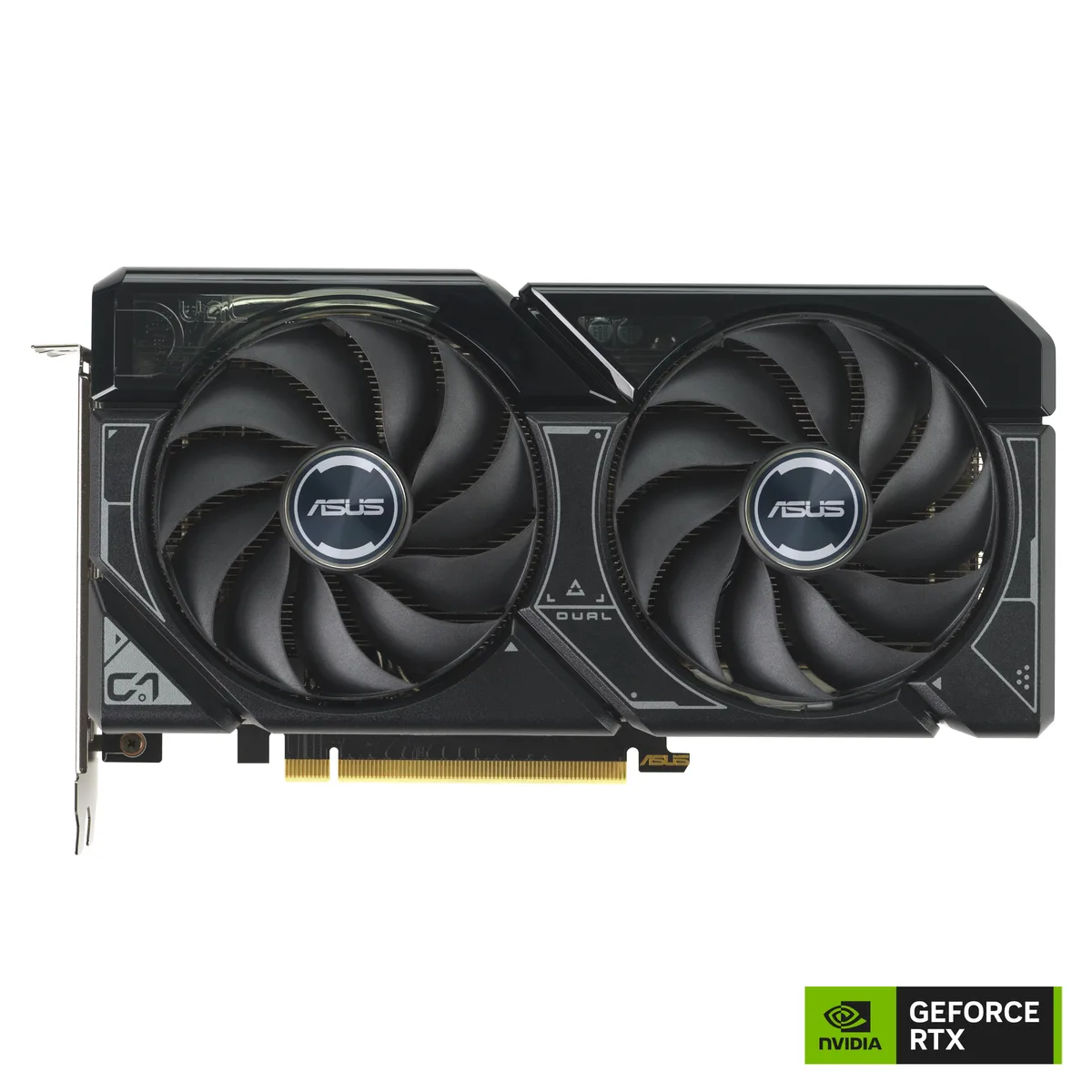

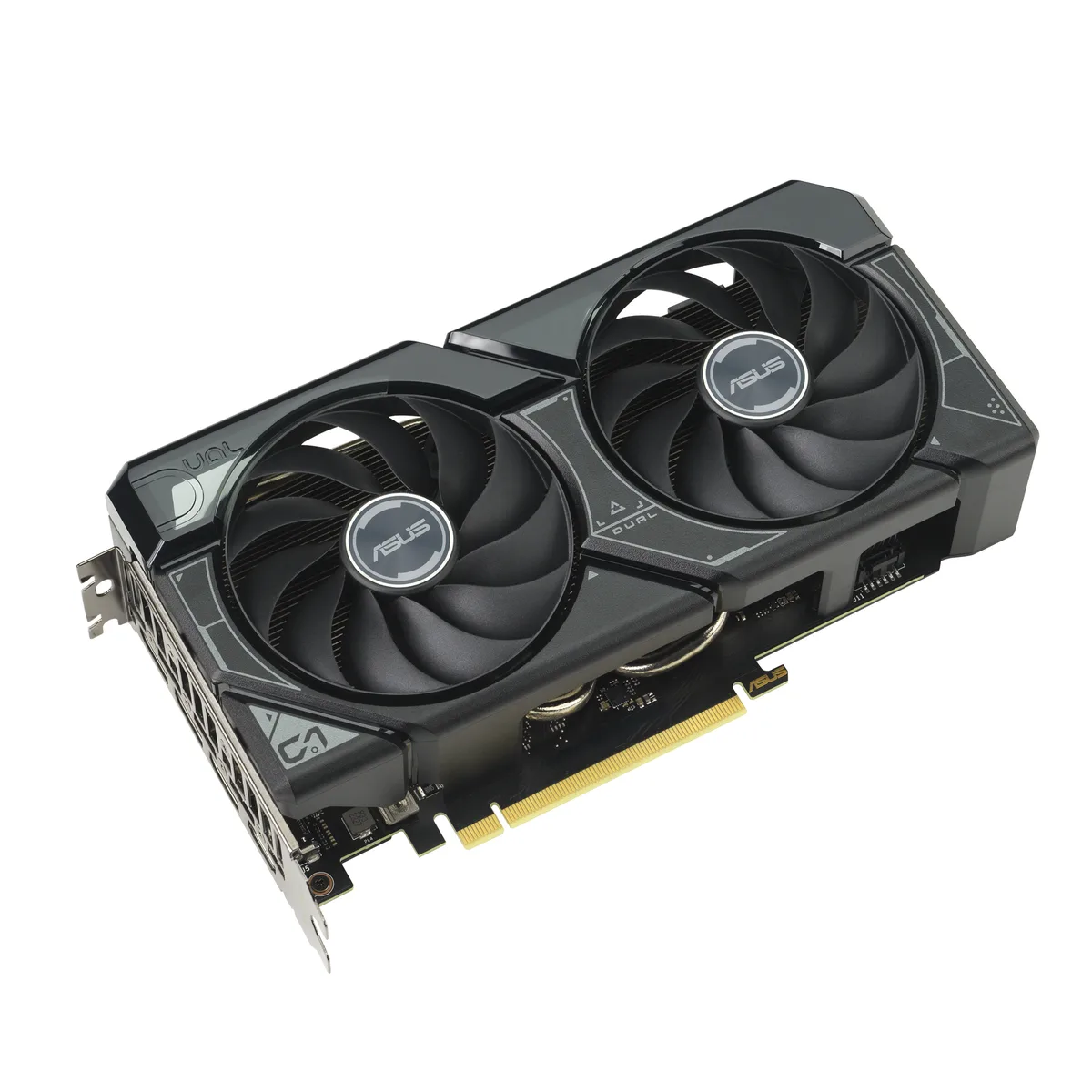

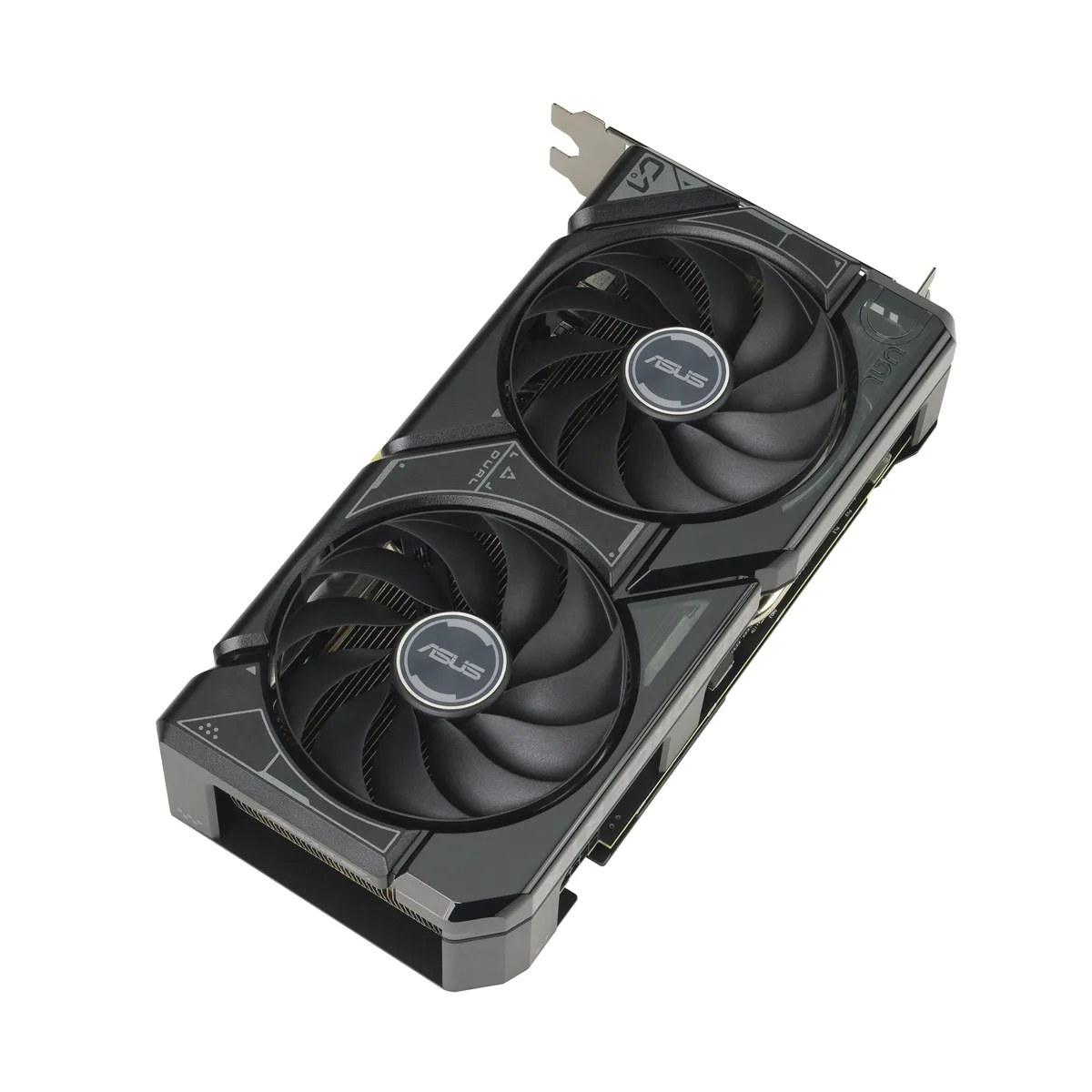

ASUS Dual GeForce RTX 4060 Ti graphics card with dual fans and M.2 slot

ASUS

ASUS DUAL-RTX4060TI-O8G-SSD graphics card

SKU CH-YZZP-3RH1A MPN DUAL-RTX4060TI-O8G-SSD

GeForce RTX 4060 Ti graphics card with 8GB GDDR6 memory and a built-in M.2 slot for NVMe storage

  • InterfacePCI Express 4.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 40 Series
  • GPUGeForce RTX 4060 Ti
  • CUDA Cores4352
  • Effective Memory Clock18000 MHz (18 Gbps)
  • Built-in M.2 slot delivers up to 12000 MB/s read speed for fast storage
  • OC mode boost clock reaches 2595 MHz for higher gaming performance
  • 4352 CUDA cores with 8GB GDDR6 memory handle modern titles at 1080p
  • Dual-fan cooler keeps the 160W GPU cool in compact 2.5-slot form factor
  • HDMI 2.1a and three DisplayPort 1.4a outputs drive four displays up to 7680 x 4320

Dual GPU with M.2 slot

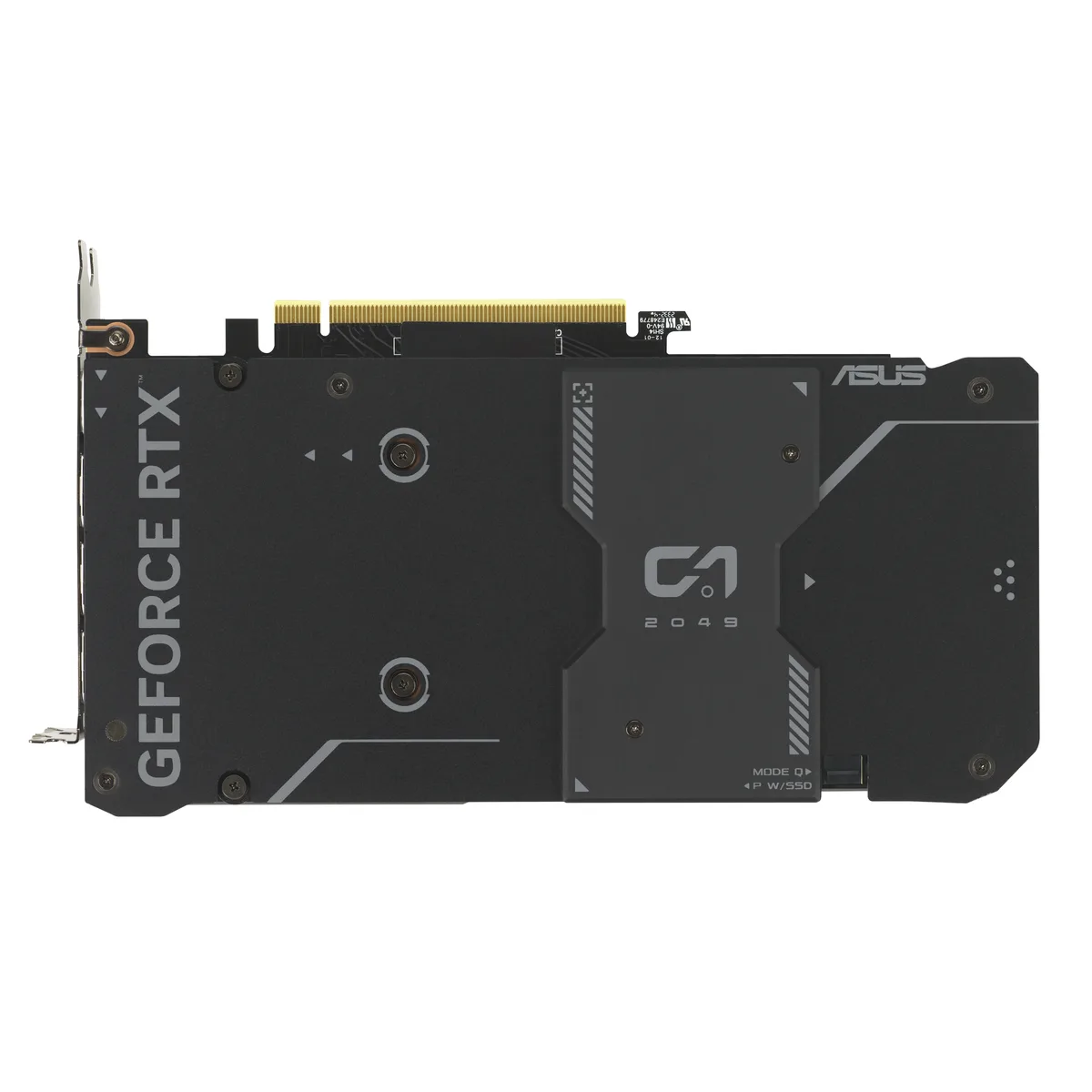

The ASUS Dual GeForce RTX 4060 Ti SSD OC Edition is a graphics card that integrates an M.2 NVMe slot directly on the PCB. It targets builders who want to add high-speed storage without using a motherboard slot. The card uses a PCI Express 4.0 x8 interface and fits a standard ATX form factor.

Upgrade from cards without onboard storage

This model replaces a standard GPU and a separate motherboard M.2 drive by combining both functions. The jump is worth it when your motherboard lacks a second PCIe 5.0-capable M.2 slot or when you prefer a cleaner internal layout. The onboard slot supports sequential reads up to 12,000 MB/s and writes up to 11,000 MB/s.

Suits compact builds needing fast storage

The card suits users building in ATX cases with 227 mm clearance and a 650 W power supply. It requires a 2.5-slot bracket and an 8-pin power connector. Builders with smaller cases, lower-wattage PSUs, or no need for extra NVMe storage should look at a standard dual-fan RTX 4060 Ti instead.

Highlights

  • Built-in M.2 slot delivers up to 12000 MB/s read speed for fast storage
  • OC mode boost clock reaches 2595 MHz for higher gaming performance
  • 4352 CUDA cores with 8GB GDDR6 memory handle modern titles at 1080p
  • Dual-fan cooler keeps the 160W GPU cool in compact 2.5-slot form factor
  • HDMI 2.1a and three DisplayPort 1.4a outputs drive four displays up to 7680 x 4320

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX4060TI-O8G-SSD
Part Number90YV0JS0-M0AA00
InterfacePCI Express 4.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 40 Series
GPUGeForce RTX 4060 Ti
CUDA Cores4352
Effective Memory Clock18000 MHz (18 Gbps)
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1a
DisplayPort3 x DisplayPort 1.4a
Max Resolution7680 x 4320
CoolerDouble Fans
Thermal Design Power160W
Recommended PSU Wattage650W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length227 mm
Slot Width2.5 Slots
Shipping weight1.07 kg
Package size356 × 229 × 70 mm

Questions about this item

Will the 227 mm length and 2.5 slot width fit my case and motherboard spacing?

The card measures 227 mm long and occupies 2.5 slots, so verify your case GPU clearance and that the motherboard has two adjacent free slots for the cooler.

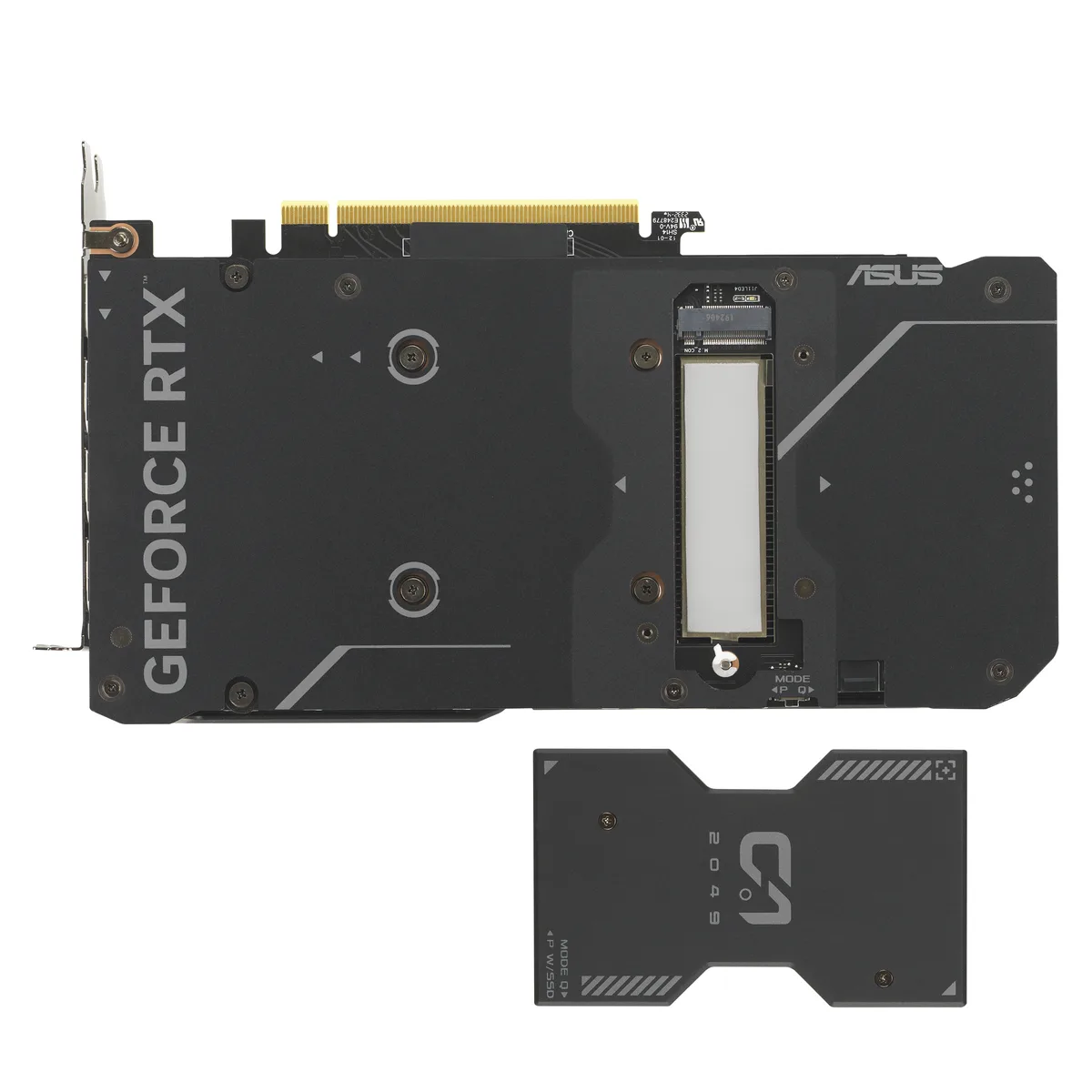

How do I install an M.2 drive using the Q-latch, and what step is often missed?

Open the Q-latch, insert the M.2 NVMe SSD at an angle, press down and close the latch — many forget to remove the protective film from the thermal pad before seating the drive.

When should the M.2 thermal pad be replaced to keep SSD temperatures in check?

Replace the pad if SSD throttling appears or after a GPU re-paste, because the pad compresses and loses conductivity over time.
