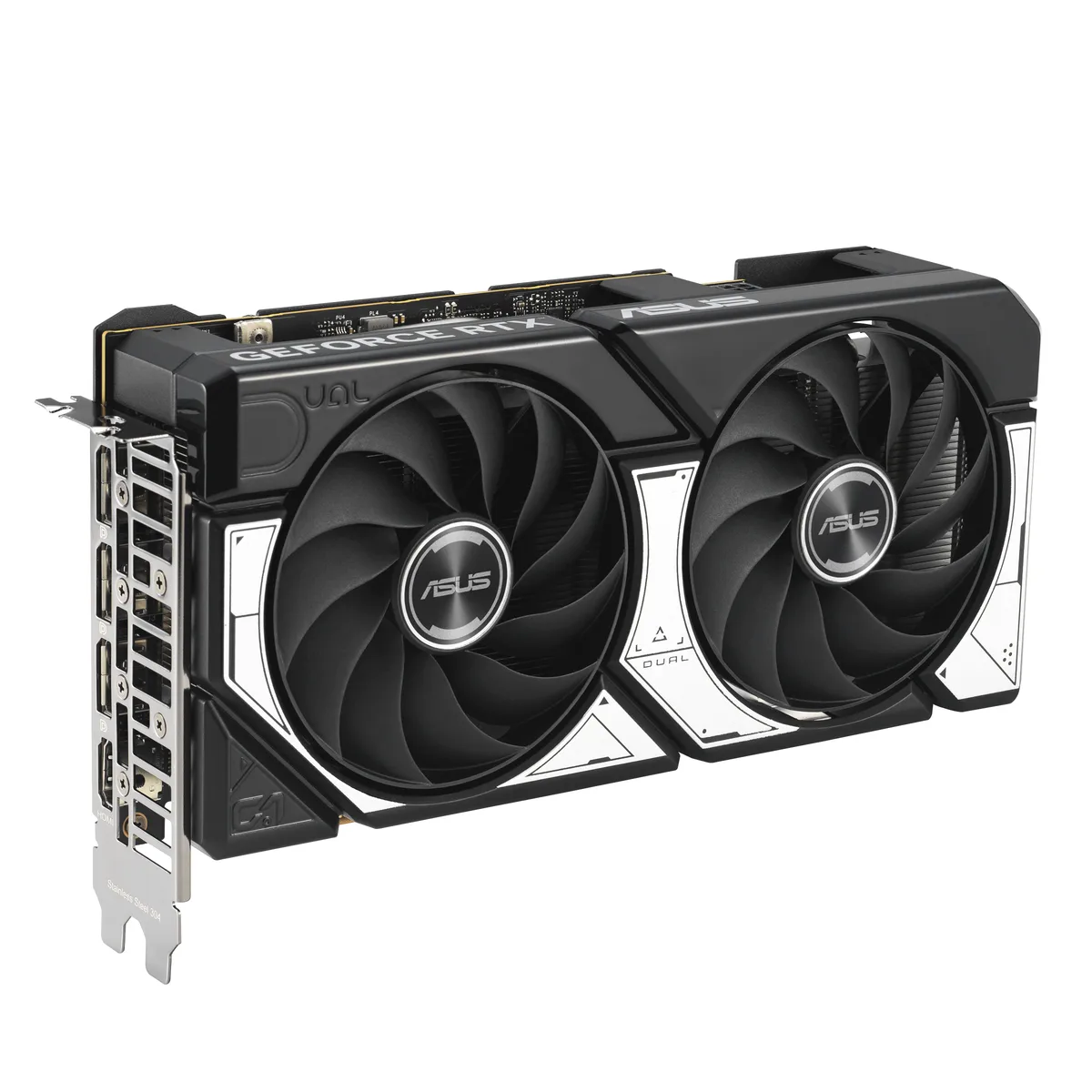

ASUS Dual GeForce RTX 5060 graphics card with two axial-tech fans and a metal backplate

ASUS

ASUS DUAL-RTX5060-O8G GeForce RTX 5060 8GB GDDR7 graphics card

SKU CH-SNPA-1R6E8 MPN DUAL-RTX5060-O8G

GeForce RTX 5060 graphics card with 8GB GDDR7 memory, 3840 CUDA cores and dual Axial-tech fans

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060
  • ArchitectureBlackwell
  • Boost ClockOC mode: 2565MHz Default mode: 2535MHz (Boost Clock)

Edition DUAL OC

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
  • 3840 CUDA cores on Blackwell architecture accelerate ray-tracing and AI workloads
  • Boost clock reaches 2565 MHz in OC mode for responsive frame rates
  • PCI Express 5.0 x8 interface provides fast data throughput to the CPU
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four displays

8GB GDDR7 graphics card

The ASUS DUAL-RTX5060-O8G is an 8GB GDDR7 graphics card built on the NVIDIA GeForce RTX 5060 GPU with 3840 CUDA cores. It uses a 128-bit memory interface running at 28 Gbps and connects via PCI Express 5.0 x8. The card targets 1440p gaming and content creation workloads that benefit from Blackwell architecture features such as DirectX 12 Ultimate and OpenGL 4.6 support.

Dual-slot installation and clearance

The dual-slot design fits most ATX cases and installs in a standard PCI Express 5.0 x8 slot with a single 12-pin power connector. Two Axial-tech fans pull air through a compact heatsink, so cable routing near the rear bracket must stay clear of the exhaust path. The 1 x HDMI 2.1b and 3 x DisplayPort 2.1b outputs require firm seating to avoid signal dropouts on high-refresh panels.

Sustained load thermal behaviour

Under sustained load the boost clock settles at 2535 MHz in default mode and 2565 MHz in OC mode while the dual fans ramp to maintain GPU temperature. The 128-bit GDDR7 memory subsystem delivers consistent 28 Gbps throughput without throttling during extended render or compute sessions. Four-display multi-monitor setups remain stable because the Blackwell display engine handles prolonged output without memory controller stress.

Highlights

  • 8GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
  • 3840 CUDA cores on Blackwell architecture accelerate ray-tracing and AI workloads
  • Boost clock reaches 2565 MHz in OC mode for responsive frame rates
  • PCI Express 5.0 x8 interface provides fast data throughput to the CPU
  • One HDMI 2.1b and three DisplayPort 2.1b outputs drive up to four displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX5060-O8G
Part Number90YV0N12-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060
ArchitectureBlackwell
Boost ClockOC mode: 2565MHz
Default mode: 2535MHz (Boost Clock)
CUDA Cores3840
Effective Memory Clock28 Gbps
Memory Size8GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length228 mm
Card Dimensions (L x H)228 x 123 x 50 mm
8.98 x 4.84 x 1.97 inches
Slot Width2.5 Slots
Package Contents1 x Speedsetup Manual
1 x Thank You Card
Shipping weight1.09 kg
Package size368 × 229 × 76 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How can I confirm the card is running at the 2565 MHz OC boost clock after installation?

Use GPU monitoring software to check the real-time clock speed under load; it should read 2565 MHz when the OC mode profile is active in the vendor utility.

What cables or adapters are included in the box for the HDMI 2.1b and three DisplayPort 2.1b outputs?

The card ships with only the graphics board and documentation; display cables for the HDMI 2.1b and three DisplayPort 2.1b ports must be purchased separately.

Which version should I choose if I need the 2565 MHz boost clock and 8 GB of GDDR7 on a 128-bit bus?

This single model DUAL-RTX5060-O8G provides the 2565 MHz OC boost, 8 GB GDDR7 memory and 128-bit interface; no other capacity or clock variant exists in this lineup.
