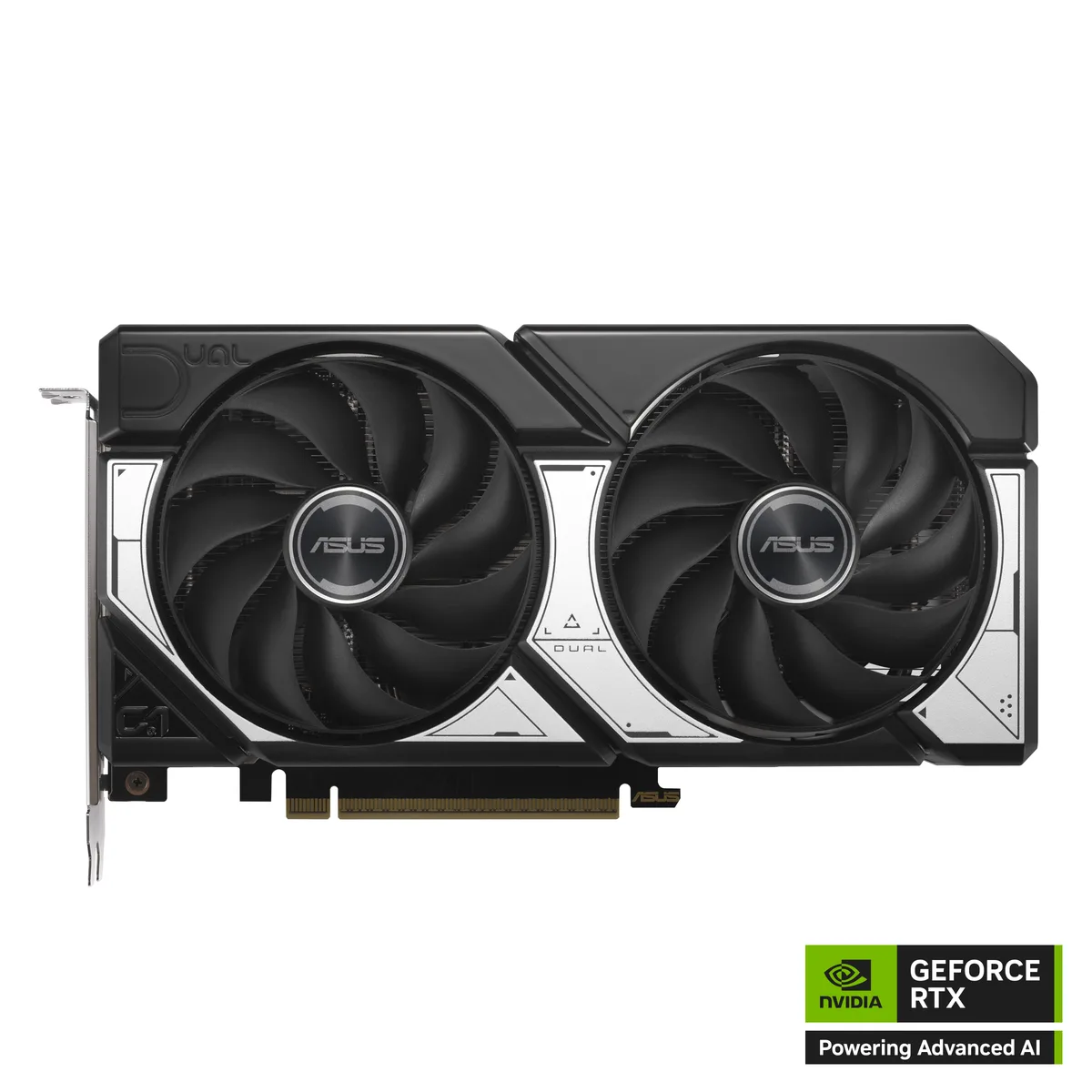

Black dual-fan graphics card with 2.5-slot cooler and metal backplate

ASUS

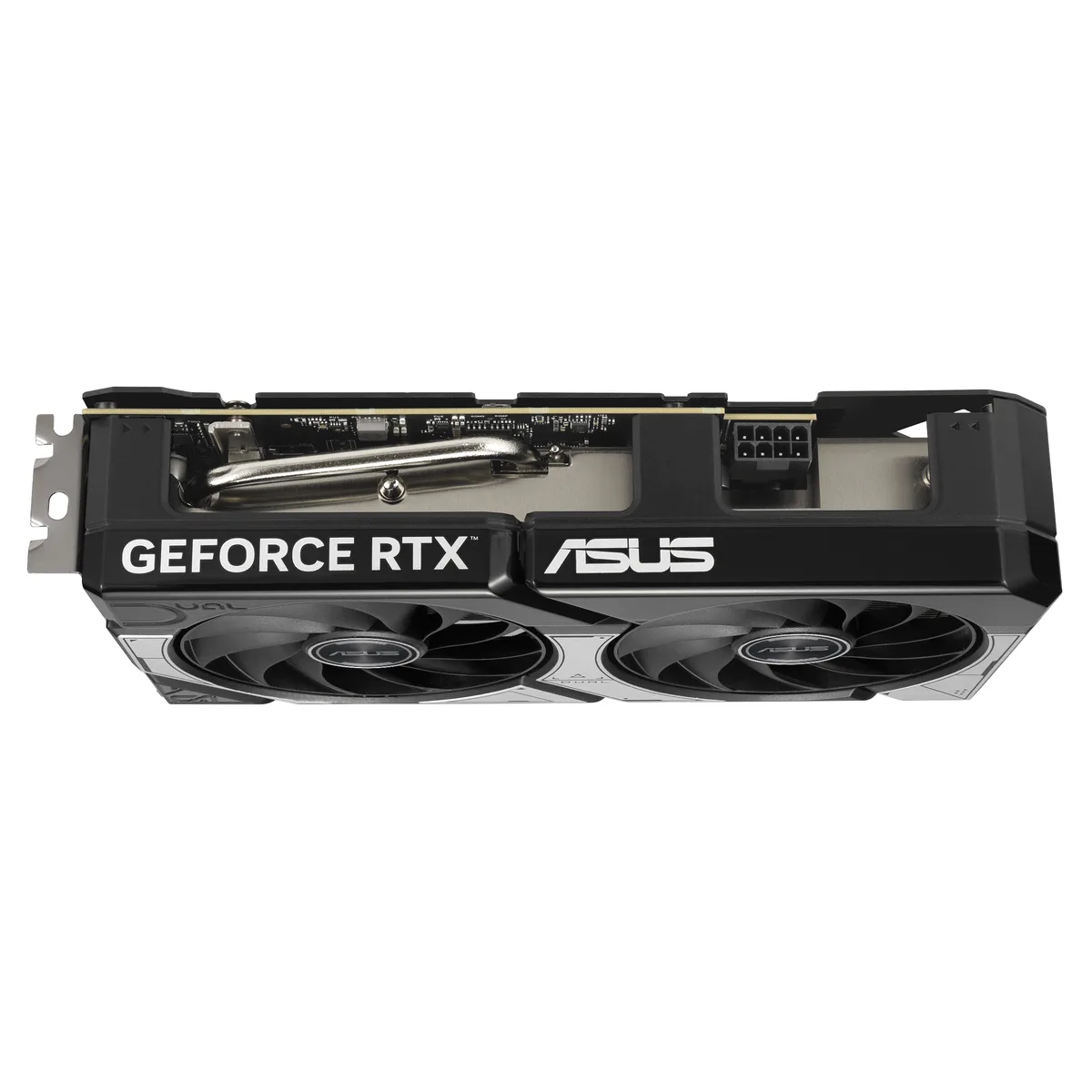

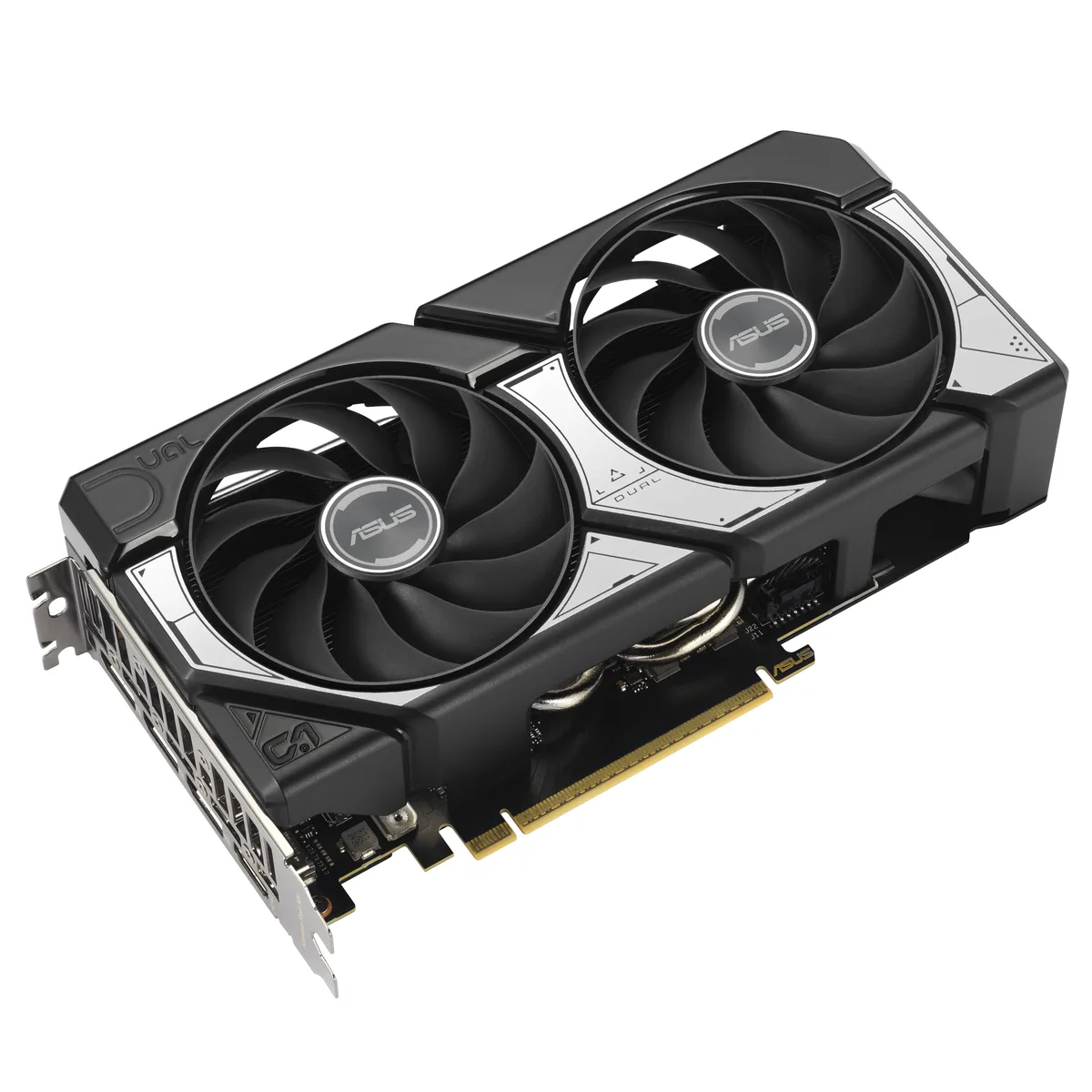

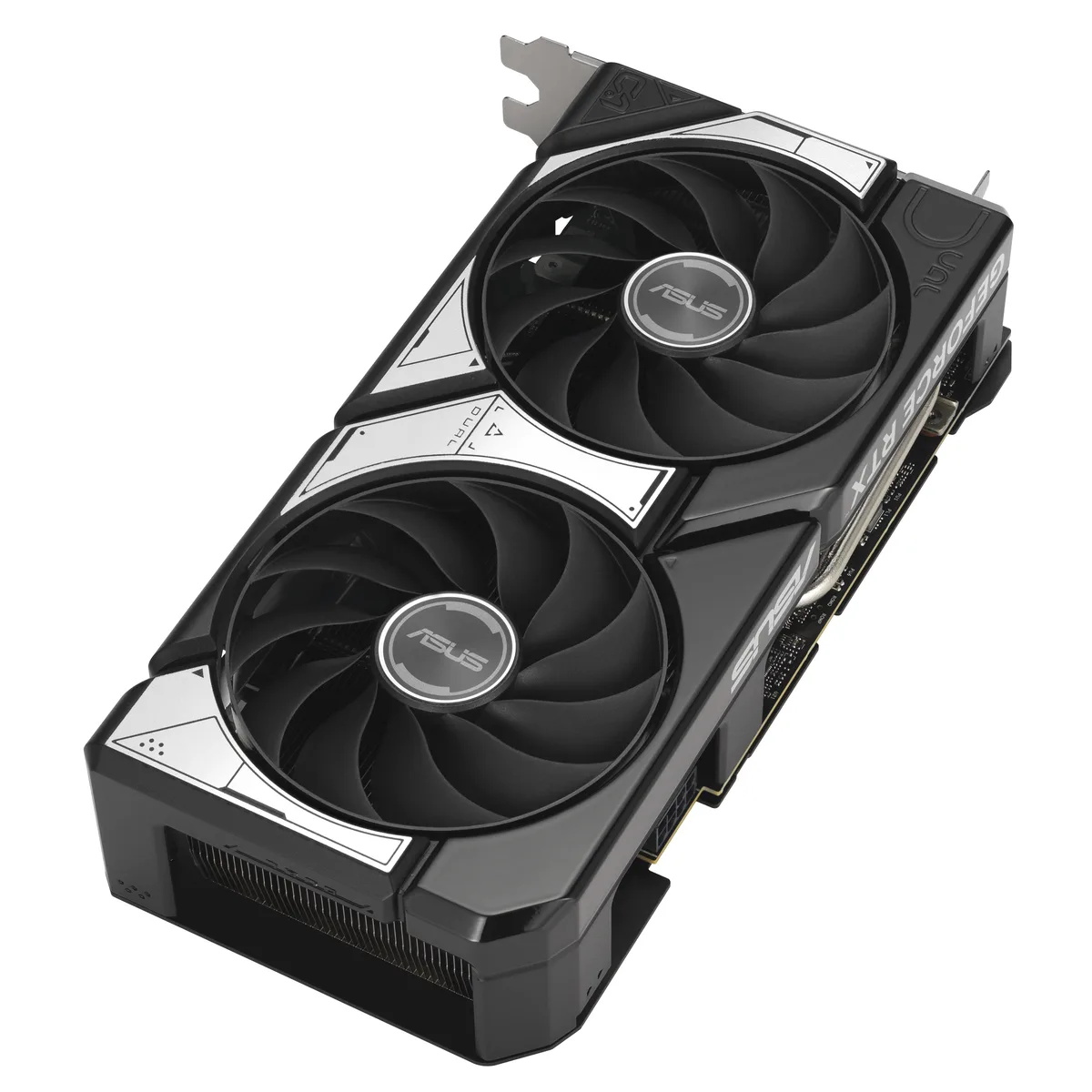

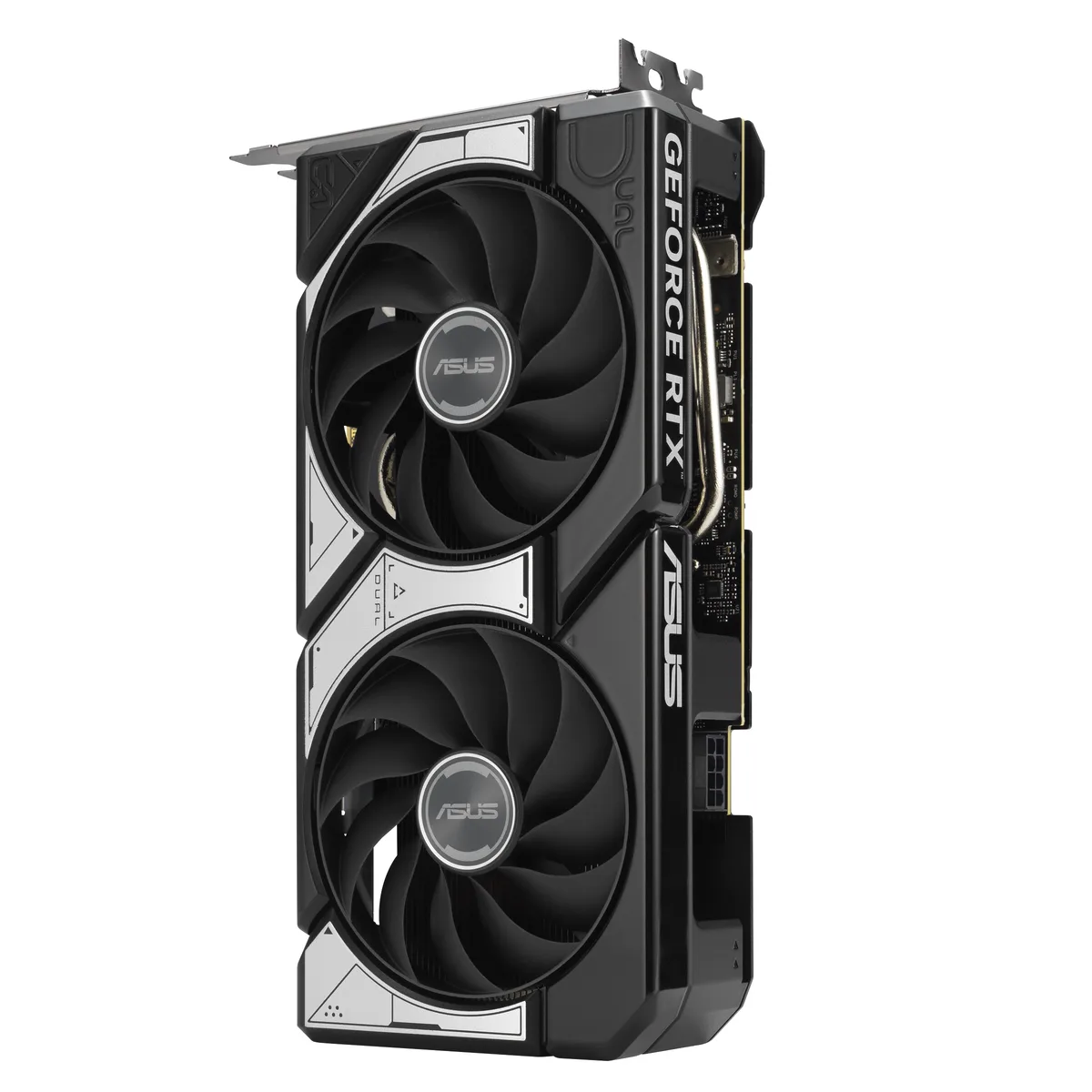

ASUS DUAL-RTX5060TI-O16G GeForce RTX 5060 Ti 16GB GDDR7 graphics card

SKU CH-DPK1-55BTF MPN DUAL-RTX5060TI-O16G

Refurbished 16GB GDDR7 GPU with 4608 CUDA cores, 28 Gbps memory, PCIe 5.0 x8 and DLSS 4.0

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608
  • 16 GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
  • 4608 CUDA cores provide parallel compute power for gaming and creative workloads
  • PCI Express 5.0 x8 interface enables fast data transfer to the platform
  • DLSS 4.0 upscaling boosts frame rates while preserving image quality
  • Triple DisplayPort 2.1b and HDMI 2.1b outputs drive up to four 8K displays

Ready for 16 GB GDDR7 workloads

The ASUS Dual GeForce RTX 5060 Ti packs 16 GB of GDDR7 memory on a 128-bit bus running at 28 Gbps. The Blackwell GPU brings 4608 CUDA cores and 767 AI TOPS for creative and gaming tasks. A 2.5-slot cooler with dual axial-tech fans keeps thermals in check.

Verify PCIe x8 slot and 550 W PSU

Your motherboard must provide a PCI Express 5.0 x8 connection for full bandwidth. The card draws power through a single 8-pin connector, so confirm the power supply delivers at least 550 W with the required cable. Physical length suits SFF-Ready Enthusiast cases.

Dual-slot cooler fits tight builds

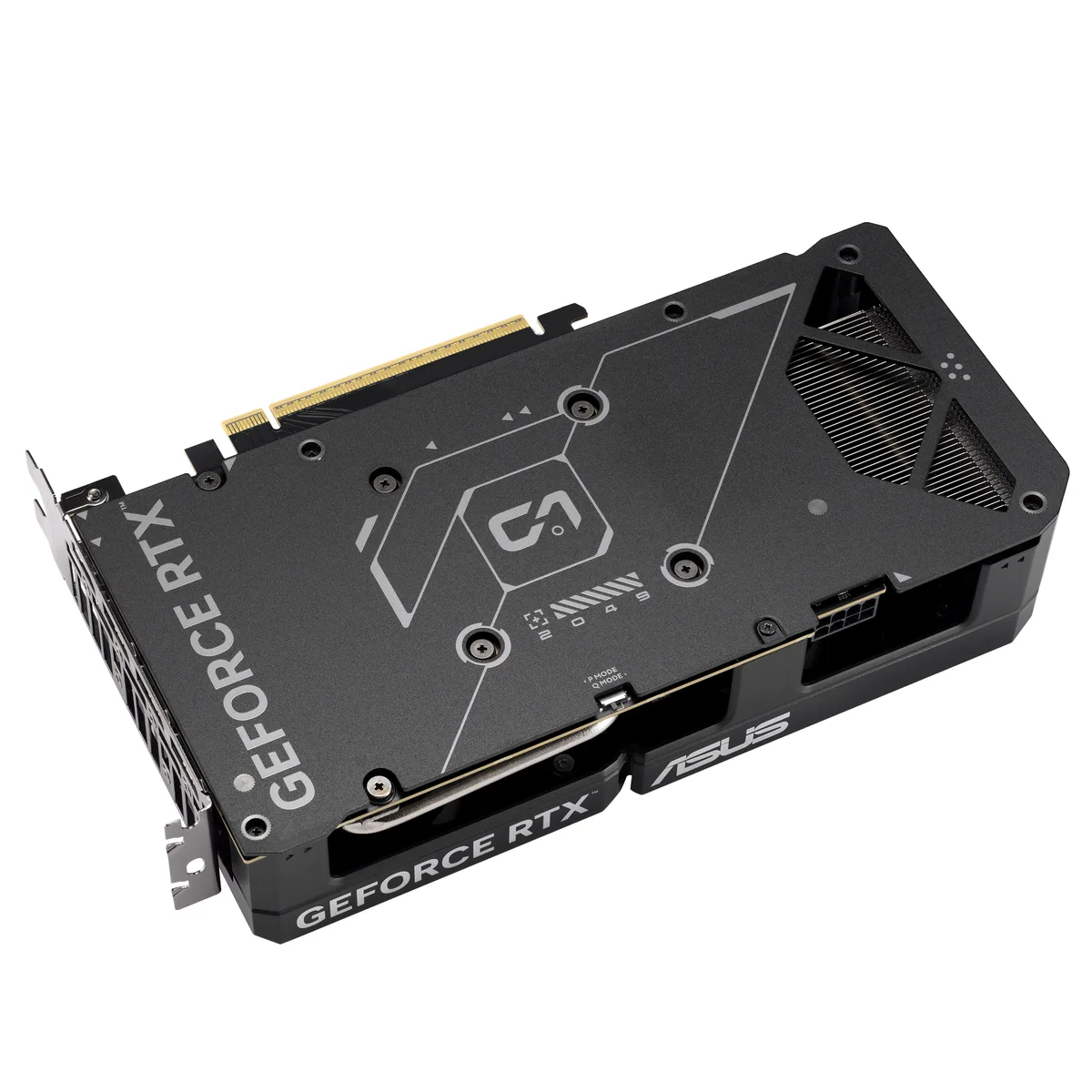

The 2.5-slot design leaves room for adjacent expansion cards in compact chassis. Outputs include one HDMI 2.1b and three DisplayPort 2.1b connectors, driving up to four displays at 7680 x 4320 resolution. A metal backplate adds rigidity and protects the PCB.

Highlights

  • 16 GB GDDR7 memory delivers 28 Gbps bandwidth for high-resolution textures
  • 4608 CUDA cores provide parallel compute power for gaming and creative workloads
  • PCI Express 5.0 x8 interface enables fast data transfer to the platform
  • DLSS 4.0 upscaling boosts frame rates while preserving image quality
  • Triple DisplayPort 2.1b and HDMI 2.1b outputs drive up to four 8K displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX5060TI-O16G
Part Number90YV0MH0-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Features• AI Performance: 767 AI TOPS
• OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS lets you toggle between Quiet and Performance BIOS profiles
• Dual ball fan bearings la
Form FactorATX
Max GPU Length229 mm
Card Dimensions (L x H)229 x 120 x 50 mm
9.02 x 4.72 x 1.97 inch
Slot Width2.5 Slots
Shipping weight1.13 kg
Package size368 × 222 × 71 mm

Questions about this item

What comes in the box with the ASUS DUAL-RTX5060TI-O16G and what must I buy separately?

The card includes an 8-pin power connector for the 550W recommended PSU, HDMI 2.1b and three DisplayPort 2.1b outputs for up to four monitors, and a dual-fan 2.5-slot cooler. You must supply a PCIe 5.0 x8 slot, a PSU of at least 550W, and any display cables not already owned.

Should I choose the 16GB GDDR7 version or a different capacity for 1440p gaming with DLSS 4?

This model only exists as a 16GB 128-bit GDDR7 card with 4608 CUDA cores and 28 Gbps memory clock. The 16GB frame buffer and 767 AI TOPS give headroom for 1440p DLSS 4 titles, while the 128-bit bus and Blackwell architecture keep bandwidth balanced for that resolution.

What does the 2632 MHz OC clock mean for frame rates once the card is installed in my PC?

In OC mode the GPU runs at 2632 MHz versus 2602 MHz default, lifting compute throughput for the 4608 CUDA cores. Combined with 16GB GDDR7 at 28 Gbps and DLSS 4 frame generation, this translates to higher sustained 1440p frame rates in supported titles, provided your CPU and 550W PSU can keep pace.
