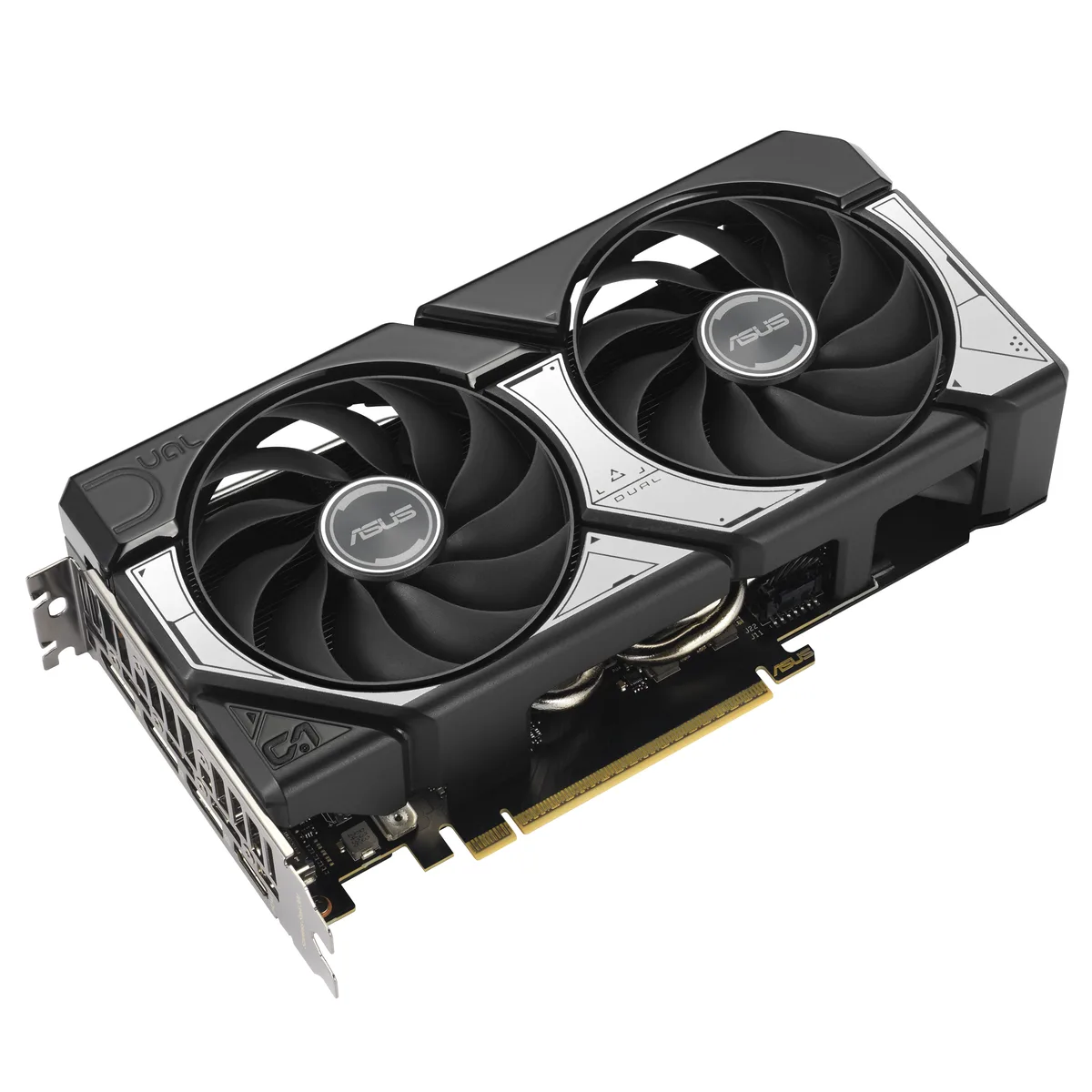

Black dual-fan graphics card with silver accents and a metal backplate

ASUS

ASUS DUAL-RTX5060TI-O16G GeForce RTX 5060 Ti 16GB graphics card

SKU CH-PE5Z-9NP9H MPN DUAL-RTX5060TI-O16G

16GB GDDR7 GPU with 4608 CUDA cores, PCIe 5.0 x8, HDMI 2.1b and three DisplayPort 2.1b outputs

  • InterfacePCI Express 5.0 x8
  • Chipset ManufacturerNVIDIA
  • GPU SeriesNVIDIA GeForce RTX 50 Series
  • GPUGeForce RTX 5060 Ti
  • ArchitectureBlackwell
  • CUDA Cores4608

Option RTX 5060 Ti 16GB

  • RTX 5060 Ti 16GB
  • RTX 5060 Ti 8GB

Struck-through versions exist but are not stocked here.

Edition DUAL OC

  • DUAL OC
  • PRIME
  • PRIME OC
  • TUF OC

Struck-through versions exist but are not stocked here.

  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 4608 CUDA cores on Blackwell architecture deliver strong compute throughput
  • DLSS 4.0 with 767 AI TOPS accelerates frame generation and image quality
  • PCIe 5.0 x8 interface provides high bandwidth for modern platforms
  • Four display outputs — one HDMI 2.1b and three DisplayPort 2.1b — drive multi-monitor setups

16GB GDDR7 graphics card

The ASUS Dual GeForce RTX 5060 Ti carries 16GB of GDDR7 memory on a 128-bit bus clocked at 28 Gbps. It connects through a PCI Express 5.0 x8 interface and is built on the Blackwell architecture with 4608 CUDA cores. The card targets 1440p gaming and content creation workloads that benefit from the larger frame buffer.

Sustained load behaviour

A dual axial-tech fan cooler with a smaller hub and barrier ring moves air through the heatsink during extended sessions. The board draws power from a single 8-pin connector and the manufacturer recommends a 550W supply. Boost clocks reach 2632 MHz in OC mode and 2602 MHz in default mode while the GPU delivers 767 AI TOPS for DLSS 4 upscaling tasks.

Installation and common issues

The card occupies two slots and fits SFF-Ready Enthusiast cases, so clearance is rarely a problem in compact builds. Only one 8-pin power cable is required, simplifying cable routing. Builders should verify that their power supply includes the native connector rather than relying on adapters, and confirm the motherboard provides a PCIe 5.0 x8 or x16 slot for full bandwidth.

Highlights

  • 16 GB GDDR7 memory at 28 Gbps feeds high-resolution textures fast
  • 4608 CUDA cores on Blackwell architecture deliver strong compute throughput
  • DLSS 4.0 with 767 AI TOPS accelerates frame generation and image quality
  • PCIe 5.0 x8 interface provides high bandwidth for modern platforms
  • Four display outputs — one HDMI 2.1b and three DisplayPort 2.1b — drive multi-monitor setups

Specifications

BrandASUS
SeriesDual
ModelDUAL-RTX5060TI-O16G
Part Number90YV0MH0-M0AA00
InterfacePCI Express 5.0 x8
Chipset ManufacturerNVIDIA
GPU SeriesNVIDIA GeForce RTX 50 Series
GPUGeForce RTX 5060 Ti
ArchitectureBlackwell
CUDA Cores4608
Effective Memory Clock28 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR7
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support4
HDMI1 x HDMI 2.1b
DisplayPort3 x DisplayPort 2.1b
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Features• AI Performance: 767 AI TOPS
• OC mode: 2632 MHz (OC mode)/ 2602 MHz (Default mode)
• Powered by the NVIDIA Blackwell architecture and DLSS 4
• SFF-Ready Enthusiast GeForce Card
• Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
• A 2.5-slot design maximizes compatibility and cooling efficiency for superior performance in small chassis
• 0dB technology lets you enjoy light gaming in relative silence
• Dual BIOS lets you toggle between Quiet and Performance BIOS profiles
• Dual ball fan bearings la
Form FactorATX
Max GPU Length229 mm
Card Dimensions (L x H)229 x 120 x 50 mm
9.02 x 4.72 x 1.97 inch
Slot Width2.5 Slots
Shipping weight1.13 kg
Package size368 × 222 × 71 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the ASUS Dual RTX 5060 Ti get when running all day?

The card uses a dual-fan axial-tech cooler with a smaller hub and longer blades plus a barrier ring to move air through a compact shroud; ASUS recommends a 550 W power supply and the board draws power through a single 8-pin connector.

What else must I already own for this Dual RTX 5060 Ti to work?

You need a motherboard with a free PCI Express 5.0 x8 slot, a power supply of at least 550 W with one spare 8-pin PCIe power cable, and a case with enough length and height clearance for a dual-slot, dual-fan graphics card.

Will this RTX 5060 Ti run alongside my older PCIe 3.0 or 4.0 motherboard?

Yes, the PCI Express 5.0 x8 interface is backward compatible with PCIe 4.0 and 3.0 slots, so the card will function on older motherboards at the slot's maximum speed.
