Dual-fan graphics card with dark grey shroud and silver backplate

ASUS

ASUS DUAL-RX5600XT-T6G-EV Radeon RX 5600 XT graphics card

SKU CH-6JYM-WWE5D MPN DUAL-RX5600XT-T6G-EV

Refurbished Radeon RX 5600 XT with 6 GB GDDR6, 192-bit bus, 2304 stream processors, boost up to 1770 MHz, HDMI 2.0b and three DisplayPort 1.4 outputs, PCIe 4.0 interface

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 5600 Series
  • GPURadeon RX 5600 XT
  • Boost ClockOC Mode up to 1770 MHz Gaming Mode up to 1750 MHz
  • Stream Processors2304
  • 6 GB GDDR6 memory at 14 Gbps for smooth 1440p gaming
  • Boost clock up to 1770 MHz in OC mode for extra performance
  • Four display outputs — HDMI 2.0b and three DisplayPort 1.4 — drive up to four monitors
  • PCI Express 4.0 interface doubles bandwidth over 3.0 for faster data transfer
  • Axial-tech dual fans with 0 dB mode keep temperatures low and noise minimal

Dual Radeon RX 5600 XT 6 GB for 1080p gaming

This ASUS Dual card delivers 6 GB of GDDR6 memory on a 192-bit bus and 2304 stream processors. It targets 1080p gaming at high refresh rates and supports up to four displays via HDMI 2.0b and three DisplayPort 1.4 outputs. The PCI Express 4.0 interface fits modern platforms.

Upgrade from older 1080p cards when 6 GB VRAM

The jump is worthwhile when moving from 4 GB or 3 GB models that hit memory limits in current titles. Extra frame buffer and 14 Gbps effective memory clock reduce stutter at high texture settings. A 450 W PSU with an 8-pin connector is the stated requirement.

Straightforward two-slot installation

The dual-fan cooler uses a smaller hub and barrier ring to increase downward airflow. 0dB technology stops the fans under light loads for quieter operation. Ensure the case has clearance for a two-slot design and that the single 8-pin power cable reaches without strain.

Highlights

  • 6 GB GDDR6 memory at 14 Gbps for smooth 1440p gaming
  • Boost clock up to 1770 MHz in OC mode for extra performance
  • Four display outputs — HDMI 2.0b and three DisplayPort 1.4 — drive up to four monitors
  • PCI Express 4.0 interface doubles bandwidth over 3.0 for faster data transfer
  • Axial-tech dual fans with 0 dB mode keep temperatures low and noise minimal

Specifications

BrandASUS
SeriesDual
ModelDUAL-RX5600XT-T6G-EVO
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 5600 Series
GPURadeon RX 5600 XT
Boost ClockOC Mode up to 1770 MHz
Gaming Mode up to 1750 MHz
Stream Processors2304
Effective Memory Clock14 Gbps
Memory Size6GB
Memory Interface192-Bit
Memory TypeGDDR6
OpenGLOpenGL 4.6
Multi-Monitor Support4

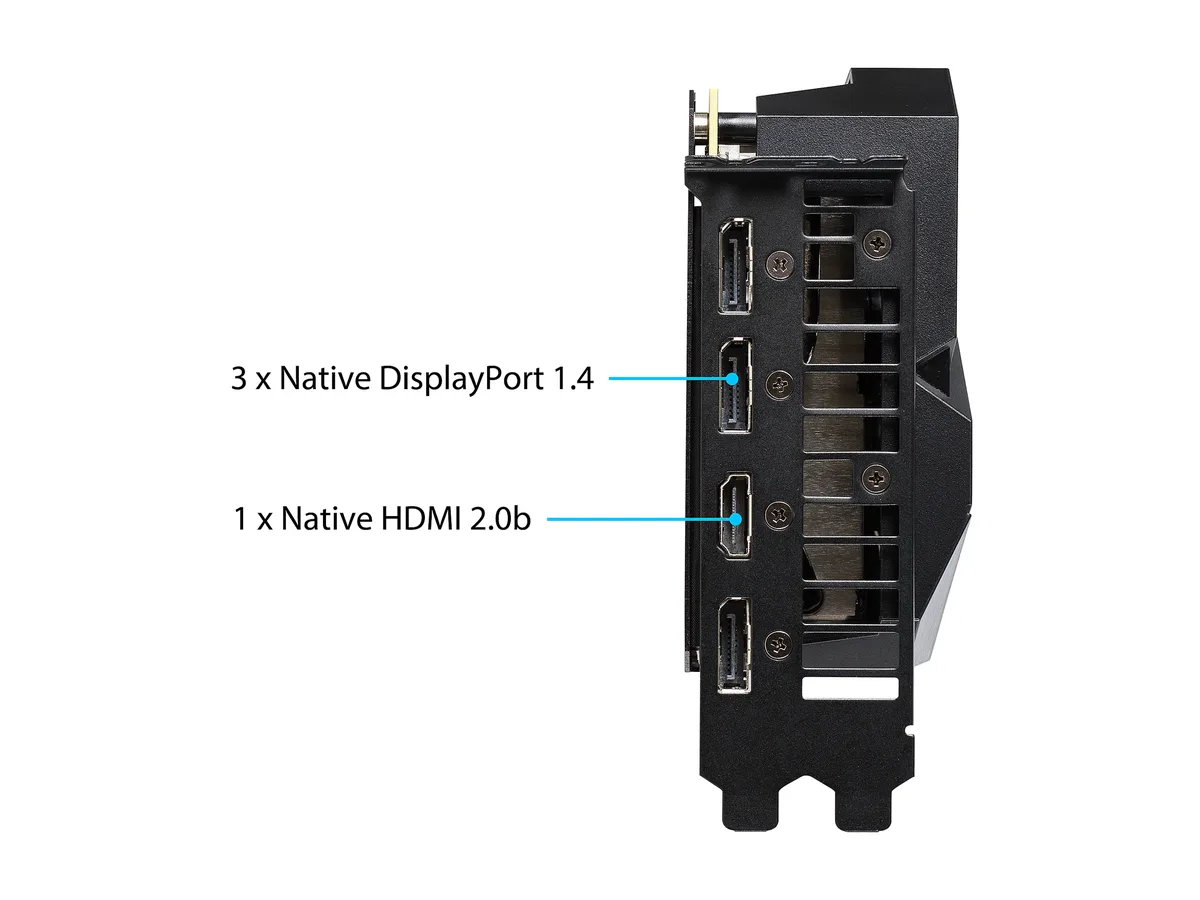

HDMI1 x HDMI 2.0b
DisplayPort3 x DisplayPort 1.4
Max Resolution7680 x 4320
CrossFireX SupportYes
Virtual Reality ReadyYes
CoolerDouble Fans
Thermal Design Power160W
System RequirementsRecommended PSU: 450W
Recommended PSU Wattage450W
Power Connector8-Pin
HDCP Ready2.3
FeaturesTOP Edition: Boost Clock up to 1770 MHz (OC Mode) / up to 1750 MHz (Gaming Mode).

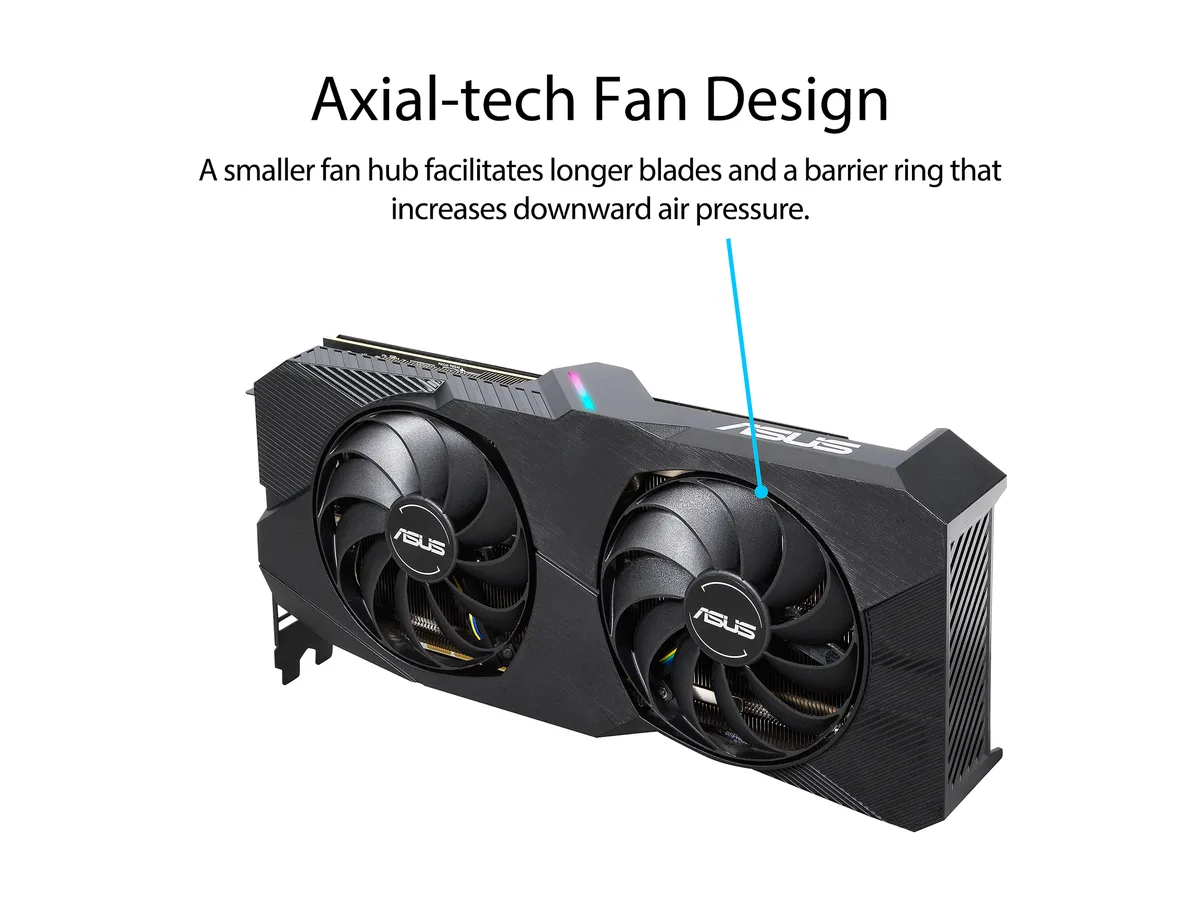

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

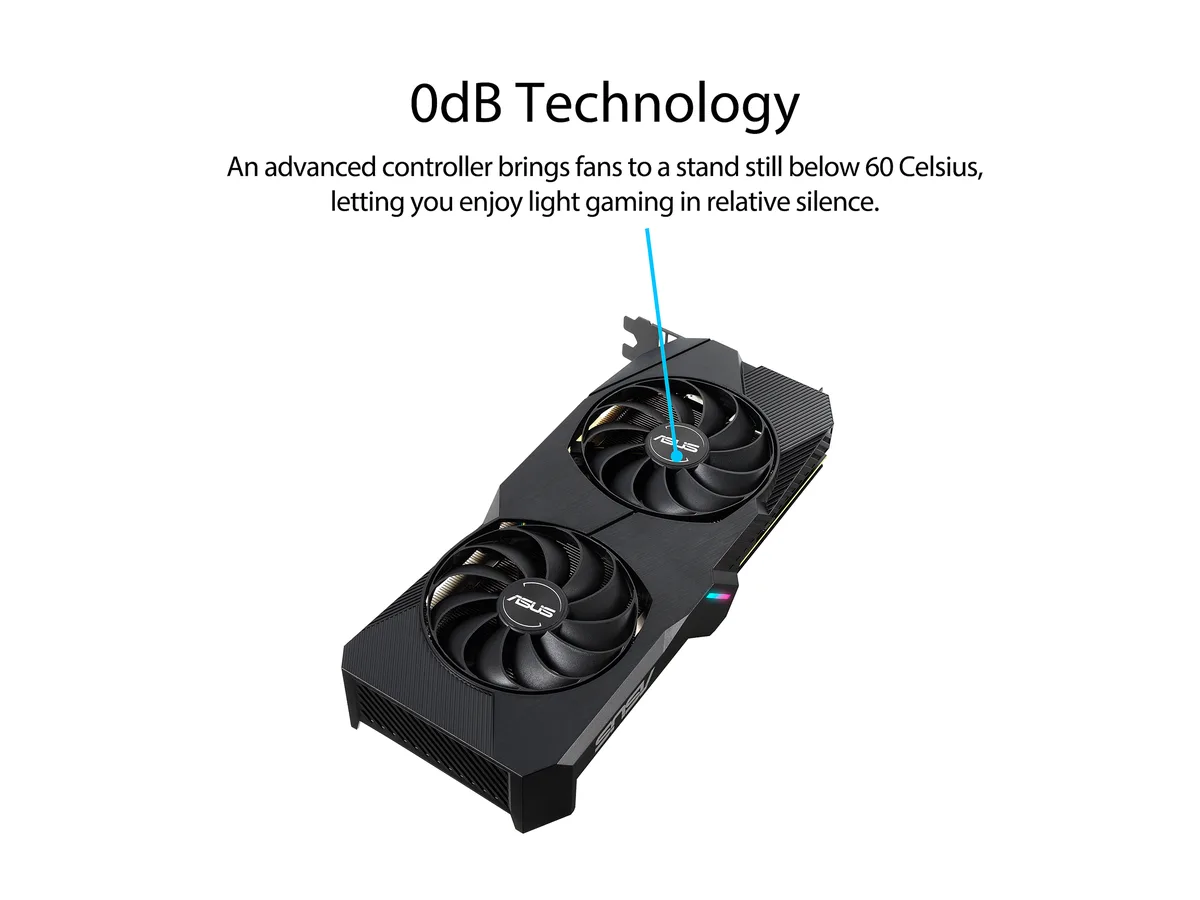

0dB Technology lets you enjoy light gaming in relative silence.
New and Improved Heatsink has contact points to cool both the VRM and on-board memory.
Auto-Extreme Technology uses automation to enhance reliability.

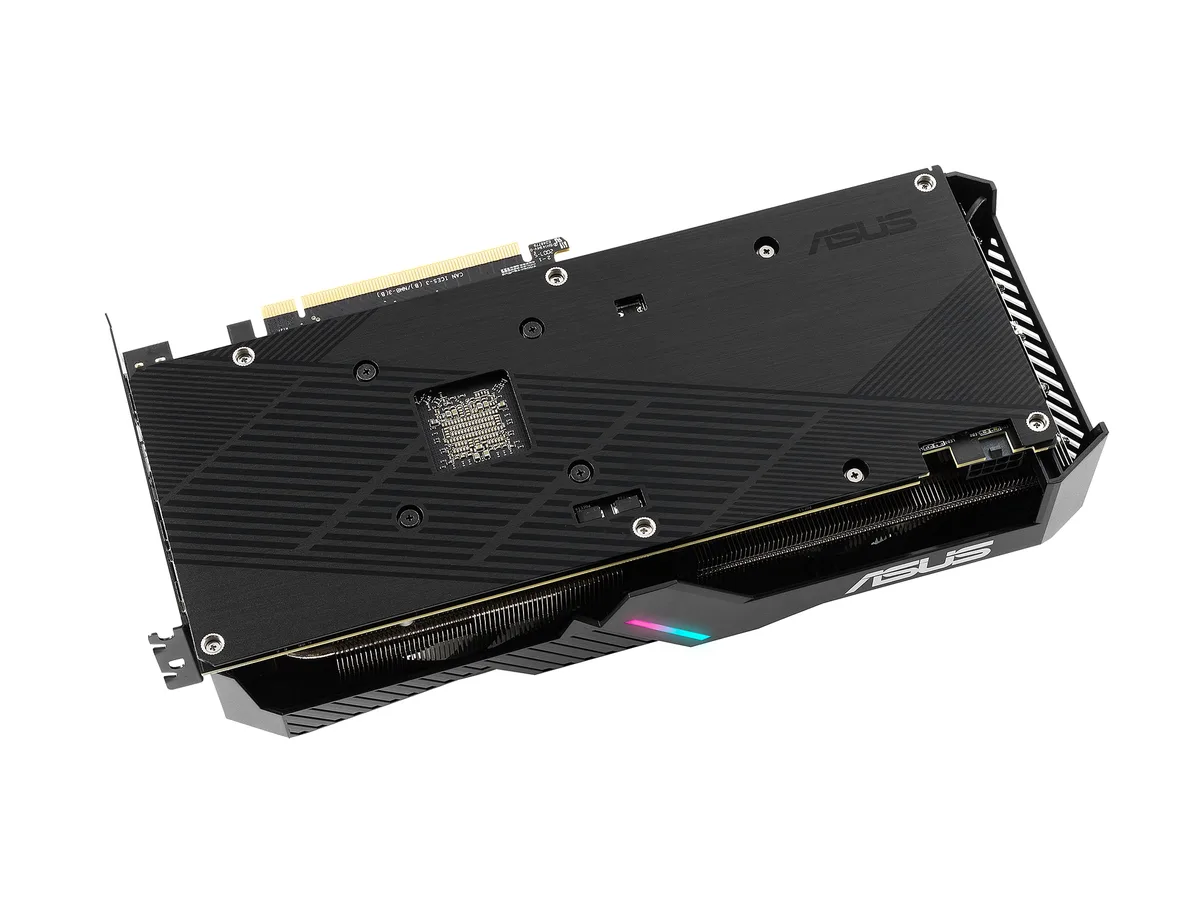

A protective backplate secures components during transportation and installation.
A 144-hour validation programputs cards through a series of stringent test
Max GPU Length283 mm
Card Dimensions (L x H)11.10" x 5.20"
Slot Width2.7-slot
Shipping weight1.79 kg
Package size409 × 236 × 94 mm

Questions about this item

What PCIe slot width and power connector does the DUAL-RX5600XT-T6G-EV need?

It installs in a PCI Express 4.0 x16 slot and draws auxiliary power through a single 8-Pin connector, with a 450W PSU recommended.

Which step do builders most often miss when seating this dual-fan card?

After the card clicks into the PCIe 4.0 slot, the 8-Pin power cable must be fully latched; the system will not post without it.

When should the thermal paste on the Radeon RX 5600 XT GPU be refreshed?

If idle or load temperatures climb noticeably higher than when the card was new, remove the heatsink, clean the old paste, and apply a fresh pea-sized dot.
