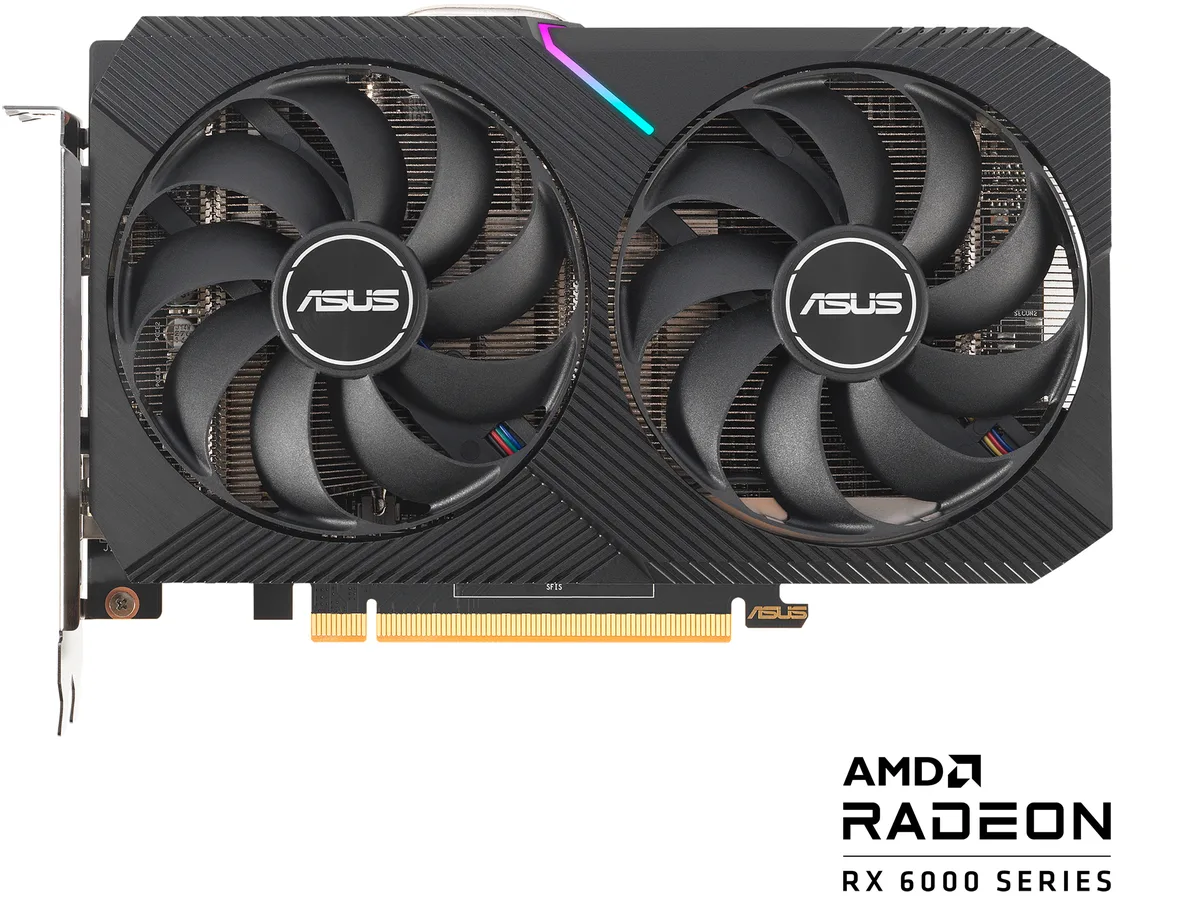

Dual-fan graphics card with black shroud and silver backplate

ASUS

ASUS DUAL-RX6500XT-O4G graphics card

SKU CH-DZDP-1C0AV MPN DUAL-RX6500XT-O4G

Dual-fan RDNA 2 graphics card with 4 GB GDDR6 on a 64-bit bus, PCIe 4.0 interface and boost clock up to 2820 MHz

  • InterfacePCI Express 4.0
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 6000 Series
  • GPURadeon RX 6500 XT
  • ArchitectureRDNA 2
  • Game ClockOC mode: up to 2670 MHz Gaming mode: up to 2650 MHz
  • Boost clock reaches 2820 MHz for responsive gaming
  • 4 GB GDDR6 memory at 18 Gbps feeds the GPU quickly
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Dual axial-tech fans with ball bearings run cooler and last longer

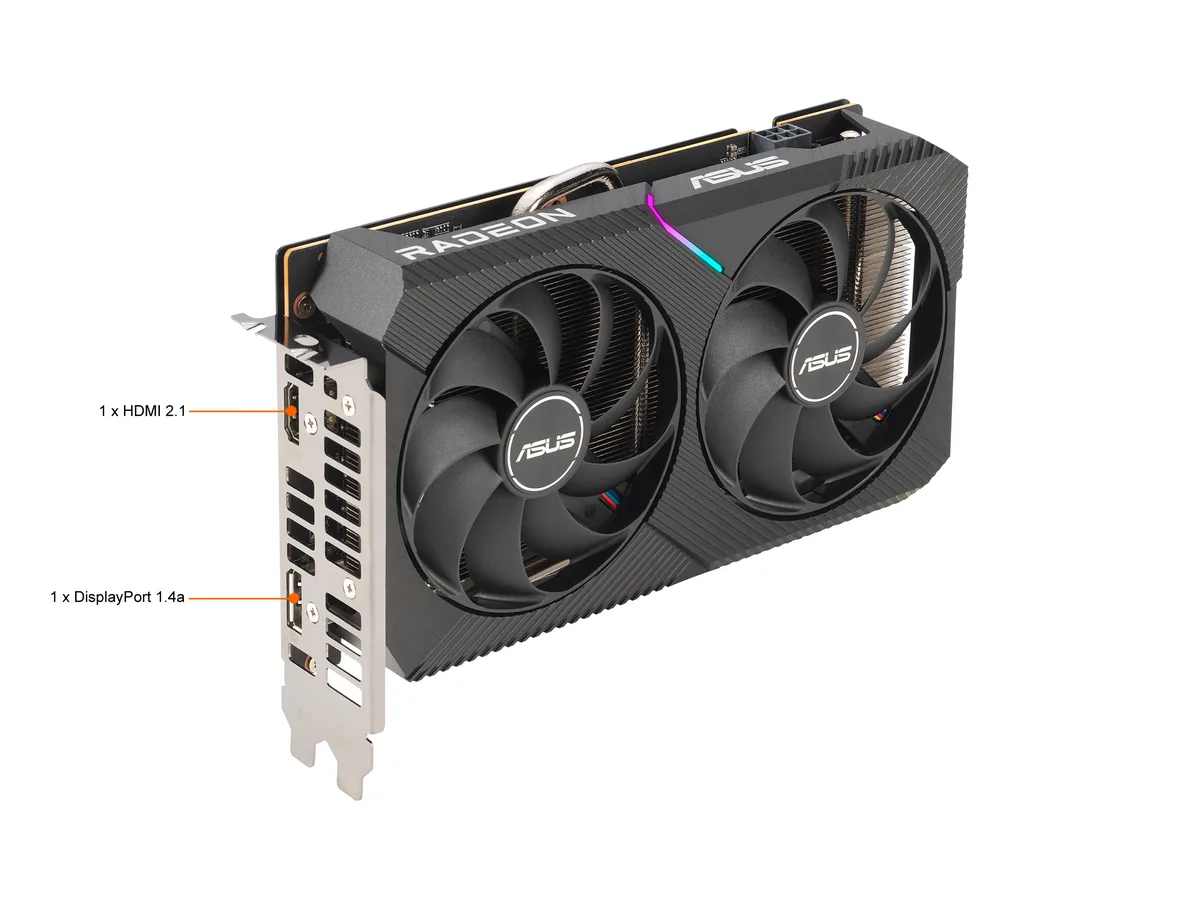

  • HDMI 2.1 and DisplayPort 1.4a drive two 8K displays

ASUS Dual RX 6500 XT 4GB

The ASUS Dual Radeon RX 6500 XT is a PCI Express 4.0 graphics card built on the RDNA 2 architecture. It carries 4GB of GDDR6 memory across a 64-bit interface and delivers a boost clock of 2820 MHz. The card targets 1080p gaming and multi-monitor productivity with HDMI 2.1 and DisplayPort 1.4a outputs.

Sustained load behaviour

A 107W thermal design power and a 6-pin power connector feed the 1024 stream processors during extended sessions. The axial-tech dual-fan cooler uses dual ball bearings and a 2-slot form factor to maintain airflow in compact chassis. With a 500W recommended PSU, the card runs gaming clocks of 2650 MHz or OC clocks of 2670 MHz without throttling.

Upgrade context

This model replaces older 4GB cards limited to PCIe 3.0 or narrower memory buses. The jump is worthwhile when moving from an entry-level GPU that lacks DirectX 12 Ultimate or 18 Gbps memory speed. It also suits builds needing HDMI 2.1 for 7680 x 4320 output on a modest power budget.

Highlights

  • Boost clock reaches 2820 MHz for responsive gaming
  • 4 GB GDDR6 memory at 18 Gbps feeds the GPU quickly
  • PCI Express 4.0 interface doubles bandwidth over 3.0
  • Dual axial-tech fans with ball bearings run cooler and last longer
  • HDMI 2.1 and DisplayPort 1.4a drive two 8K displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RX6500XT-O4G
InterfacePCI Express 4.0
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 6000 Series
GPURadeon RX 6500 XT
ArchitectureRDNA 2
Game ClockOC mode: up to 2670 MHz
Gaming mode: up to 2650 MHz
Boost Clock2820 MHz
Stream Processors1024
Effective Memory Clock18 Gbps
Memory Size4GB
Memory Interface64-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support2
HDMI1 x HDMI 2.1
DisplayPort1 x DisplayPort 1.4a
Max Resolution7680 x 4320
CrossFireX SupportCrossfire Support for DirecX 12 and Vulkan
CoolerDouble Fans
Thermal Design Power107W
Recommended PSU Wattage500W
Power Connector6-Pin
HDCP Ready2.3
FeaturesAxial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
A 2-slot Design maximizes compatibility and cooling efficiency for superior performance in small chassis.
Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
Auto-Extreme Technology uses automation to enhance reliability.
A protective backplate prevents PCB flex and trace damage.
Max GPU Length201 mm

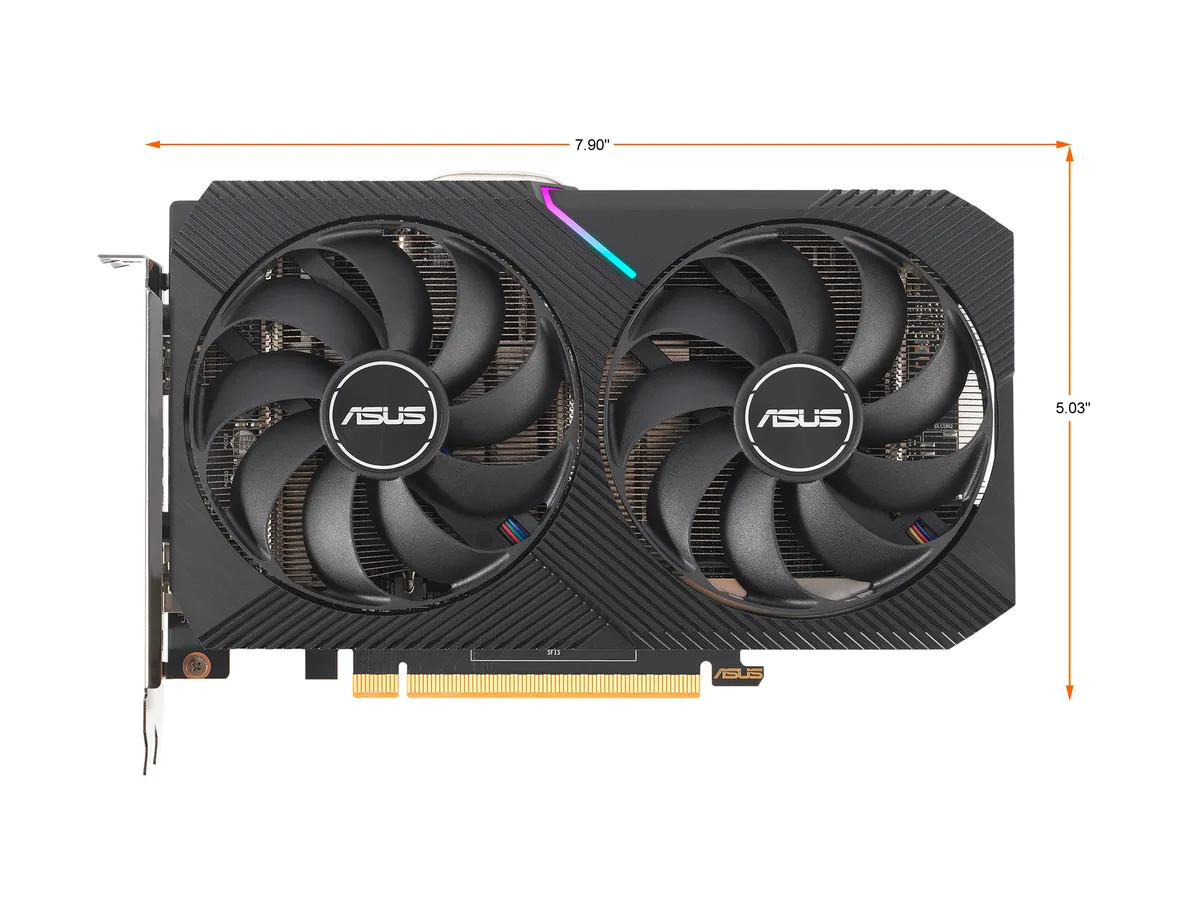

Card Dimensions (L x H)7.90" x 5.03"
Slot Width2 Slots
Shipping weight0.82 kg
Package size302 × 221 × 56 mm

Questions about this item

How loud and hot does the Dual RX 6500 XT get when it draws its 107 W TDP all day?

The card uses a dual-fan Axial-tech cooler with dual-ball bearings designed for sustained airflow; at its 107 W TDP the fans typically spin at moderate speeds, keeping temperatures in the mid-60 °C range under continuous load.

My motherboard only has PCIe 3.0 slots — will the 4.0 interface on this card still work?

Yes, the PCI Express 4.0 x4 interface is fully backward compatible with PCIe 3.0 slots; you will see a small bandwidth reduction but the card functions normally.

Can I run my older 1080p 60 Hz monitor alongside a new 4K display using the HDMI 2.1 and DisplayPort 1.4a outputs?

Both outputs support the card's maximum 7680 x 4320 resolution, so a 1080p monitor and a 4K display can run simultaneously in extended or duplicate mode.
