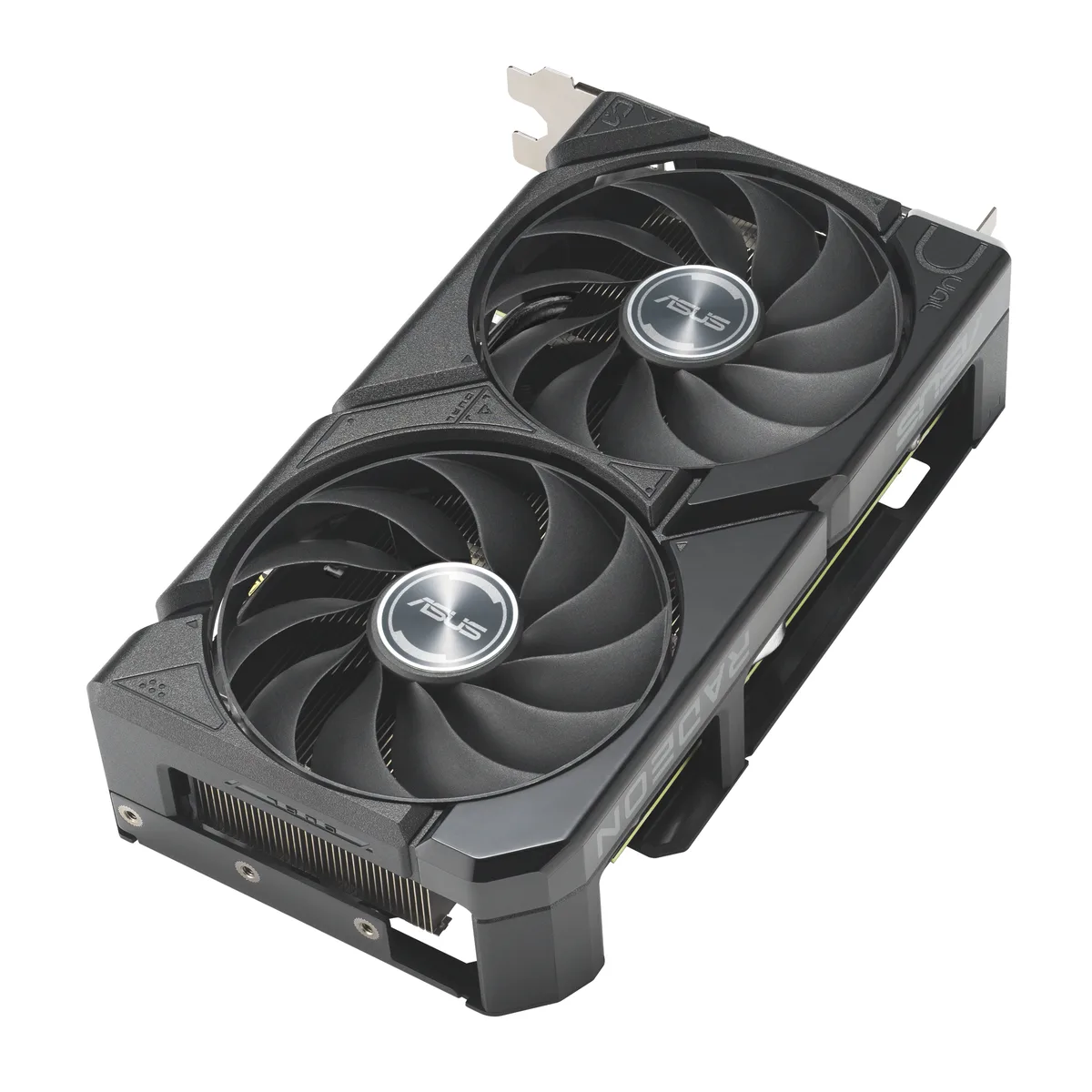

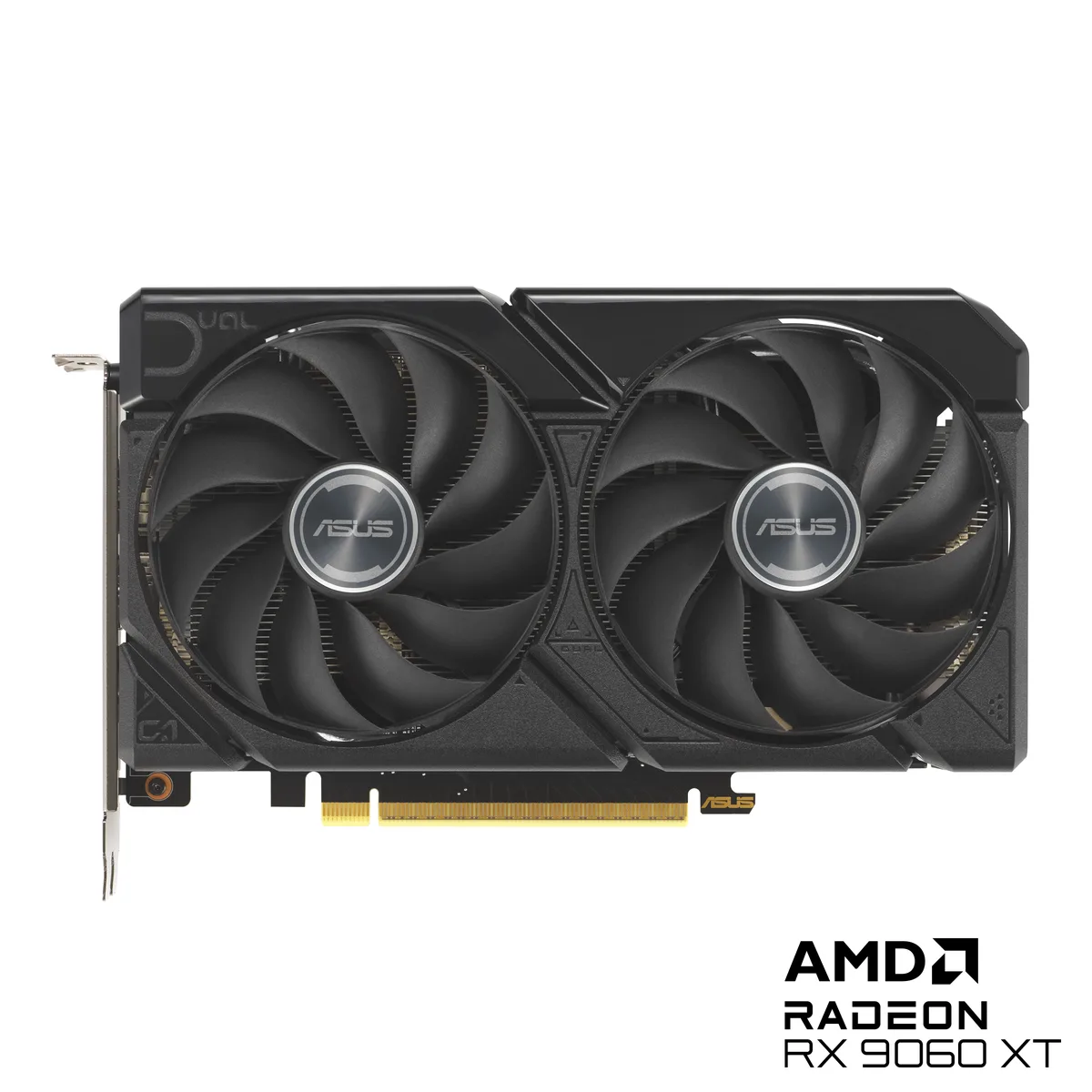

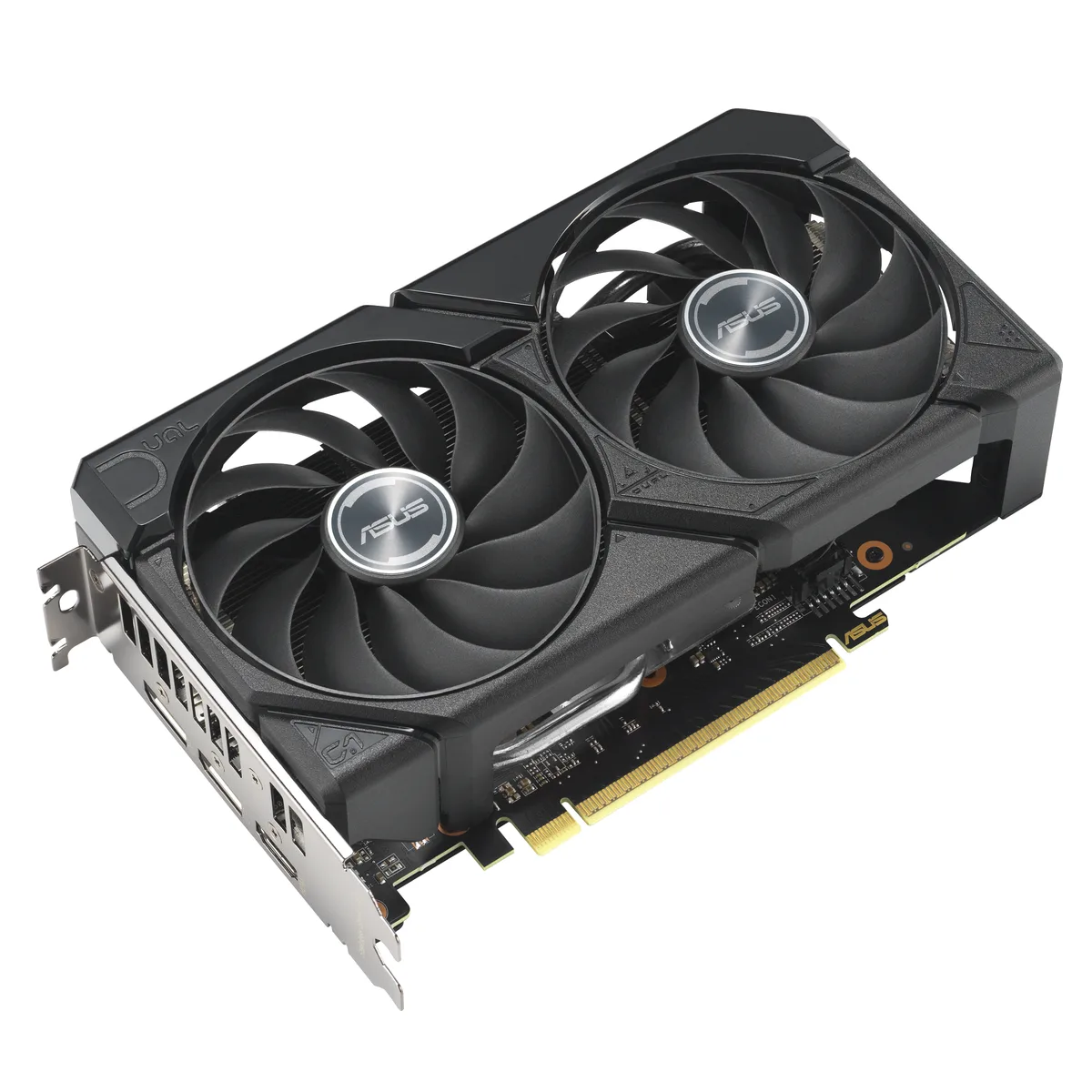

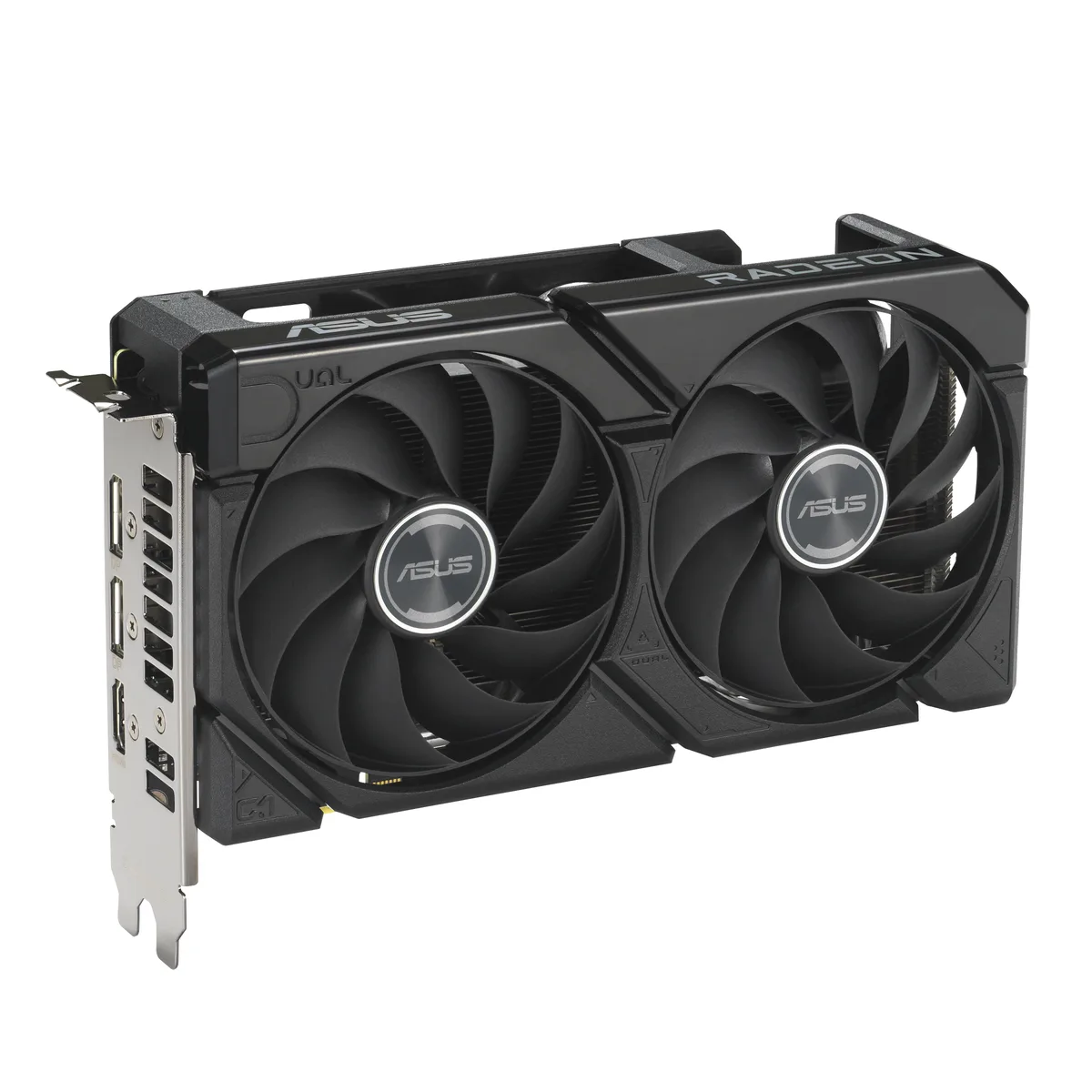

ASUS Dual Radeon RX 9060 XT graphics card, black dual-fan cooler, 2.5-slot ATX form factor

ASUS

ASUS DUAL-RX9060XT-16G Radeon RX 9060 XT 16GB graphics card

SKU CH-VPXB-VS36P MPN DUAL-RX9060XT-16G

Mid-range graphics card with 16 GB GDDR6 memory on a 128-bit bus, RDNA 4 architecture, PCIe 5.0 x16 interface, and dual-fan cooling in a 2.5-slot ATX design

  • InterfacePCI Express 5.0 x16
  • Chipset ManufacturerAMD
  • GPU SeriesAMD Radeon RX 9000 Series
  • GPURadeon RX 9060 XT
  • ArchitectureRDNA 4
  • Core ClockDefault mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (G

Option RX 9060 XT 16GB

Edition DUAL

  • 16 GB GDDR6 memory handles large textures at 20 Gbps
  • Boost clock reaches 3250 MHz in OC mode for higher frame rates
  • PCI Express 5.0 x16 interface doubles bandwidth over previous gen
  • Dual-fan cooler keeps thermals low in a 2.5-slot ATX design
  • HDMI 2.1b plus dual DisplayPort 2.1a drive 7680 x 4320 displays

16GB RDNA 4 graphics card

The ASUS Dual Radeon RX 9060 XT ships with 16GB of GDDR6 memory on a 128-bit bus running at 20 Gbps. A boost clock of up to 3230 MHz in default mode drives 2048 stream processors. The board targets gamers and creators who need high frame rates at 1440p and usable 4K performance.

PCI Express 5.0 x16 slot and 550W PSU

The card occupies 2.5 slots and measures 202 mm in length, so it fits most ATX cases. A single 8-pin power connector feeds the GPU. One HDMI 2.1b port and two DisplayPort 2.1a outputs support three monitors at up to 7680 x 4320 resolution. DirectX 12 Ultimate and OpenGL 4.6 cover modern APIs.

Dual-fan cooler under sustained load

Two axial fans move air across a heatsink that spans the full 202 mm length. In OC mode via GPU Tweak III the boost clock rises to 3250 MHz while the game clock reaches 2640 MHz. The thermal design keeps clocks stable during extended sessions without throttling.

Highlights

  • 16 GB GDDR6 memory handles large textures at 20 Gbps
  • Boost clock reaches 3250 MHz in OC mode for higher frame rates
  • PCI Express 5.0 x16 interface doubles bandwidth over previous gen
  • Dual-fan cooler keeps thermals low in a 2.5-slot ATX design
  • HDMI 2.1b plus dual DisplayPort 2.1a drive 7680 x 4320 displays

Specifications

BrandASUS
SeriesDual
ModelDUAL-RX9060XT-16G
Part Number90YV0LF1-M0AA00
InterfacePCI Express 5.0 x16
Chipset ManufacturerAMD
GPU SeriesAMD Radeon RX 9000 Series
GPURadeon RX 9060 XT
ArchitectureRDNA 4
Core ClockDefault mode: up to 3230 MHz (Boost Clock)/up to 2620 MHz (Game Clock)
Boost ClockOC mode (GPU Tweak III): up to 3250 MHz (Boost Clock)/up to 2640 MHz (Game Clock)
Stream Processors2048
Effective Memory Clock20 Gbps
Memory Size16GB
Memory Interface128-Bit
Memory TypeGDDR6
DirectXDirectX 12 Ultimate
OpenGLOpenGL 4.6
Multi-Monitor Support3
HDMI1 x HDMI 2.1b
DisplayPort2 x DisplayPort 2.1a
ColorBlack
Max Resolution7680 x 4320
CrossFireX SupportNo
SLI SupportNo
Virtual Reality ReadyYes
CoolerDouble Fans
Recommended PSU Wattage550W
Power Connector8-Pin
HDCP ReadyYes
Form FactorATX
Max GPU Length202 mm
Card Dimensions (L x H)202 x 120 x 49mm
Slot Width2.5 Slots

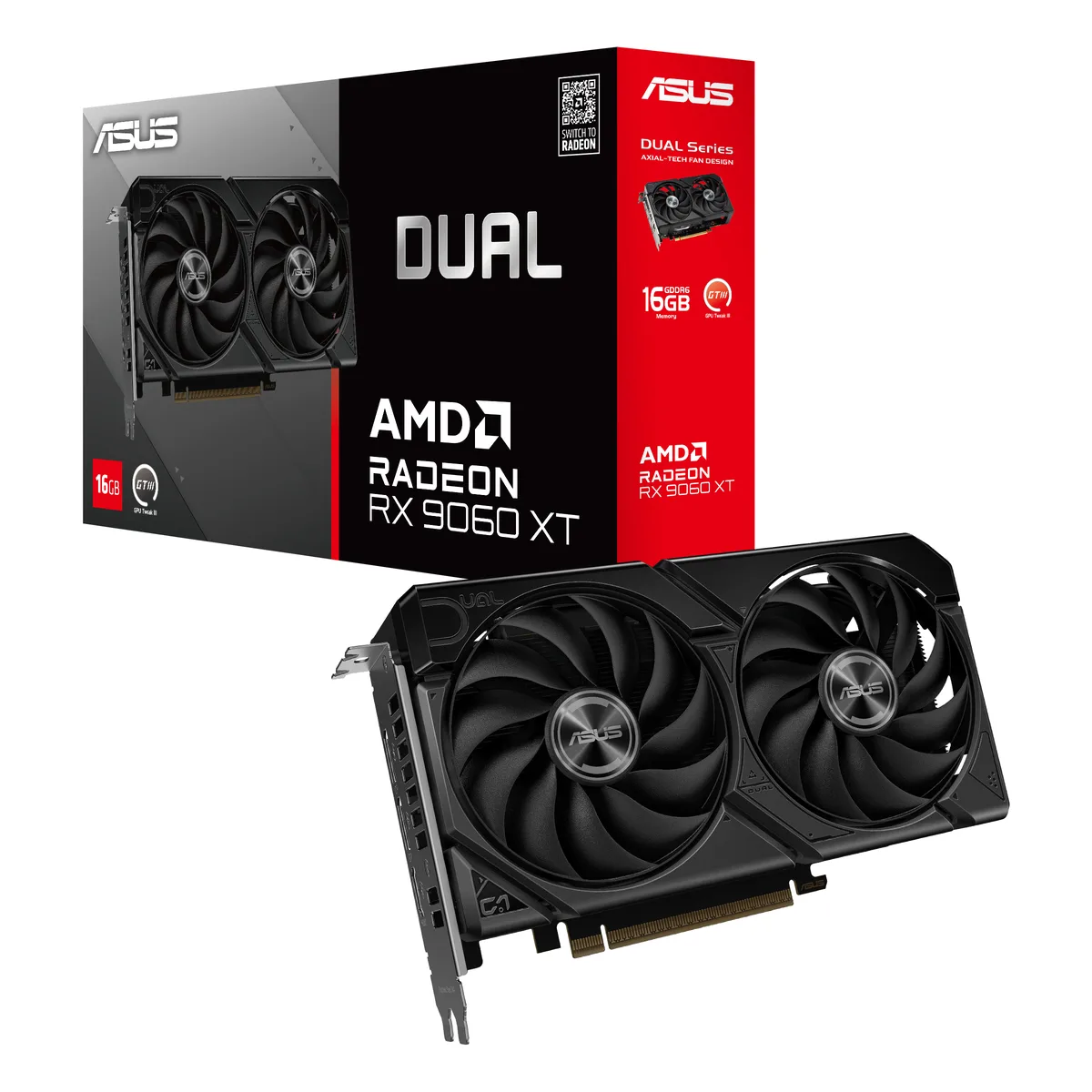

Package Contents1 x Thank you card
1 x Speedsetup Manual
1 x Speedsetup Manual
Shipping weight1.04 kg
Package size356 × 216 × 71 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How many stream processors does the Radeon RX 9060 XT GPU provide for sustained compute workloads?

The GPU includes 2048 stream processors that handle graphics and compute tasks under continuous load.

What cooling solution and power draw should be expected when the card runs all day?

A dual-fan cooler dissipates heat while the board draws power through a single 8-pin connector from a 550W supply.

Which motherboard slot and power connector must the system already have for this card to operate?

A PCI Express 5.0 x16 slot and one free 8-pin power cable from the PSU are required.
