ASUS
ASUS DUALGTX1660S-O6G-EVO GeForce GTX 1660 Super 6GB graphics card
Refurbished GeForce GTX 1660 Super with 6GB GDDR6, 1408 CUDA cores and boost clocks up to 1860 MHz in OC mode
- InterfacePCI Express 3.0
- Chipset ManufacturerNVIDIA
- GPUGeForce GTX 1660 SUPER
- Core Clock1530 MHz
- Boost ClockOC Mode: 1860 MHz Gaming Mode (Default): 1830 MHz
- CUDA Cores1408
- 6GB GDDR6 memory enables high-resolution textures at 14002 MHz effective clock
- Factory overclock reaches 1860 MHz boost in OC mode for extra frame-rate headroom
- 1408 CUDA cores accelerate parallel workloads in games and creative apps
- Three display outputs — HDMI 2.0b, DisplayPort 1.4 and DVI-D — drive up to three monitors
- Dual-fan cooler dissipates 125 W TDP within a 450 W PSU recommendation

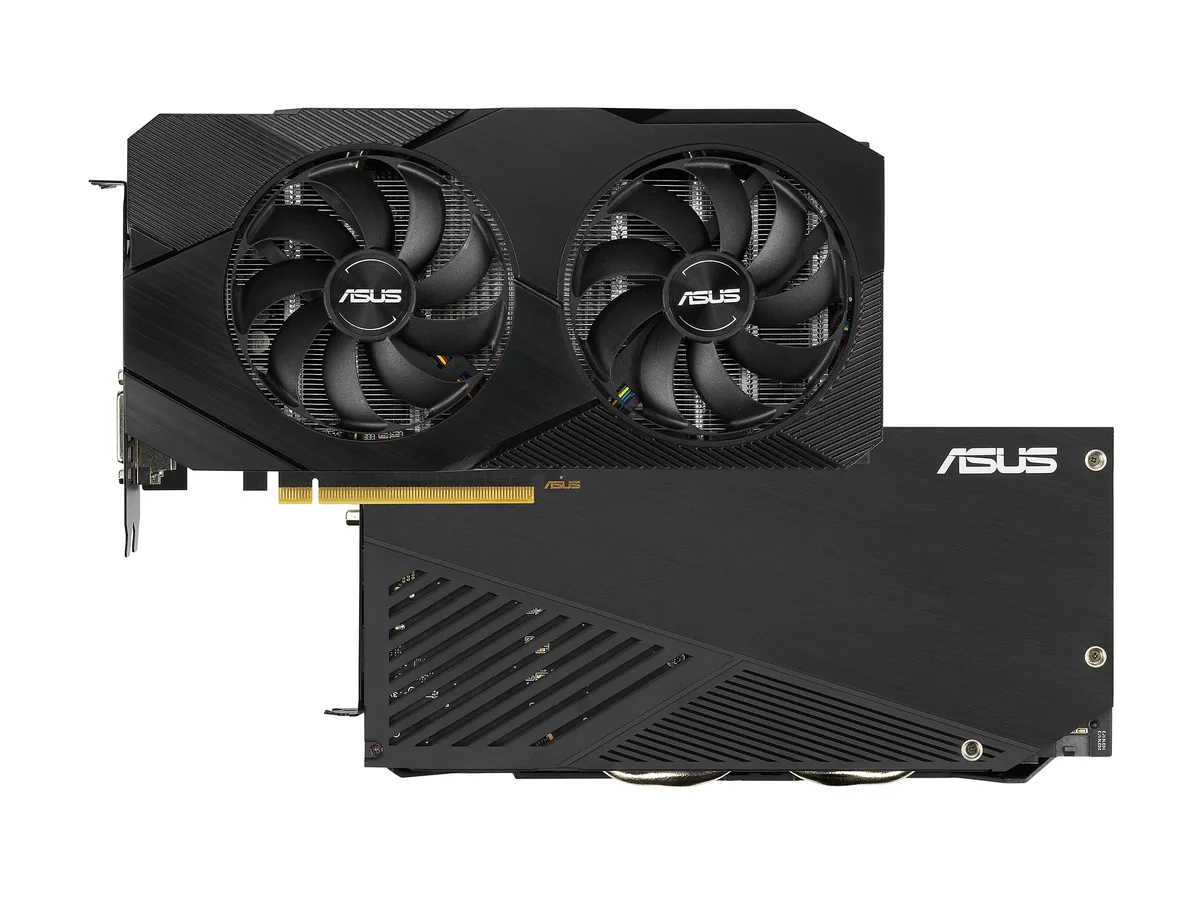

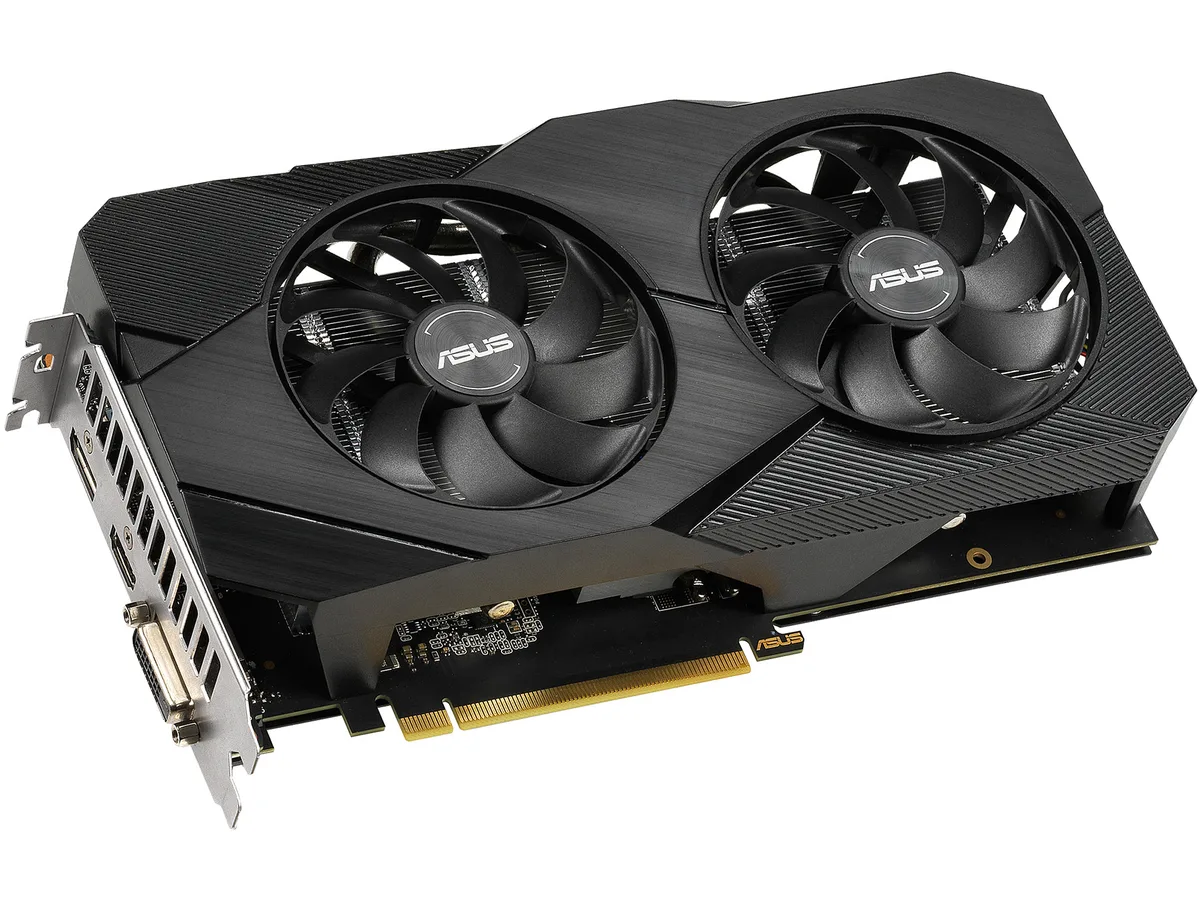

ASUS Dual GTX 1660 Super 6GB graphics card
The ASUS Dual GTX 1660 Super 6GB graphics card targets 1080p gamers and content creators who need reliable frame rates without moving to a higher tier. It uses the NVIDIA Turing architecture with 1408 CUDA cores and a 192-bit GDDR6 memory interface. The card connects through a PCI Express 3.0 slot and draws power from a single 8-pin connector. A 450W power supply is recommended for stable operation.
Sustained load behaviour with OC and Gaming modes
Under sustained load the card runs at either the OC mode boost clock of 1860 MHz or the default Gaming mode boost clock of 1830 MHz, both well above the 1530 MHz base clock. The 6GB GDDR6 frame buffer operates at an effective 14002 MHz, feeding the 1408 CUDA cores through the 192-bit bus. This configuration keeps 1080p workloads consistent during extended sessions without throttling to the base frequency.

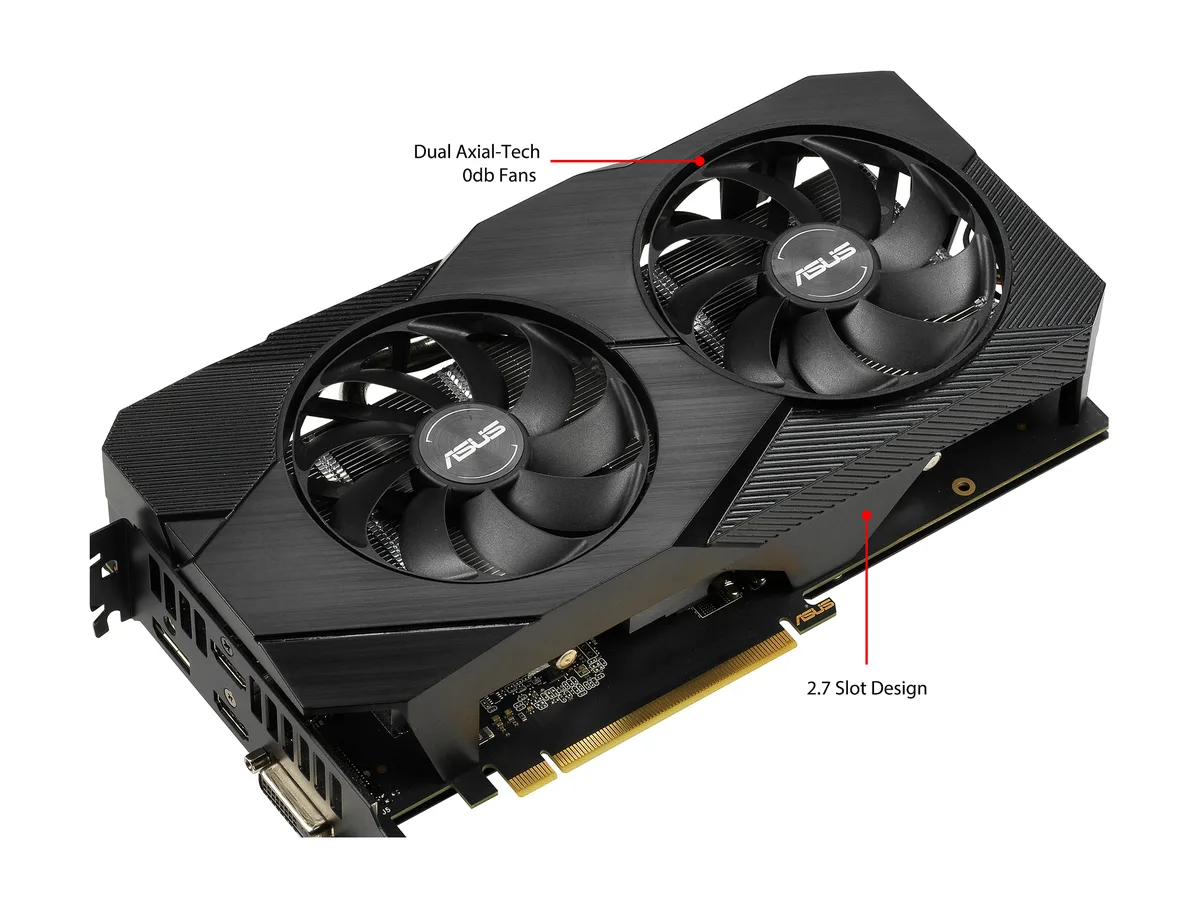

Thermals noise and power draw in normal use
The dual-fan cooler manages the 125W thermal design power while keeping acoustic output low during typical gaming. The 8-pin power connector supplies the board directly, and the 450W PSU recommendation provides headroom for the rest of the system. In normal use the card stays within its thermal envelope, allowing the fans to run at modest speeds and keeping noise at a background level.
Highlights
- 6GB GDDR6 memory enables high-resolution textures at 14002 MHz effective clock
- Factory overclock reaches 1860 MHz boost in OC mode for extra frame-rate headroom
- 1408 CUDA cores accelerate parallel workloads in games and creative apps
- Three display outputs — HDMI 2.0b, DisplayPort 1.4 and DVI-D — drive up to three monitors
- Dual-fan cooler dissipates 125 W TDP within a 450 W PSU recommendation
Specifications
| Brand | ASUS |
|---|---|
| Series | Dual |
| Model | DUAL-GTX1660S-O6G-EVO |
| Interface | PCI Express 3.0 |
| Chipset Manufacturer | NVIDIA |
| GPU | GeForce GTX 1660 SUPER |
| Core Clock | 1530 MHz |
| Boost Clock | OC Mode: 1860 MHz Gaming Mode (Default): 1830 MHz |
| CUDA Cores | 1408 |
| Effective Memory Clock | 14002 MHz |
| Memory Size | 6GB |
| Memory Interface | 192-Bit |
| Memory Type | GDDR6 |
| DirectX | DirectX 12 |
| OpenGL | OpenGL 4.6 |
| Multi-Monitor Support | 3 |
| HDMI | 1 x HDMI 2.0b |
| DisplayPort | 1 x DisplayPort 1.4 |
| DVI | 1 x DVI-D |
| Color | Black |
| Max Resolution | 7680 x 4320 |
| SLI Support | No |
| Virtual Reality Ready | Yes |
| Cooler | Double Fans |
| Thermal Design Power | 125W |
| System Requirements | Recommended PSU: 450W |
| Recommended PSU Wattage | 450W |
| Power Connector | 8-Pin |
| HDCP Ready | 2.2 |
| Features | OC Edition: Boost Clock 1860 MHz (OC Mode) / 1830 MHz (Gaming Mode). The GeForce GTX 1660 SUPER is up to 20% faster than the original GTX 1660 and up to 1.5X faster than the previous-generation GTX 1060 6GB. Powered by the award-winning NVIDIA Turing architecture and ultra-fast GDDR6 memory, it's a supercharger for today's most popular games. Time to gear up and get SUPER. Ultra-fast GDDR6 with over 50% more memory bandwidth for high-speed gaming. GeForce Experience: Capture and share videos, screenshots, and livestreams with friends. Keep your drivers up-to-date and optimize game se |
| Max GPU Length | 242 mm |
| Card Dimensions (L x H) | 9.50" x 5.10" |
| Slot Width | 2.7 Slot |
| Shipping weight | 1.47 kg |
| Package size | 406 × 241 × 89 mm |
Questions about this item
How loud and hot does the DUAL-GTX1660S-O6G-EVO run under continuous load with its double-fan cooler and 125W TDP?
The dual-fan design manages the 125W thermal design power effectively; temperatures and fan noise remain moderate during extended gaming or compute sessions.
What power supply and connector does the DUAL-GTX1660S-O6G-EVO require to operate?
A 450W power supply with one free 8-pin PCIe power connector is needed to meet the card's 125W TDP.
Will the DUAL-GTX1660S-O6G-EVO fit and run on a motherboard that only has PCI Express 3.0 slots?
Yes, the card uses a PCI Express 3.0 x16 interface so it works at full speed on any PCIe 3.0 or newer slot.
