Green rectangular motherboard with silver sockets and black components, I/O shield included

ASUS

ASUS E3M-PLUS V5 Intel C232 LGA 1151 DDR4 32G motherboard

SKU CH-H6B1-APPSN

Supports Xeon E3 1200 V5 and sixth-generation Core i7, i5, i3, Pentium or Celeron CPUs on Intel C232 chipset with DDR4 memory

  • CPU Type3rd / 2nd-generation Core i3, i5, i7 (LGA1155)
  • Supports up to 32 GB DDR4 memory for responsive multitasking
  • Intel C232 chipset provides stable platform for Xeon E3-1200 V5 and 6th-gen Core CPUs
  • Realtek ALC887 8-channel audio delivers clear sound output
  • Onboard Realtek RTL8111H Gigabit LAN ensures reliable wired networking
  • Board 100% tested before shipping so it arrives ready to install

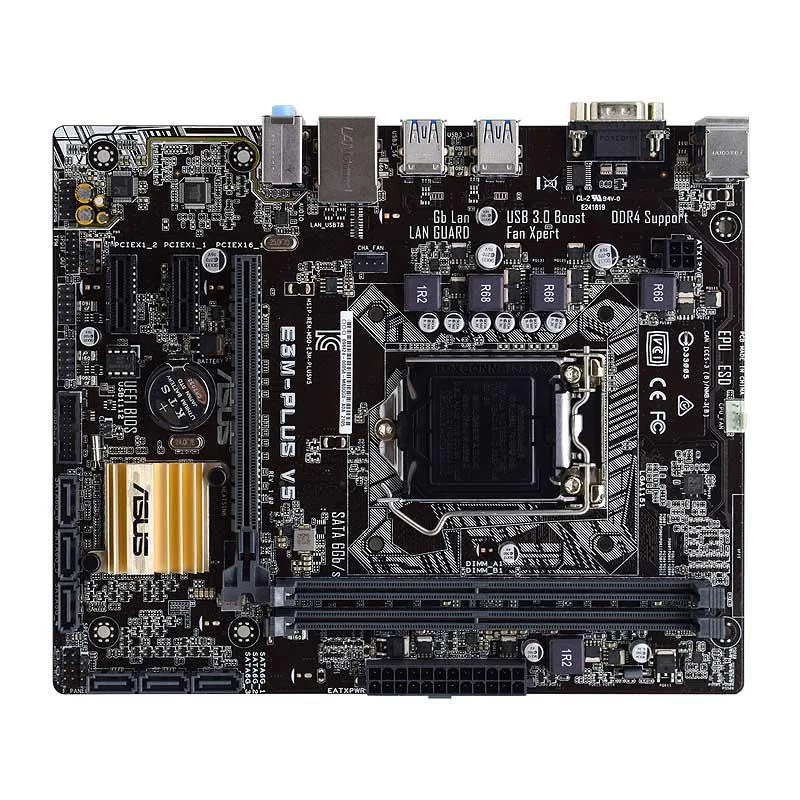

Intel C232 workstation board

This ASUS motherboard uses the Intel C232 chipset and the LGA 1151 socket to support Xeon E3 1200 V5 and sixth-generation Core i7, i5, i3, Pentium and Celeron processors. It targets builders assembling a workstation or server that needs ECC memory support and long-term platform stability.

Installation notes

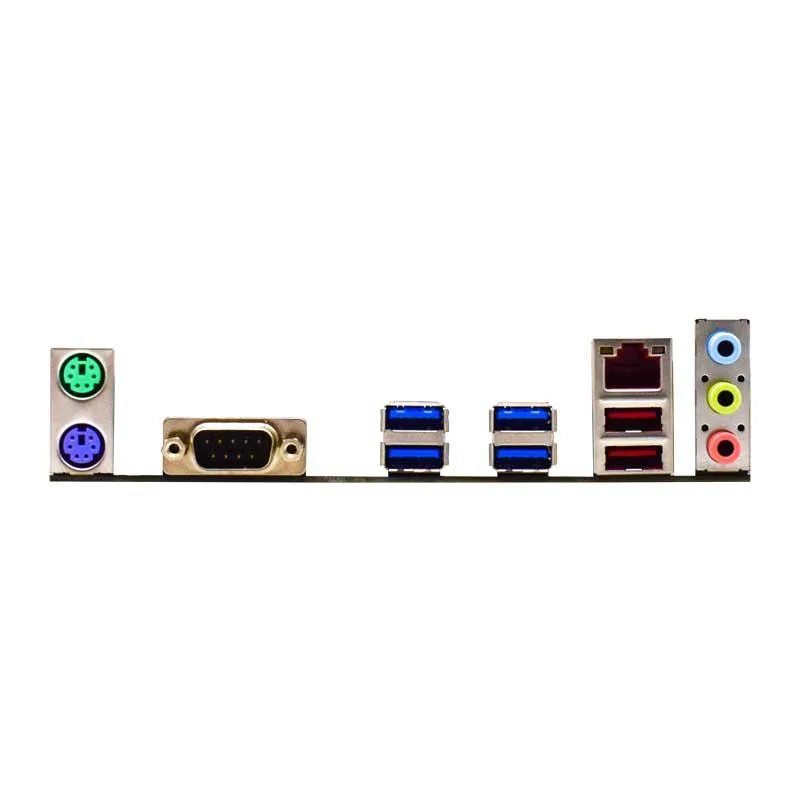

The package includes the board and an I/O shield only; no CMOS battery, cables or manuals are supplied. Fit a CR2032 cell before first power-on, verify the CPU cooler clearance for your chassis, and update the BIOS if the processor requires a newer revision.

Pre-order checks

Confirm your chosen CPU is on the supported list for the C232 chipset and LGA 1151 socket. Ensure the power supply provides the necessary 8-pin EPS connector and that your case has the correct standoff pattern for the board form factor.

Highlights

  • Supports up to 32 GB DDR4 memory for responsive multitasking
  • Intel C232 chipset provides stable platform for Xeon E3-1200 V5 and 6th-gen Core CPUs
  • Realtek ALC887 8-channel audio delivers clear sound output
  • Onboard Realtek RTL8111H Gigabit LAN ensures reliable wired networking
  • Board 100% tested before shipping so it arrives ready to install

Specifications

CPU Type3rd / 2nd-generation Core i3, i5, i7 (LGA1155)

Questions about this item

How can I confirm the ASUS E3M-PLUS V5 is working after installing a CPU and memory?

The board ships 100% tested; fit a supported processor and DDR4 modules, attach the I/O shield, power on and watch for POST codes or a display signal from the CPU integrated graphics.

What comes in the box with the E3M-PLUS V5 and what must I source myself?

The package contains the motherboard and I/O shield only; you must supply a CR2032 CMOS battery, CPU, DDR4 memory, storage drives and all cables.

Which memory capacity should I choose for the two DDR4 slots on this C232 board?

The board accepts two DDR4 modules up to a combined 32 GB; pick matched sticks totalling the capacity your workload needs within that limit.
