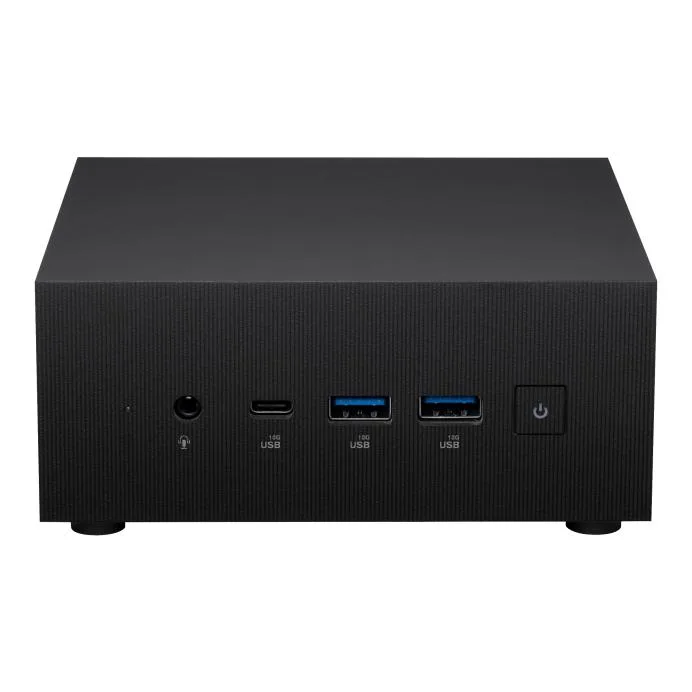

Small black square mini PC barebone with front USB-C and audio ports

ASUS

ASUS ExpertCenter PN65 90MR00Z1-M00040 barebone mini PC Core Ultra 5 125H DDR5 96GB

SKU CH-9C3K-3H5KT MPN 90MR00Z1-M00040

Barebone mini PC with Core Ultra 5 125H, dual-channel DDR5 up to 96 GB, triple storage for two M.2 NVMe and one SATA drive, Wi-Fi 7, Bluetooth 5.4 and 2.5 Gbps LAN

  • ColorBlack
  • CPU TypeIntel Core Ultra 5 125H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Max Memory Supported96GB
  • Dual Channel Memory SupportedYes
  • Intel Core Ultra 5 125H and Arc graphics drive demanding workloads
  • Dual-channel DDR5 supports up to 96 GB at 5600 MHz
  • Triple storage bays accept two M.2 2280 PCIe Gen4 SSDs and one 2.5-inch SATA drive
  • Wi-Fi 7 and Bluetooth 5.4 deliver fast, efficient wireless connectivity
  • 5 Gbps Intel i226V LAN plus second port boosts wired bandwidth and reliability

Compact barebone for custom builds

The ASUS ExpertCenter PN65 is a new mini-PC barebone that ships without memory or storage, letting integrators choose DDR5 SO-DIMMs and M.2 drives to match the workload. Its Intel Core Ultra 5 125H processor and integrated Arc graphics suit office productivity, digital signage and light content creation in space-constrained locations.

Dual-channel DDR5 up to 96 GB

Two 262-pin SO-DIMM slots accept DDR5 5600 modules in dual-channel mode for a maximum of 96 GB, which is the single figure that determines whether the platform can handle the intended multitasking or virtualisation load. Exceeding this capacity is not supported by the memory controller.

Tool-less access and VESA mounting

The chassis opens without tools for SO-DIMM and M.2 2280 installation, and a VESA bracket is included for behind-monitor mounting. Builders must supply a 2.5-inch SATA drive separately if the third storage bay is needed, and should verify that the chosen M.2 SSDs are PCIe Gen4 x4 NVMe models to match the two keyed slots.

Highlights

  • Intel Core Ultra 5 125H and Arc graphics drive demanding workloads
  • Dual-channel DDR5 supports up to 96 GB at 5600 MHz
  • Triple storage bays accept two M.2 2280 PCIe Gen4 SSDs and one 2.5-inch SATA drive
  • Wi-Fi 7 and Bluetooth 5.4 deliver fast, efficient wireless connectivity
  • 5 Gbps Intel i226V LAN plus second port boosts wired bandwidth and reliability

Specifications

BrandASUS
Model90MR00Z1-M00040
ColorBlack
CPU TypeIntel Core Ultra 5 125H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Max Memory Supported96GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot2 x M.2 2280 PCIe G4x4 NVMe SSD (supports 256GB ~ 2TB)
Integrated GraphicsIntel Arc Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel BE200 (Gig+)
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2
Front Audio Ports1 x Audio Jack (Line out/ Mic in/ Headphone out)
Other Front Ports1 x RGB Indicator

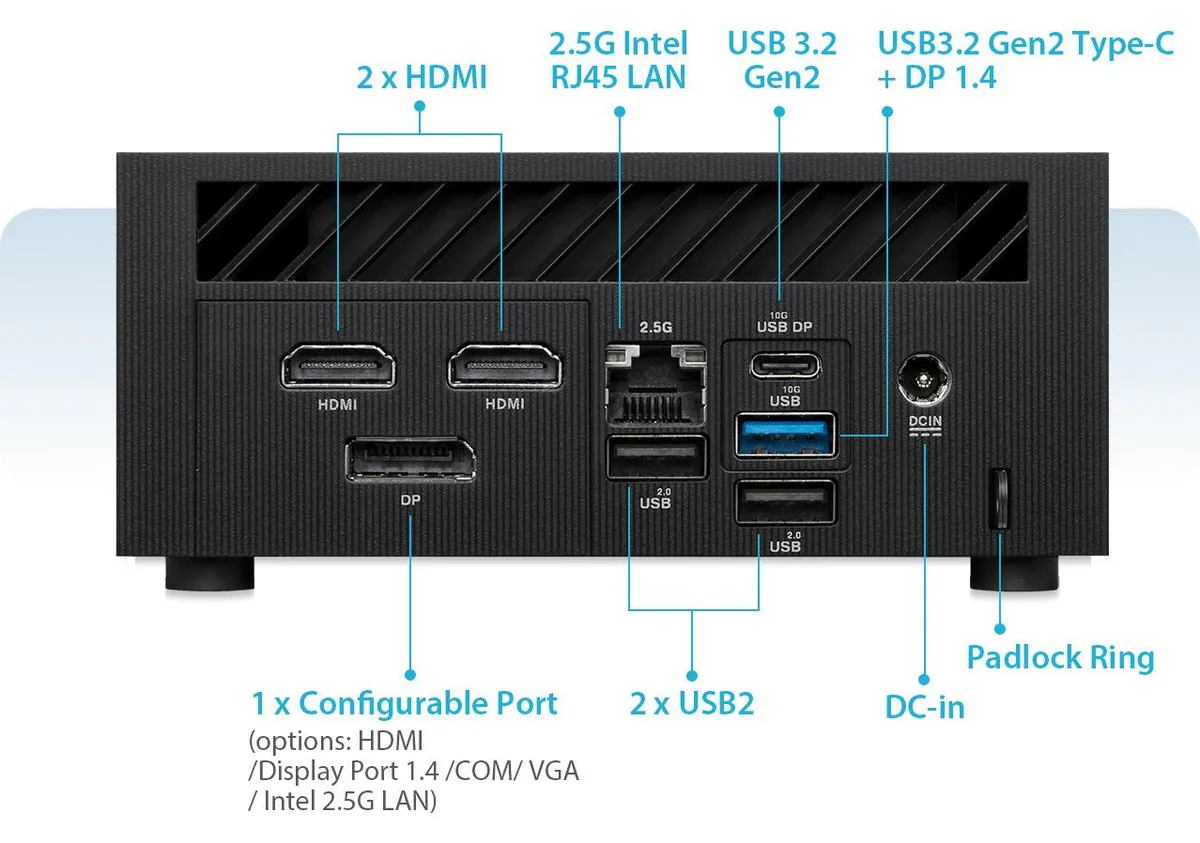

HDMI2 x HDMI 2.1 (Up to 4K@60Hz)
Rear USB1 x USB 3.2 Gen2 Type-C (with DP1.4 output and PD-in)
1 x USB 3.2 Gen2 Type-A
2 x USB 2.0
RJ451 x 2.5G RJ45 LAN
Other Rear Ports1 x Padlock Ring
Input19Vdc, 6.32A
Power Supply120W Power adapter
Dimensions120 x 130 x 58 mm
Weight0.75 kg(barebone)
PackagingVESA Mount & Screws / Power Adapter / US Power Cord

Questions about this item

How much RAM can the Core Ultra 5 125H actually use in this barebone?

The board accepts two 262-pin SO-DIMMs and supports up to 96 GB of DDR5 running at 5600 MHz in dual-channel mode.

What does the 2.5 Gbps LAN port limit in real use?

The Intel i226V controller caps wired throughput at 2.5 Gbps, so file transfers and backups cannot exceed that speed even on a faster switch.

Which drive bays and M.2 slots are available for adding storage?

You can install two M.2 2280 PCIe Gen4 x4 NVMe SSDs and one 2.5-inch SATA drive using the 6.0 Gb/s SATA connector.
