Green Micro ATX motherboard with silver heatsinks and black slots

ASUS

ASUS F1A55-M LX3 R2.0/CM1735/DP_MB AMD motherboard

SKU CH-X9S9-3DHXQ

Micro ATX AMD A55 board for AM1 APUs with dual-channel DDR3 to 1866, integrated Radeon HD 6000 graphics, one PCIe 2.0 x16 slot, and Gigabit LAN

  • CPU Socket TypeAM1
  • CPU TypeA-Series / E2-Series
  • ChipsetAMD A55 (Hudson D2)
  • Number of Memory Slots2x240pin
  • Memory StandardDDR3 1866/1600/1333/1066
  • Maximum Memory Supported32GB
  • Supports up to 32GB DDR3 memory across dual channels
  • Integrated Radeon HD 6000 graphics for basic display output
  • AMD A55 chipset enables AM1 socket A-Series and E2-Series APUs
  • Micro ATX form factor fits compact chassis builds
  • Gigabit LAN plus four USB 2.0 ports for essential connectivity

Micro ATX board for AMD A-Series and E2-Series APUs

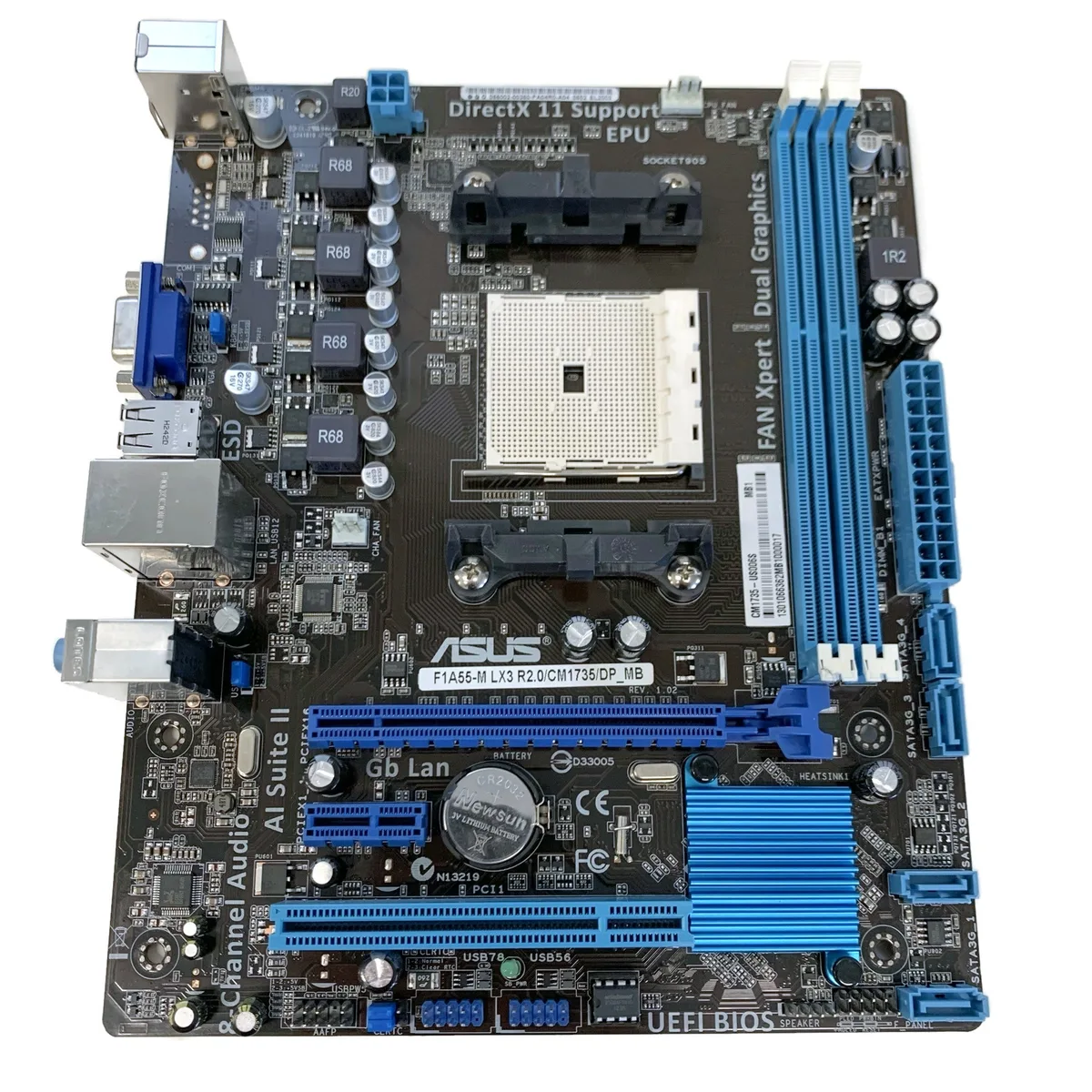

The ASUS F1A55-M LX3 R2.0/CM1735/DP_MB is a Micro ATX motherboard built on the AMD A55 Hudson D2 chipset. It accepts A-Series and E2-Series processors in an AM1 socket and provides dual-channel DDR3 memory support up to 32 GB. Onboard graphics use the ATI Radeon HD 6000 engine with a single D-Sub video output.

Suited for basic desktop builds

This board fits budget office PCs, simple home desktops or replacement of older AM1 platforms where integrated graphics and legacy I/O are required. It is not intended for modern gaming rigs or high-performance workstations that need current CPU architectures, faster memory standards or PCIe 3.0 and 4.0 expansion bandwidth.

DDR3 1866 dual-channel memory ceiling of 32 GB

Two 240-pin slots accept DDR3 modules at 1866, 1600, 1333 and 1066 speeds in dual-channel mode, capping total capacity at 32 GB. This memory specification decides whether the board can meet the capacity and bandwidth needs of the intended workload.

Highlights

  • Supports up to 32GB DDR3 memory across dual channels
  • Integrated Radeon HD 6000 graphics for basic display output
  • AMD A55 chipset enables AM1 socket A-Series and E2-Series APUs
  • Micro ATX form factor fits compact chassis builds
  • Gigabit LAN plus four USB 2.0 ports for essential connectivity

Specifications

BrandASUS
ModelF1A55-M LX3 R2.0/CM1735/DP_MB
CPU Socket TypeAM1
CPU TypeA-Series / E2-Series
ChipsetAMD A55 (Hudson D2)
Number of Memory Slots2x240pin
Memory StandardDDR3 1866/1600/1333/1066
Maximum Memory Supported32GB
Channel SupportedDual Channel
PCI Express 2.0 x161 x PCI Express 2.0 x16
PCI Express x11 x PCI Express x1
PCI Slots1 x PCI Slot
Onboard Video ChipsetATI Radeon HD 6000
Audio Channels8 Channels
Max LAN Speed1Gbps
Back I/O Ports1 x COM (Serial Port) / 1 x D-Sub / 2 x PS/2 / 3 x Audio Jacks / 4 x USB 2.0/1.1
PS/22
COM1
Video PortsD-Sub
USB 1.1/2.04 x USB 2.0
Audio Ports3 Ports
Onboard USB4 x USB 2.0
Form FactorMicro ATX
Dimensions (W x L)8.9" x 7.3"
Power Pin24 Pin

Questions about this item

How much heat and noise should I expect from the A55 chipset and ATI Radeon HD 6000 graphics when the board runs all day?

The AMD A55 Hudson D2 chipset and integrated ATI Radeon HD 6000 graphics are low-power components that produce minimal heat; a standard case fan and the APU cooler are usually enough to keep temperatures and noise low during continuous operation.

Which processor and memory must I already have to use this Micro ATX board?

You need an AMD A-Series or E2-Series APU that fits the AM1 socket, plus up to two DDR3 DIMMs running at 1866, 1600, 1333 or 1066 MHz for a maximum of 32 GB in dual-channel mode.

Will my older PCI add-in card and PS/2 keyboard still work with this motherboard?

Yes, the board provides one legacy PCI slot and two PS/2 ports, so older PCI expansion cards and PS/2 keyboards or mice connect directly without adapters.
