ASUS
ASUS FF4D516G6000HC38ADC01 B850M MAX GAMING WIFI AMD motherboard
AM5 micro-ATX board with DDR5 up to 8000 MT/s, PCIe 5.0 x16 and M.2, Wi-Fi 6, 1 Gb LAN and 10 Gbps USB
- CPU Socket TypeAM5
- CPU TypeRyzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
- ChipsetAMD B850
- Number of Memory Slots4x288pin (DDR5)
- Memory StandardSupports up to 8000+MT/s (OC)
- Maximum Memory Supported256GB
- AM5 socket supports Ryzen 7000 8000 9000 series CPUs
- Four DDR5 slots reach 8000 MT/s with EXPO profiles
- PCIe 5.0 x16 slot and M.2 slot for next-gen GPU and storage
- Wi-Fi 6 plus 1Gb Ethernet and USB 10Gbps Type-A and Type-C
- VRM and PCH heatsinks with Fan Xpert 2 plus Aura Sync RGB headers
AM5 mATX motherboard with PCIe 5.0

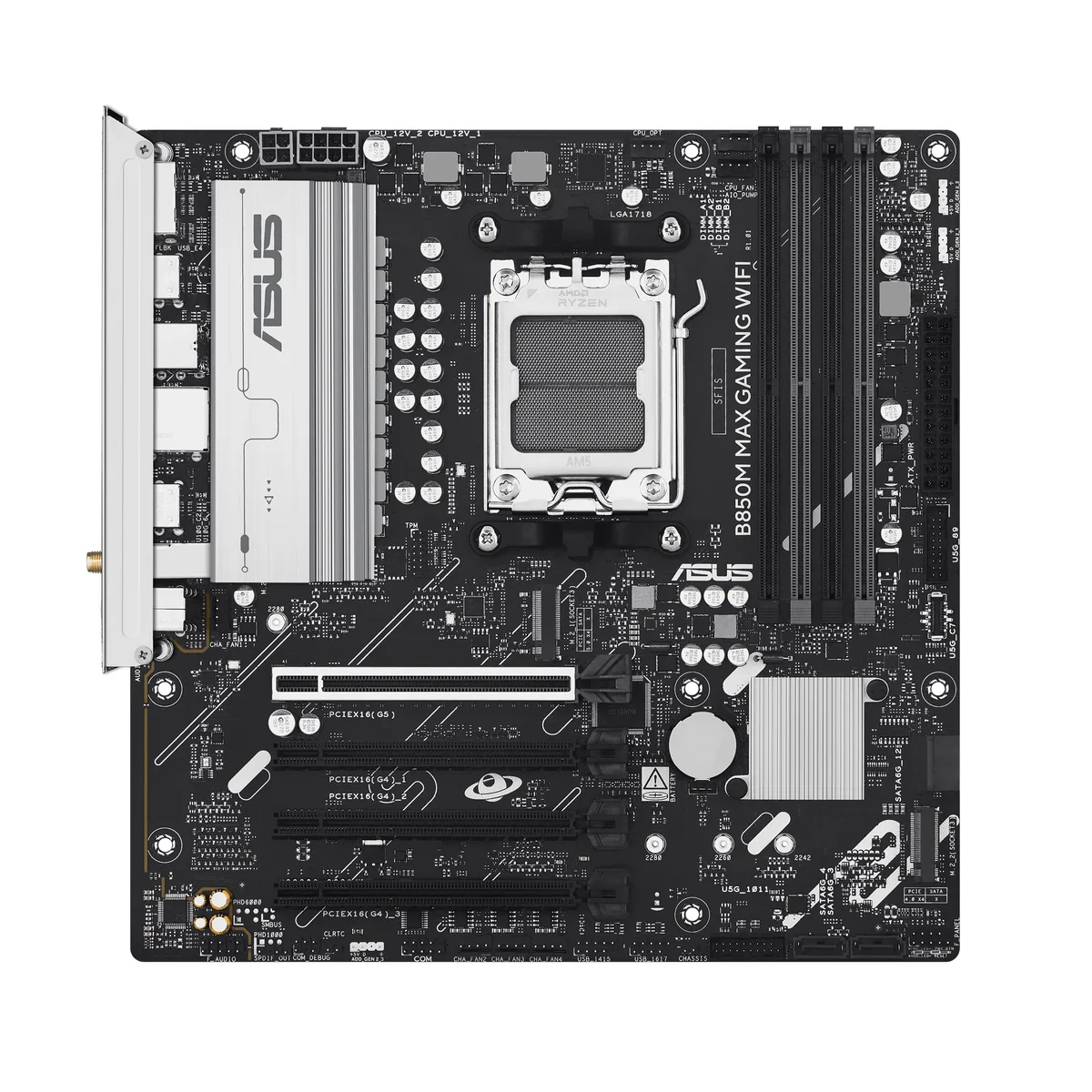

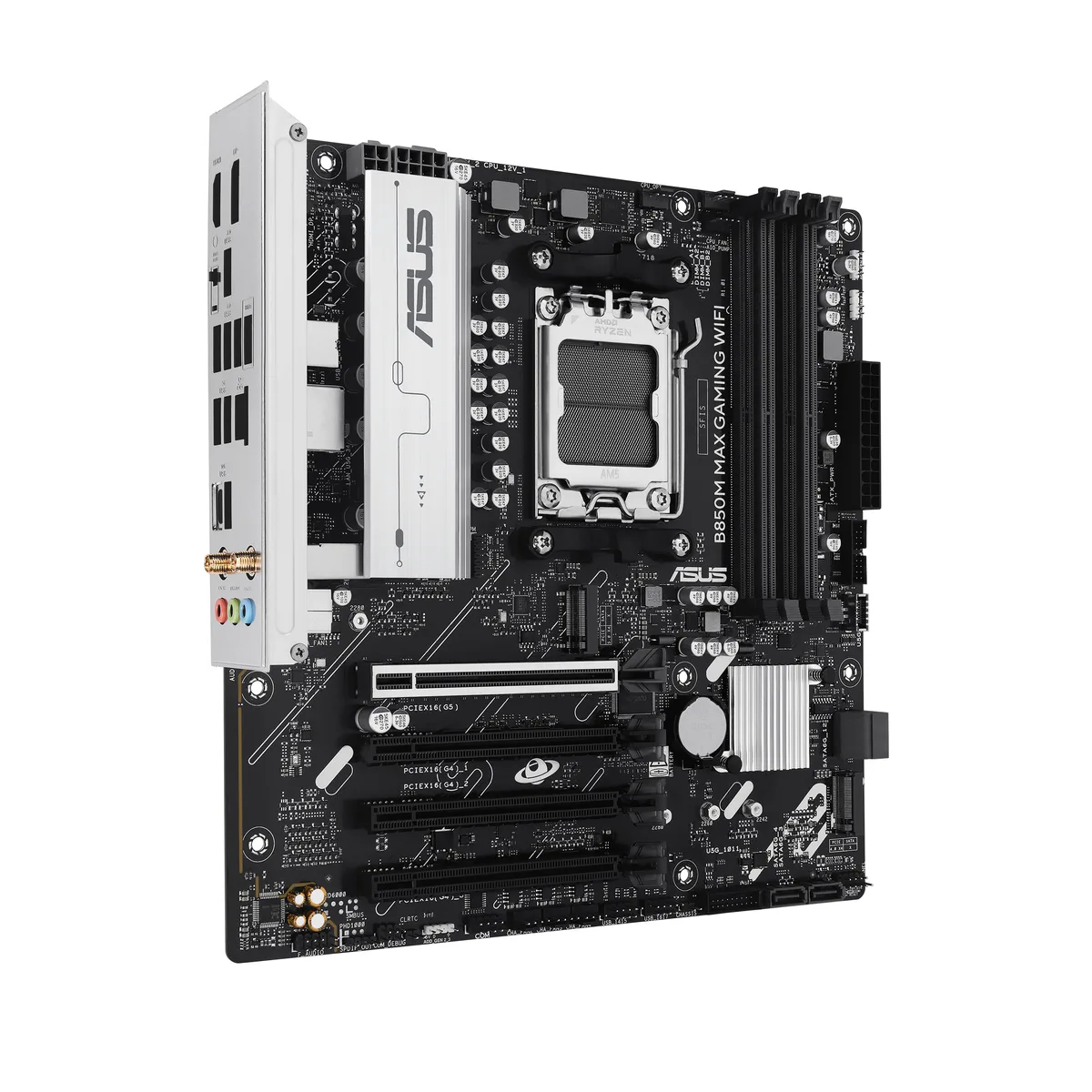

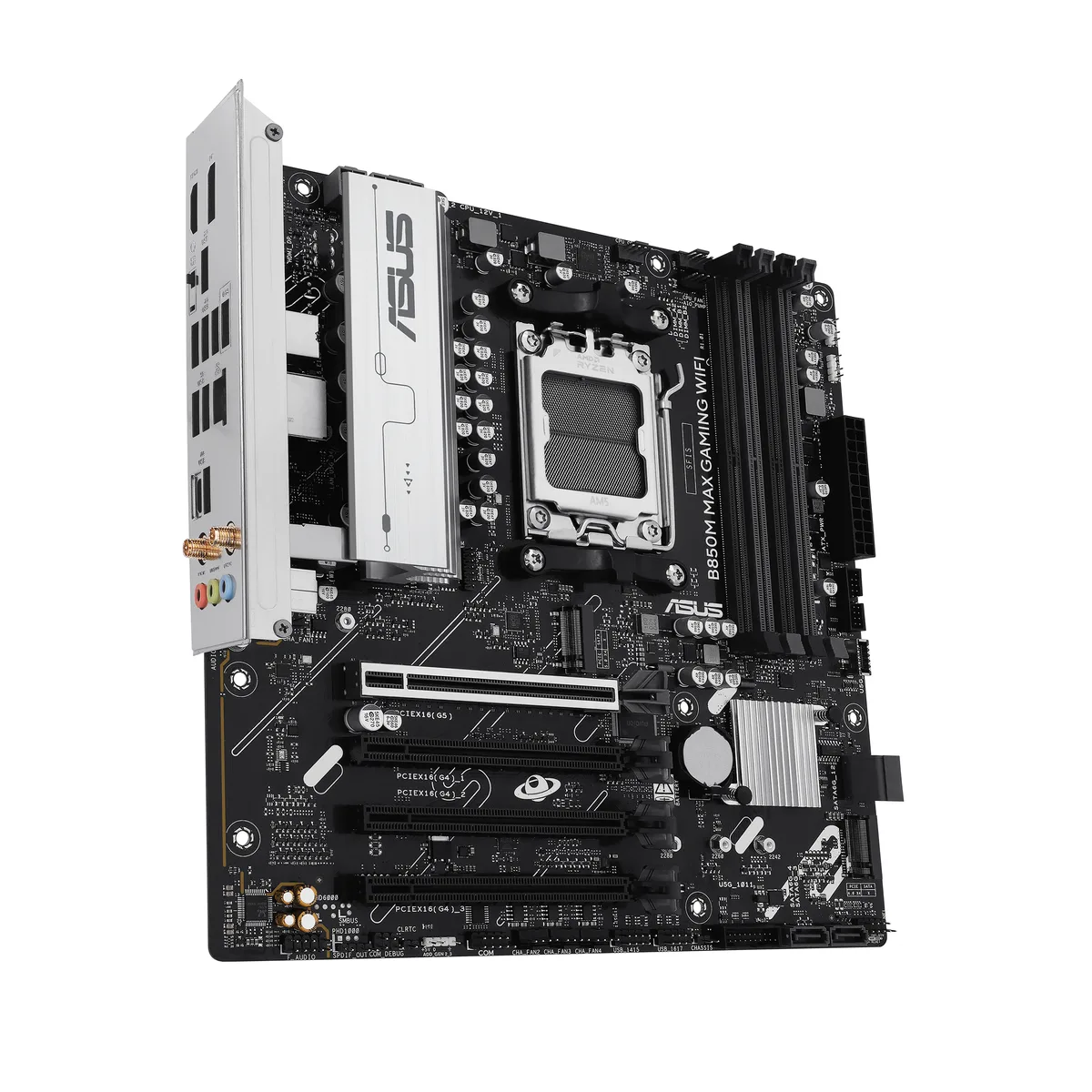

The ASUS B850M MAX GAMING WIFI uses the AMD B850 chipset on a micro-ATX board. It accepts Ryzen 7000, 8000 and 9000 series processors in the AM5 socket. Four DDR5 slots support up to 256 GB at speeds beyond 6000 MT/s via AMD EXPO. The board includes Wi-Fi 6, 1 Gbps Ethernet, 7.1-channel audio and rear USB 10 Gbps Type-A and Type-C ports.
Builders who want compact AM5 with PCIe 5.0
This board suits small-form-factor gaming or workstation builds that need a full-length PCIe 5.0 x16 slot and a PCIe 5.0 M.2 slot driven by Ryzen 7000 or 9000 CPUs. It also provides three additional PCIe 4.0 x1 slots and four SATA 6 Gb/s ports. Users requiring more than four memory slots, 10 Gbps networking or a full-size ATX layout should look at larger platforms.
PCIe 5.0 x16 slot and M.2_1 at 5.0 x4
The single specification that decides compatibility is the PCIe 5.0 x16 slot and the M.2_1 slot running at PCIe 5.0 x4, which are only active with Ryzen 7000 or 9000 series processors. With Ryzen 8000 series CPUs both interfaces operate at PCIe 4.0 speeds, so CPU choice directly determines the peak bandwidth available for graphics and primary storage.
Highlights
- AM5 socket supports Ryzen 7000 8000 9000 series CPUs
- Four DDR5 slots reach 8000 MT/s with EXPO profiles
- PCIe 5.0 x16 slot and M.2 slot for next-gen GPU and storage
- Wi-Fi 6 plus 1Gb Ethernet and USB 10Gbps Type-A and Type-C
- VRM and PCH heatsinks with Fan Xpert 2 plus Aura Sync RGB headers
Specifications
| Brand | ASUS |
|---|---|
| Model | B850M MAX GAMING WIFI-GSI |
| Part Number | 90MB1LL0-MVAAY0 |
| CPU Socket Type | AM5 |
| CPU Type | Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series |
| Chipset | AMD B850 |
| Number of Memory Slots | 4x288pin (DDR5) |
| Memory Standard | Supports up to 8000+MT/s (OC) |
| Maximum Memory Supported | 256GB |
| Channel Supported | Dual Channel |
| Memory Performance Profile | AMD EXPO |
| ECC Supported | Non-ECC |
| Buffer Supported | Un-buffered |
| PCI Express 5.0 x16 | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) |
| PCI Express 4.0 x16 | 3 x PCIe 4.0 x16 slot (support x1 mode) |
| Serial ATA (SATA) | 4 x SATA 6Gb/s |
| M.2 | AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
| SATA RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
| Audio Channels | 7.1 Channels |
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ax |
| Bluetooth | Bluetooth 5.3 |
| Back I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button |
| Onboard USB | 1 x USB 5Gbps connector (supports USB Type-C) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
| Other Connectors | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
| Form Factor | Micro ATX |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector |
| BIOS Feature | 256 Mb Flash ROM, UEFI AMI BIOS |
| Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
| Windows 11 | Supported |
| Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
| Package Contents | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 2 x Screw packages for M.2 SSD Documentation 1 x Quick start guide |
Questions about this item
Which CPU must I already have for the AM5 socket on this B850 board?
A Ryzen 7000, 8000 or 9000 series desktop processor fits the AM5 socket.
Will my PCIe 4.0 graphics card run at full speed in the primary slot?
With a Ryzen 9000 or 7000 CPU the slot is PCIe 5.0 x16; with Ryzen 8000 it becomes PCIe 4.0 x16, so a 4.0 card runs at its rated speed.
How can I confirm the DDR5 memory is running at the rated 6000 MT/s after build?
Enable AMD EXPO in the BIOS, then check the memory frequency in the Q-Dashboard or Armoury Crate software.
