ASUS H61M-K uATX motherboard, green PCB, silver ports, LGA 1155 socket, two DDR3 slots, single PCIe x16, two PCIe x1

ASUS

ASUS H61M-K LGA 1155 Intel H61 uATX Motherboard

SKU CH-HTG1-0PZHB

uATX board for LGA 1155 CPUs with H61 chipset, dual-channel DDR3 up to 16 GB, PCIe 3.0 x16, DVI and D-Sub video, 8-channel audio and gigabit LAN

  • CPU Socket TypeLGA 1155
  • CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel H61 (B3)
  • Onboard Video ChipsetIntegrated Graphics ProcessorMulti-VGA output support: DVI/R
  • Number of Memory Slots2x240pin
  • Supports second and third generation Intel Core processors with LGA 1155 socket
  • Dual-channel DDR3 memory up to 16 GB across two 240-pin slots
  • Integrated graphics provide DVI output up to 1920 x 1200 at 60 Hz and D-Sub up to 2048 x 1536 at 75 Hz
  • Realtek ALC887 8-channel audio and Realtek 8111F Gigabit LAN for sound and networking
  • One PCIe 3.0 x16 slot plus two PCIe 2.0 x1 slots for expansion cards

Socket LGA 1155 uATX board for legacy Intel builds

The ASUS H61M-K pairs the Intel H61 (B3) chipset with an LGA 1155 socket supporting Core i7, i5, i3, Pentium and Celeron processors. It fits uATX chassis and provides two 240-pin DDR3 slots for dual-channel memory up to 16 GB. Onboard graphics output includes DVI and D-Sub ports driven by the CPU integrated graphics processor.

Sustained operation stays within H61 platform limits

Under continuous load the board runs within the thermal and power envelope defined by the H61 chipset and supported CPUs. Turbo Boost 2.0 engages on compatible processors while the voltage regulation and PCB layout handle typical desktop workloads without additional active cooling on the chipset heatsink.

Dual-channel DDR3 ceiling of 16 GB

Maximum supported memory is 16 GB across the two slots using non-ECC un-buffered DDR3 modules at speeds from 1066 up to 2200 MT/s when overclocked. This capacity ceiling is the single figure that determines whether the board meets a given build requirement.

Highlights

  • Supports second and third generation Intel Core processors with LGA 1155 socket
  • Dual-channel DDR3 memory up to 16 GB across two 240-pin slots
  • Integrated graphics provide DVI output up to 1920 x 1200 at 60 Hz and D-Sub up to 2048 x 1536 at 75 Hz
  • Realtek ALC887 8-channel audio and Realtek 8111F Gigabit LAN for sound and networking
  • One PCIe 3.0 x16 slot plus two PCIe 2.0 x1 slots for expansion cards

Specifications

BrandASUS
ModelH61M-K
CPU Socket TypeLGA 1155
CPU TypeCore i7 / i5 / i3 / Pentium / Celeron (LGA1155)
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel H61 (B3)
Onboard Video ChipsetIntegrated Graphics ProcessorMulti-VGA output support: DVI/RGB ports- Supports DVI with max. resolution 1920 x 1200 @ 60 Hz- Supports RGB with max. resolution 2048 x 1536 @ 75 HzMaximum shared memory of 1024MB
Number of Memory Slots2x240pin
Memory StandardDDR3 2200(O.C.)/ 2133(O.C.)/ 2000(O.C.)/ 1866(O.C.)/ 1600/ 1333/ 1066, Non-ECC, Un-buffered
Maximum Memory Supported16GB
Channel SupportedDual Channel
PCI Express 3.0 x161 x PCIe 3.0/2.0 x16 *1*1: Intel 3rd Generation Core processors support PCIe 3.0 speed.
PCI Express x12 x PCIe 2.0 x1
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek 8111F
Max LAN Speed1Gbps

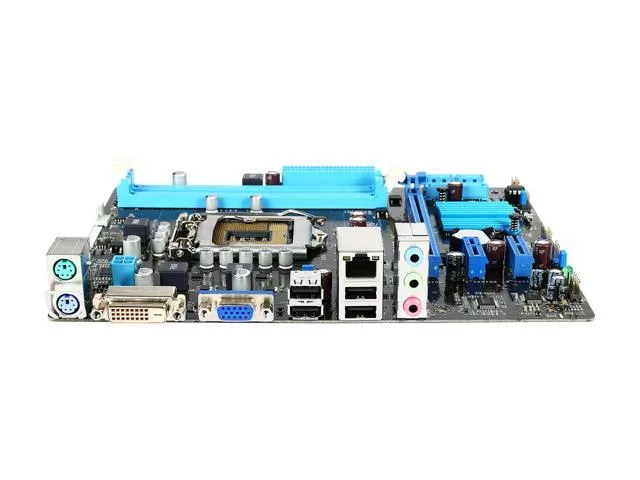

Back I/O Ports2 x PS/2 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard (purple)1 x PS/2 mouse (green)
Video Ports1 x DVI1 x D-Sub
RJ451 x LAN (RJ45) port
USB 1.1/2.04 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors1 x CPU Fan connector(s) (4 -pin)1 x Chassis Fan connector(s) (4 -pin)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel connector(s)1 x Front panel audio connector(s) (AAFP)1 x Internal speaker connector(s)1 x Clear CMOS jumper(s)
Form FactoruATX
Dimensions (W x L)8.90" x 6.89"
Power Pin24 Pin
FeaturesSpecial Features:ASUS Exclusive Features:- AI Suite II- Ai Charger- Anti-Surge- ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface- Network iControlASUS Quiet Thermal Solution:- ASUS Fan XpertASUS EZ DIY:- ASUS CrashFree BIOS 3- ASUS EZ Flash 2- ASUS MyLogo 2BIOS:64MB Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.7, ACPI v2.0a,SLP3.0, EUP-readyManageability:WOL, PXE, PME Wake UpSupport Disc:DriversASUS UtilitiesASUS UpdateAnti-Virus Software (OEM Version)
Package ContentsAccessories:I/O Shield2 x SATA 3Gb/s cable(s)

Questions about this item

How much heat and power should I expect from the H61M-K and its H61 chipset when the system runs all day?

The H61 chipset is a low-power design with a modest thermal envelope, so the board itself adds little heat or draw; total consumption will depend on the LGA 1155 processor and DDR3 memory you install.

Which DDR3 modules and LGA 1155 processor must I already have for this board to POST?

You need two un-buffered non-ECC DDR3 DIMMs up to 16 GB total and any Core i7, i5, i3, Pentium or Celeron CPU in the LGA 1155 package.

Will my older PCIe 2.0 graphics card and D-Sub monitor work with the PCIe 3.0 x16 slot and onboard video ports?

The PCIe 3.0 x16 slot is backward compatible with PCIe 2.0 cards, and the rear I/O provides both DVI and D-Sub outputs for legacy displays.
