ATX motherboard with black PCB and blue accents

ASUS

ASUS H81-GAMER Intel H81 LGA 1150 DDR3 ATX motherboard

SKU CH-9V1Q-C5KHZ

ATX board for 4th-generation Intel CPUs with four DDR3 slots, dual SATA III ports and 7.1-channel audio

  • CPU Socket TypeLGA 1150
  • CPU Type4th-generation Core i3, i5, i7, Pentium, Celeron(LGA1150)
  • ChipsetIntel H81
  • Number of Memory Slots4×DDR3 DIMM
  • Memory StandardDDR3 1600/1333/1066MHz
  • PCI Express x11 × PCI-E x16 graphics card slot, 3 × PCI-E X1 slot 3 × PCI
  • Supports 4th-gen Intel Core i3, i5, i7, Pentium and Celeron CPUs on LGA 1150 socket
  • Four DDR3 DIMM slots accept 1066, 1333 and 1600 MHz memory in dual-channel mode
  • Two SATA III and two SATA II ports give four internal drive connections
  • ATX layout provides one PCIe x16 slot, three PCIe x1 slots and three legacy PCI slots
  • 1-channel HD Audio, dual USB 3.0, four USB 2.0, VGA, DVI-D and Gigabit LAN on rear I/O

LGA 1150 ATX motherboard

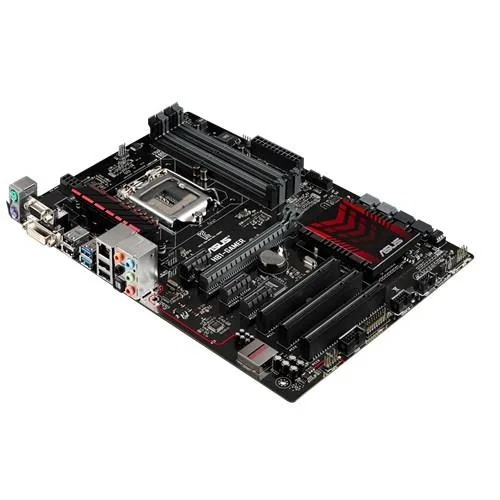

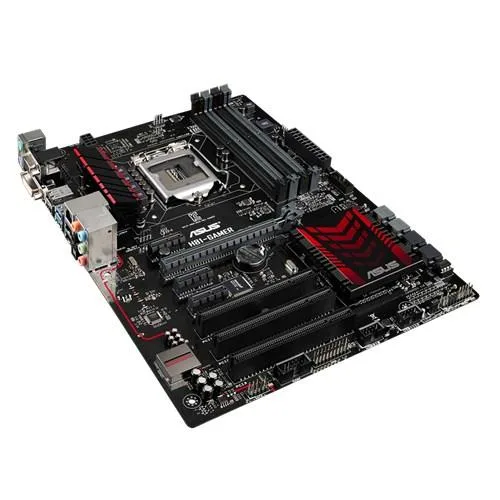

The ASUS H81-GAMER is an ATX motherboard built around the Intel H81 chipset and the LGA 1150 socket. It accepts 4th-generation Core i3, i5 and i7 processors as well as Pentium and Celeron models. Four DDR3 DIMM slots run at 1066, 1333 or 1600 MHz in dual-channel mode.

Expansion and storage layout

One PCI Express 2.0 x16 slot and three PCI Express x1 slots handle graphics and add-in cards. Three legacy PCI slots are also present. Storage connects through two SATA III and two SATA II ports. Rear I/O supplies two USB 3.0 ports, four USB 2.0 ports, VGA, DVI-D, PS/2, Gigabit Ethernet and 7.1-channel audio.

DDR3 memory ceiling

The four unbuffered non-ECC DIMM sockets support DDR3 up to 1600 MHz. This memory standard and speed ceiling are the deciding factor when matching the board to a CPU and existing RAM kit.

Highlights

  • Supports 4th-gen Intel Core i3, i5, i7, Pentium and Celeron CPUs on LGA 1150 socket
  • Four DDR3 DIMM slots accept 1066, 1333 and 1600 MHz memory in dual-channel mode
  • Two SATA III and two SATA II ports give four internal drive connections
  • ATX layout provides one PCIe x16 slot, three PCIe x1 slots and three legacy PCI slots
  • 1-channel HD Audio, dual USB 3.0, four USB 2.0, VGA, DVI-D and Gigabit LAN on rear I/O

Specifications

BrandASUS
ModelH81-GAMER
CPU Socket TypeLGA 1150
CPU Type4th-generation Core i3, i5, i7, Pentium, Celeron(LGA1150)
ChipsetIntel H81
Number of Memory Slots4×DDR3 DIMM
Memory StandardDDR3 1600/1333/1066MHz
PCI Express x11 × PCI-E x16 graphics card slot, 3 × PCI-E X1 slot 3 × PCI slot
PCI SlotsPCI-E 2.0
Other Slots2 × SATA III interface, 2 × SATA II interface
Back I/O Ports1 x PS/2
PS/21 x PS/2 keyboard/mouse port
S-VideoVGA+DVI
RJ451 x RJ45
Form FactorATX
Dimensions (W x L)30.5×21.4cm
Power Pin24 Pin

Questions about this item

How many DDR3 DIMM slots does the H81-GAMER provide for memory upgrades?

The board includes four DDR3 DIMM slots supporting dual-channel operation at 1066, 1333 and 1600 MHz.

What fan headers are available for long-term cooling management?

Two chassis fan connectors and a dedicated CPU fan header are present for sustained airflow control.

Which power connectors must the power supply already have for this motherboard?

A 24-pin ATX connector and a 4-pin EATX power connector are required.
