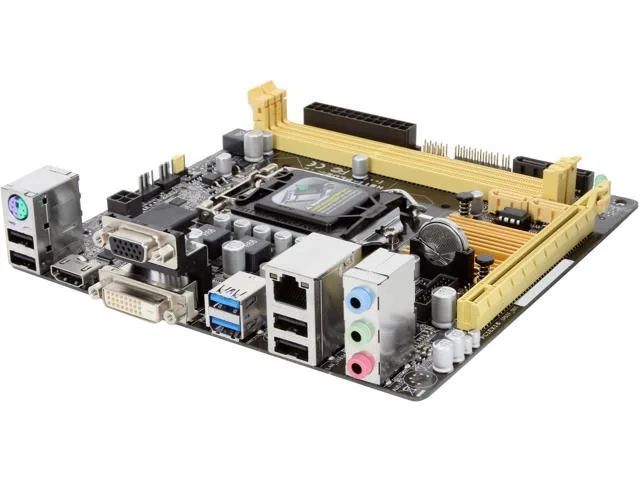

Green Mini ITX board with black LGA 1150 socket, two DDR3 slots, HDMI DVI VGA and USB ports

ASUS

ASUS H81I-PLUS LGA 1150 H81 Mini ITX Intel motherboard

SKU CH-8SZZ-98XWQ

Mini-ITX Intel H81 board for 4th Gen Core CPUs with dual-channel DDR3 1600/1333/1066, HDMI, DVI-D, D-Sub, two SATA 6Gb/s, USB 3.0, USB 2.0/1.1, PS/2 combo, Realtek 8-channel audio and 1 Gbps LAN

  • CPU Socket TypeLGA 1150
  • CPU Type4th Generation Core i7/Core i5/Core i3/Pentium/Celeron
  • Supported CPU TechnologiesTurbo Boost Technology 2.0
  • ChipsetIntel H81
  • Onboard Video ChipsetSupported only by CPU with integrated graphic
  • Number of Memory Slots2x240pin
  • Supports 4th Generation Intel Core i7, i5, i3, Pentium and Celeron processors via LGA 1150 socket
  • Dual-channel DDR3 memory up to 16 GB at 1600, 1333 or 1066 speeds
  • Two SATA 6 Gb/s ports for fast storage connectivity
  • 8-channel Realtek ALC887 audio for clear multi-channel sound
  • Gigabit LAN with Realtek RTL8111G controller for reliable wired networking

ASUS H81I-PLUS Mini ITX Motherboard

This Mini ITX board uses the Intel H81 chipset and an LGA 1150 socket for 4th Generation Core i7, i5, i3, Pentium and Celeron processors. It fits compact builds that need standard desktop performance in a small footprint. Onboard video outputs rely on a CPU with integrated graphics.

Upgrade Path from Older LGA 1150 Boards

The H81 chipset adds native SATA 6 Gb/s and USB 3.0 support that earlier entry-level chipsets lacked. Moving to this board is worthwhile when you need faster storage and peripheral speeds without changing your existing DDR3 memory or processor. Turbo Boost Technology 2.0 is supported on compatible CPUs.

Compatibility Checklist Before Purchase

Verify your processor is an LGA 1150 model from the 4th Generation Core or Pentium and Celeron families listed. Confirm you have DDR3 DIMMs rated for 1600, 1333 or 1066 speeds; the board holds two 240-pin slots up to 16 GB total in dual-channel mode. Ensure your case accepts a Mini ITX form factor and that your power supply provides the required ATX connectors.

Highlights

  • Supports 4th Generation Intel Core i7, i5, i3, Pentium and Celeron processors via LGA 1150 socket
  • Dual-channel DDR3 memory up to 16 GB at 1600, 1333 or 1066 speeds
  • Two SATA 6 Gb/s ports for fast storage connectivity
  • 8-channel Realtek ALC887 audio for clear multi-channel sound
  • Gigabit LAN with Realtek RTL8111G controller for reliable wired networking

Specifications

BrandASUS
ModelH81I-PLUS
CPU Socket TypeLGA 1150
CPU Type4th Generation Core i7/Core i5/Core i3/Pentium/Celeron
Supported CPU TechnologiesTurbo Boost Technology 2.0
ChipsetIntel H81
Onboard Video ChipsetSupported only by CPU with integrated graphic
Number of Memory Slots2x240pin
Memory StandardDDR3 1600/1333/1066
Maximum Memory Supported16GB
Channel SupportedDual Channel
PCI Express 2.0 x161 x PCI Express 2.0 x16
Serial ATA (SATA)2 x SATA 6Gb/s
Audio ChipsetRealtek ALC887
Audio Channels8 Channels
LAN ChipsetRealtek RTL8111G
Max LAN Speed1Gbps
Back I/O Ports1 x HDMI / 1 x PS/2 Keyboard/Mouse Combo / 2 x USB 3.0 / 4 x USB 2.0/1.1
PS/21 x PS/2 keyboard/mouse port
Video Ports1 x DVI-D1 x D-Sub
HDMI1 x HDMI
USB 3.02 x USB 3.0
USB 1.1/2.04 x USB 2.0
Audio Ports3 Ports
Onboard USB2 x USB 3.0 + 4 x USB 2.0
Other Connectors1 x TPM header1 x CPU Fan connector(s) (1 x 4 -pin)1 x Chassis Fan connector(s) (1 x 4 -pin)1 x S/PDIF out header(s)1 x 24-pin EATX Power connector(s)1 x 4-pin ATX 12V Power connector(s)1 x Front panel connector(s) 1 x Internal speaker connector(s)1 x System panel(s) 1 x Clear CMOS jumper(s)
Form FactorMini ITX
Dimensions (W x L)6.7" x 6.7"
Power Pin24 Pin
FeaturesNew UEFI BIOS and EZ Mode: Friendlier, easier, and more intuitive with helpful info addedUSB 3.0 BOOST (UASP Support): 170% faster transfer speeds than traditional USB 3.0Network iControl: Real-time network bandwidth managementAI Suite 3: One-stop access to innovative ASUS featuresEPU:All-round energy efficiencyASUS Digital Power Design :-ASUS DIGI+ VRM UtilityASUS Exclusive Features :-AI Suite 3-Ai Charger+-Anti-Surge-ESD Guards-ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface -Network iControlASUS Quiet Thermal Solution :-ASUS Fan Xpert ASUS EZ DIY :-ASUS CrashFree
Package ContentsASUS H81I-PLUS MotherboradUser's manualI/O Shield2 x SATA 6Gb/s cable(s)
