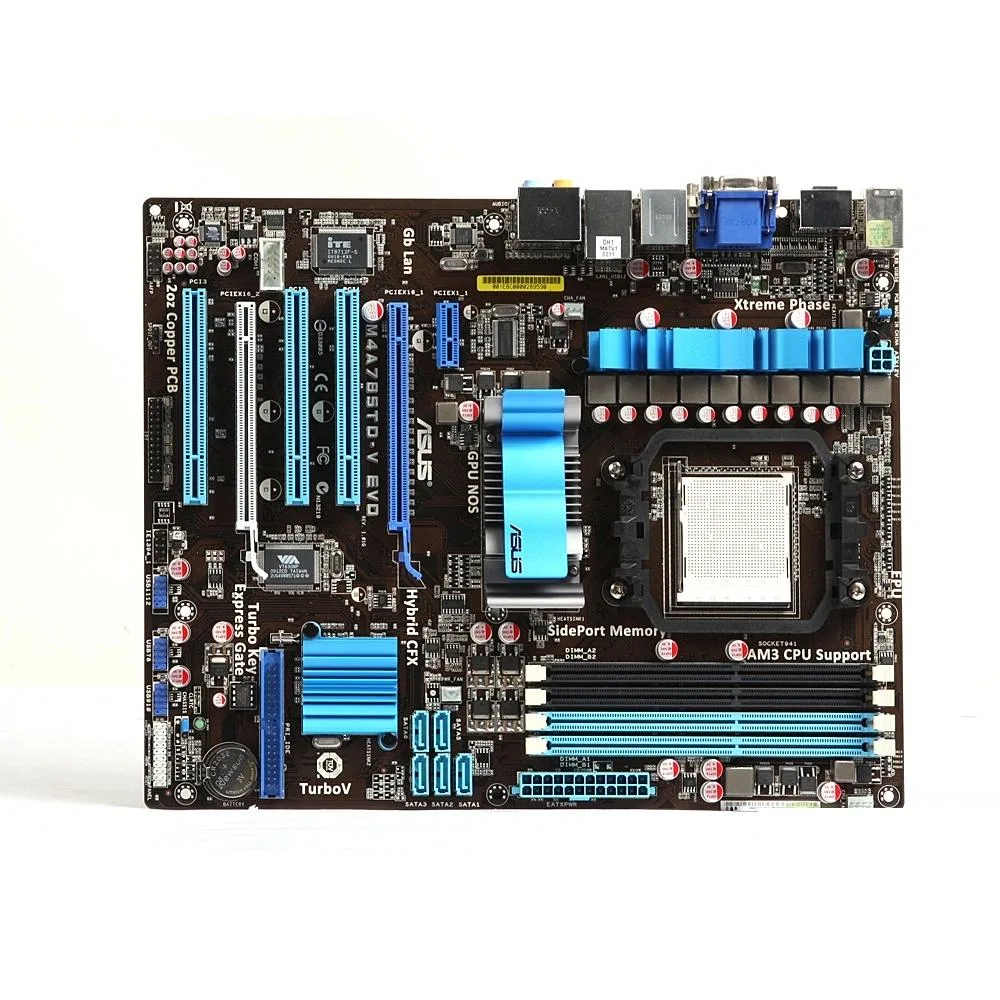

ATX motherboard in dark finish with silver heatsinks and blue memory slots

ASUS

ASUS M4A785TD-V EVO AMD 785G DDR3 16GB ATX Motherboard

SKU CH-CSHP-XTCGH

Socket AM3 ATX motherboard with AMD 785G chipset supporting up to 16GB DDR3 memory

  • CPU Socket TypeSocket AM3
  • ChipsetAMD 785G
  • Maximum Memory Supported16GB
  • Supports up to 16GB DDR3 memory for responsive multitasking
  • AMD 785G chipset provides integrated graphics without a separate card
  • Socket AM3 fits a wide range of AMD processors
  • ATX form factor suits standard desktop cases
  • Includes SATA cable and I/O shield for immediate installation

Socket AM3 AMD 785G Motherboard

This ASUS motherboard uses the AMD 785G chipset and a Socket AM3 interface on an ATX form factor. It supports DDR3 memory up to a maximum of 16GB. The board integrates graphics and includes a single SATA cable and an I/O back panel in the package.

Suits AM3 upgrades; not for newer CPUs

This board suits builders replacing a failed Socket AM3 board or upgrading an existing AM3 system with integrated graphics. It will not accept newer AM4 or AM5 processors, so owners of those platforms must select a different motherboard.

Maximum memory supported is 16GB DDR3

The chipset and board design limit total system memory to 16GB across the available DDR3 slots. If your workload requires more than 16GB, this motherboard cannot meet that requirement and a different platform is necessary.

Highlights

  • Supports up to 16GB DDR3 memory for responsive multitasking
  • AMD 785G chipset provides integrated graphics without a separate card
  • Socket AM3 fits a wide range of AMD processors
  • ATX form factor suits standard desktop cases
  • Includes SATA cable and I/O shield for immediate installation

Specifications

BrandASUS
SeriesASUS M4A785TD-V EVO
ModelASUS M4A785TD-V EVO
CPU Socket TypeSocket AM3
ChipsetAMD 785G
Maximum Memory Supported16GB

Questions about this item

What ATX case and CPU cooler clearance does the ASUS M4A785TD-V EVO need?

The board follows the standard ATX form factor and fits any ATX chassis; ensure the CPU cooler height clears the Socket AM3 retention bracket and surrounding capacitors.

What is the correct order for seating the processor, memory and I/O shield during installation?

Install the I/O shield into the case first, then mount the motherboard, then drop the AM3 processor into the socket before locking the lever, and finally press the DDR3 modules into the slots until the clips click.

Which replaceable parts shipped with the board will need attention over time?

The package includes a CMOS battery and one SATA cable; the battery will eventually need replacement when the system loses date and time settings, and the SATA cable can be swapped if it becomes damaged.
