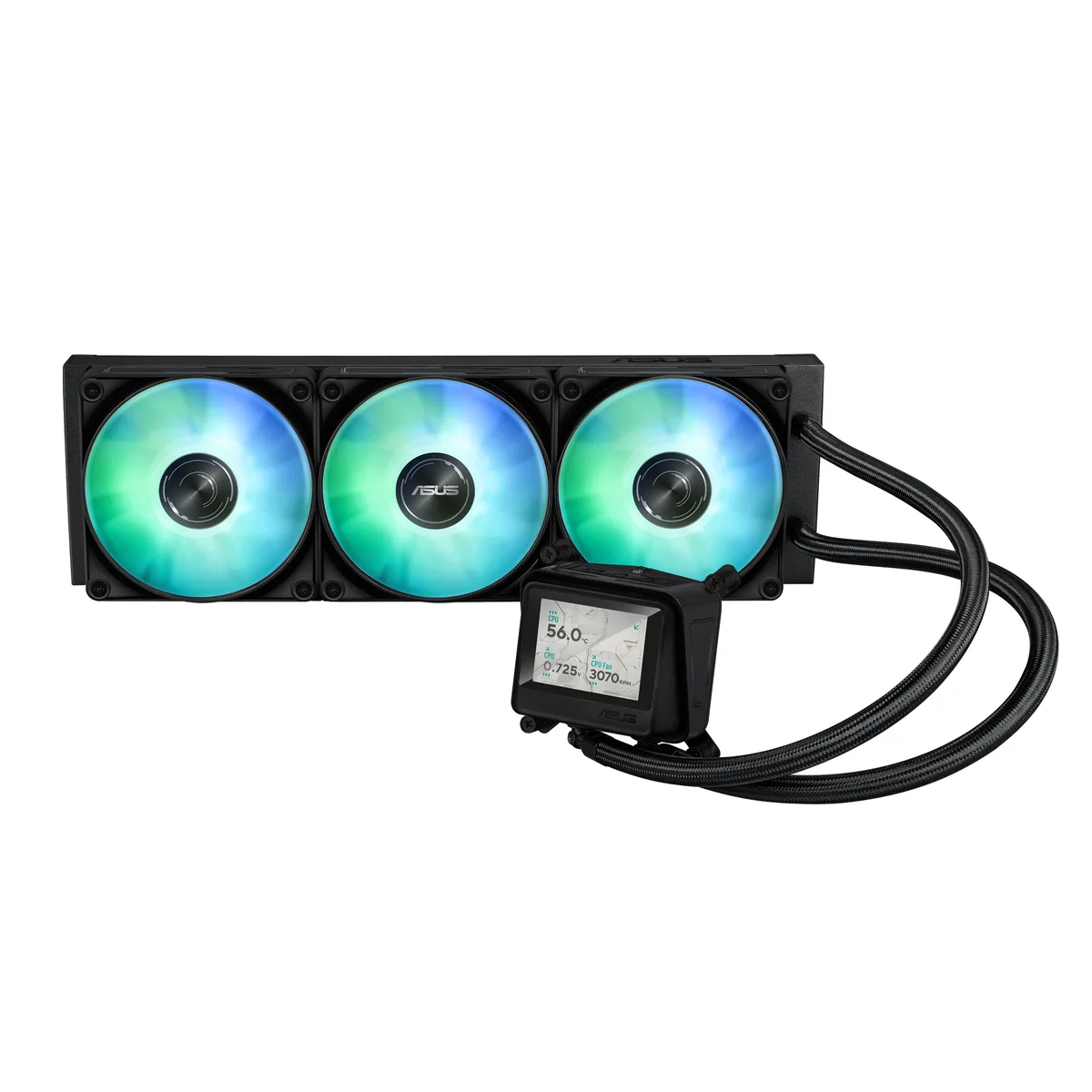

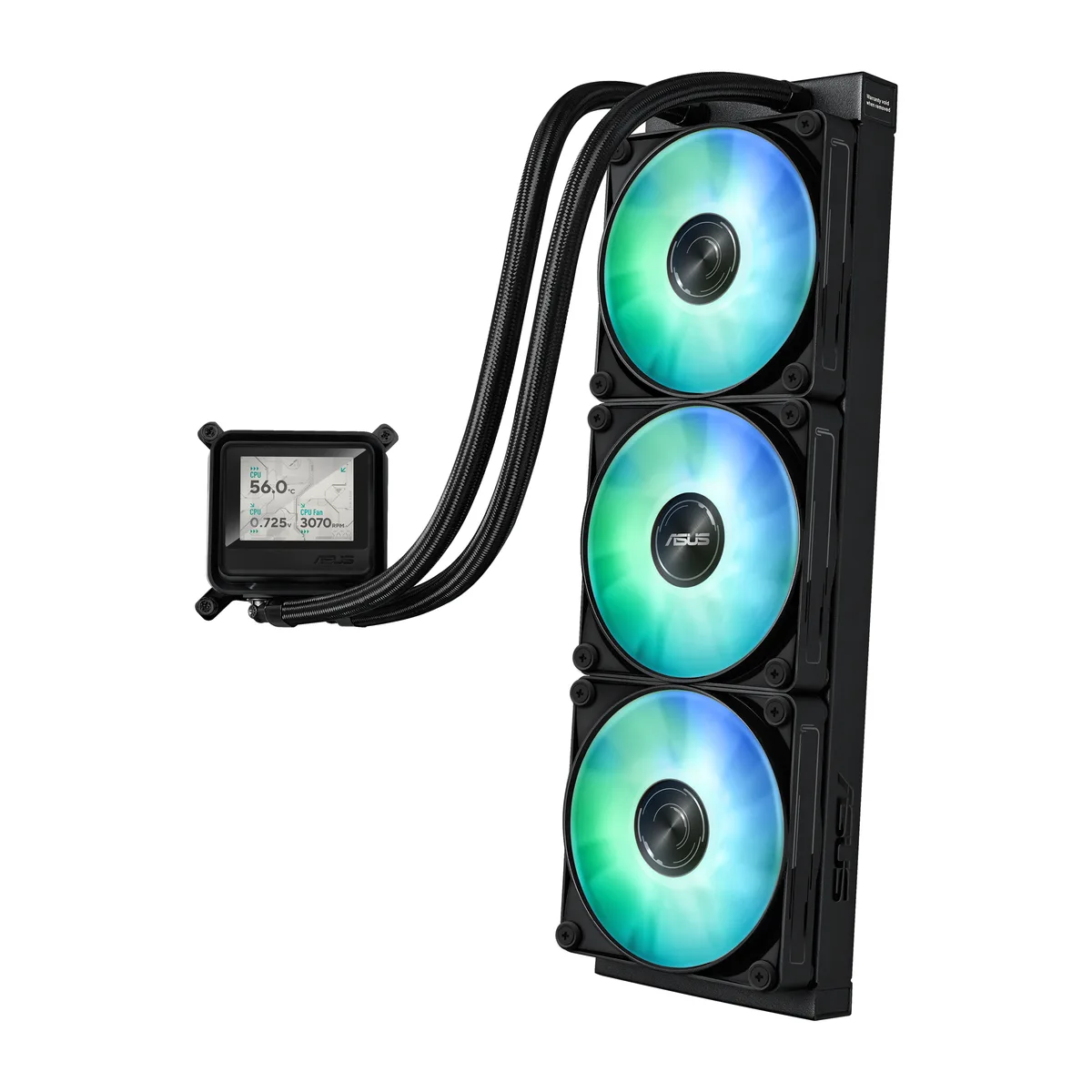

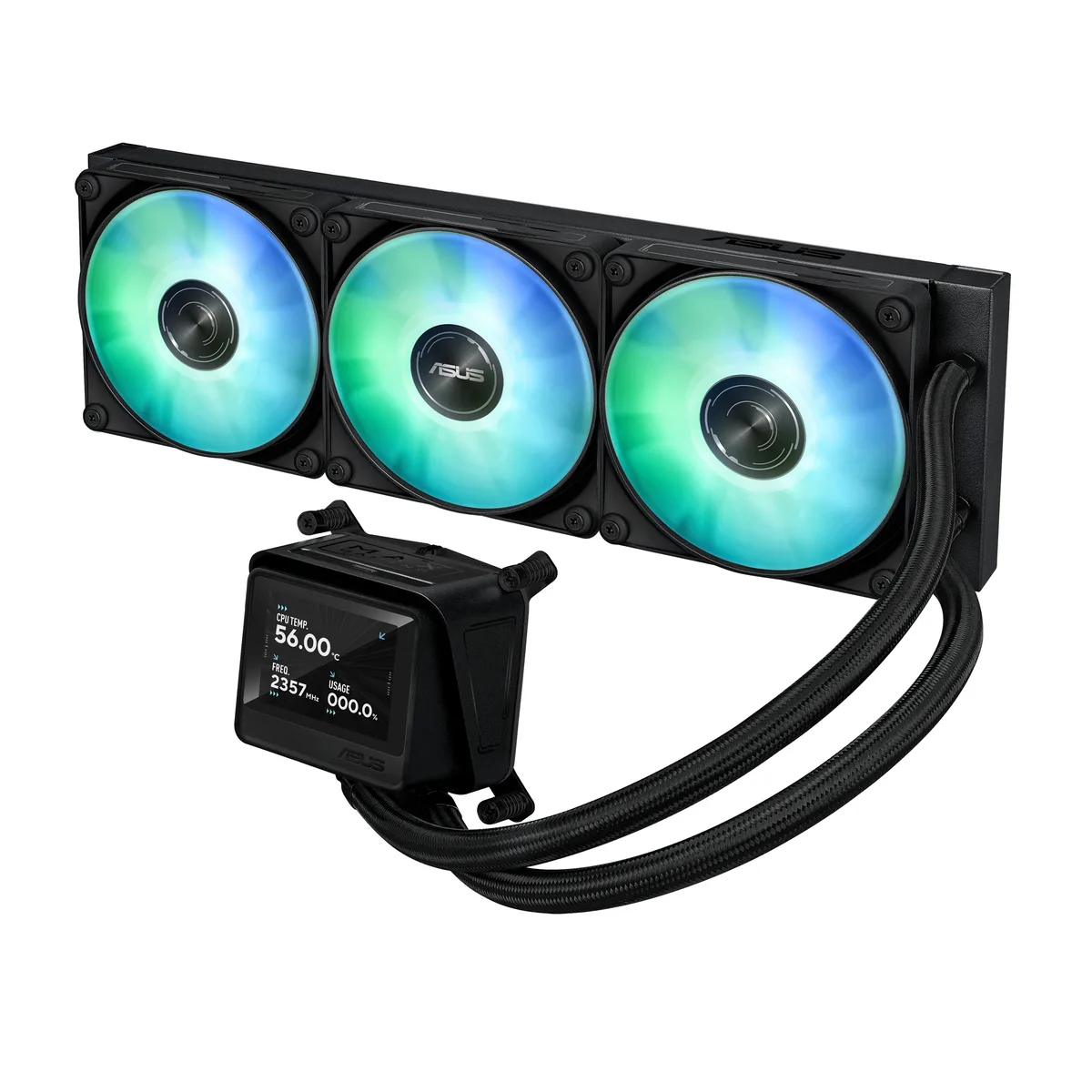

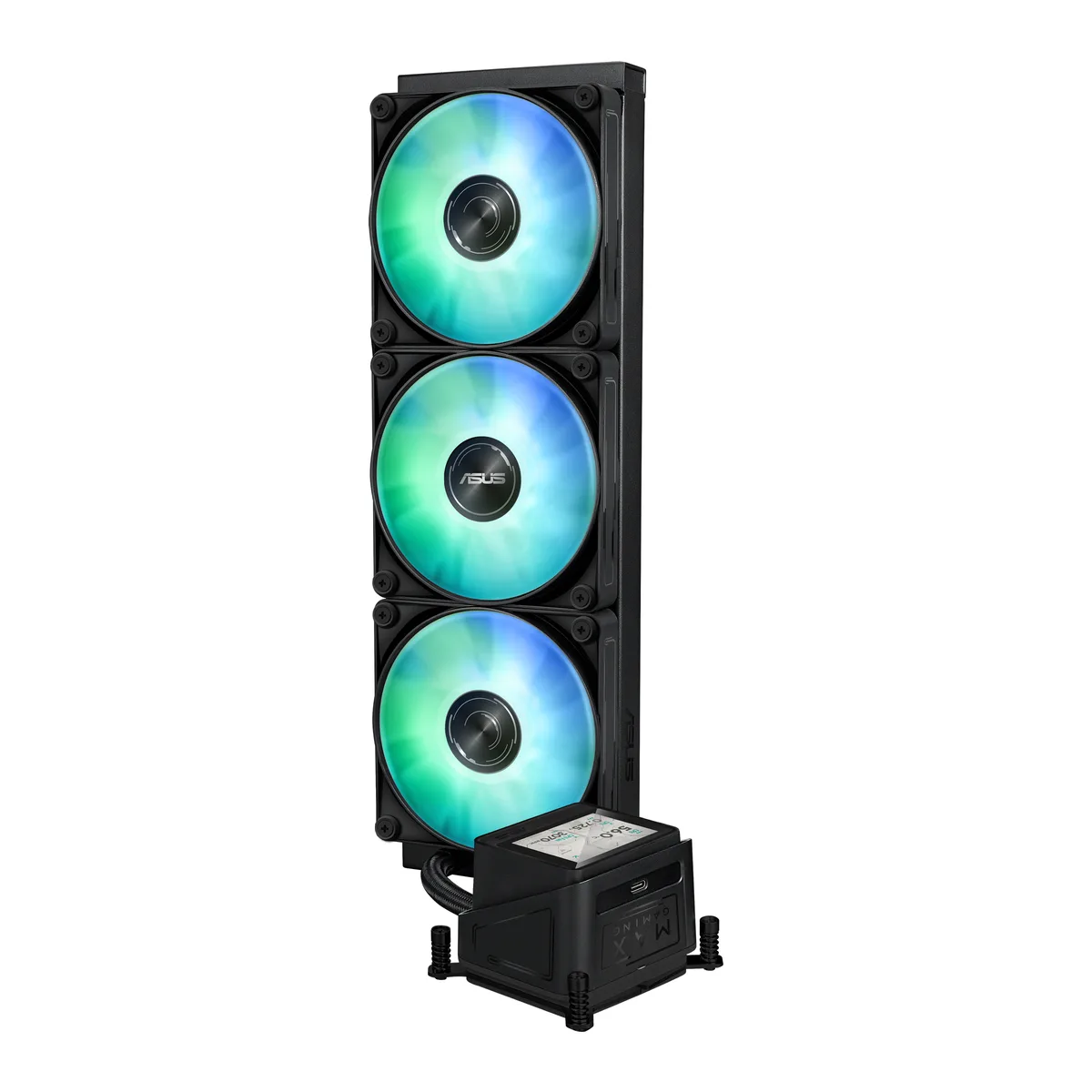

Black 360 mm radiator with three 120 mm ARGB fans and a square pump head showing a 2.4 inch IPS LCD screen

ASUS

ASUS MAX GAMING LC 360 ARGB LCD liquid cooler

SKU CH-NNHB-Z5WHV MPN MAX GAMING LC 360 ARGB LCD

A 360 mm all-in-one liquid CPU cooler with a 2.4" IPS LCD screen, three pre-installed 120 mm ARGB fans and a copper cold plate for AMD AM4, AM5 and Intel LGA 1700, 1851 sockets

  • TypeLiquid Cooling System
  • Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700 / Intel LGA
  • Block Dim.89.17 x 89.17 x 66.92 mm
  • Block MaterialCopper
  • Display2.4" Full Color IPS LCD
  • Pump Speed2600 - 3400 +/- 10% RPM
  • Vivid 2.4" IPS LCD shows live CPU stats or custom GIFs
  • 360 mm radiator with three 120 mm ARGB fans delivers 70.88 CFM airflow
  • Pump runs at 2600 to 3400 RPM for high flow and low impedance
  • Supports AMD AM4, AM5 and Intel LGA 1700, 1851 sockets out of the box
  • Pre-applied thermal paste and included brackets make installation straightforward

360mm AIO with 2.4" IPS LCD

The ASUS MAX GAMING LC 360 ARGB LCD is a 360mm all-in-one liquid CPU cooler built for enthusiasts who want strong thermal headroom and a built-in display. It supports AMD Socket AM4, AMD Socket AM5, Intel LGA 1700 and Intel LGA 1851 platforms. The copper cold plate and aluminium radiator form a sealed loop that arrives with thermal compound already applied.

Fits standard 360mm radiator mounts

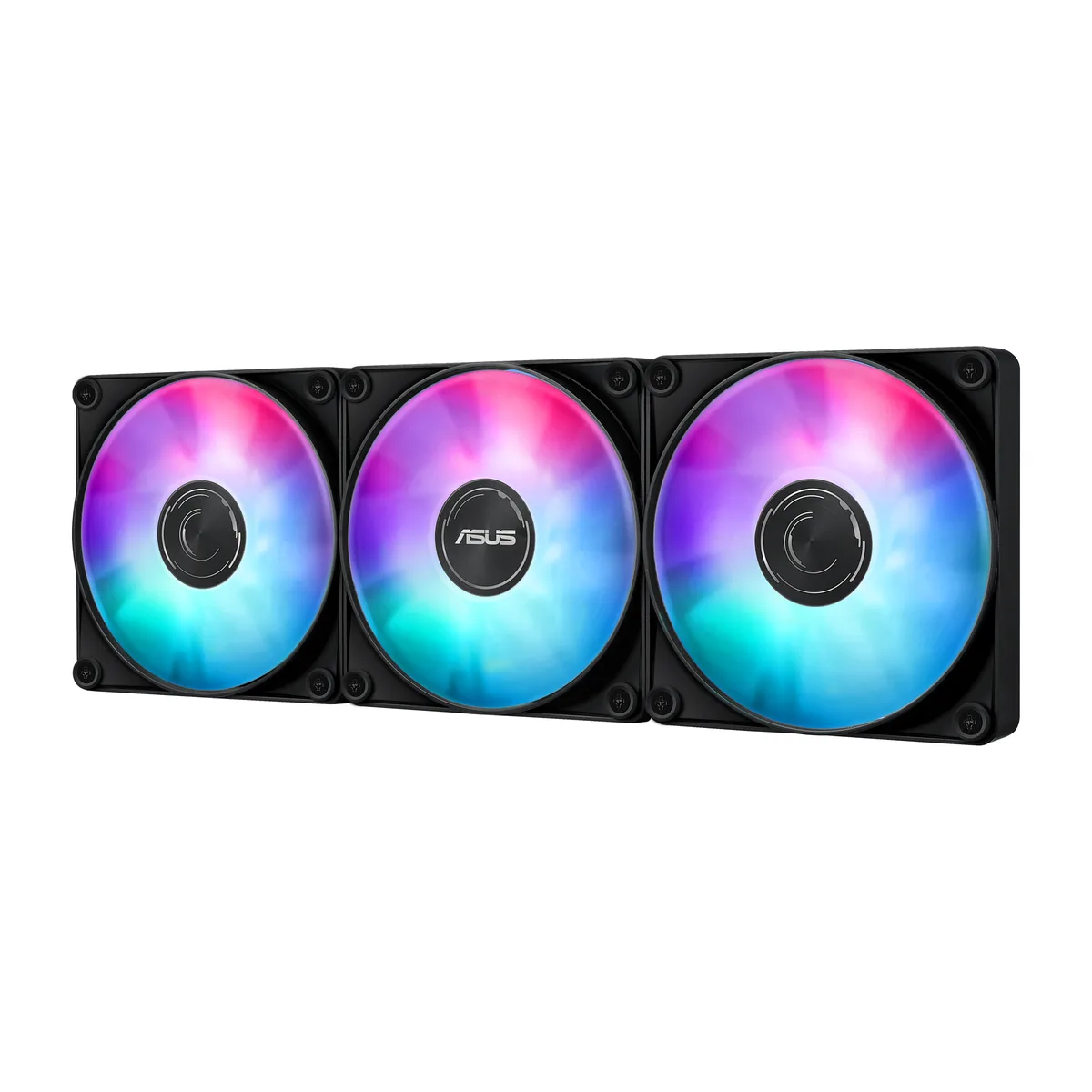

The radiator measures 394 x 120 x 27 mm and uses three 120mm fan slots, so it needs a case with a matching 360mm mounting location. Three daisy-chained ARGB fans are pre-installed on 450mm sleeved rubber tubes, freeing the builder from routing separate fan cables. The pump block measures 89.17 x 89.17 x 66.92 mm and clears most memory and VRM heatsinks.

Pump runs 2600-3400 RPM, fans up to 2500 RPM

In normal operation the pump speed ranges from 2600 to 3400 RPM with a ±10% tolerance. The 120mm fans spin between 0 and 2500 RPM, moving 70.88 CFM at a static pressure of 3.55 mmH2O while producing 35.5 dBA of noise. ASUS InfoHub software controls the LCD content and Aura Sync lighting without adding mechanical load.

Highlights

  • Vivid 2.4" IPS LCD shows live CPU stats or custom GIFs
  • 360 mm radiator with three 120 mm ARGB fans delivers 70.88 CFM airflow
  • Pump runs at 2600 to 3400 RPM for high flow and low impedance
  • Supports AMD AM4, AM5 and Intel LGA 1700, 1851 sockets out of the box
  • Pre-applied thermal paste and included brackets make installation straightforward

Specifications

BrandASUS
ModelMAX Gaming LC 360 ARGB LCD
TypeLiquid Cooling System
Block CompatibilityAMD Socket AM4 / AMD Socket AM5 / Intel LGA 1700 / Intel LGA 1851
Block Dim.89.17 x 89.17 x 66.92 mm
Block MaterialCopper
Display2.4" Full Color IPS LCD
Pump Speed2600 - 3400 +/- 10% RPM
Radiator Size394 x 120 x 27 mm
Radiator MaterialAluminum
Fan Size3 Fan Slots (120 mm)
Fan Dim.120 x 120 x 28.8 mm
Fan RPM0 - 2500 RPM +/- 10% RPM
Fan Air Flow70.88 CFM
Fan Noise35.5 dBA
ColorBlack
LED ColorARGB
Pressure3.55 mmH2O
Tube Dim.450 mm
Tube MaterialSleeved Rubber tube
Package Contents1 x Warranty Card
1 x Quick Start Guide
1 x Accessory Pack of Screws and Brackets
3 x 120 mm ARGB Radiator Fan
1 x CPU Liquid Cooler (pre-applied thermal compound)
Shipping weight2.63 kg
Package size452 × 210 × 143 mm

Questions about this item

What is the maximum pump speed before thermal throttling limits sustained performance?

The pump runs between 2600 and 3400 RPM with a 10 percent tolerance, and the 360 mm radiator with 3.55 mmH2O static pressure is designed to maintain flow under continuous load.

How loud are the three 120 mm fans at full speed during all-day operation?

Each fan produces 35.5 dBA at 2500 RPM while moving 70.88 CFM, and the daisy-chain design keeps cable clutter low for consistent airflow.

Which CPU socket bracket must already be in the case for this cooler to mount?

The block supports AMD Socket AM4, AMD Socket AM5, Intel LGA 1700 and Intel LGA 1851; the accessory pack includes the matching brackets and screws.
