Black slim barebone Mini-PC with front ports

ASUS

ASUS NUC 12 Pro Kit Wall Street Canyon Core i3-1220P Slim Barebone Mini-PC

SKU CH-986B-QR3ZW

Slim barebone mini-PC with Intel Core i3-1220P, dual-channel DDR4-3200 SO-DIMM slots up to 64 GB, two M.2 slots, 2.5 Gb LAN, Wi-Fi 6E, Bluetooth 5.2, dual HDMI 2.0b and Thunderbolt 4

  • ColorBlack
  • CPU TypeIntel® 12th Gen Core™ i3-1220P / 2P+8E/12T / P-Cores: up to
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200
  • Max Memory Supported64GB
  • 12th Gen Core i3-1220P with 12 threads handles multitasking
  • Dual-channel DDR4-3200 SO-DIMM slots support up to 64 GB
  • Two M.2 slots accept PCIe Gen 4 NVMe or SATA SSDs
  • Intel Wi-Fi 6E AX211 and Bluetooth 5.2 for fast wireless
  • Dual HDMI 2.0b plus Thunderbolt 4 drive multiple displays

ASUS NUC 12 Pro Kit i3-1220P Slim Barebone

This slim barebone mini-PC arrives with an Intel Core i3-1220P processor featuring 2 performance cores and 8 efficient cores reaching 4.4 GHz and 3.3 GHz respectively. It targets users building a compact desktop for office productivity, digital signage or light development work who want to choose their own memory and storage.

Installation notes for RNUC12WSKI30001

The board provides two 260-pin SO-DIMM slots supporting dual-channel DDR4 3200 up to 64 GB and two M.2 sockets: one 22x80 for PCIe x4 Gen 4 NVMe or SATA up to 8 TB, plus one 22x42 for PCIe x1 Gen 3 NVMe or SATA up to 512 GB. A 19 V 120 W power connector is required; the power cord is included. Builders sometimes forget the 22x42 slot is limited to PCIe x1 Gen 3 speeds.

Suits compact office and signage builds.

The integrated Intel UHD Graphics drives two HDMI 2.0b outputs and Thunderbolt 4 for displays, while 2.5 Gb LAN, Wi-Fi 6E AX211 and Bluetooth 5.2 handle connectivity. Front USB 3.2 Gen 2 Type-A and a 3.5 mm headset jack add convenience. Buyers who need a discrete graphics card, more than two M.2 drives or memory beyond 64 GB should look at larger form-factor systems.

Highlights

  • 12th Gen Core i3-1220P with 12 threads handles multitasking
  • Dual-channel DDR4-3200 SO-DIMM slots support up to 64 GB
  • Two M.2 slots accept PCIe Gen 4 NVMe or SATA SSDs
  • Intel Wi-Fi 6E AX211 and Bluetooth 5.2 for fast wireless
  • Dual HDMI 2.0b plus Thunderbolt 4 drive multiple displays

Specifications

BrandASUS
SeriesNUC 12
Part NumberRNUC12WSKI30001
ColorBlack
CPU TypeIntel® 12th Gen Core™ i3-1220P / 2P+8E/12T / P-Cores: up to 4.4GHz - E-Cores: up to 3.3GHz
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
M.2 Slot1x M.2 22x80 socket supporting PCIe x4 Gen 4 NVMe from 128GB to 8TB or SATA SSD from 128GB to 2TB
1x M.2 22x42 socket supporting PCIe x1 Gen3 NVMe from 128GB to 512GB or SATA SSD from 128GB to 512GB
Integrated GraphicsIntel® UHD Graphics
Onboard Audio7.1 multichannel digital audio via HDMI or Thunderbolt
Channel7.1 Channel
LAN1x 2.5Gb LAN (i225-V)
Wireless LANIntel Wi-Fi 6E AX211, 802.11ax
BluetoothBluetooth 5.2
Front USB2x Front USB 3.2 Gen2 type-A
Front Audio Ports3.5mm stereo headset jack
HDMI2x HDMI 2.0b
Thunderbolt 32x Thunderbolt 4

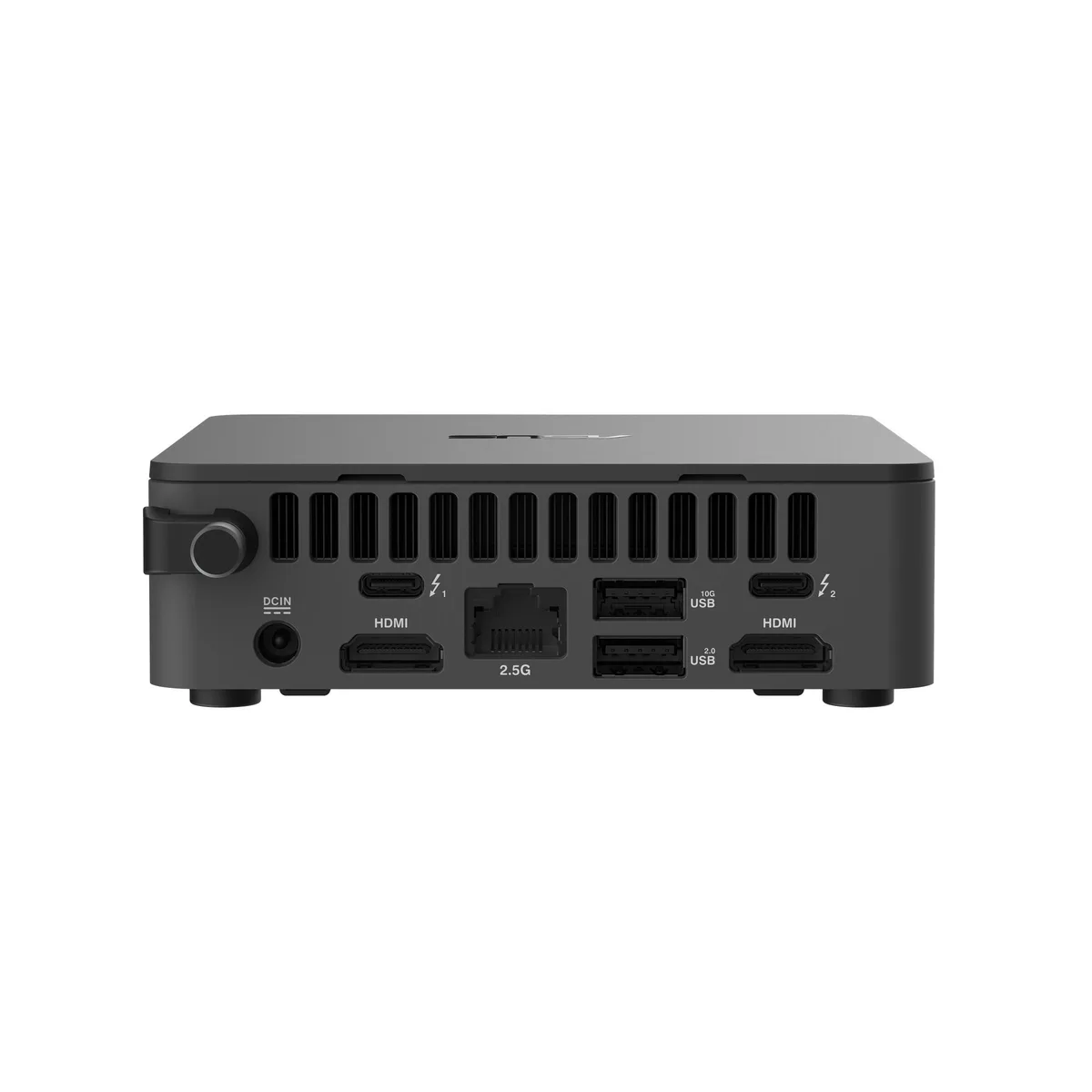

Rear USB1x Rear USB 3.2 Gen2 type-A
1x Rear USB 2.0 type-A
RJ451x Intel 2.5Gb LAN
Input12-20VDC variable DC input
Power Supply90W 19V PSU supplied
Dimensions117x112x37mm
FeaturesDisplay emulation via HDMI (Virtual display, persistent display, headless display) / Delayed AC start / Auto CMOS reset / DC transient voltage suppression

Questions about this item

How can I verify the Core i3-1220P and UHD Graphics are detected correctly after installing memory and storage?

Enter the BIOS on first boot to confirm the processor shows 2P+8E cores with P-cores up to 4.4GHz and E-cores up to 3.3GHz, and that Intel UHD Graphics appears as the display adapter.

Which components are included and which must be purchased separately for this barebone kit?

The unit includes the chassis, motherboard with soldered Core i3-1220P, 19V 120W power adapter, and power cord. You must buy two DDR4-3200 SO-DIMMs up to 64GB total and one or two M.2 SSDs (22x80 and optional 22x42).

Which M.2 slot should I use for the primary NVMe boot drive and which for a secondary SATA drive?

Use the 22x80 slot for the boot NVMe SSD (PCIe x4 Gen 4, 128GB to 8TB) and the 22x42 slot for a secondary SATA or PCIe x1 Gen 3 NVMe drive (128GB to 512GB).
